SKKT42/08E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKKT42/08E

SKKT42/08E: DescriptionSilicon Controlled Rectifier, 75A I(T)RMS, 40000mA I(T), 800V V(DRM), 800V V(RRM), 2 Element, CASE A 46, SEMIPACK 1, 7 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size973KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKT42/08E Overview

Silicon Controlled Rectifier, 75A I(T)RMS, 40000mA I(T), 800V V(DRM), 800V V(RRM), 2 Element, CASE A 46, SEMIPACK 1, 7 PIN

SKKT42/08E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2009247623
Parts packaging code	TO-240
package instruction	FLANGE MOUNT, R-XUFM-X7
Contacts	3
Manufacturer packaging code	CASE A 46
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.02
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G-2GR
Description of screw terminals	A-K-AK
Maximum holding current	250 mA
JESD-30 code	R-XUFM-X7
JESD-609 code	e2
Maximum leakage current	15 mA
On-state non-repetitive peak current	1000 A
Number of components	2
Number of terminals	7
Maximum on-state current	40000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	75 A
Guideline	UL RECOGNIZED
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal surface	TIN SILVER
Terminal form	UNSPECIFIED
Terminal location	UPPER
Trigger device type	SCR

Preview

Download Datasheet

View All

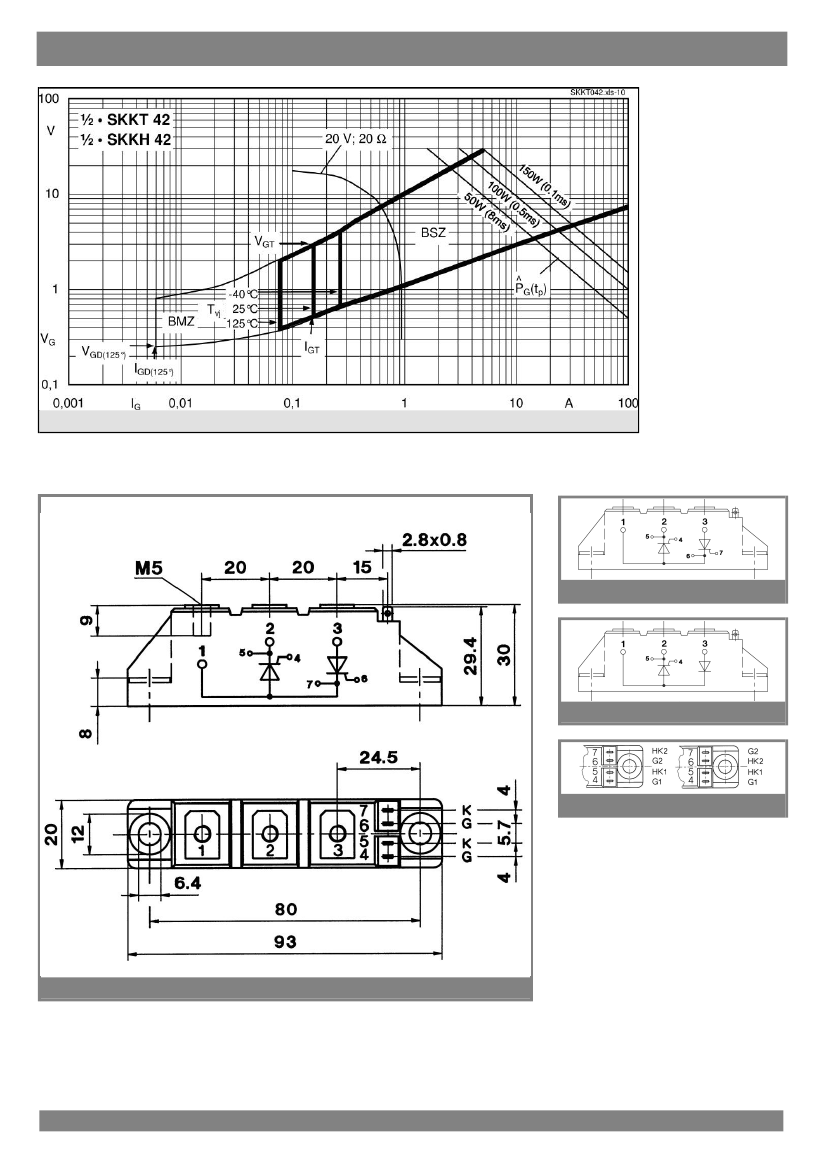

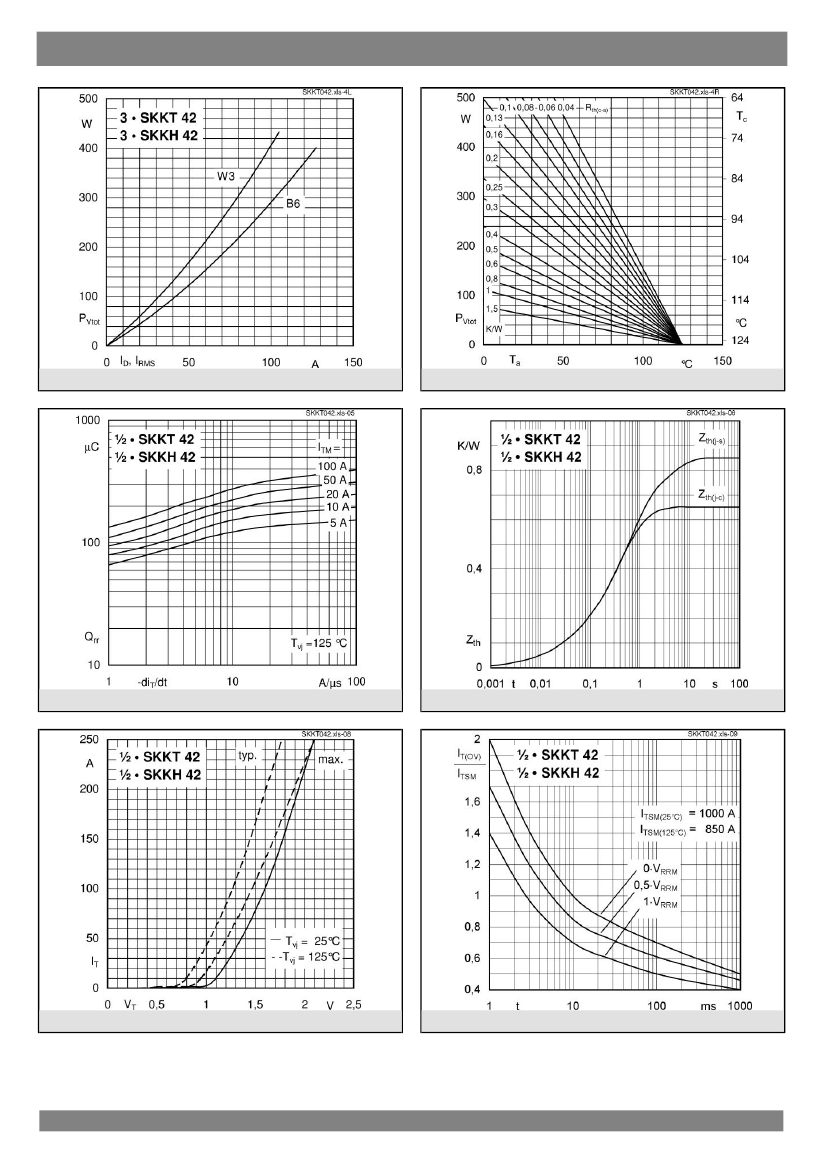

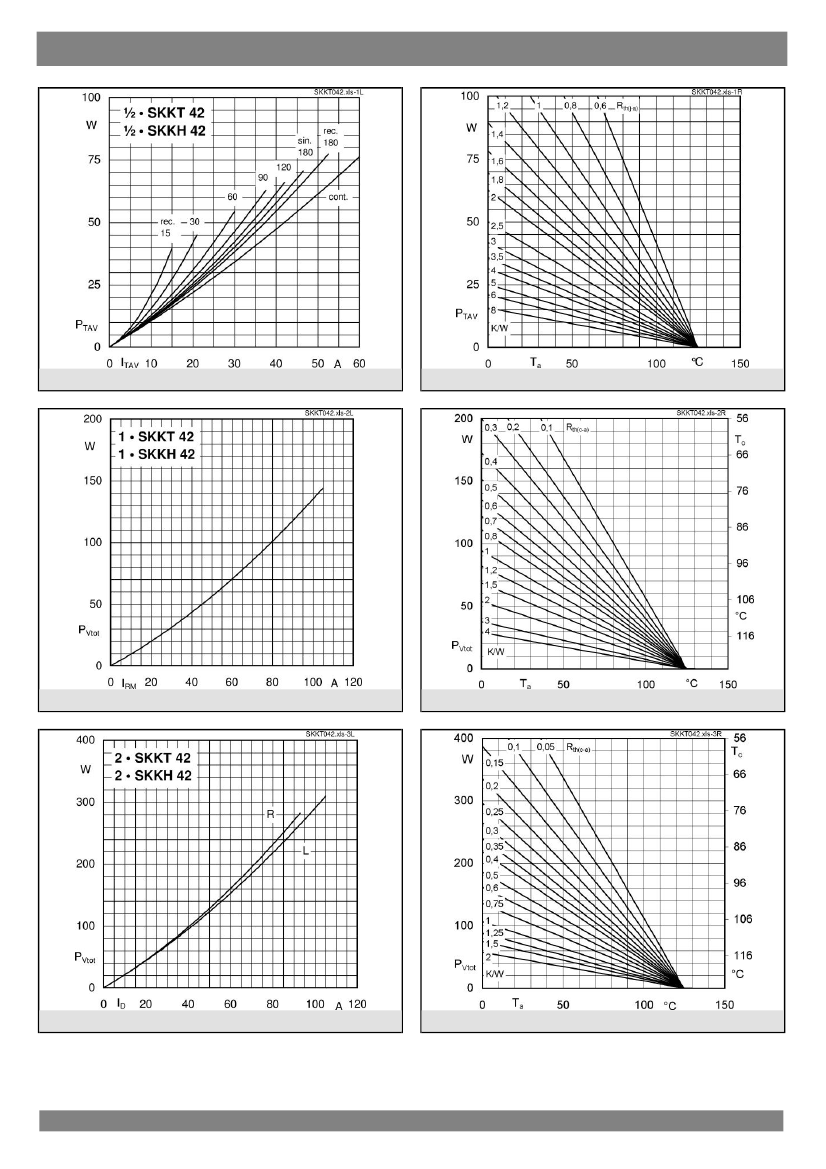

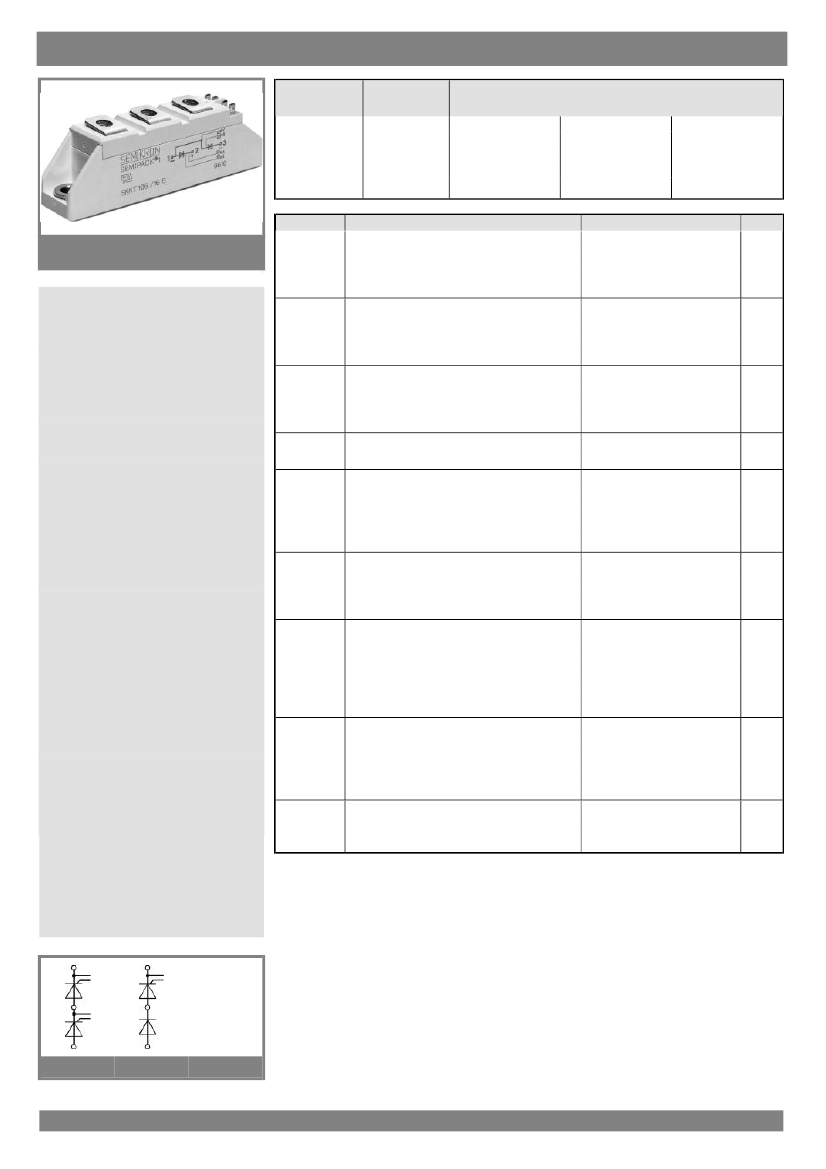

SKKT 42, SKKT 42B, SKKH 42

THYRISTOR

Symbol

Conditions

Values

Units

SEMIPACK

Thyristor / Diode Modules

SKKT 42

SKKT 42B

SKKH 42

Features

Typical Applications

SKKT

SKKH

09-03-2004 NOS

SKKT42/08E Related Products

	SKKT42/08E	SKKT42B16E	SKKT42B14E	SKKT42B12E	SKKT42B08E	SKKT42/16E	SKKT42/14E	SKKT42/12E	SKKH42/08E
Description	Silicon Controlled Rectifier, 75A I(T)RMS, 40000mA I(T), 800V V(DRM), 800V V(RRM), 2 Element, CASE A 46, SEMIPACK 1, 7 PIN	75 A, 1600 V, SCR	75 A, 1600 V, SCR	75 A, 1600 V, SCR	75 A, 1600 V, SCR	75 A, 1600 V, SCR	Silicon Controlled Rectifier, 75A I(T)RMS, 40000mA I(T), 1400V V(DRM), 1400V V(RRM), 2 Element, TO-240AA, CASE A 46, SEMIPACK 1, 7 PIN	75 A, 1600 V, SCR	75 A, 1600 V, SCR
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	TO-240	TO-240	TO-240	TO-240	TO-240	TO-240AA	TO-240AA	TO-240AA	TO-240
package instruction	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-X5
Contacts	3	3	3	3	3	7	7	7	3
Manufacturer packaging code	CASE A 46	CASE A 48	CASE A 48	CASE A 48	CASE A 48	CASE A 46	CASE A 46	CASE A 46	CASE A 47
Reach Compliance Code	compliant	compli	compli	compli	compli	compli	compliant	compli	compli
Other features	HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SINGLE WITH BUILT-IN DIODE
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Quick connection description	2G-2GR	2G-2GR	2G-2GR	2G-2GR	2G-2GR	2G-2GR	2G-2GR	2G-2GR	G-GR
Description of screw terminals	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK
Maximum holding current	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA
JESD-30 code	R-XUFM-X7	R-XUFM-X7	R-XUFM-X7	R-XUFM-X7	R-XUFM-X7	R-XUFM-X7	R-XUFM-X7	R-XUFM-X7	R-XUFM-X5
JESD-609 code	e2	e2	e2	e2	e2	e2	e2	e2	e2
Maximum leakage current	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
On-state non-repetitive peak current	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A
Number of components	2	2	2	2	2	2	2	2	1
Number of terminals	7	7	7	7	7	7	7	7	5
Maximum on-state current	40000 A	48000 A	48000 A	48000 A	40000 A	40000 A	40000 A	40000 A	40000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	75 A	75 A	75 A	75 A	75 A	75 A	75 A	75 A	75 A
Off-state repetitive peak voltage	800 V	1600 V	1400 V	1200 V	800 V	1600 V	1400 V	1200 V	800 V
Repeated peak reverse voltage	800 V	1600 V	1400 V	1200 V	800 V	1600 V	1400 V	1200 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN SILVER	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	TIN SILVER	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	1	1	1	1	1	-	-	1
