399-10-103-10-009: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector; File Size149KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

399-10-103-10-009 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal

399-10-103-10-009 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACTS: 3404-0-00-15-00-00-03-0; 5011-0-00-15-00-00-03-0
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	399
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

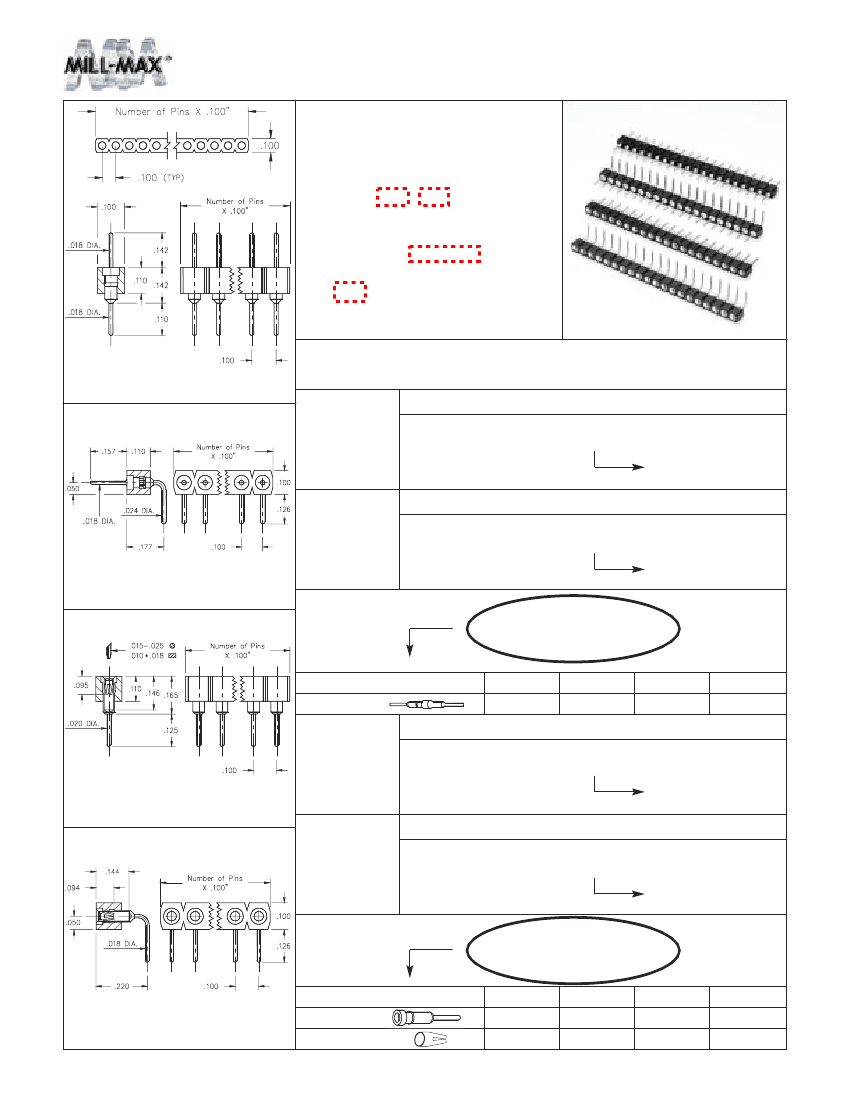

INTERCONNECTS

.018” dia. Pins Straight and Right Angle

Single Row

•

Series 3XX are available with

straight and right angle solder

tails.

•

Series 350 & 399...009 use

MM# 3404 & 5011 pins. (See

pages 170 & 172 for details)

•

Series 310 & 399...003 use

MM# 1001 & 1103 receptacles

(see pages 134 & 135 for details)

•

Receptacles use Hi-Rel, 4-finger

#30 contact rated at 3 amps.

•

Hi-Temp thermoplastic insulator

available upon request.

Series 310, 350, 399

Ordering Information

Fig. 1

Series 350...006

Straight Pin Header

Fig. 1

350-XX-1_ _-00-006

Specify # of pins

Series 399...009

01-64

Right Angle Pin Header

Fig. 2

399-XX-1_ _-10-009

Specify # of pins

01-64

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10µ” Au

90

200µ” Sn/Pb

Pin Plating

Series 310...001

Straight Socket

Fig. 3

310-XX-1_ _-41-001

Specify # of pins

Series 399...003

01-64

Right Angle Socket

Fig. 4

399-XX-1 _ _-10-003

Specify # of pins

01-64

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

91

10µ” Au

93

30µ” Au

99

200µ”Sn/Pb

Fig. 4

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb 200µ” Sn/Pb 200µ”Sn/Pb

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
