5KP SERIES
Technical Data
Data Sheet N0213, Rev. A
5KP SERIES GLASS PASSIVATED
TRANSIENT VOLTAGE SUPPRESSOR
Features
Glass Passivated Die Construction
5000W Peak Pulse Power Dissipation
5.0V- 110V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL Flammability Classification
Rating 94V-O
This is a Pb − Free Device
All SMC Parts are Traceable to the Wafer Lot
Additional testing can be offered upon request
P-600

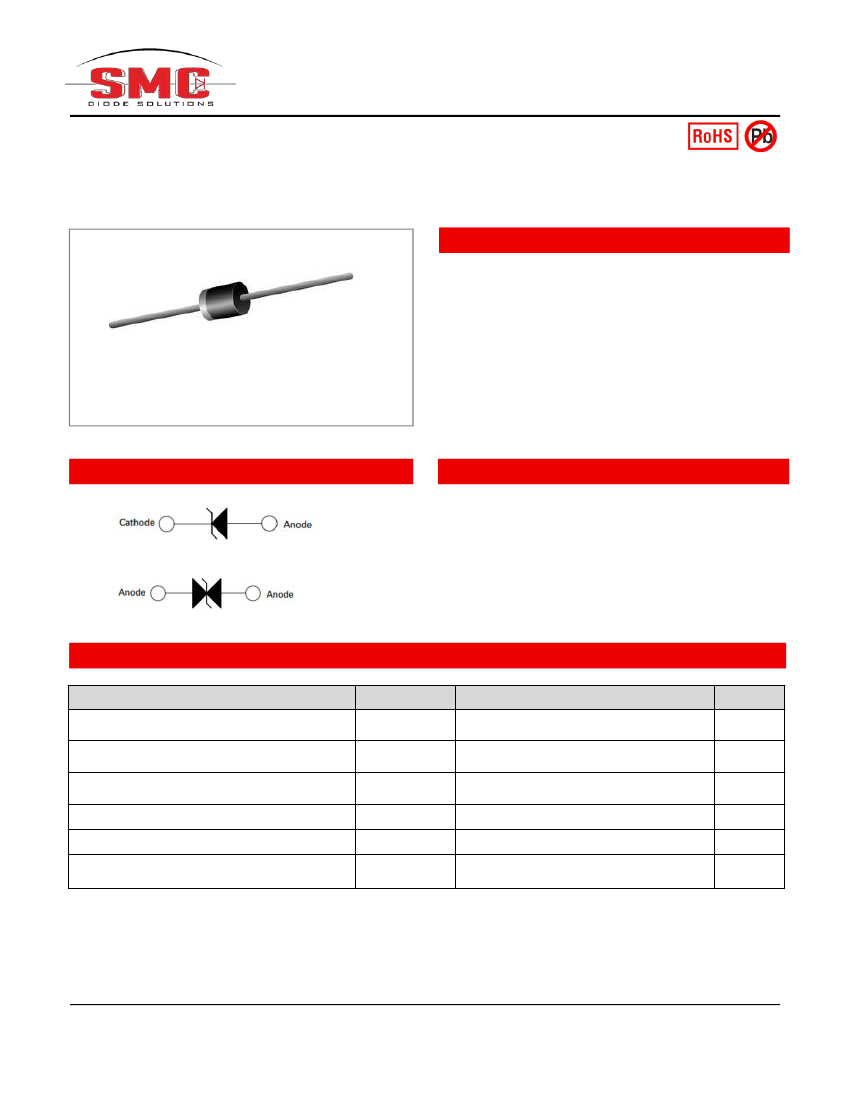

Circuit Diagram
Mechanical Data
Case: JEDEC P-600 Molded Plastic
Terminals: Axial leads , Solderable per
MIL-STD 750, Method 2026
Polarity: Cathode Band or Cathode Notch
Mounting Position: Any
Weight:2.1 grams(approx.)
Unipolar
Bipolar
Maximum Ratings and Thermal Characteristics
@T
A
=25°C unless otherwise specified
Parameter
Peak Pulse Power Dissipation at
T
A
=25°C
(Fig.1)(Note 1, 2, 5)
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave(Note 3)
Steady State Power Dissipation
(Note 2, 4)
Typical Thermal Resistance Junction to Lead
Typical Thermal Resistance Junction to Ambient
Operating Junction and Storage
Temperature Range
Symbol
P
PPM
I
FSM
P
M(AV)
R
θJL
R
θJA
T
J
,T
STG
Value
5000
400
8.0
8.0
40
-55 to 175
Unit
W
A
W
°C/W
°C/W
°C
Notes:
1. Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2.
2. Mounted on 20mm² copper pads.
3. 8.3ms single half sine wave, duty cycle=4 pulses per minute maximum.
4. Lead
temperature at 75°C=T
L
5.
Peak pulse power waveform is 10x1000μs
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
5KP SERIES
Technical Data
Data Sheet N0213, Rev. A
Electrical Characteristics
@T
A
=25°C unless otherwise specified
UNI-POLAR
REVERSE
STAND-OFF
VOLTAGE
V
RWM
(V)
5
6
6.5
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
BREAKDOWN
VOLTAGE
V
BR
(V) MIN.
@I
T
6.4
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
BREAKDOWN
VOLTAGE V
BR
(V) MAX.
@I
T
7
7.37
7.98
8.6
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86
92.1
95.8
104
111
123
135
TEST
CURREN
T
I
T
(MA)
50
50
50
50
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
MAXMUM
CLAMPING
VOLTAGE
@I
PP
V
C
(V)
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
PEAK
PULSE
CURRENT
I
PP
(A)
544
486
447
417
388
368
348
325
295
275
252
233
216
205
193
181
172
154
141
129
119
110
103
93.9
86.1
77.6
72.1
68.8
64.7
60.7
57.5
53.5
51.7
48.6
44.3
41.4
39.7
36.5
34.3
30.9
28.3
REVERSE
LEAKAGE
@V
RWM
I
R
(uA)
2000
5000
2000
1000
250
150
50
20
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
5KP5.0A
5KP6.0A
5KP6.5A
5KP7.0A
5KP7.5A
5KP8.0A
5KP8.5A
5KP9.0A
5KP10A
5KP11A
5KP12A
5KP13A
5KP14A
5KP15A
5KP16A
5KP17A
5KP18A
5KP20A
5KP22A
5KP24A
5KP26A
5KP28A
5KP30A
5KP33A
5KP36A
5KP40A
5KP43A
5KP45A
5KP48A
5KP51A
5KP54A
5KP58A
5KP60A
5KP64A
5KP70A
5KP75A
5KP78A
5KP85A
5KP90A
5KP100A
5KP110A
For bidirectional type having VR of 10 volts and less, the IR limit is double.
For parts without A , the VBR is + 10% and VC is 5% higher than with A parts.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
5KP SERIES
Technical Data
Data Sheet N0213, Rev. A
REVERSE
STAND-OFF
VOLTAGE
V
RWM
(V)
5
6
6.5
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
BREAKDOWN
VOLTAGE
V
BR
(V) MIN.
@I
T
6.4
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
BREAKDOWN
VOLTAGE V
BR
(V) MAX.
@I
T
7
7.37
7.98
8.6
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86
92.1
95.8
104
111
123
135
TEST
CURREN
T
I
T
(MA)
50
50
50
50
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
MAXMUM
CLAMPING
VOLTAGE
@I
PP
V
C
(V)
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
PEAK
PULSE
CURRENT
I
PP
(A)
544
486
447
417
388
368
348
325
295
275
252
233
216
205
193
181
172
154
141
129
119
110
103
93.9
86.1
77.6
72.1
68.8
64.7
60.7
57.5
53.5
51.7
48.6
44.3
41.4
39.7
36.5
34.3
30.9
28.3
BI-POLAR
REVERSE
LEAKAGE
@V
RWM
I
R
(uA)
4000
10000
4000
2000
500
300
100
40
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
5KP5.0CA
5KP6.0CA
5KP6.5CA
5KP7.0CA
5KP7.5CA
5KP8.0CA
5KP8.5CA
5KP9.0CA
5KP10CA
5KP11CA
5KP12CA
5KP13CA
5KP14CA
5KP15CA
5KP16CA
5KP17CA
5KP18CA
5KP20CA
5KP22CA
5KP24CA
5KP26CA
5KP28CA
5KP30CA
5KP33CA
5KP36CA
5KP40CA
5KP43CA
5KP45CA
5KP48CA
5KP51CA
5KP54CA
5KP58CA
5KP60CA
5KP64CA
5KP70CA
5KP75CA
5KP78CA
5KP85CA
5KP90CA
5KP100CA
5KP110CA
For bidirectional type having VR of 10 volts and less, the IR limit is double.
For parts without A , the VBR is + 10% and VC is 5% higher than with A parts.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com

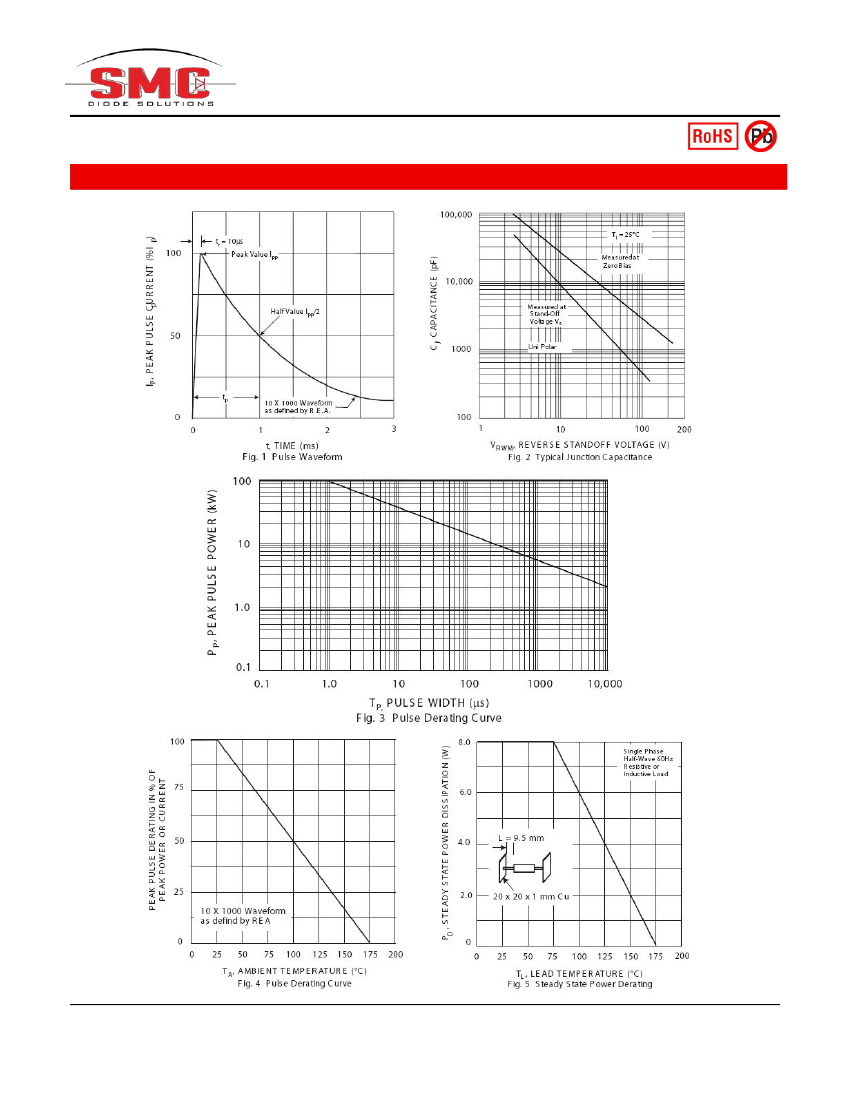

5KP SERIES
Technical Data
Data Sheet N0213, Rev. A

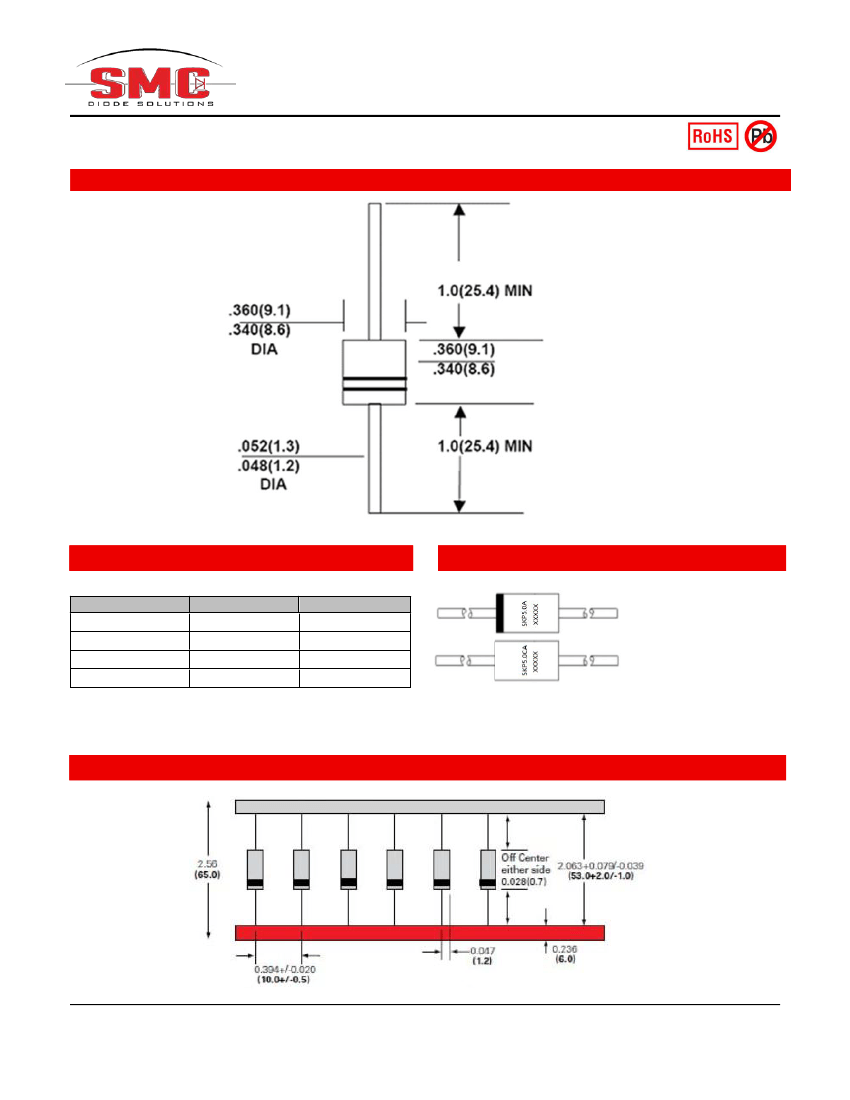

Mechanical Dimensions P-600(Inches/Millimeters)
Ordering Information
Device
5KP SERIES
5KP SERIES TR
5KP SERIES
5KP SERIES TA
Package
P-600(Pb-Free)
P-600(Pb-Free)
P-600(Pb-Free)
P-600(Pb-Free)
Shipping
800pcs /Reel
800pcs /Reel
300pcs /Tape
300pcs /Tape
Marking Diagram
Where XXXXX is YYWWL
5KP5.0A/5KP5.0CA
YY
WW
L
= Part Name
= Year
= Week
= Lot Number
Cautions：Molding resin
Epoxy resin UL:94V-0
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Carrier Tape Specification P-600
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
