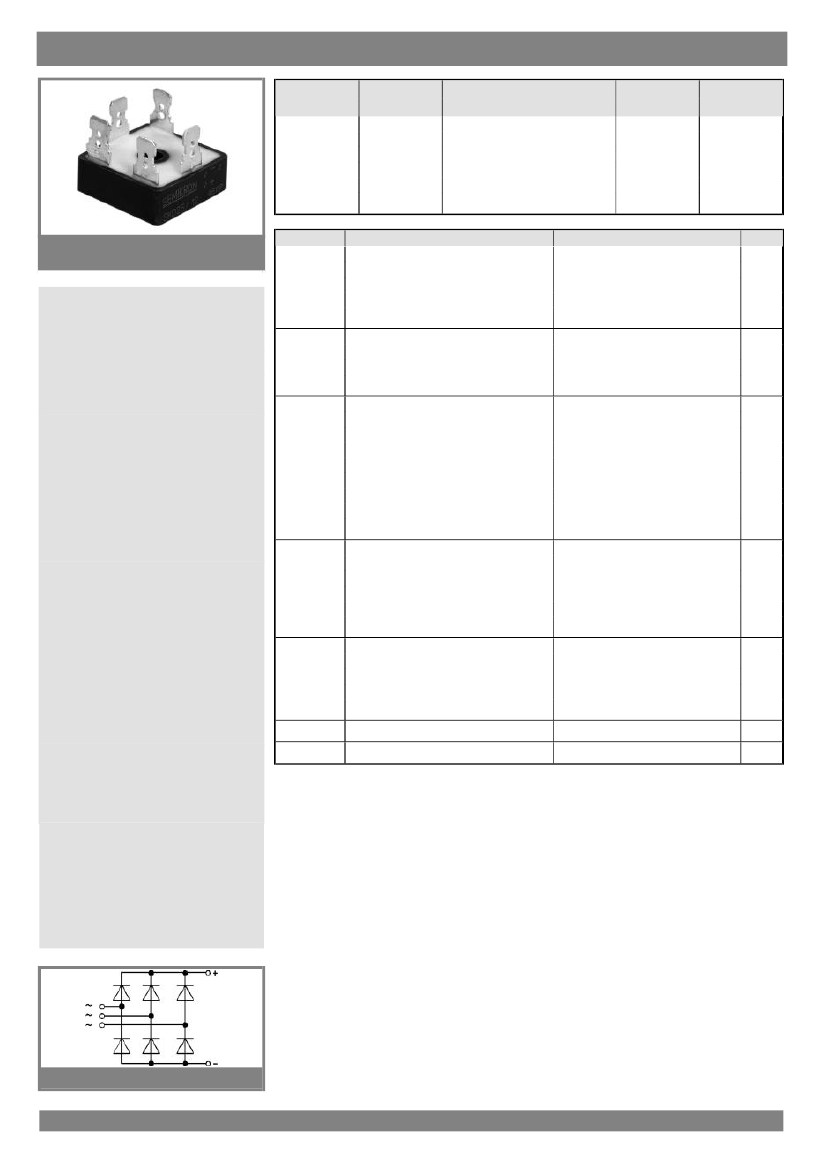

3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE

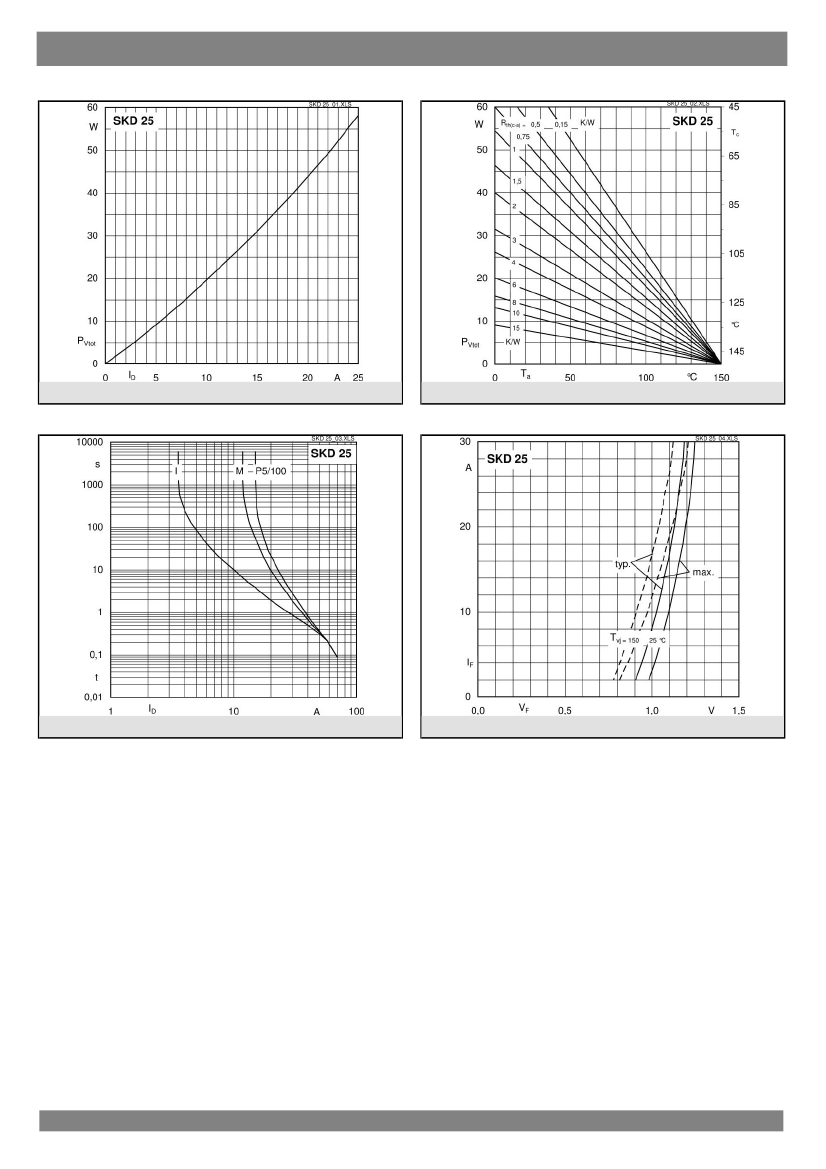

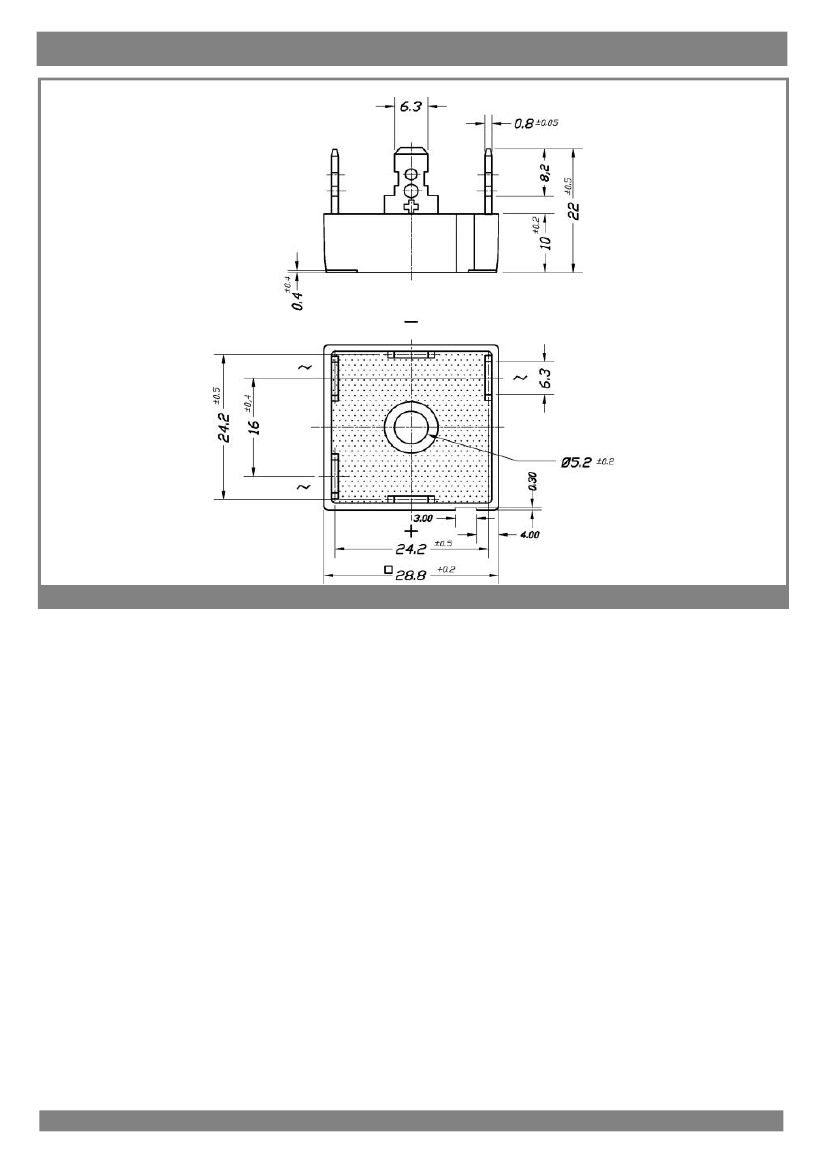

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | SEMIKRON |
| package instruction | S-PUFM-D4 |
| Contacts | 4 |
| Manufacturer packaging code | CASE G 10B |
| Reach Compliance Code | compliant |
| Other features | UL RECOGNIZED |
| Shell connection | ISOLATED |
| Configuration | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 2.2 V |
| JESD-30 code | S-PUFM-D4 |
| JESD-609 code | e2 |
| Maximum non-repetitive peak forward current | 320 A |
| Number of components | 4 |
| Phase | 1 |
| Number of terminals | 4 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 3.5 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | SQUARE |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V |
| Maximum reverse current | 0.0003 µA |
| Maximum reverse recovery time | 10 µs |
| surface mount | NO |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| SKB25/04 | SKB25/02 | SKB25/08 | SKD25_04 | SKB25/16 | SKB25/14 | SKB25/12 | |
|---|---|---|---|---|---|---|---|
| Description | 3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE | 3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE | 3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE | 3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE | 3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE | 3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE | 3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| Maximum non-repetitive peak forward current | 320 A | 320 A | 320 A | 320 A | 320 A | 320 A | 320 A |
| Number of components | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Maximum repetitive peak reverse voltage | 400 V | 200 V | 800 V | 1200 V | 1600 V | 1400 V | 1200 V |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| Is it lead-free? | Lead free | Lead free | Lead free | - | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | - | conform to | conform to | conform to |
| Maker | SEMIKRON | SEMIKRON | SEMIKRON | - | SEMIKRON | SEMIKRON | SEMIKRON |
| package instruction | S-PUFM-D4 | S-PUFM-D4 | S-PUFM-D4 | - | S-PUFM-D4 | S-PUFM-D4 | S-PUFM-D4 |
| Contacts | 4 | 4 | 4 | - | 4 | 4 | 4 |
| Manufacturer packaging code | CASE G 10B | CASE G 10B | CASE G 10B | - | CASE G 10B | CASE G 10B | CASE G 10B |
| Reach Compliance Code | compliant | compli | compli | - | compliant | compliant | compli |
| Other features | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED | - | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED |
| Configuration | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | - | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS |
| Maximum forward voltage (VF) | 2.2 V | 2.2 V | 2.2 V | - | 2.2 V | 2.2 V | 2.2 V |
| JESD-30 code | S-PUFM-D4 | S-PUFM-D4 | S-PUFM-D4 | - | S-PUFM-D4 | S-PUFM-D4 | S-PUFM-D4 |
| JESD-609 code | e2 | e2 | e2 | - | e2 | e2 | e2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | - | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | - | -40 °C | -40 °C | -40 °C |
| Maximum output current | 3.5 A | 3.5 A | 3.5 A | - | 3.5 A | 3.5 A | 3.5 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | SQUARE | SQUARE | SQUARE | - | SQUARE | SQUARE | SQUARE |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | - | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum reverse current | 0.0003 µA | 0.0003 µA | 0.0003 µA | - | 0.0003 µA | - | 0.0003 µA |
| Maximum reverse recovery time | 10 µs | 10 µs | 10 µs | - | 10 µs | - | 10 µs |
| surface mount | NO | NO | NO | - | NO | NO | NO |
| Terminal surface | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | - | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
