Datasheet> All Categories > Discrete semiconductor> diode> SKBB80C1500L5B

Preview

SKBB80C1500L5B: DescriptionMiniature Bridge Rectifiers; CategoryDiscrete semiconductor diode; File Size212KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKBB80C1500L5B Overview

Miniature Bridge Rectifiers

SKBB80C1500L5B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	R-PSIP-T4
Contacts	4
Manufacturer packaging code	CASE G 2
Reach Compliance Code	compli
Other features	SNUBBER DIODE
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-30 code	R-PSIP-T4
JESD-609 code	e2
Maximum non-repetitive peak forward current	70 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	5 µA
Maximum reverse recovery time	10 µs
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

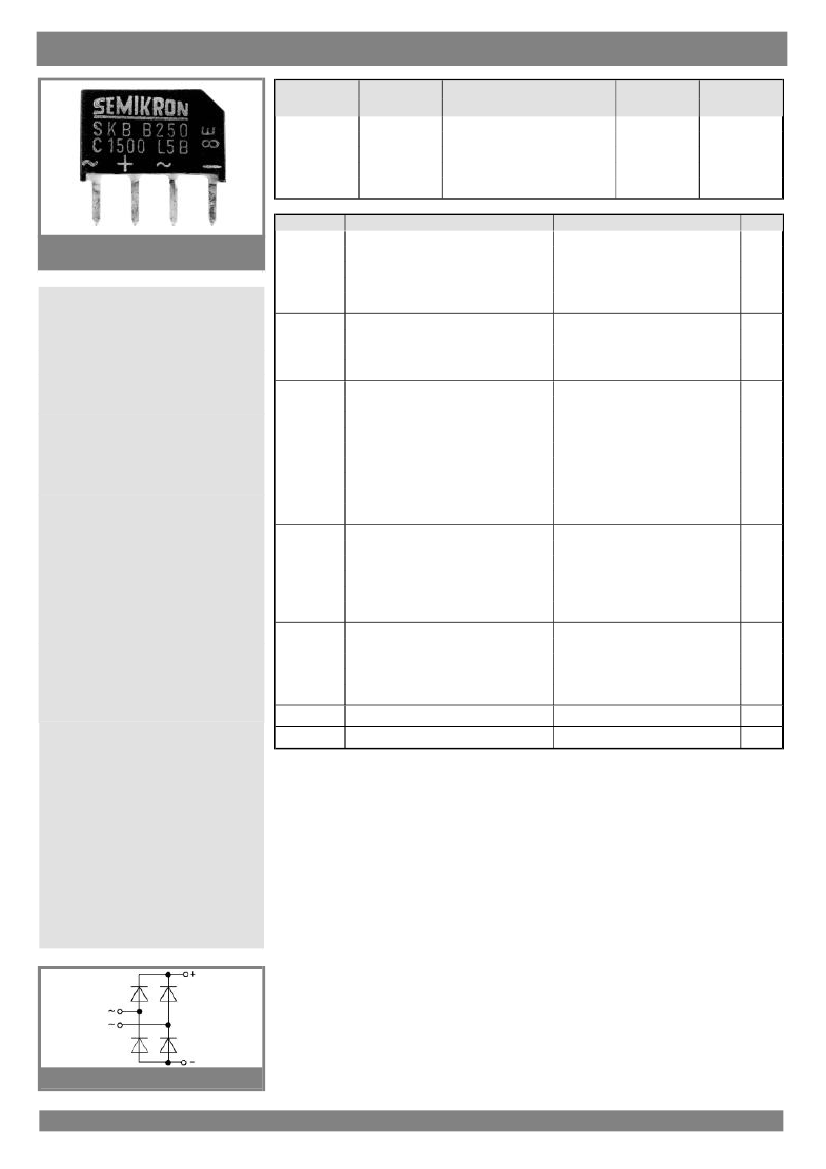

SKB B...C1500L5B

Symbol

Conditions

Values

Units

Miniature Bridge

Rectifiers

SKB B...C1500L5B

Features

Typical Applications

1)

SKB

1

04-04-2007 CLG

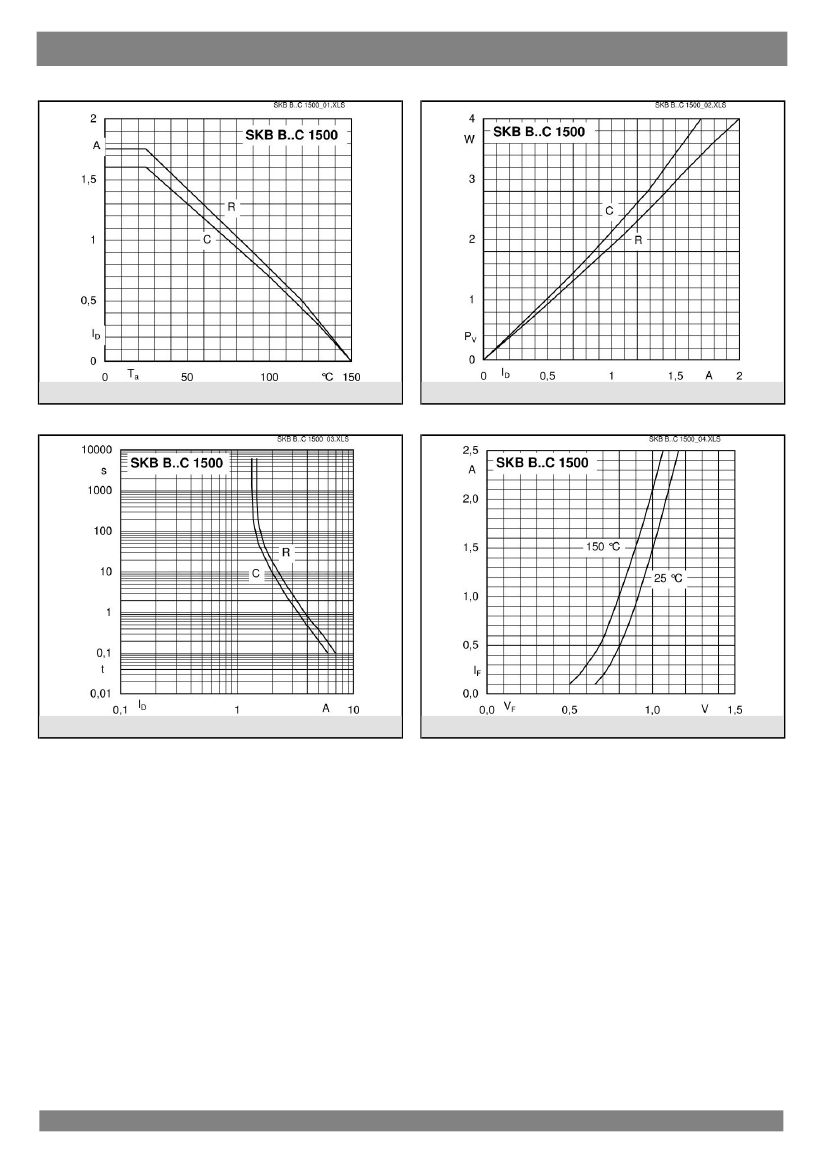

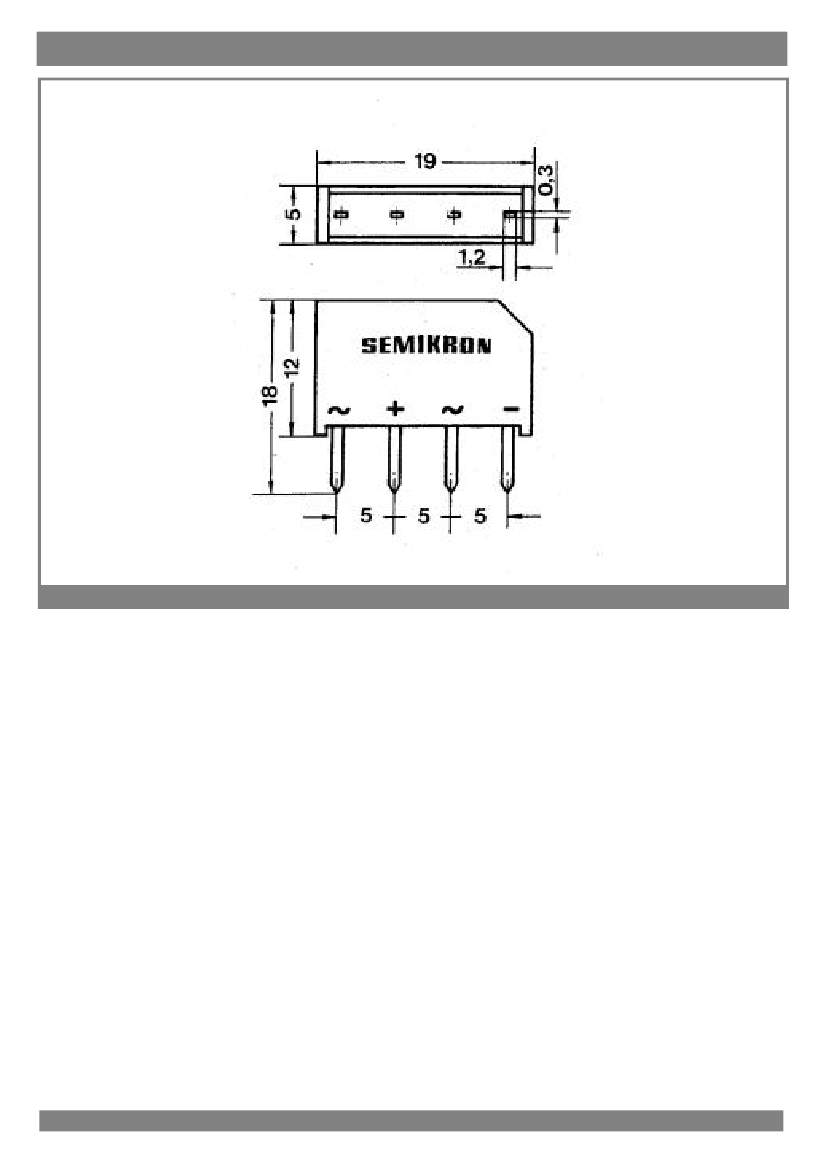

SKBB80C1500L5B Related Products

	SKBB80C1500L5B	SKBB40C1500L5B	SKBB500C1500L5B	SKBB380C1500L5B
Description	Miniature Bridge Rectifiers	Miniature Bridge Rectifiers	Miniature Bridge Rectifiers	Miniature Bridge Rectifiers
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Contacts	4	4	4	4
Manufacturer packaging code	CASE G 2	CASE G 2	CASE G 2	CASE G 2
Reach Compliance Code	compli	compli	compli	compli
Other features	SNUBBER DIODE	SNUBBER DIODE	SNUBBER DIODE	SNUBBER DIODE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.5 V	1.5 V	1.5 V
JESD-30 code	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
JESD-609 code	e2	e2	e2	e2
Maximum non-repetitive peak forward current	70 A	70 A	70 A	70 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	120 V	1200 V	1000 V
Maximum reverse current	5 µA	0.00002 µA	5 µA	5 µA
Maximum reverse recovery time	10 µs	10 µs	10 µs	10 µs
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
