SMBJ2K3.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMBJ2K3.0

SMBJ2K3.0: DescriptionTRANSIENT VOLTAGE SUPPRESSOR; CategoryDiscrete semiconductor diode; File Size149KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SMBJ2K3.0 Overview

TRANSIENT VOLTAGE SUPPRESSOR

SMBJ2K3.0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DO-214AA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Minimum breakdown voltage	4.3 V
Maximum clamping voltage	5.4 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	300 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.38 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	3 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

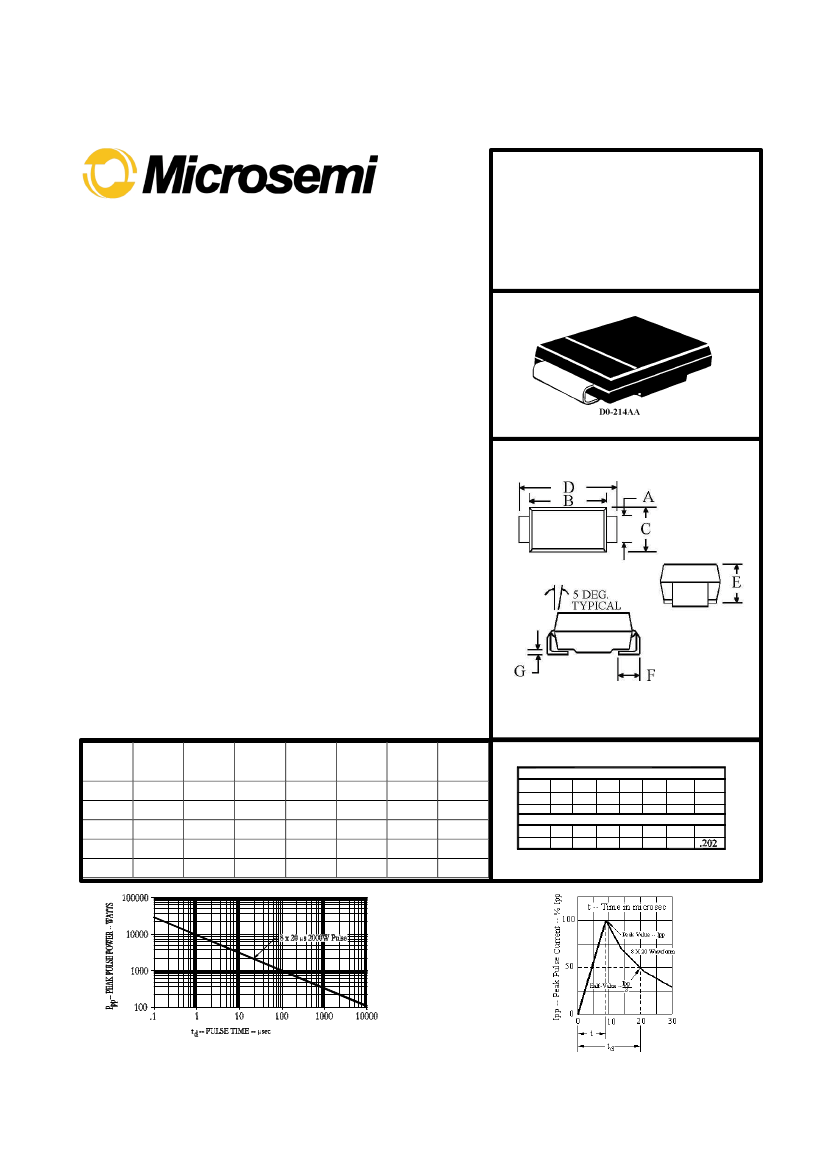

SMBJ2K3.0

8700 E. Thomas Road

Scottsdale, AZ 85251

Tel: (480) 941-6300

Fax: (480) 947-1503

thru

SMBJ2K5.0

TRANSIENT VOLTAGE SUPPRESSOR

DESCRIPTION

SMBJ surface mount package is utilized where power and space is a requirement.

Designed for effective protection of power bus lines from voltage spikes originating

from ESD, line noise (EFT), and induced lighting defined by IEC 1000-4-2, 1000-

4-4, and 1000-4-5 respectively. Advanced technology provides lowest clamping

voltage with surface mount packaging minimizing parasitic inductance.

FEATURES

•

2000 watts Peak Pulse Power 8/20

µs

For surface Mount Applications (flat handling surface for accurate placement).

Voltage and reverse leakage lowest available

High surge capacity provides transient protection for low voltage circuits

UL 94V-0 Flammability Classification

MECHANICAL CHARACTERISTICS

CASE: DO-214AA (SMBJ) outline

Terminals solderable per MIL-STD-750, Method 2026

Maximum temperature for soldering: 260°C for 10 seconds maximum

LEAD MATERIAL: Copper

LEAD FINISH: Tin plate

POLARITY: Cathode end is banded

WEIGHT: 0.2 grams

MOUNTING POSITION: Any

MAXIMUM RATINGS

Operating Temperature: -55°C to +150°C

Storage Temperature: -55°C to +150°C

Steady state Power Dissipation: 3.0 watt @ T

≤

75°C

Repetition rate (duty cycle): .01%

Surge Power: 300 watts @ 10/1000

µs

or 2000 watts @ 8/20

µs

and V

below are @ 8/20

µs

Electrical Characteristics

@ 25° C unless otherwise specified

TYPE

SMBJ

2K3.0

2K3.3

2K4.0

2K4.5

2K5.0

(BR)

MIN

VOLTS

4.3

4.6

5.0

5.4

5.9

(BR)

VOLTS

3.0

3.3

4.0

4.5

5.0

µA

1500

700

400

VOLTS

5.4

5.8

6.3

6.6

7.6

V(BR)

%ºC

+0/-.05

±.025

±.030

±.040

±.050

DIMENSIONS IN INCHES

MIN .077 .160 .130 .205 .075 .030

MAX .083 .180 .155 .220 .095 .060

DIMENSIONS IN MILLIMETERS

MIN 1.96 4.06 3.30 5.21 1.90 0.760

MAX 2.10 4.57 3.94 5.59 2.41 1.520

.004

.008

.101

Peak Pulse Power vs. Pulse Time

MSC0977.PDF

8X20 Pulse Wave Form

REV E 11/23/98

ISO 9001 CERTIFIED

SMBJ2K3.0 Related Products

	SMBJ2K3.0	SMBJ2K3.3	SMBJ2K5.0	SMBJ2K4.5	SMBJ2K4.0	SMBJ2K30
Description	TRANSIENT VOLTAGE SUPPRESSOR	TRANSIENT VOLTAGE SUPPRESSOR	TRANSIENT VOLTAGE SUPPRESSOR	TRANSIENT VOLTAGE SUPPRESSOR	TRANSIENT VOLTAGE SUPPRESSOR	TRANSIENT VOLTAGE SUPPRESSOR
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	-
Parts packaging code	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	-
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	-
Contacts	2	2	2	2	2	-
Reach Compliance Code	_compli	_compli	_compli	compli	_compli	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-
Minimum breakdown voltage	4.3 V	4.6 V	5.9 V	5.4 V	5 V	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	-
JEDEC-95 code	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	-
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	-
JESD-609 code	e0	e0	e0	e0	e0	-
Humidity sensitivity level	1	1	1	-	1	-
Maximum non-repetitive peak reverse power dissipation	300 W	300 W	300 W	300 W	300 W	-
Number of components	1	1	1	1	1	-
Number of terminals	2	2	2	2	2	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	-
Maximum power dissipation	1.38 W	1.38 W	1.38 W	1.38 W	1.38 W	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum repetitive peak reverse voltage	3 V	3.3 V	5 V	4.5 V	4 V	-
surface mount	YES	YES	YES	YES	YES	-
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	-
Terminal surface	Tin/Lead (Sn90Pb10)	Tin/Lead (Sn90Pb10)	Tin/Lead (Sn90Pb10)	TIN LEAD	Tin/Lead (Sn90Pb10)	-
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
