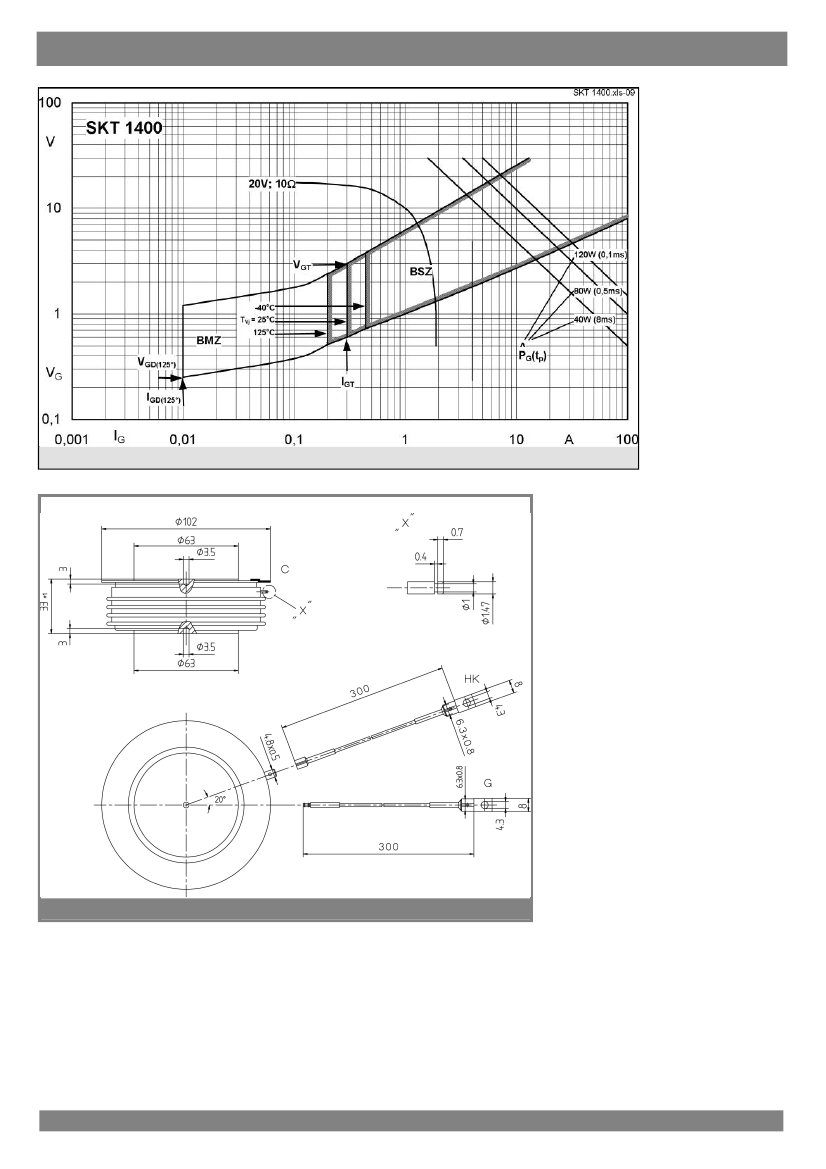

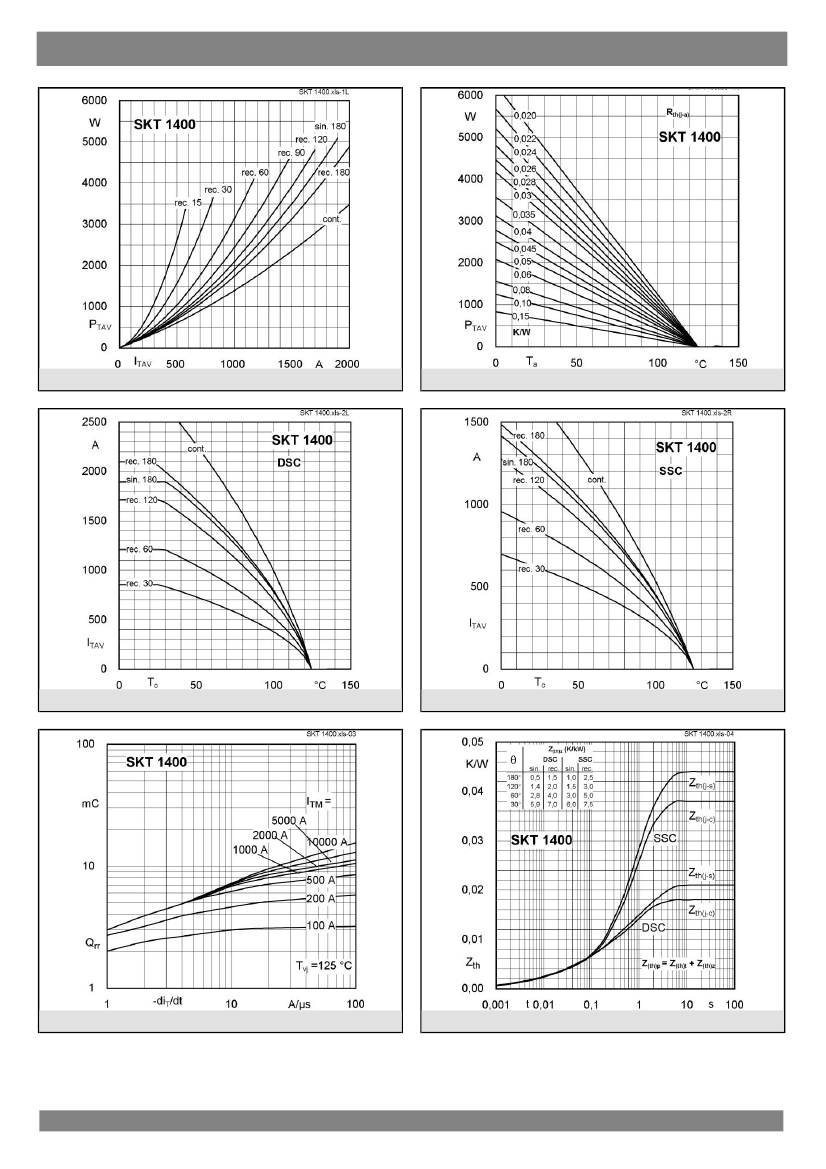

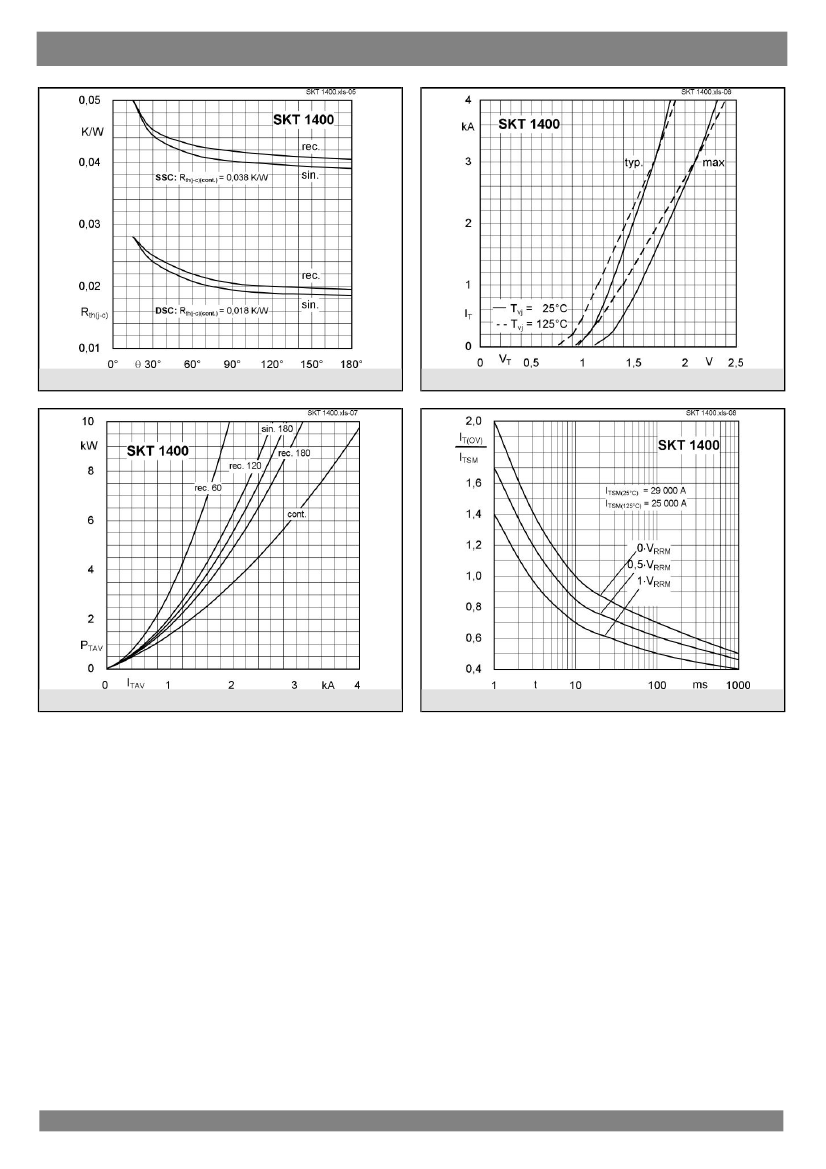

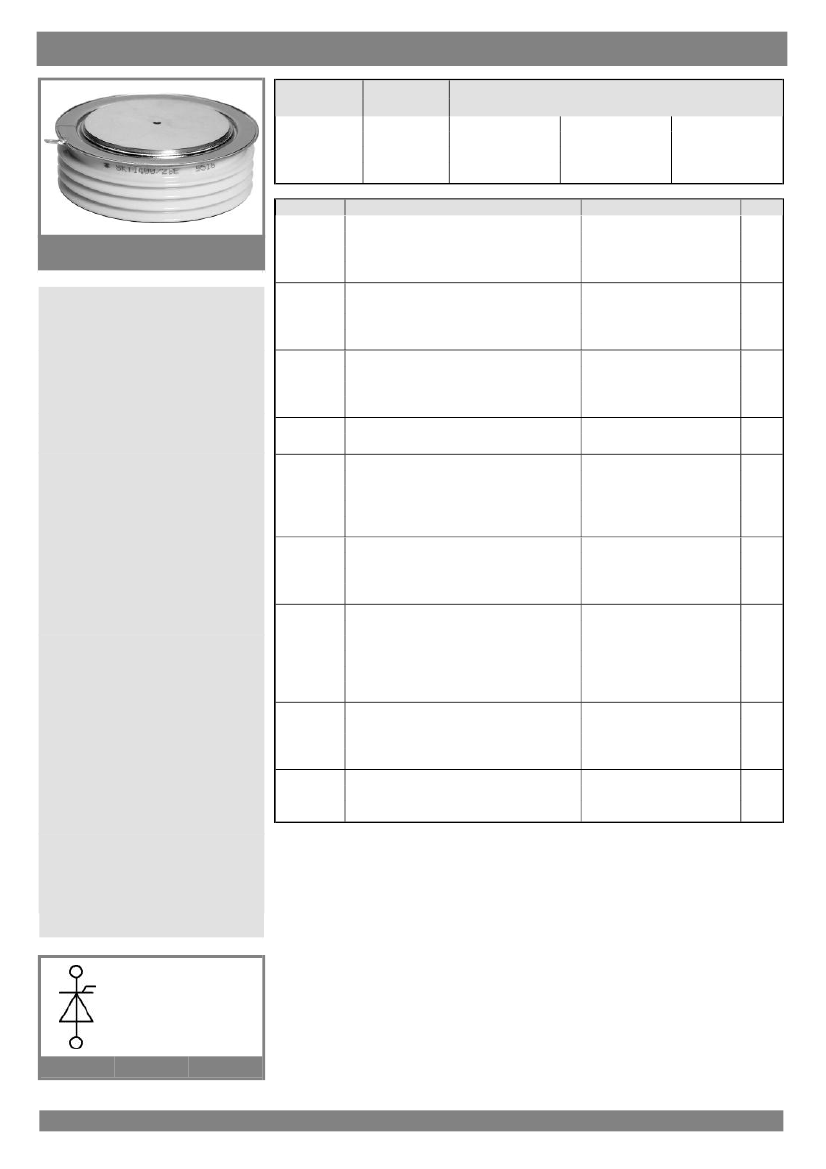

Silicon Controlled Rectifier, 3000A I(T)RMS, 1400000mA I(T), 3200V V(DRM), 3200V V(RRM), 1 Element, TO-200AF, HERMETIC SEALED, METAL, CASE B 19, 4 PIN
| SKT1400/32E | SKT1400/26E | SKT1400/28E | SKT1400/36E | |
|---|---|---|---|---|
| Description | Silicon Controlled Rectifier, 3000A I(T)RMS, 1400000mA I(T), 3200V V(DRM), 3200V V(RRM), 1 Element, TO-200AF, HERMETIC SEALED, METAL, CASE B 19, 4 PIN | Line Thyristor | Line Thyristor | Line Thyristor |
| Is it lead-free? | - | Lead free | Lead free | Lead free |
| Is it Rohs certified? | - | conform to | conform to | conform to |
| Maker | - | SEMIKRON | SEMIKRON | SEMIKRON |
| Parts packaging code | - | BUTTON | BUTTON | BUTTON |
| package instruction | - | DISK BUTTON, O-MXDB-X4 | DISK BUTTON, O-MXDB-X4 | DISK BUTTON, O-MXDB-X4 |
| Contacts | - | 2 | 2 | 2 |
| Manufacturer packaging code | - | CASE B 19 | CASE B 19 | CASE B 19 |
| Reach Compliance Code | - | compli | compliant | compli |
| Shell connection | - | ISOLATED | ISOLATED | ISOLATED |
| Nominal circuit commutation break time | - | 300 µs | 300 µs | 300 µs |
| Configuration | - | SINGLE | SINGLE | SINGLE |
| Critical rise rate of minimum off-state voltage | - | 1000 V/us | 1000 V/us | 1000 V/us |
| Maximum DC gate trigger current | - | 300 mA | 300 mA | 300 mA |
| Maximum DC gate trigger voltage | - | 3 V | 3 V | 3 V |
| Maximum holding current | - | 1000 mA | 1000 mA | 1000 mA |
| JEDEC-95 code | - | TO-200AF | TO-200AF | TO-200AF |
| JESD-30 code | - | O-MXDB-X4 | O-MXDB-X4 | O-MXDB-X4 |
| JESD-609 code | - | e2 | e2 | e2 |
| Maximum leakage current | - | 100 mA | 100 mA | 100 mA |
| On-state non-repetitive peak current | - | 29000 A | 29000 A | 29000 A |
| Number of components | - | 1 | 1 | 1 |
| Number of terminals | - | 4 | 4 | 4 |
| Maximum on-state current | - | 1400000 A | 1400000 A | 1400000 A |
| Maximum operating temperature | - | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | - | -40 °C | -40 °C | -40 °C |
| Package body material | - | METAL | METAL | METAL |
| Package shape | - | ROUND | ROUND | ROUND |
| Package form | - | DISK BUTTON | DISK BUTTON | DISK BUTTON |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | - | 3000 A | 3000 A | 3000 A |
| Maximum repetitive peak off-state leakage current | - | 100000 µA | 100000 µA | 100000 µA |
| Off-state repetitive peak voltage | - | 2600 V | 2800 V | 3600 V |
| Repeated peak reverse voltage | - | 2600 V | 2800 V | 3600 V |
| surface mount | - | YES | YES | YES |
| Terminal surface | - | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | - | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Terminal location | - | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger device type | - | SCR | SCR | SCR |
