54LS258AFM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 54LS258AFM

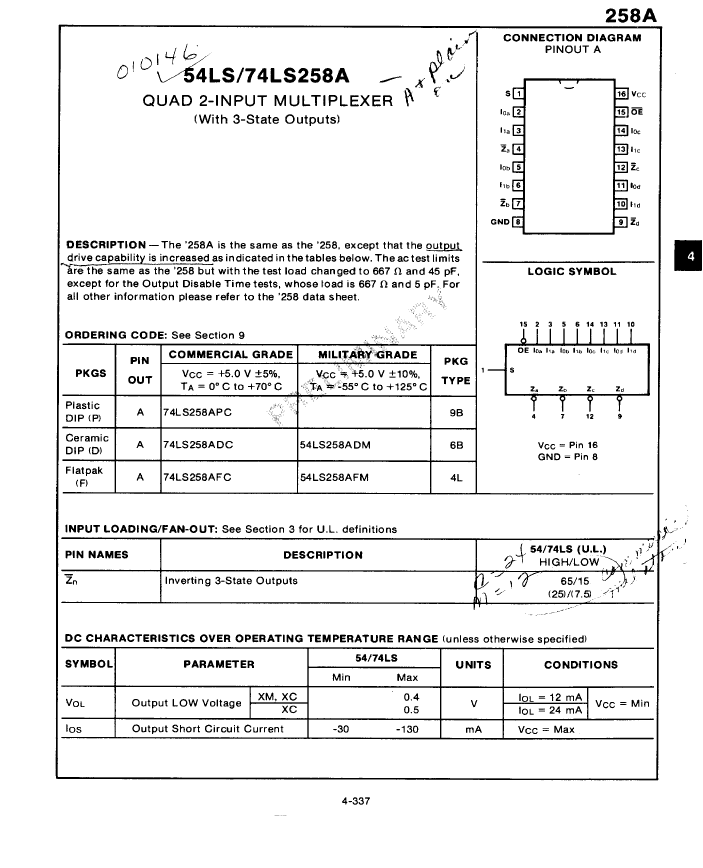

54LS258AFM: DescriptionMultiplexer, 4-Func, 2 Line Input, TTL, CDFP16,; Categorylogic; File Size36KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS258AFM Overview

Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16,

54LS258AFM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL16,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.012 A
Humidity sensitivity level	2A
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS258AFM Related Products

	54LS258AFM	54LS258ADM	74LS258APC	74LS258ADC
Description	Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	compliant	compli
JESD-30 code	R-XDFP-F16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.012 A	0.012 A	0.024 A	0.024 A
Humidity sensitivity level	2A	2A	2A	2A
Number of functions	4	4	4	4
Number of entries	2	2	2	2
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DFP	DIP	DIP	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30
