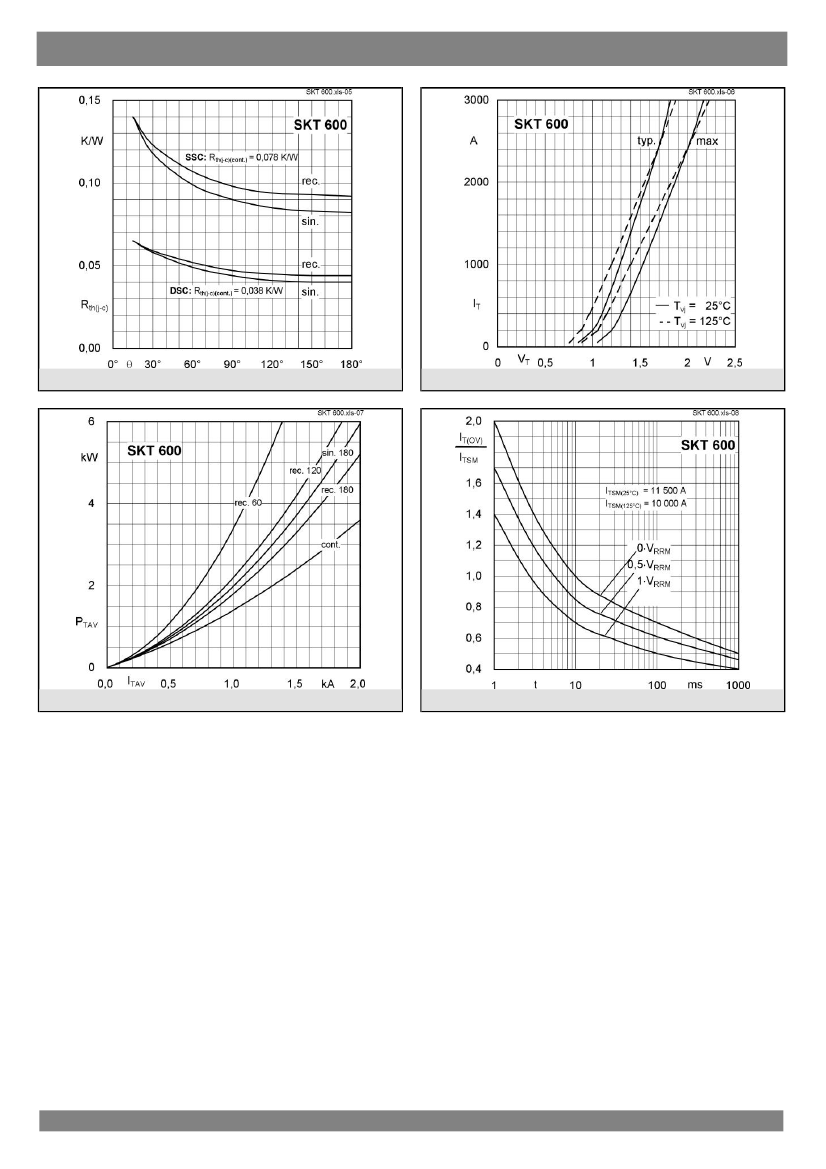

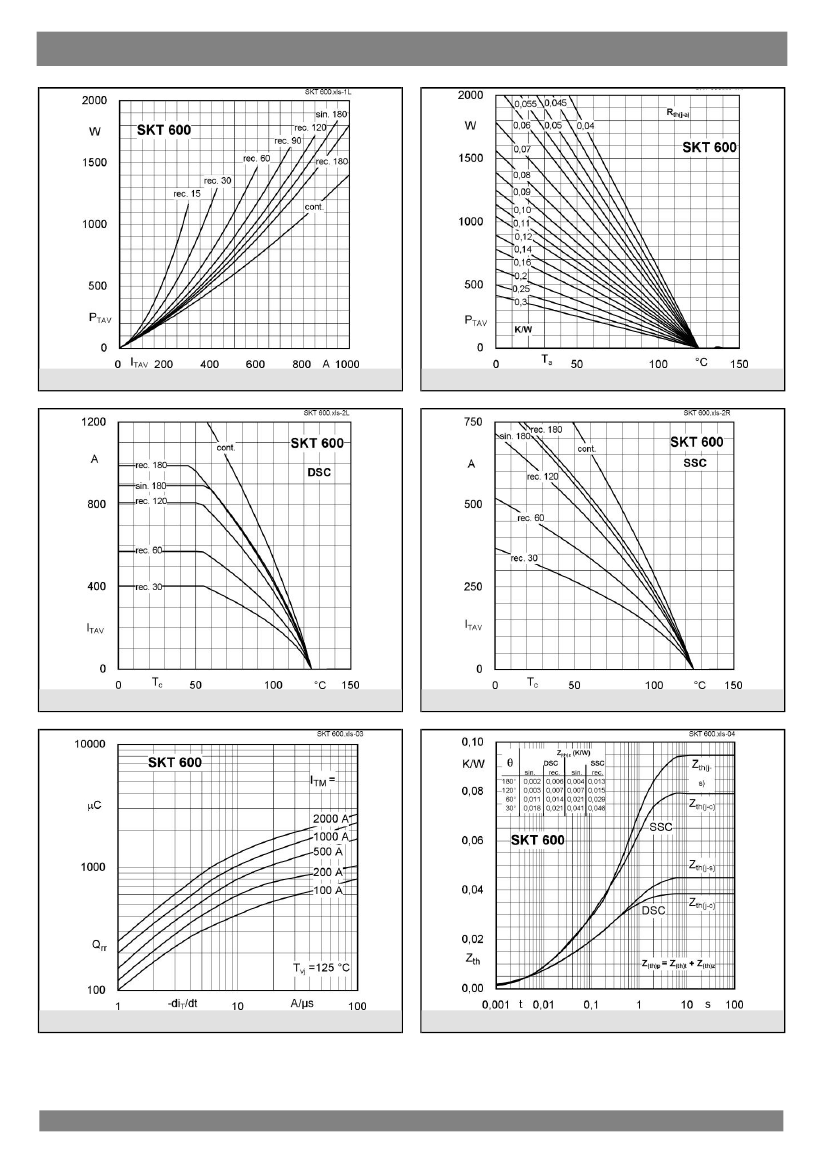

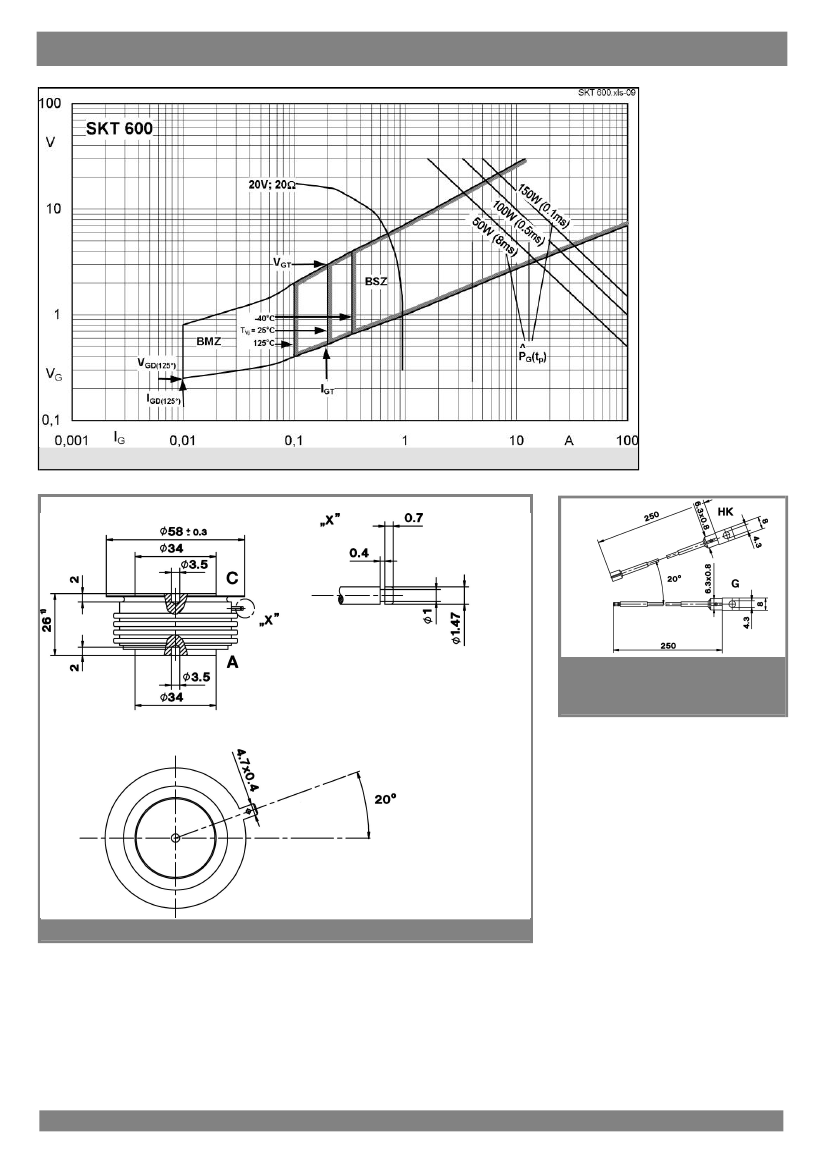

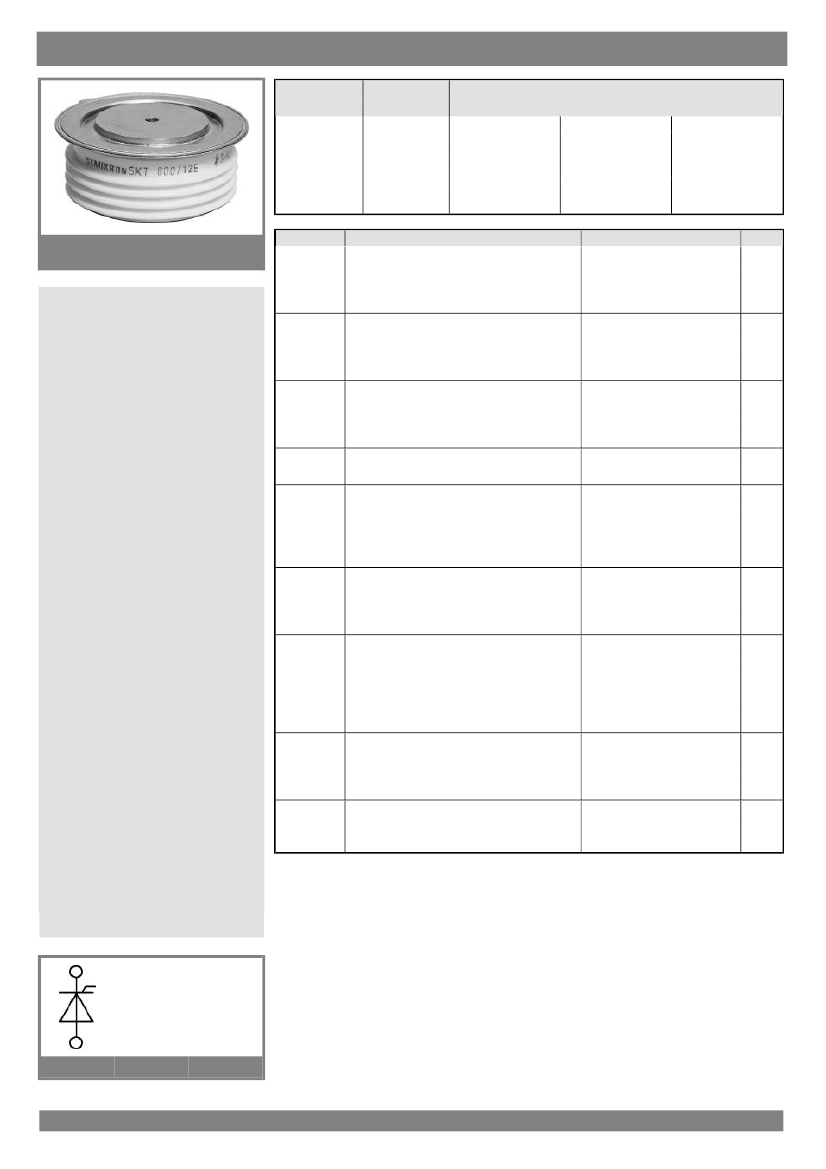

Line Thyristor
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | BUTTON |
| package instruction | DISK BUTTON, O-MXDB-X3 |
| Contacts | 2 |
| Reach Compliance Code | compli |
| Shell connection | ISOLATED |
| Nominal circuit commutation break time | 200 µs |
| Configuration | SINGLE |
| Critical rise rate of minimum off-state voltage | 1000 V/us |
| Maximum DC gate trigger current | 200 mA |
| Maximum DC gate trigger voltage | 3 V |
| Maximum holding current | 500 mA |
| JEDEC-95 code | TO-200AC |
| JESD-30 code | O-MXDB-X3 |
| JESD-609 code | e2 |
| Maximum leakage current | 80 mA |
| On-state non-repetitive peak current | 12000 A |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum on-state current | 600000 A |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | DISK BUTTON |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum rms on-state current | 1400 A |
| Maximum repetitive peak off-state leakage current | 80000 µA |
| Off-state repetitive peak voltage | 1200 V |
| Repeated peak reverse voltage | 1200 V |
| surface mount | YES |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | UNSPECIFIED |
| Terminal location | UNSPECIFIED |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger device type | SCR |
| Base Number Matches | 1 |
| SKT600/12E | SKT600 | SKT600/08D | SKT600/14E | SKT600/18E | SKT600/16E | |
|---|---|---|---|---|---|---|
| Description | Line Thyristor | Line Thyristor | Line Thyristor | Line Thyristor | Line Thyristor | Line Thyristor |
| Is it lead-free? | Lead free | - | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | - | conform to | conform to | conform to | conform to |
| Parts packaging code | BUTTON | - | BUTTON | BUTTON | BUTTON | BUTTON |
| package instruction | DISK BUTTON, O-MXDB-X3 | - | DISK BUTTON, O-MXDB-X3 | DISK BUTTON, O-MXDB-X3 | DISK BUTTON, O-MXDB-X3 | DISK BUTTON, O-MXDB-X3 |
| Contacts | 2 | - | 2 | 2 | 2 | 2 |
| Reach Compliance Code | compli | - | compli | compli | compli | compli |
| Shell connection | ISOLATED | - | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Nominal circuit commutation break time | 200 µs | - | 200 µs | 200 µs | 200 µs | 200 µs |
| Configuration | SINGLE | - | SINGLE | SINGLE | SINGLE | SINGLE |
| Critical rise rate of minimum off-state voltage | 1000 V/us | - | 500 V/us | 1000 V/us | 1000 V/us | 1000 V/us |
| Maximum DC gate trigger current | 200 mA | - | 200 mA | 200 mA | 200 mA | 200 mA |
| Maximum DC gate trigger voltage | 3 V | - | 3 V | 3 V | 3 V | 3 V |
| Maximum holding current | 500 mA | - | 500 mA | 500 mA | 500 mA | 500 mA |
| JEDEC-95 code | TO-200AC | - | TO-200AC | TO-200AC | TO-200AC | TO-200AC |
| JESD-30 code | O-MXDB-X3 | - | O-MXDB-X3 | O-MXDB-X3 | O-MXDB-X3 | O-MXDB-X3 |
| JESD-609 code | e2 | - | e2 | e2 | e2 | e2 |
| Maximum leakage current | 80 mA | - | 80 mA | 80 mA | 80 mA | 80 mA |
| On-state non-repetitive peak current | 12000 A | - | 12000 A | 12000 A | 12000 A | 12000 A |
| Number of components | 1 | - | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | - | 3 | 3 | 3 | 3 |
| Maximum on-state current | 600000 A | - | 600000 A | 600000 A | 600000 A | 600000 A |
| Maximum operating temperature | 125 °C | - | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | - | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | METAL | - | METAL | METAL | METAL | METAL |
| Package shape | ROUND | - | ROUND | ROUND | ROUND | ROUND |
| Package form | DISK BUTTON | - | DISK BUTTON | DISK BUTTON | DISK BUTTON | DISK BUTTON |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | 1400 A | - | 1400 A | 1400 A | 1400 A | 1400 A |
| Maximum repetitive peak off-state leakage current | 80000 µA | - | 80000 µA | 80000 µA | 80000 µA | 80000 µA |
| Off-state repetitive peak voltage | 1200 V | - | 800 V | 1400 V | 1800 V | 1600 V |
| Repeated peak reverse voltage | 1200 V | - | 800 V | 1400 V | 1800 V | 1600 V |
| surface mount | YES | - | YES | YES | YES | YES |
| Terminal surface | Tin/Silver (Sn/Ag) | - | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | UNSPECIFIED | - | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Terminal location | UNSPECIFIED | - | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger device type | SCR | - | SCR | SCR | SCR | SCR |
