SKT40_03: Description63 A, 1600 V, SCR, TO-208AC; Categoryaccessories; File Size548KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

SKT40_03 Overview

63 A, 1600 V, SCR, TO-208AC

SKT40_03 Parametric

Parameter Name	Attribute value
Number of terminals	2
Maximum DC trigger current	150 mA
Processing package description	HERMETIC SEALED, 金属, CASE B 3, TO-65, 2 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	round
Package Size	POST/bolt installation
Terminal form	Welding LUG
terminal coating	tin/silver
Terminal location	UPPER
Packaging Materials	Metal
structure	single
Shell connection	ANODE
Number of components	1
Effective maximum current	63 A
Off-state repetitive peak voltage	1600 V
Reverse repetitive peak voltage	1600 V
Trigger type	silicon controlled rectifier

Preview

Download Datasheet

View All

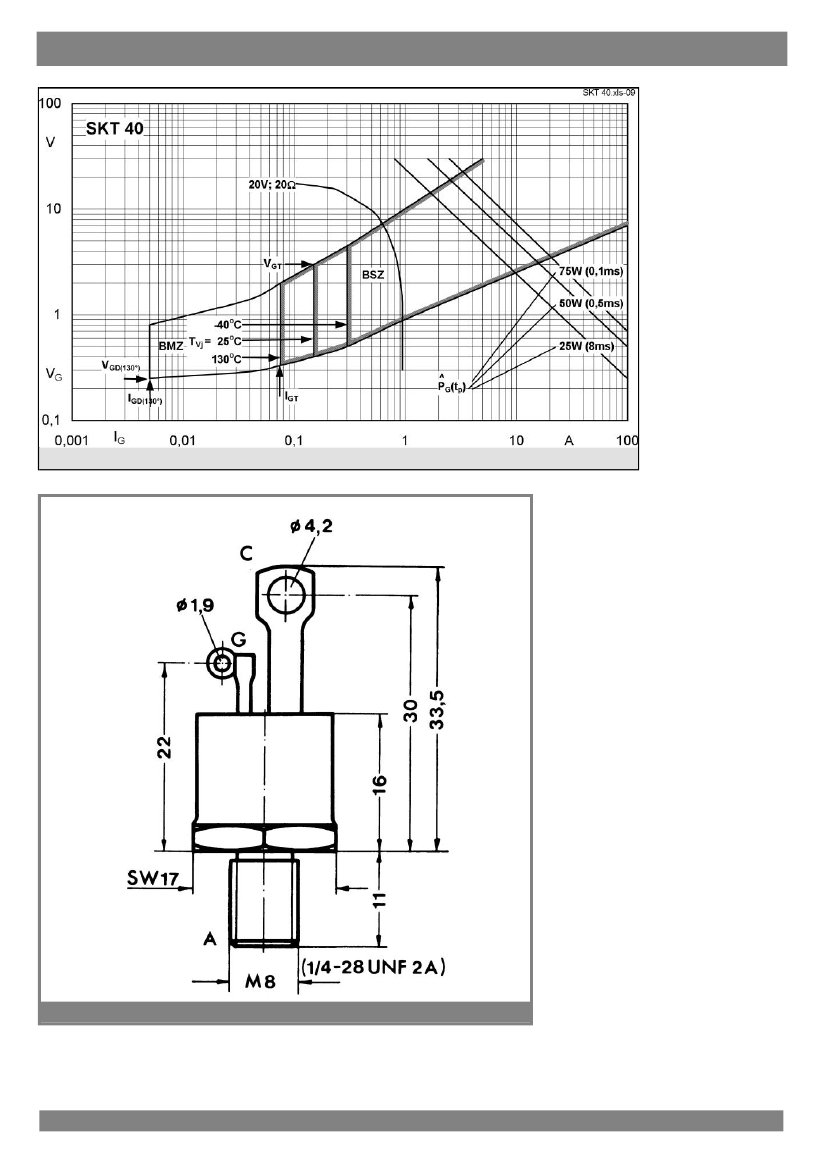

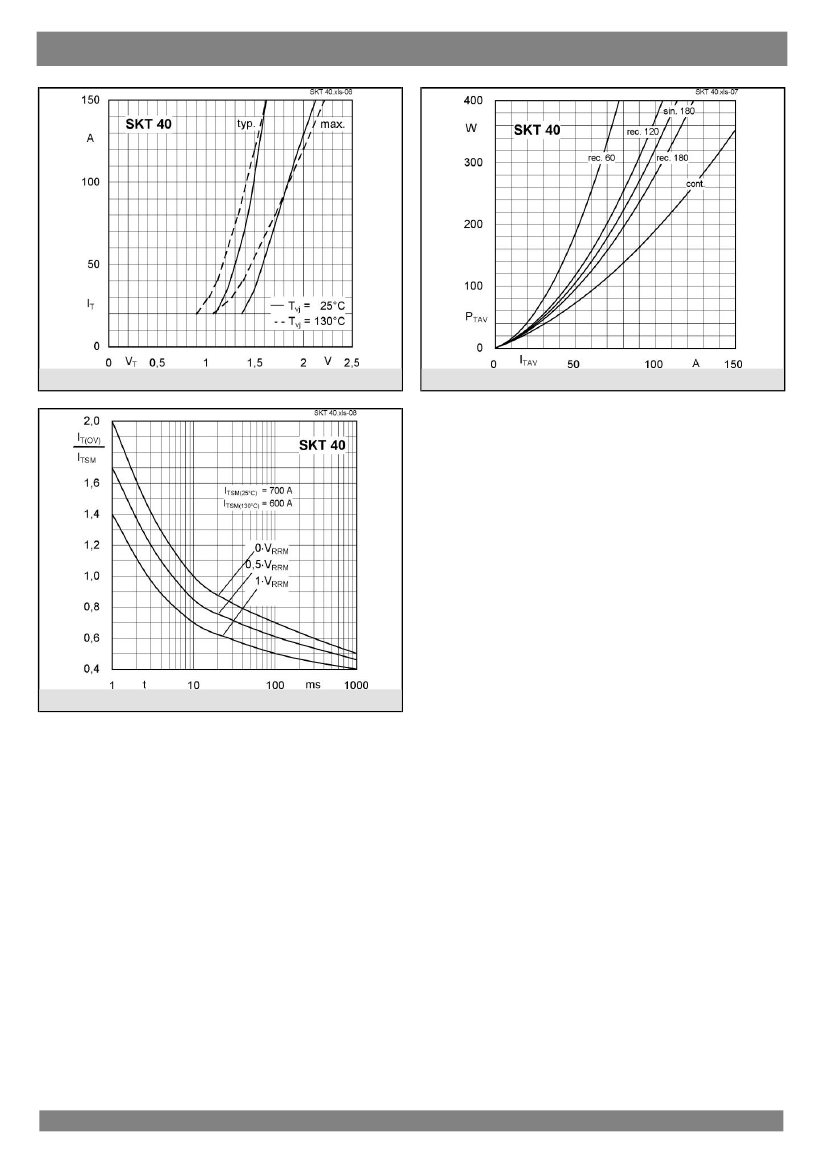

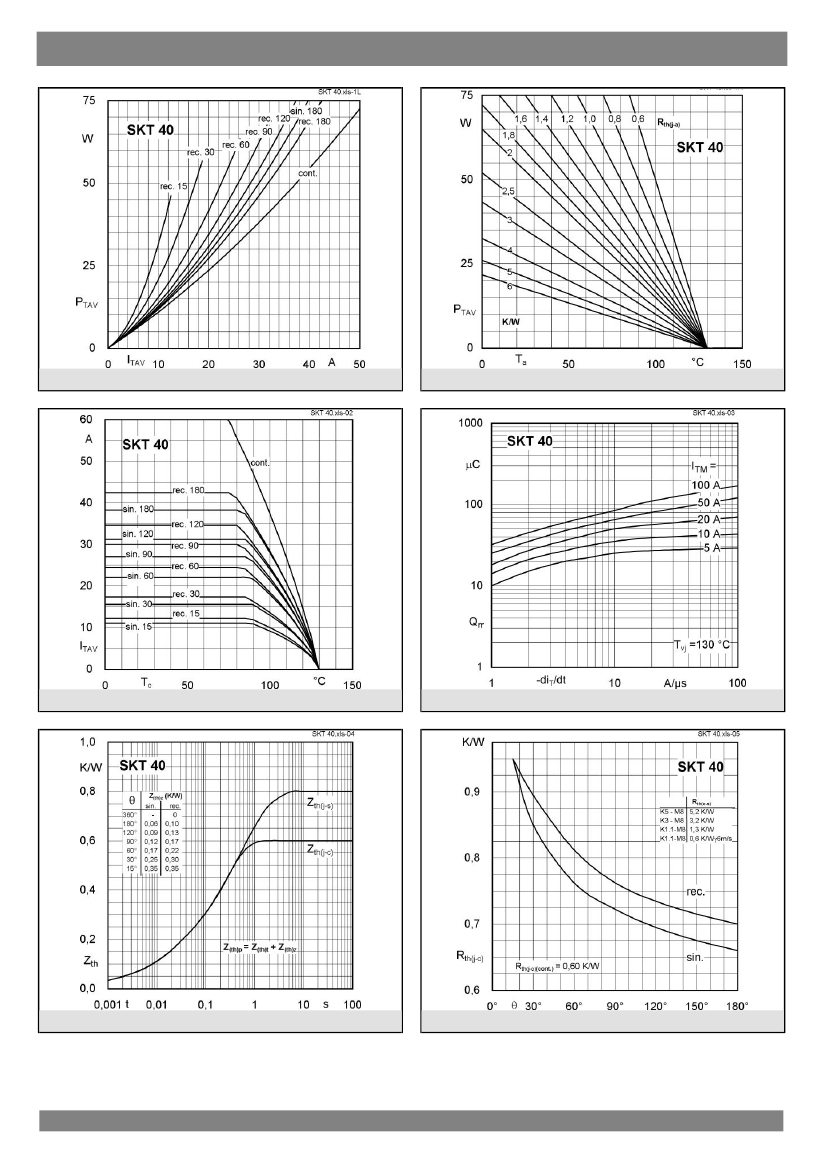

SKT 40

THYRISTOR BRIDGE,SCR,BRIDGE

Stud Thyristor

Line Thyristor

SKT 40

Symbol

Conditions

Values

Units

Features

Typical Applications

SKT

1

27-08-2003 IMP

SKT40_03 Related Products

	SKT40_03	SKT40/04D	SKT40/06D	SKT40/08D	SKT40/18E	SKT40/16E	SKT40/14E	SKT40/12E
Description	63 A, 1600 V, SCR, TO-208AC	63 A, 1600 V, SCR, TO-208AC	63 A, 1600 V, SCR, TO-208AC	63 A, 1600 V, SCR, TO-208AC	63 A, 1600 V, SCR, TO-208AC	63 A, 1600 V, SCR, TO-208AC	63 A, 1600 V, SCR, TO-208AC	63 A, 1600 V, SCR, TO-208AC
Number of terminals	2	2	2	2	2	2	2	2
Terminal form	Welding LUG	Welding LUG	Welding LUG	Welding LUG	Welding LUG	SOLDER LUG	Welding LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE
Number of components	1	1	1	1	1	1	1	1
Off-state repetitive peak voltage	1600 V	1600 V	1600 V	1600 V	1600 V	1600 V	1600 V	1200 V
Maximum DC trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	-	150 mA	-
Processing package description	HERMETIC SEALED, 金属, CASE B 3, TO-65, 2 PIN	HERMETIC SEALED, 金属, CASE B 3, TO-65, 2 PIN	HERMETIC SEALED, 金属, CASE B 3, TO-65, 2 PIN	HERMETIC SEALED, 金属, CASE B 3, TO-65, 2 PIN	HERMETIC SEALED, 金属, CASE B 3, TO-65, 2 PIN	-	HERMETIC SEALED, 金属, CASE B 3, TO-65, 2 PIN	-
Lead-free	Yes	Yes	Yes	Yes	Yes	-	Yes	-
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	-	Yes	-
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	-	ACTIVE	-
packaging shape	round	round	round	round	round	-	round	-
Package Size	POST/bolt installation	POST/bolt installation	POST/bolt installation	POST/bolt installation	POST/bolt installation	-	POST/bolt installation	-
terminal coating	tin/silver	tin/silver	tin/silver	tin/silver	tin/silver	-	tin/silver	-
Packaging Materials	Metal	Metal	Metal	Metal	Metal	-	Metal	-
structure	single	single	single	single	single	-	single	-
Effective maximum current	63 A	63 A	63 A	63 A	63 A	-	63 A	-
Reverse repetitive peak voltage	1600 V	1600 V	1600 V	1600 V	1600 V	-	1600 V	-
Trigger type	silicon controlled rectifier	silicon controlled rectifier	silicon controlled rectifier	silicon controlled rectifier	silicon controlled rectifier	-	silicon controlled rectifier	-
