SKT491/04E: DescriptionLine Thyristor; File Size938KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Compare View All

SKT491/04E Overview

Line Thyristor

Preview

Download Datasheet

View All

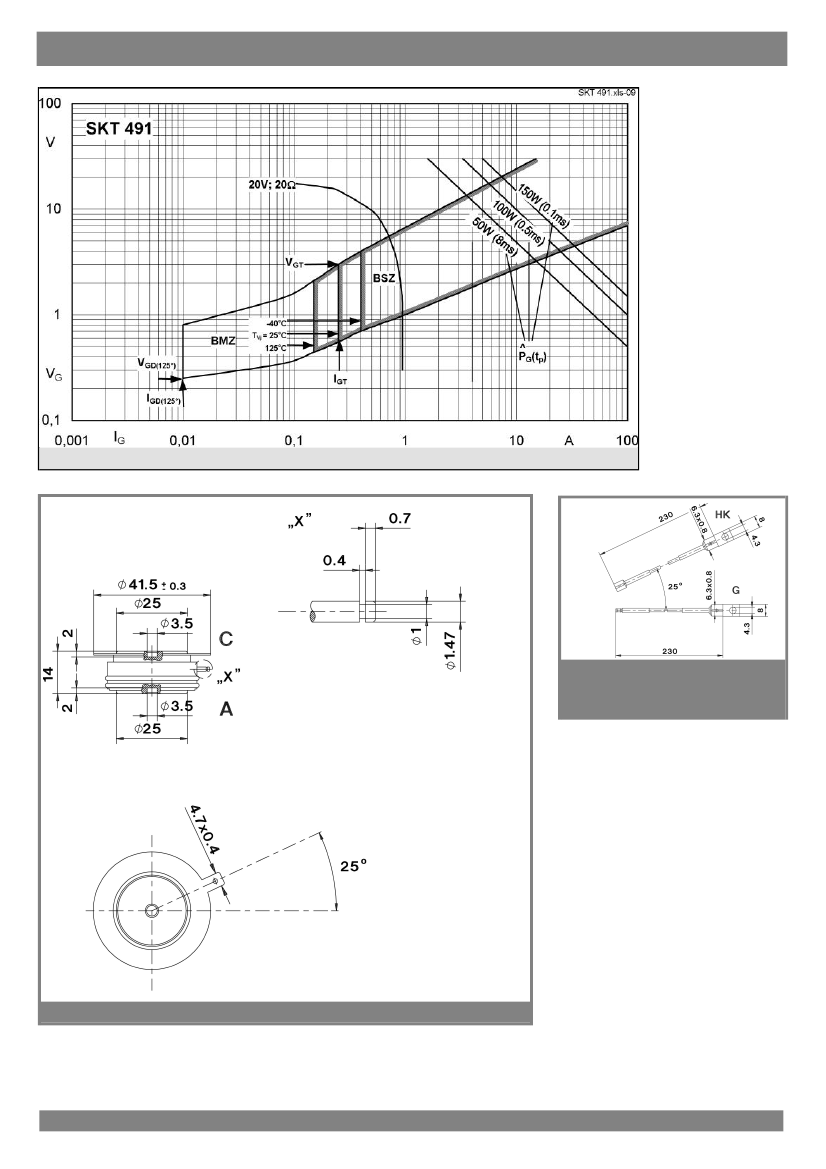

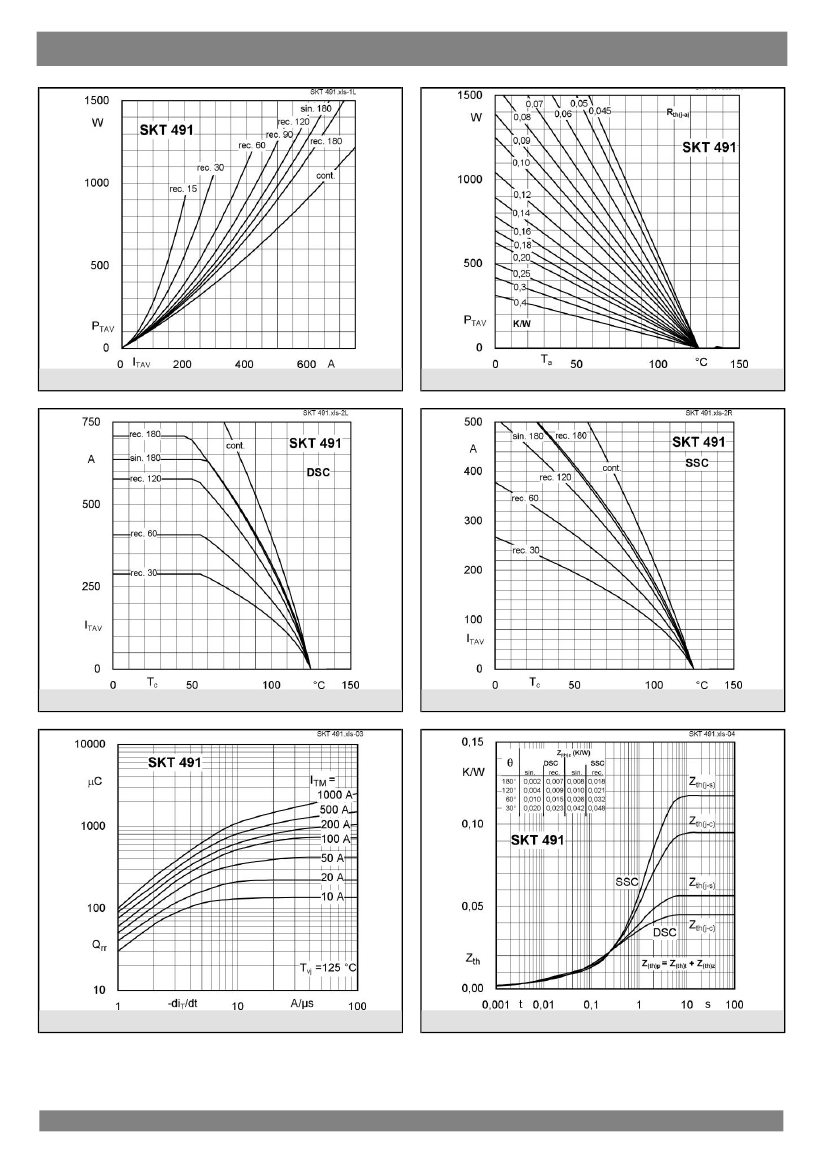

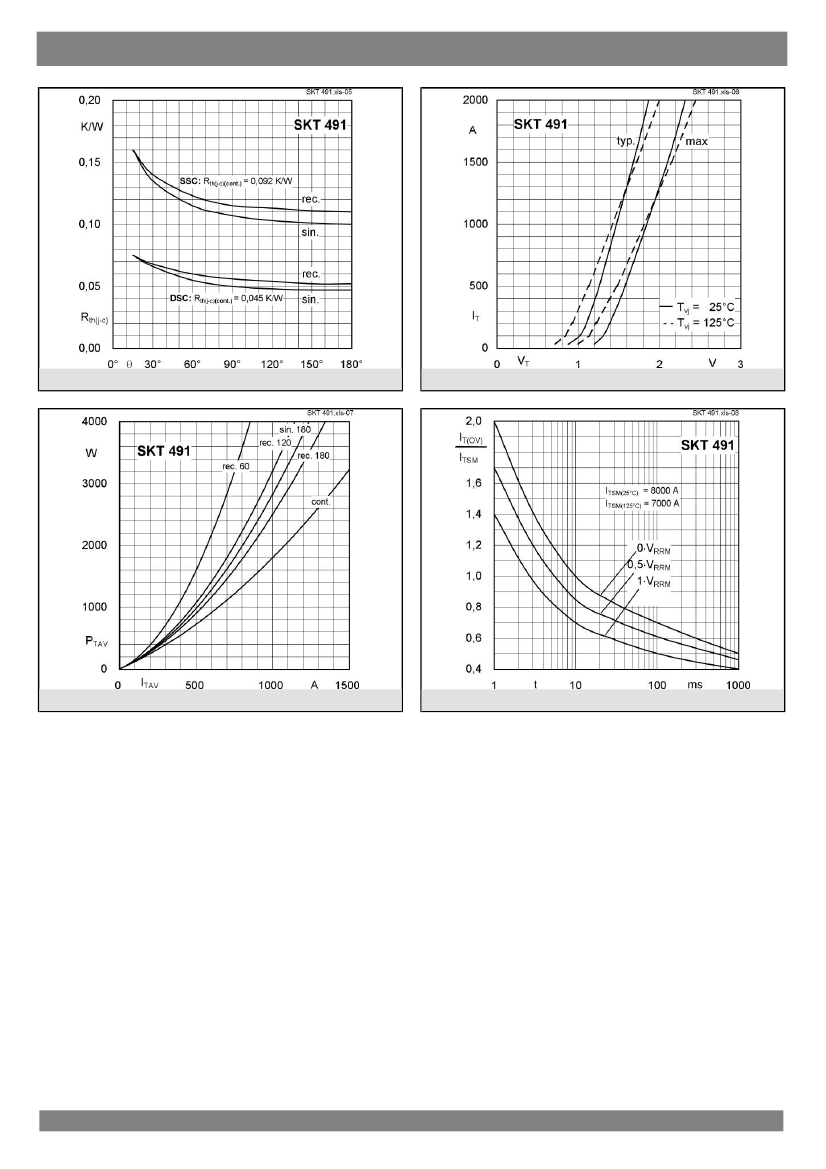

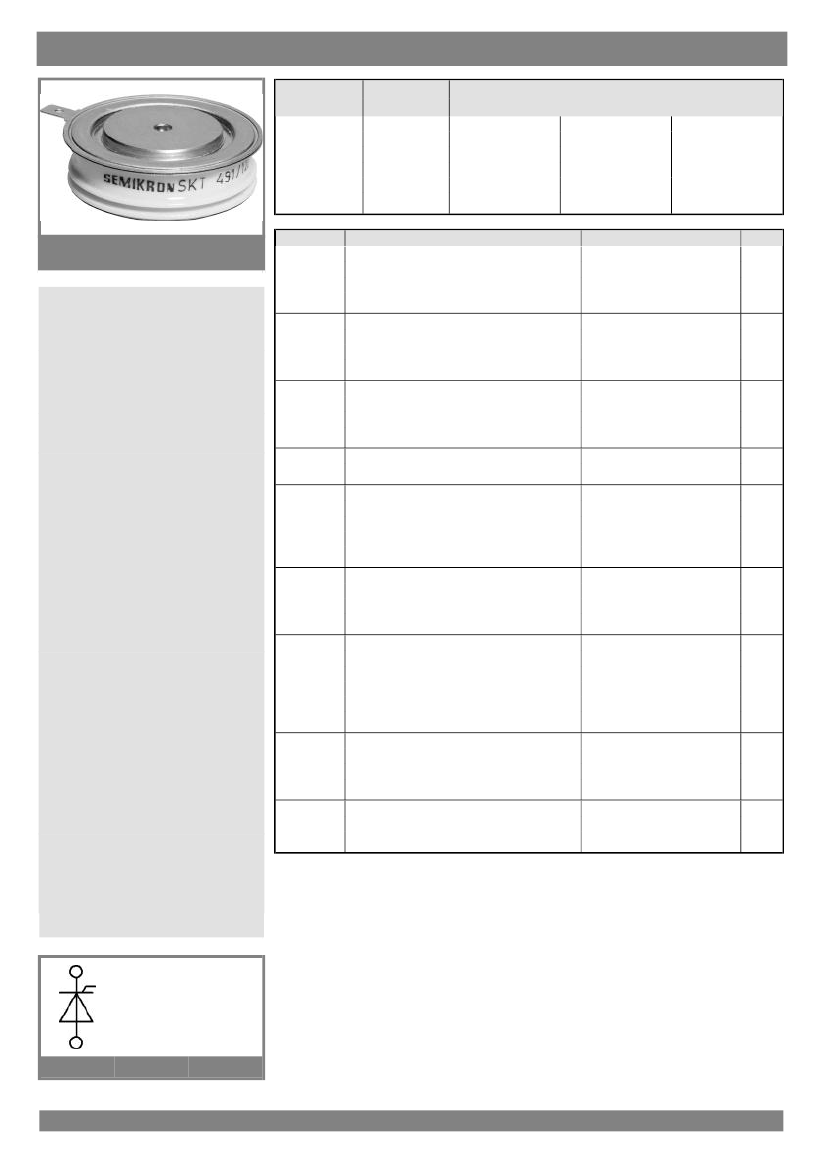

SKT 491

THYRISTOR BRIDGE,SCR,BRIDGE

Symbol

Conditions

Values

Units

Capsule Thyristor

Line Thyristor

SKT 491

Features

Typical Applications

SKT

06-08-2007 MAJ

SKT491/04E Related Products

	SKT491/04E	SKT491/14E	SKT491/12E	SKT491/18E	SKT491/16E
Description	Line Thyristor	Line Thyristor	Line Thyristor	Line Thyristor	Line Thyristor
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Maker	-	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	-	BUTTON	BUTTON	BUTTON	BUTTON
package instruction	-	DISK BUTTON, O-MXDB-X4	DISK BUTTON, O-MXDB-X4	DISK BUTTON, O-MXDB-X4	DISK BUTTON, O-MXDB-X4
Contacts	-	2	2	2	2
Manufacturer packaging code	-	CASE B 11	CASE B 11	CASE B 11	CASE B 11
Reach Compliance Code	-	compliant	compliant	compliant	compliant
Nominal circuit commutation break time	-	150 µs	150 µs	150 µs	150 µs
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	-	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	-	250 mA	250 mA	250 mA	250 mA
Maximum DC gate trigger voltage	-	3 V	3 V	3 V	3 V
Maximum holding current	-	500 mA	500 mA	500 mA	500 mA
JEDEC-95 code	-	TO-200AB	TO-200AB	TO-200AB	TO-200AB
JESD-30 code	-	O-MXDB-X4	O-MXDB-X4	O-MXDB-X4	O-MXDB-X4
JESD-609 code	-	e2	e2	e2	e2
Maximum leakage current	-	50 mA	50 mA	50 mA	50 mA
On-state non-repetitive peak current	-	8000 A	8000 A	8000 A	8000 A
Number of components	-	1	1	1	1
Number of terminals	-	4	4	4	4
Maximum on-state current	-	490000 A	490000 A	490000 A	490000 A
Maximum operating temperature	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	-	METAL	METAL	METAL	METAL
Package shape	-	ROUND	ROUND	ROUND	ROUND
Package form	-	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	-	1000 A	1000 A	1000 A	1000 A
Maximum repetitive peak off-state leakage current	-	50000 µA	50000 µA	50000 µA	50000 µA
Off-state repetitive peak voltage	-	1400 V	1200 V	1800 V	1600 V
Repeated peak reverse voltage	-	1400 V	1200 V	1800 V	1600 V
surface mount	-	YES	YES	YES	YES
Terminal surface	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	-	SCR	SCR	SCR	SCR
