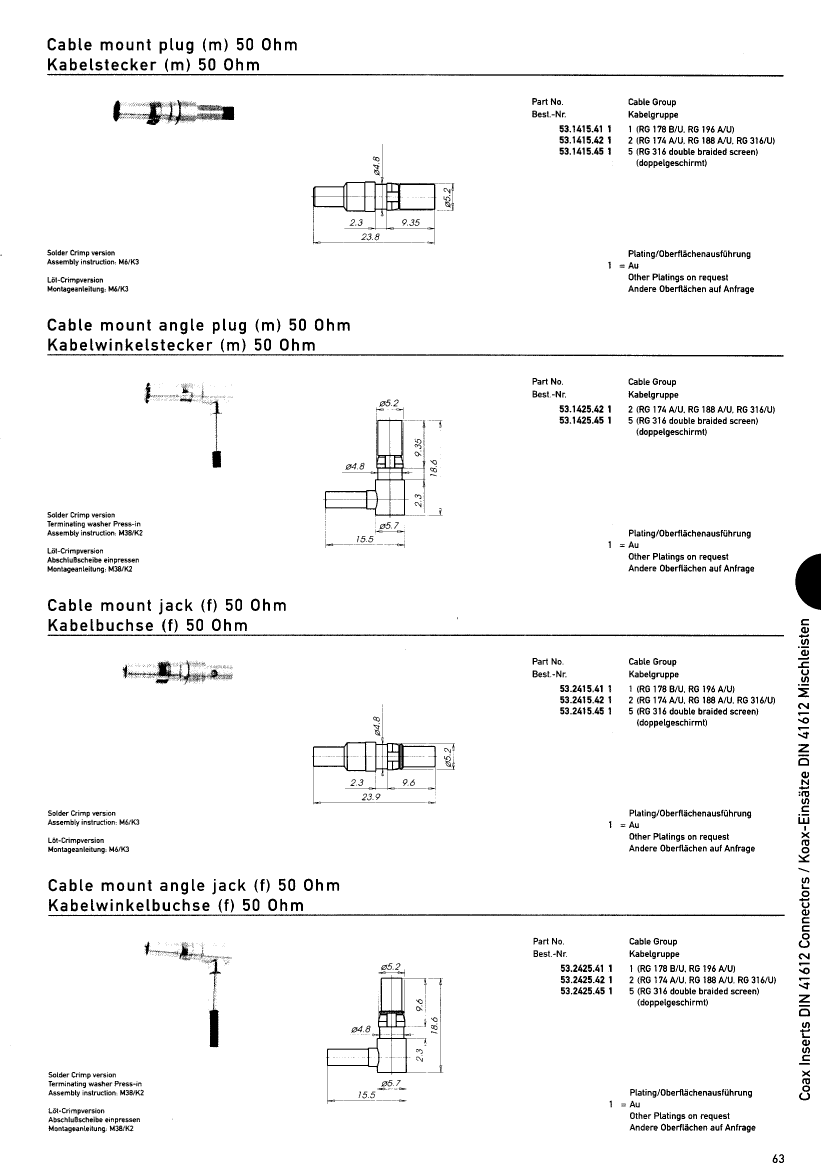

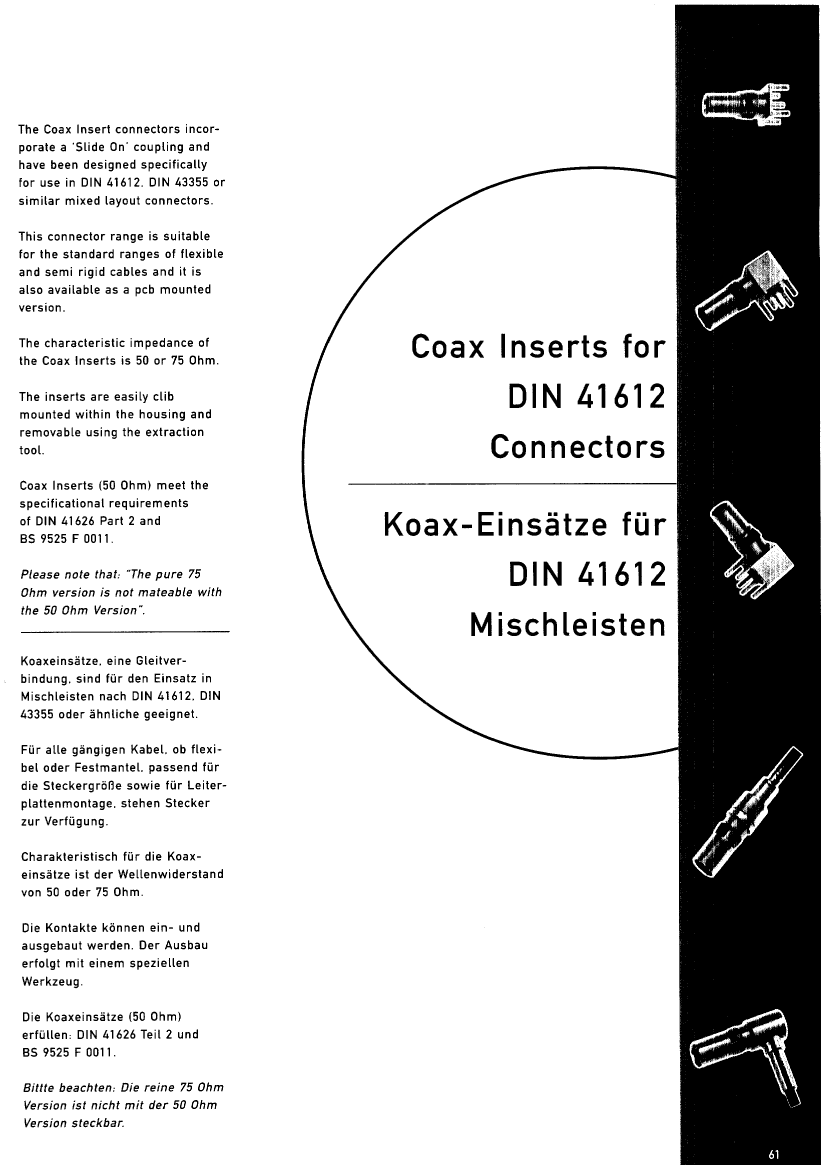

RF Connector, Male, Cable Mount, Crimp Solder Terminal, Jack

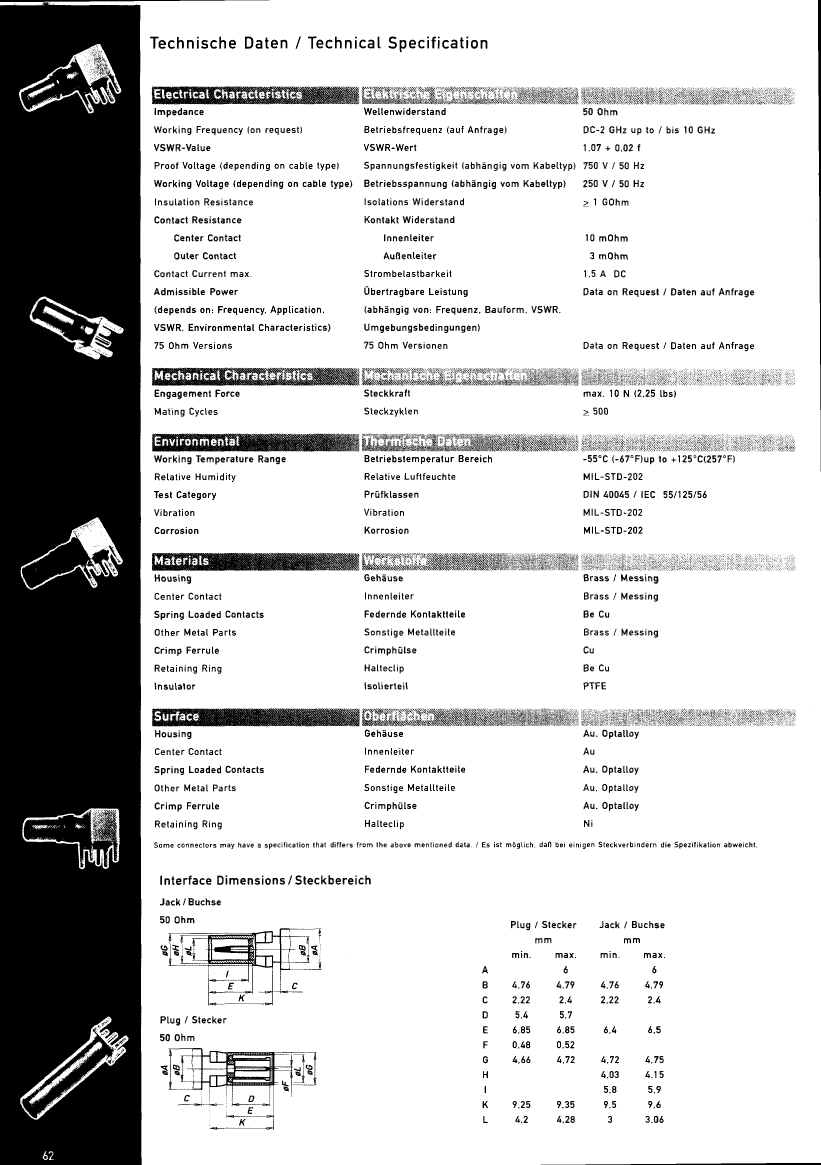

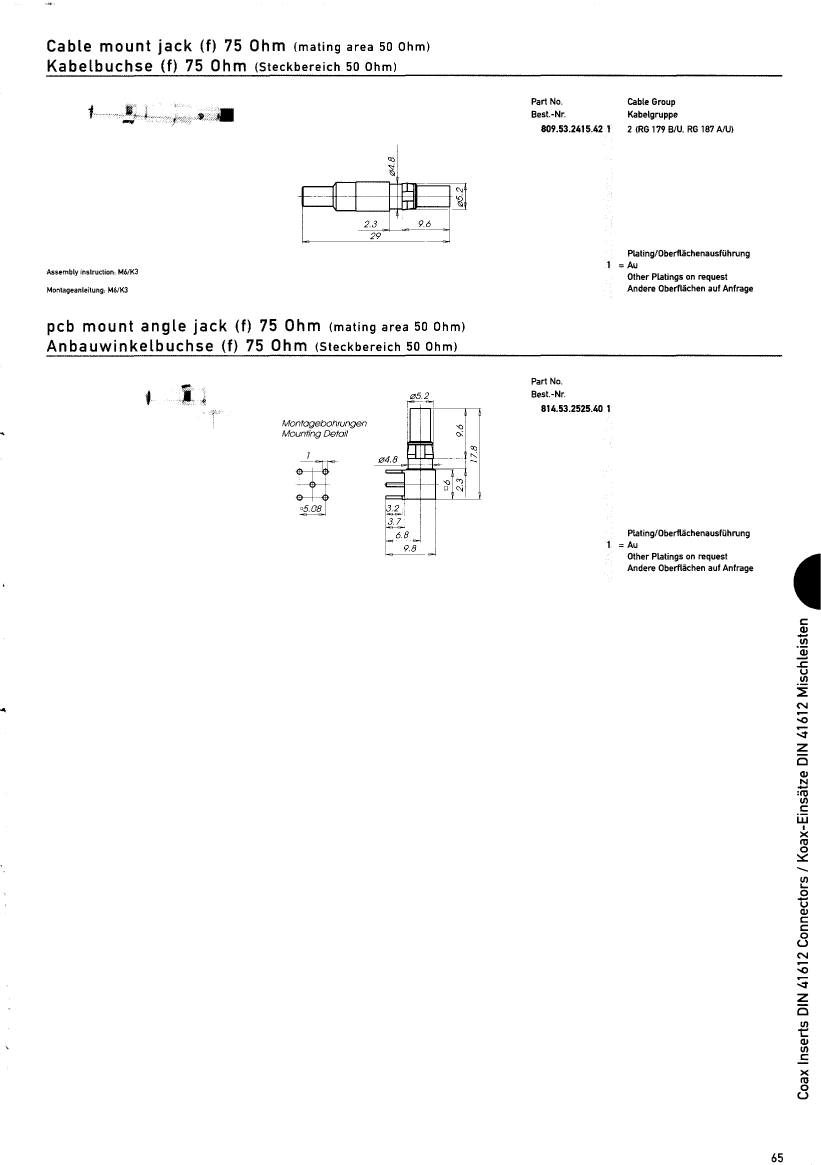

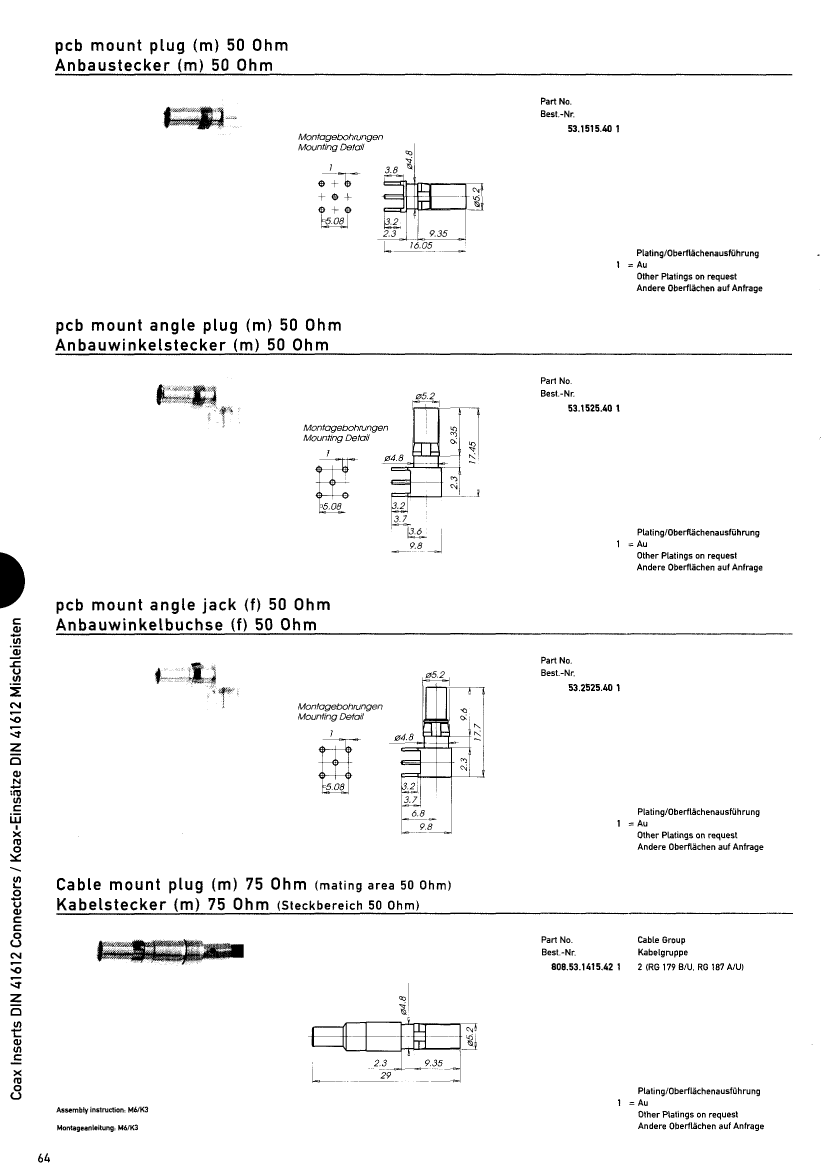

| Parameter Name | Attribute value |
| Maker | IMS Connector Systems Gmbh |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | STANDARD: DIN 41626, APPLICABLE CABLE: RG316, DOUBLE BRAIDED SCREEN |
| subject depth | 0.941 inch |
| Body diameter | 0.205 inch |
| Body/casing type | JACK |
| Characteristic impedance | 50 Ω |
| Connector type | RF CONNECTOR |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Coupling type | SLIDE ON |
| DIN compliance | YES |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Number of ports | 1 |
| Maximum operating frequency | 10 GHz |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Termination type | CRIMP/SOLDER |
| Total number of contacts | 1 |
| voltage standing wave ratio | 1.2 |
| Base Number Matches | 1 |
| 53.2415.451 | 53.2525.401 | 814.53.2525.401 | CR12061.2MG | 53.2415.411 | 53.2415.421 | 809.53.2415.421 | 53.2425.411 | 53.2425.421 | 53.2425.451 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | RF Connector, Male, Cable Mount, Crimp Solder Terminal, Jack | RF Connector, Female, Board Mount, Solder Terminal, Jack | RF Connector, Female, Board Mount, Solder Terminal, Jack | RESISTOR, METAL GLAZE/THICK FILM, 0.25W, 2%, 250ppm, 1200000ohm, SURFACE MOUNT, 1206, CHIP | RF Connector, Male, Cable Mount, Crimp Solder Terminal, Jack | RF Connector, Male, Cable Mount, Crimp Solder Terminal, Jack | RF Connector, Female, Cable Mount, Jack | RF Connector, Female, Cable Mount, Crimp Solder Terminal, Jack | RF Connector, Female, Cable Mount, Crimp Solder Terminal, Jack | RF Connector, Female, Cable Mount, Crimp Solder Terminal, Jack |
| Reach Compliance Code | unknown | unknown | unknown | compliant | unknown | unknown | unknown | unknown | unknown | unknown |
| JESD-609 code | e4 | e4 | e4 | e0 | e4 | e4 | e4 | e4 | e4 | e4 |
| Maker | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | - | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 |
| Other features | STANDARD: DIN 41626, APPLICABLE CABLE: RG316, DOUBLE BRAIDED SCREEN | - | - | - | STANDARD: DIN 41626, APPLICABLE CABLES: RG178B/U; RG196A/U | STANDARD: DIN 41626, APPLICABLE CABLES: RG174A/U; RG188A/U; RG316/U | STANDARD: DIN 41626, APPLICABLE CABLES: RG179B/U; RG187A/U | STANDARD: DIN 41626, APPLICABLE CABLES: RG178B/U; RG196A/U | STANDARD: DIN 41626, APPLICABLE CABLES: RG174A/U; RG188A/U; RG316/U | STANDARD: DIN 41626, APPLICABLE CABLE: RG316, DOUBLE BRAIDED SCREEN |
| Body/casing type | JACK | JACK | JACK | - | JACK | JACK | JACK | JACK | JACK | JACK |
| Characteristic impedance | 50 Ω | 50 Ω | 75 Ω | - | 50 Ω | 50 Ω | 75 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | - | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR |
| Contact completed and terminated | GOLD | GOLD | GOLD | - | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact point gender | MALE | FEMALE | FEMALE | - | MALE | MALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Coupling type | SLIDE ON | SLIDE ON | SLIDE ON | - | SLIDE ON | SLIDE ON | SLIDE ON | SLIDE ON | SLIDE ON | SLIDE ON |
| DIN compliance | YES | YES | YES | - | YES | YES | YES | YES | YES | YES |
| Filter function | NO | NO | NO | - | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | - | NO | NO | NO | NO | NO | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | - | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| MIL compliance | NO | NO | NO | - | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE | - | STRAIGHT | STRAIGHT | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | CABLE | BOARD | BOARD | - | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE |
| Maximum operating frequency | 10 GHz | 10 GHz | 10 GHz | - | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | NO | NO | NO | - | NO | NO | NO | NO | NO | NO |
| Termination type | CRIMP/SOLDER | SOLDER | SOLDER | - | CRIMP SOLDER | CRIMP SOLDER | - | CRIMP SOLDER | CRIMP SOLDER | CRIMP SOLDER |
| voltage standing wave ratio | 1.2 | 1.2 | 1.2 | - | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Base Number Matches | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Manufacturer's serial number | - | 53.2525 | 814.53 | CR | 53.2415 | 53.2415 | 809.53 | 53.2425 | 53.2425 | 53.2425 |
