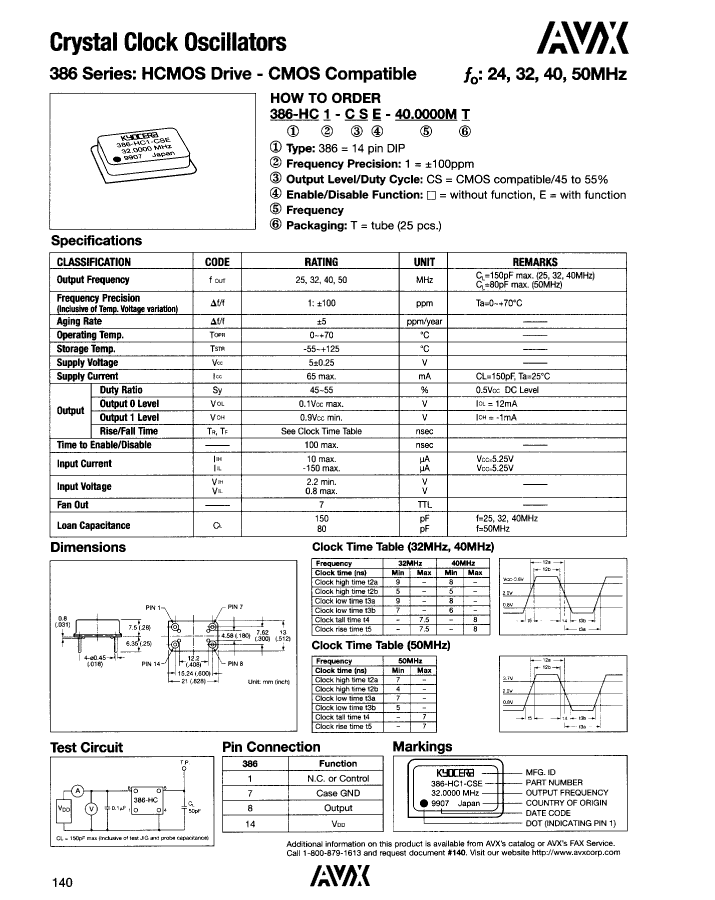

CMOS Output Clock Oscillator, 32MHz Nom, Hybrid, DIP-4
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | AVX |
| package instruction | DIP-4 |
| Reach Compliance Code | not_compliant |
| maximum descent time | 7.5 ns |
| Frequency Adjustment - Mechanical | NO |
| frequency stability | 100% |
| JESD-609 code | e0 |
| Manufacturer's serial number | 386 |
| Installation features | THROUGH HOLE MOUNT |
| Number of terminals | 4 |
| Nominal operating frequency | 32 MHz |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Oscillator type | CMOS |
| Output load | 7 TTL, 150 pF |
| Maximum output low current | 12 mA |
| Package body material | METAL |
| Encapsulate equivalent code | DIP4/14,.3 |
| physical size | 21mm x 13mm x 7.5mm |
| power supply | 5 V |
| Certification status | Not Qualified |
| longest rise time | 7.5 ns |
| Maximum slew rate | 65 mA |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| maximum symmetry | 55/45 % |
| technology | HYBRID |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Base Number Matches | 1 |
| 386-HC1-CS-32.0000MT | 386-HC1-CS-25.0000MT | 386-HC1-CSE-50.0000MT | 386-HC1-CS-40.0000MT | 386-HC1-CS-50.0000MT | 386-HC1-CSE-25.0000MT | 386-HC1-CSE-32.0000MT | 386-HC1-CSE-40.0000MT | |
|---|---|---|---|---|---|---|---|---|
| Description | CMOS Output Clock Oscillator, 32MHz Nom, Hybrid, DIP-4 | CMOS Output Clock Oscillator, 25MHz Nom, DIP-4 | CMOS Output Clock Oscillator, 50MHz Nom, Hybrid, DIP-4 | CMOS Output Clock Oscillator, 40MHz Nom, Hybrid, DIP-4 | CMOS Output Clock Oscillator, 50MHz Nom, Hybrid, DIP-4 | CMOS Output Clock Oscillator, 25MHz Nom, DIP-4 | CMOS Output Clock Oscillator, 32MHz Nom, Hybrid, DIP-4 | CMOS Output Clock Oscillator, 40MHz Nom, Hybrid, DIP-4 |
| Reach Compliance Code | not_compliant | compliant | not_compliant | not_compliant | not_compliant | compliant | not_compliant | not_compliant |
| Frequency Adjustment - Mechanical | NO | NO | NO | NO | NO | NO | NO | NO |
| frequency stability | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% |
| Installation features | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT |
| Number of terminals | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Nominal operating frequency | 32 MHz | 25 MHz | 50 MHz | 40 MHz | 50 MHz | 25 MHz | 32 MHz | 40 MHz |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Oscillator type | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Output load | 7 TTL, 150 pF | 7 TTL, 150 pF | 7 TTL, 80 pF | 7 TTL, 150 pF | 7 TTL, 80 pF | 7 TTL, 150 pF | 7 TTL, 150 pF | 7 TTL, 150 pF |
| physical size | 21mm x 13mm x 7.5mm | 21mm x 13mm x 7.5mm | 21mm x 13mm x 7.5mm | 21mm x 13mm x 7.5mm | 21mm x 13mm x 7.5mm | 21mm x 13mm x 7.5mm | 21mm x 13mm x 7.5mm | 21mm x 13mm x 7.5mm |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| maximum symmetry | 55/45 % | 55/45 % | 55/45 % | 55/45 % | 55/45 % | 55/45 % | 55/45 % | 55/45 % |
| Is it lead-free? | Contains lead | - | Contains lead | Contains lead | Contains lead | - | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible | incompatible | - | incompatible | incompatible |
| package instruction | DIP-4 | DIP-4 | DIP-4 | DIP4/14,.3 | DIP4/14,.3 | - | DIP-4 | DIP-4 |
| maximum descent time | 7.5 ns | - | 7 ns | 8 ns | 7 ns | - | 7.5 ns | 8 ns |
| JESD-609 code | e0 | - | e0 | e0 | e0 | - | e0 | e0 |
| Manufacturer's serial number | 386 | - | - | 386 | 386 | - | 386 | 386 |
| Maximum output low current | 12 mA | - | 12 mA | 12 mA | 12 mA | - | 12 mA | 12 mA |
| Package body material | METAL | - | METAL | METAL | METAL | - | METAL | METAL |
| Encapsulate equivalent code | DIP4/14,.3 | - | DIP4/14,.3 | DIP4/14,.3 | DIP4/14,.3 | - | DIP4/14,.3 | DIP4/14,.3 |
| power supply | 5 V | - | - | 5 V | 5 V | - | 5 V | 5 V |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified |
| longest rise time | 7.5 ns | - | 7 ns | 8 ns | 7 ns | - | 7.5 ns | 8 ns |
| Maximum slew rate | 65 mA | - | 65 mA | 65 mA | 65 mA | - | 65 mA | 65 mA |
| technology | HYBRID | - | HYBRID | HYBRID | HYBRID | - | HYBRID | HYBRID |
| Terminal surface | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
