ULQ2004D1: Description0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size235KB，7 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ULQ2004D1 Overview

0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR

ULQ2004D1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
package instruction	SMALL OUTLINE, R-PDSO-G16
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	50 V
Configuration	COMPLEX
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
Humidity sensitivity level	3
Number of components	7
Number of terminals	16
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	30
transistor applications	SWITCHING
Transistor component materials	SILICON

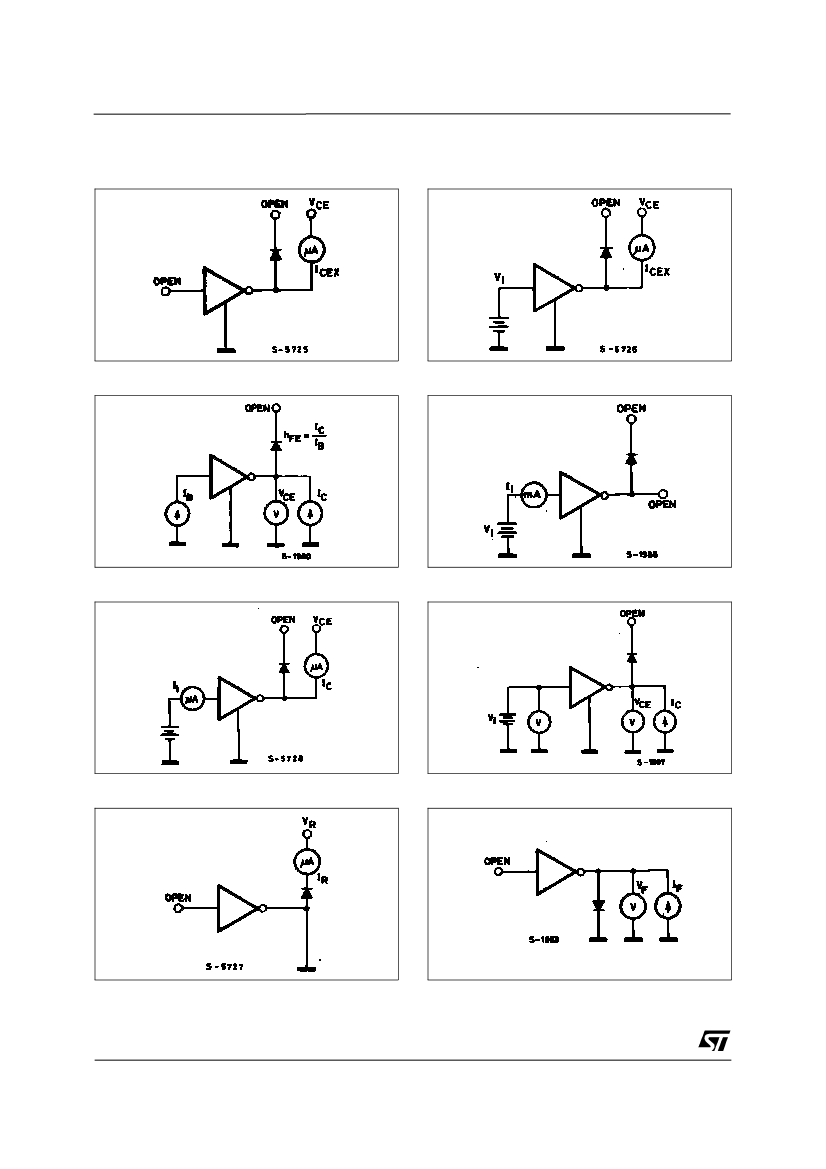

Preview

Download Datasheet

View All

ULQ2001A - ULQ2003A

ULQ2002A - ULQ2004A

SEVEN DARLINGTON ARRAYS

SEVEN DARLINGTONS PER PACKAGE

EXTENDED TEMPERATURE RANGE

(–40 to 105°C)

OUTPUT CURRENT 500 mA PER DRIVER

(600 mA PEAK)

OUTPUT VOLTAGE 50 V

INTEGRAL SUPPRESSION DIODES FOR IN-

DUCTIVE LOADS

OUTPUTS CAN BE PARALLELED FOR

HIGHER CURRENT

TTL/CMOS/PMOS/DTL COMPATIBLE INPUTS

INPUTS PINNED OPPOSITE OUTPUTS TO

SIMPLIFY LAYOUT

DIP16

SO16

ORDERING NUMBERS:

ULQ2001A/2A/3A/4A (DIP16)

ULQ2001D1/2D1/3D1/4D1 (SO16)

DESCRIPTION

The ULQ2001A, ULQ2002A, ULQ2003 and

ULQ2004A are high voltage, high current darlington

arrays each containing seven open collector dar-

lington pairs with common emitters. Each channel is

rated at 500 mA and can withstand peak currents of

600 mA. Suppression diodes are included for induc-

tive load driving and the inputs are pinned opposite

the outputs to simplify board layout.

The four versions interface to all common logic fami-

lies :

ULQ2001A

ULQ2002A

ULQ2003A

ULQ2004A

General Purpose, DTL, TTL, PMOS,

CMOS

14-25V PMOS

5V TTL, CMOS

6-15V CMOS, PMOS

PIN CONNECTION

These versatile devices are useful for driving a wide

range of loads including solenoids, relays DC mo-

tors, LED displays filament lamps, thermal print-

heads and high power buffers.

The ULQ2001A/2002A/2003A and 2004A are sup-

plied in 16 pin plastic DIP packages with a copper

leadframe to reduce thermal resistance. They are

available also in small outline package (SO-16) as

ULQ2001D1/2002D1/2003D1/2004D1.

February 2002

1/7

ULQ2004D1 Related Products

	ULQ2004D1	ULQ2001D1	ULQ2002D1	ULQ2002A
Description	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PDSO-G16	SO-16	SMALL OUTLINE, R-PDSO-G16	IN-LINE, R-PDIP-T16
Contacts	16	16	16	16
Reach Compliance Code	compli	compli	compli	compli
Other features	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e4	e4	e4	e3
Number of components	7	7	7	7
Number of terminals	16	16	16	16
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	NO
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics
ECCN code	EAR99	EAR99	-	EAR99
