Part Number

Search

52478-3015

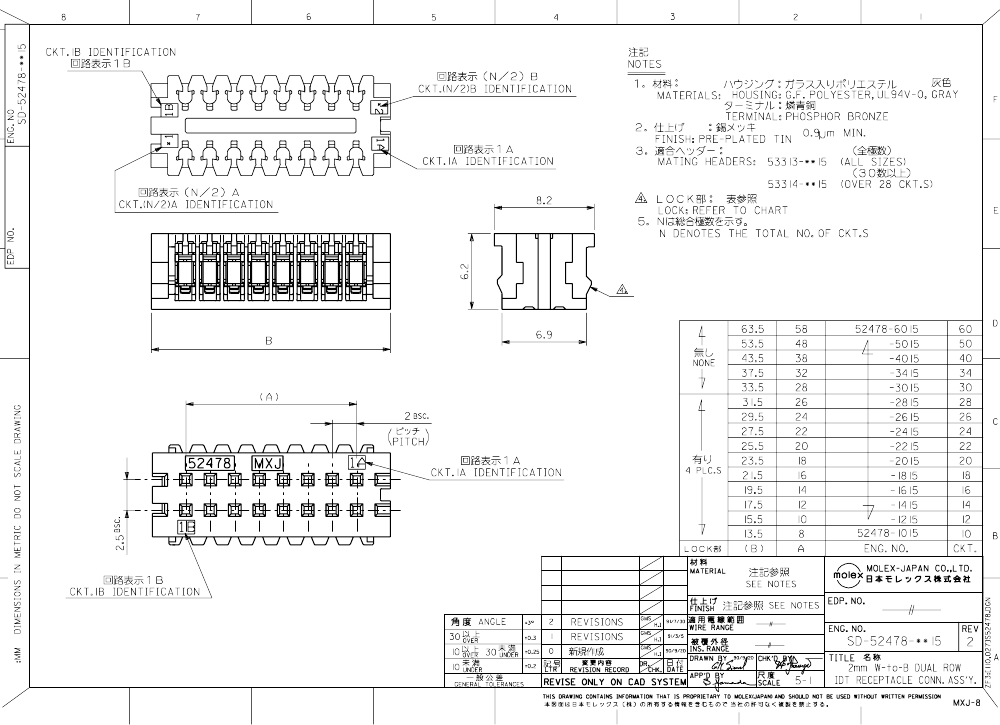

Description
Board Connector, 30 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Gray Insulator, Receptacle
CategoryThe connector
File Size72KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

52478-3015 Online Shopping

Suppliers Part Number Price MOQ In stock
52478-3015 - - View Buy Now

52478-3015 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Gray Insulator, Receptacle

52478-3015 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionHeaders & Wire Housings 2 W-TO-B IDT REC ASS W-TO-B IDT REC ASSY
Other featuresBAG PACKAGING
body width0.323 inch
subject depth0.244 inch
body length1.319 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Minimum insulation diameter0.033 inch
Insulation resistance1000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number52478
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Plating thickness35u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length
Termination typeIDC
Total number of contacts30
UL Flammability Code94V-0
Maximum wire diameter26 AWG
Minimum wire diameter28 AWG
Evacuation force-minimum value.7228 N
Base Number Matches1

52478-3015 Related Products

52478-3015 52478-3415 52478-1815 AD7641_17
Description Board Connector, 30 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Gray Insulator, Receptacle Board Connector, 34 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Gray Insulator, Receptacle Board Connector, 18 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Gray Insulator, Receptacle 18-Bit, 2 MSPS SAR ADC
Is it Rohs certified? conform to conform to conform to -
Reach Compliance Code compliant unknown unknown -
ECCN code EAR99 EAR99 EAR99 -
Other features BAG PACKAGING BAG PACKAGING BAG PACKAGING -
body width 0.323 inch 0.323 inch 0.323 inch -
subject depth 0.244 inch 0.244 inch 0.244 inch -
body length 1.319 inch 1.476 inch 0.846 inch -
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE -
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR -
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN -
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
Contact point gender FEMALE FEMALE FEMALE -
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
contact mode RECTANGULAR RECTANGULAR RECTANGULAR -
Contact resistance 20 mΩ 20 mΩ 20 mΩ -
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT -
DIN compliance NO NO NO -
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V -
Durability 30 Cycles 30 Cycles 30 Cycles -
Filter function NO NO NO -
IEC compliance NO NO NO -
maximum insertion force 2.224 N 2.224 N 3.4194 N -
Minimum insulation diameter 0.033 inch 0.033 inch 0.033 inch -
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω -
Insulator color GRAY GRAY GRAY -
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER -
MIL compliance NO NO NO -
Manufacturer's serial number 52478 52478 52478 -
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch -
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch -
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE 53313-1815 -
Mixed contacts NO NO NO -
Installation type CABLE CABLE CABLE -
Number of rows loaded 2 2 2 -
Maximum operating temperature 105 °C 105 °C 105 °C -
Minimum operating temperature -40 °C -40 °C -40 °C -
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE -
Plating thickness 35u inch 35u inch 35u inch -
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING -
Rated current (signal) 1.5 A 1.5 A 1.5 A -
Guideline UL UL UL -
reliability COMMERCIAL COMMERCIAL COMMERCIAL -
Termination type IDC IDC IDC -
Total number of contacts 30 34 18 -
UL Flammability Code 94V-0 94V-0 94V-0 -
Maximum wire diameter 26 AWG 26 AWG 26 AWG -
Minimum wire diameter 28 AWG 28 AWG 28 AWG -
Evacuation force-minimum value .7228 N .695 N .8618 N -
Base Number Matches 1 1 1 -
