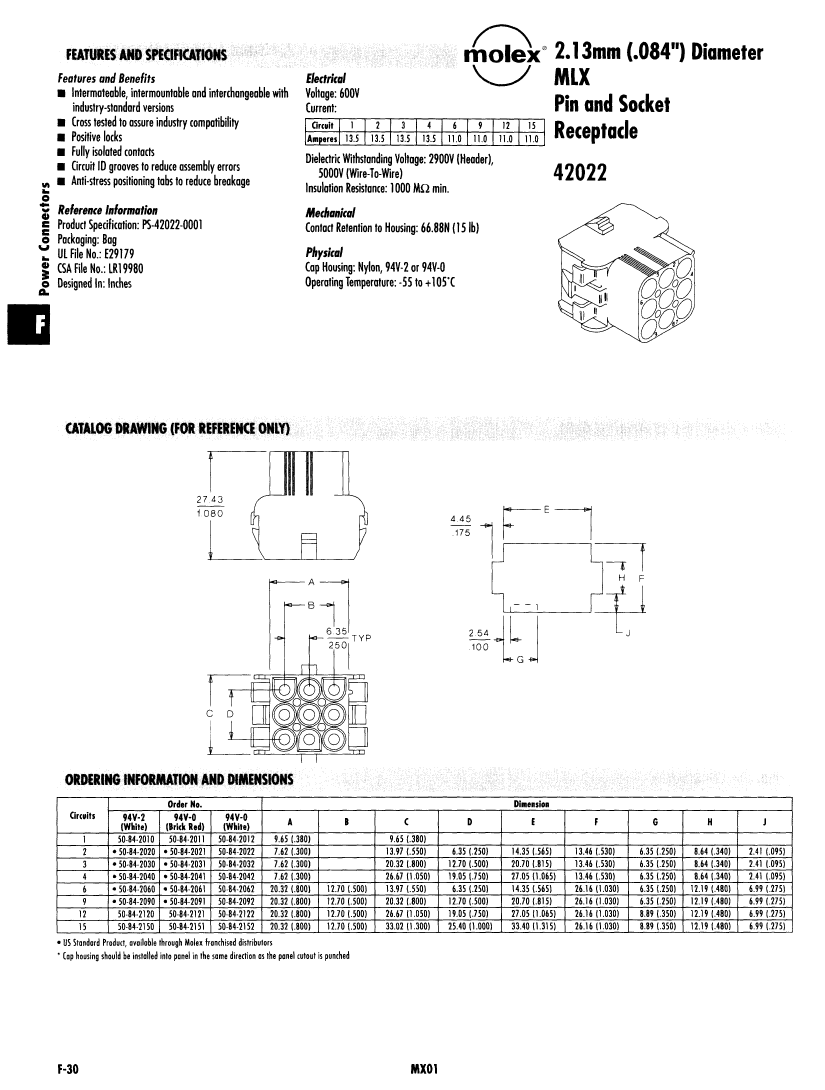

50-84-2011 |
50-84-2041 |
50-84-2091 |
| Description |
Rectangular Power Connector, 1 Contact(s), Male and Female, Crimp Terminal, Receptacle |
Rectangular Power Connector, 4 Contact(s), Male and Female, Crimp Terminal, Receptacle, |
Rectangular Power Connector, 9 Contact(s), Male and Female, Crimp Terminal, Receptacle |
| Maker |
Molex |
Molex |
Molex |
| Reach Compliance Code |
unknown |
compliant |
unknown |
| ECCN code |
EAR99 |
EAR99 |
EAR99 |
| Other features |
COMPATIBLE CONTACTS: 02-08-2003; 02-08-2007; 02-08-2004; 02-08-1001; 02-08-1002 |
COMPATIBLE CONTACTS: 02-08-2003; 02-08-2007; 02-08-2004; 02-08-1001; 02-08-1002 |
COMPATIBLE CONTACTS: 02-08-2003; 02-08-2007; 02-08-2004; 02-08-1001; 02-08-1002 |
| body width |
0.38 inch |
1.05 inch |
0.8 inch |
| subject depth |
1.08 inch |
1.08 inch |
1.08 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
| Connector type |
RECTANGULAR POWER CONNECTOR |
RECTANGULAR POWER CONNECTOR |
RECTANGULAR POWER CONNECTOR |
| Contactor design |
PREASSEM CONN |
PREASSEM CONN |
PREASSEM CONN |
| Contact point gender |
MALE AND FEMALE |
MALE AND FEMALE |
MALE AND FEMALE |
| contact mode |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
3.5 mΩ |
3.5 mΩ |
3.5 mΩ |
| Contact style |
RND PIN-SKT |
RND PIN-SKT |
RND PIN-SKT |
| DIN compliance |
NO |
NO |
NO |
| Dielectric withstand voltage |
5000VAC V |
5000VAC V |
5000VAC V |
| Durability |
50 Cycles |
50 Cycles |
50 Cycles |
| empty shell |
NO |
NO |
NO |
| Filter function |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
| maximum insertion force |
6.672 N |
6.672 N |
6.672 N |
| Minimum insulation diameter |
0.06 inch |
0.06 inch |
0.06 inch |
| Insulation resistance |
1000000000 Ω |
1000000000 Ω |
1000000000 Ω |
| Insulator color |
RED |
RED |
RED |
| insulator material |
NYLON |
NYLON |
NYLON |
| MIL compliance |
NO |
NO |
NO |
| Plug contact pitch |
0.25 inch |
0.25 inch |
0.25 inch |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts |
NO |
NO |
NO |
| Installation option 1 |
POLARIZED LCK |
POLARIZED LCK |
POLARIZED LCK |
| Installation option 2 |
LOCKING |
LOCKING |
LOCKING |
| Installation type |
PANEL |
PANEL |
PANEL |
| Number of rows loaded |
1 |
1 |
3 |
| Maximum operating temperature |
105 °C |
105 °C |
105 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| polarization key |
HOUSING SIDE |
HOUSING SIDE |
HOUSING SIDE |
| Rated current (signal) |
13.5 A |
13.5 A |
11 A |
| Guideline |
CSA, UL |
CSA, UL |
CSA, UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
| Shell material |
NYLON |
NYLON |
NYLON |
| Termination type |
CRIMP |
CRIMP |
CRIMP |
| Total number of contacts |
1 |
4 |
9 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
| Maximum wire diameter |
14 AWG |
14 AWG |
14 AWG |
| Minimum wire diameter |
20 AWG |
20 AWG |
20 AWG |
| Evacuation force-minimum value |
2.1962 N |
2.1962 N |
2.1962 N |
| Base Number Matches |
1 |
1 |
1 |
| Contact to complete cooperation |
- |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact material |
- |
NOT SPECIFIED |
NOT SPECIFIED |
