R
Enhanced SCSI Bus Controller
AIC -33C94
™
®
Overview

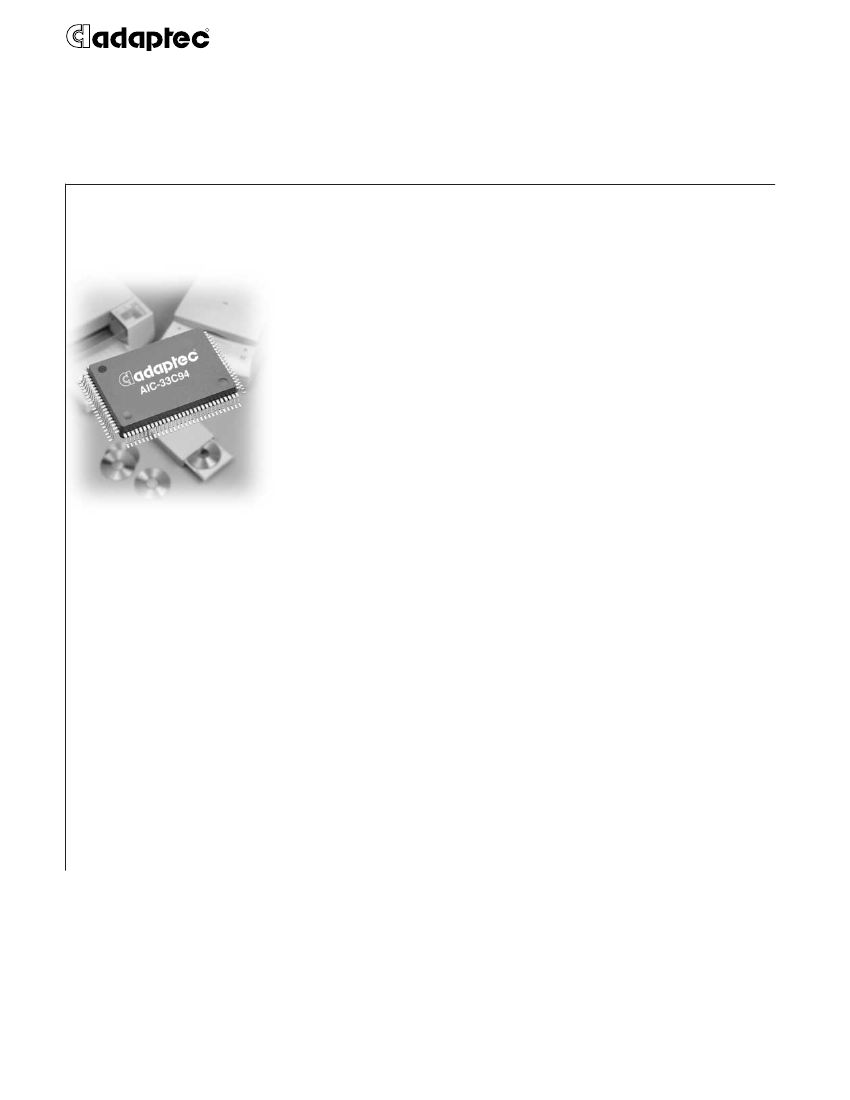

The Adaptec AIC-33C94 Enhanced
SCSI Bus Controller (ESBC) is ideal
for the needs of today’s peripheral
systems. SCSI command automation
coupled with custom programmability
provides a flexible solution for OEM
designers. These features, integrated
into a system with Adaptec host
systems, deliver end-to-end compati-
bility and leading-edge performance.
in bytes or blocks, enables larger
data transfers to be performed with
a single command.
Programming flexibility
The AIC-33C94 controllers can han-
dle SCSI protocol and data transfer
through a 128-word Writable Control
Store (WCS), which allows develop-
ers to program any sequence of
SCSI bus phases. The AIC-33C94
controller can act as a target as
well as an initiator.
Simplified development
An advantage of the AIC-33C94
controller is ease of development. An
evaluation kit is available that helps
speed time to market. It includes an
evaluation board with sample WCS,
SCSI, and SCAM Level 1 and Level 2
codes that can be quickly customized.
Easy-to-follow flow charts and appli-
cation notes provide step-by-step
programming guidance. Either target
or initiator mode can be emulated
for evaluation and debugging.
Power management
For implementations where power
consumption is an issue, the
AIC-33C94 controller features an
automatic sleep mode. If the con-
troller is idle for a specified period
of time, it powers down. It goes
back into operation within 200
nanoseconds. This feature is bene-
ficial for portable-based applications.
Key Benefits
Product Highlights
n
Synchronous
SCSI data transfer
rate up to 10 MBps
128-word
Writable Control Store for
handling SCSI protocol and
data transfer
for SCSI Configured
automatically (SCAM) protocol
with low-level SCSI bus control
architecture with
dedicated 8-bit microprocessor
interface and integrated DMA
controller, programmable to
be bus master or slave
by 9-bit dual port
registers to store commands,
messages, and status
n
Programmable
n
Support
n
Split-bus
Fast, efficient data transfer
The AIC-33C94 ESBC controls data
transfers between the 8-bit SCSI bus
and the local data buffer. A split-
bus architecture provides separate
CPU and DMA buses that enable
concurrent operations for optimum
performance. The CPU bus is a
dedicated 8-bit microprocessor
interface. The 16-bit DMA bus is
programmable to handle either
8-bit or 16-bit transfers, delivering
a maximum data transfer rate of
10 MBps in 8-bit mode or 20 MBps
in 16-bit mode. The total time
required to perform arbitration,
selection, command transfer,
and message transfer is less than
20 microseconds.
A 32-byte on-chip RAM buffer
enables the storage of command,
message, and status bytes, reducing
code development and ensuring more
efficient operation by reducing the
burden on the CPU. A pipelined
24-bit transfer counter, specifiable
n
32-word
AIC-33C94 F
EATURES
S
UMMARY
Adaptec, Inc.
691 South Milpitas Boulevard
Milpitas, California 95035
Tel: (408) 945-8600
Fax: (408) 262-2533
Adaptec Europe - Belgium
Tel: (32) 2-352-34-11
Fax: (32) 2-352-34-00
Adaptec Japan - Tokyo
Tel: (81) 3-5365-6700
Fax: (81) 3-5365-6950
Adaptec Singapore
Tel: (65) 278-7300
Fax: (65) 273-0163
Literature:
1-800-934-2766 (USA and Canada)
or (510) 732-3829
Pre-Sales Support:
1-800-442-7274 (USA and Canada)
or (408) 957-7274
World Wide Web:
http://www.adaptec.com
Internet ftp server:
ftp.adaptec.com
Adaptec USA Bulletin Board
Service (BBS):
(408) 945-7727
(up to 28,800 baud, using 8 bits,
1 stop bit, no parity)
Interactive Fax:
(303) 684-3400
Task
File
MICROPROCESSOR
AIC-33C94 ESBC Technical Information
Features:
•
Automatic response to a bus-initiated selection/reselection
•
16-word FIFO to support synchronous offset up to 32 bytes
•
Programmable synchronous transfer period
•
Pipelined 24-bit transfer counter
•
Transfers that can be specified in bytes or logical blocks
•
Microprocessor that also accesses the internal registers
through the DMA bus
•
All the signals needed for users to interface 8-bit differential bus
•
Power-down mode if not active
Tape drives
CD-ROMs
Printers
Scanners
Copiers
DVDs
Analyzers
Voice mail
Instrumentation
100-pin MQFP
Applications:
Packaging:
Design Support Tools:
Demo94 Board
WCS assembler and sample codes
SCAM sample codes
Sample schematics
Application Notes
RE
WE
CS
ALE
AD
(7-0)
Micro.
Interface
R
BIDIR
Buffer
Dual
Port
Regs.
32 x 9
BIDIR
Buffer
ID
DWE
DMA BUS
DRE
DREQ
DACK
DMA
Control
Logic
Writable
Control
Store
128 x 30
SCSI
Protocol
Control
SCSI
Control Sig.
Copyright 1998 Adaptec, Inc. All rights reserved. Adaptec,
the Adaptec logo, and AIC are trademarks of Adaptec, Inc.,
which may be registered in some jurisdictions. All other
trademarks used are owned by their respective owners.
Information supplied by Adaptec, Inc. is believed to be
accurate and reliable at the time of printing, but Adaptec,
Inc. assumes no responsibility for any errors that may
appear in this document. Adaptec, Inc. reserves the
right, without notice, to make changes in product design
or specifications. Information is subject to change
without notice.
P/N 980289-021
Printed in U.S.A.
3/98
BD (15-0)
BDPL, BDPH
BIDIR
Buffer
16 x 18 FIFO
SD (7-0), SDP
AIC-33C94 Enhanced SCSI Bus Controller Architecture
