GZR-SH-124DF: DescriptionElectromechanical Relay, SPDT, Latched, 31.2VDC (Coil), 25A (Contact), 125VDC (Contact), Random, AC/DC Output; Categoryrelay; File Size300KB，3 Pages; ManufacturerGood Sky Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

GZR-SH-124DF Overview

Electromechanical Relay, SPDT, Latched, 31.2VDC (Coil), 25A (Contact), 125VDC (Contact), Random, AC/DC Output

GZR-SH-124DF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Good Sky Electric Co., Ltd.
Reach Compliance Code	unknown
body width	12.7 mm
body height	25.5 mm
Body length or diameter	28.8 mm
Coil operating voltage (DC)	16.8 V
Coil release voltage (DC)	3.6 V
Coil resistance	820 Ω
Maximum coil voltage (DC)	31.2 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	5540VA@380VAC
Contact (AC) maximum rated R load	25A@250VAC
Maximum contact current (AC)	25 A
Maximum contact current (DC)	25 A
Contact (DC) maximum rated power R load	600W@110VDC
Contact (DC) maximum rated R load	25A@125VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	125 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	8
operating hours	15 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	28.8mm x 12.7mm x 25.5mm
Guideline	UL
Relay action	LATCHED
Relay style	1 FORM C
Relay function	SPDT
release time	5 ms
Terminal length	0.004 inch
Termination type	SOLDER
weight	17 g
Base Number Matches	1

Preview

Download Datasheet

View All

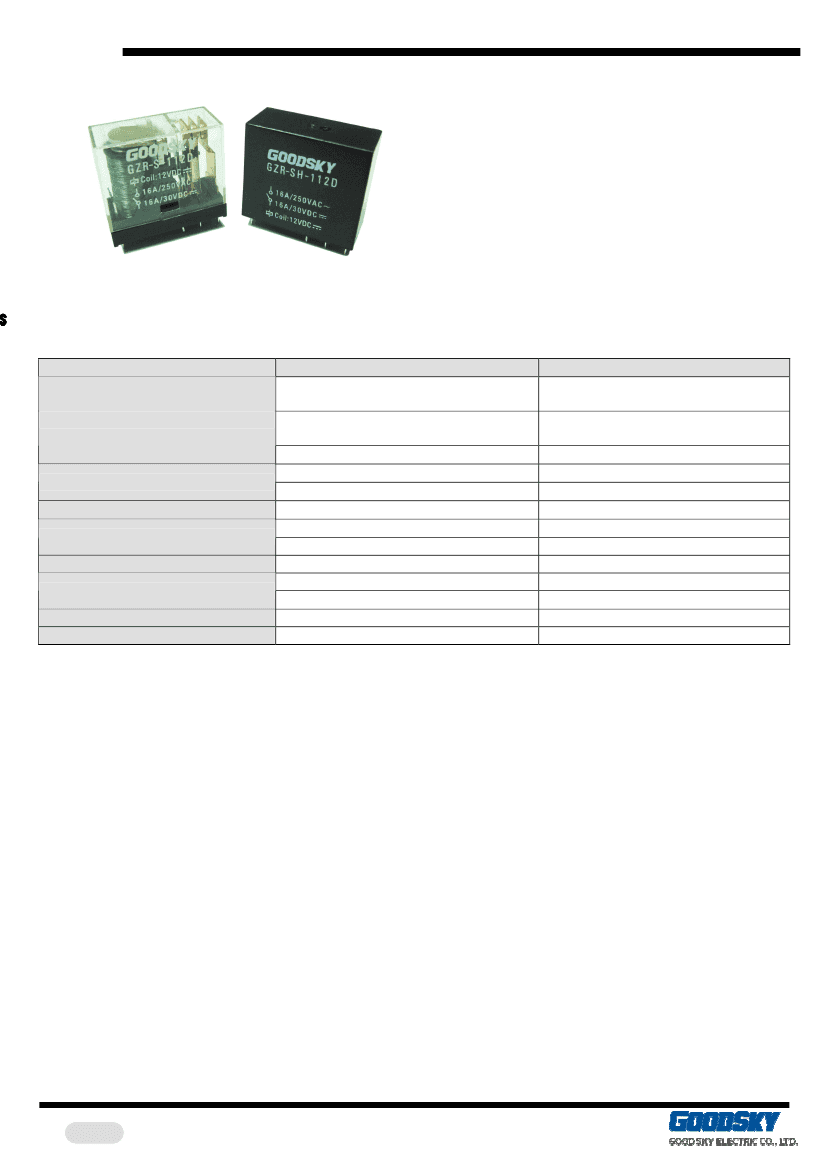

GZR

Main Feature

1. 8mm clearance and creepage distance.

2. Slim size with high capacity up to 25A.

3. Dielectric Strength 5,000 VAC. Surge Resistance

(7000V).

4. Class F insulation system.

5. Halogen Free series available.

6. Comply with RoHS and REACH regulations

Contact Rating

Load Type

GZR (LM/DM)

20A 277VAC

Rated Load (Resistive)

20A 30VDC

25A 125VAC

1HP 250VAC

TV-10 120VAC

25A

AC 380V

DC125V

25A

5540VA

600W

Ag Alloy

SPST

GZR (L/D)

20A 277VAC (N/O)

16A 277VAC (N/C)

20A 30VDC (N/O)

16A 30VDC (N/C)

25A 125VAC (N/O) (at 70°

1HP 250VAC

TV-10 120VAC (N/O)

25A

AC 380V

DC125V

25A

5540VA

600W

Ag Alloy

SPDT

Contact Capacity

Rated Carrying Current

Max. Allowable Voltage

Max. Allowable Current

Max. Allowable Power Force

Contact Material

Contact Form

Application

General Control, Home Appliance.

Vibration:

Endurance ........................... 10 to 55 Hz dual

Amplitude width 1.5mm

Error Operation.................... 10 to 55 Hz dual

Amplitude width 1.5mm

Shock:

Endurance ........................... 1,000 m/S

Error Operation.................... 100 m/S

Life Expectancy:

Mechanical .......................... 10 Operations at No

Load condition

Electrical.............................. 10 Operations at Rated

Resistive Load

Contact Material .................. Ag Alloy

Weight ................................. About 17g

Performance (at Initial Value)

Contact Resistance .............. 100mΩ Max.@1A,6VDC

Operate Time........................ 15mSec. Max.

Release Time ....................... 5 mSec. Max.

Dielectric Strength:

Between Coil & Contact…….5,000VAC at 50/60 Hz

for one minute

Between Contacts................. 1,000VAC at 50/60 Hz

for one minute

Surge Resistance ................. 7,000V (between coil &

Contact 1.2 / 50µSec.)

Insulation Resistance ........... 1,000 MΩ Min. at

500VDC

Max. On/Off Switching:

Electrical ............................... 6 Cycles per Minute

Mechanical............................ 300 Cycles per Minute

Temperature Range………...-40~+85°

Humidity Range.................... 45~85% RH.

Coil Temperature Rise.......... 45°C Max. (D Type)

35°C Max. (L Type)

Safety Standard & File Number

UL & C-UL ............................ E141060

TUV ...................................... In Progress

■


