5962F9674202QEX datasheet, PDF

Datasheet> All Categories > The signal circuit> 5962F9674202QEX

5962F9674202QEX: Description8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; CategoryThe signal circuit; File Size89KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9674202QEX Overview

8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

5962F9674202QEX Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	7.62 mm
Base Number Matches	1

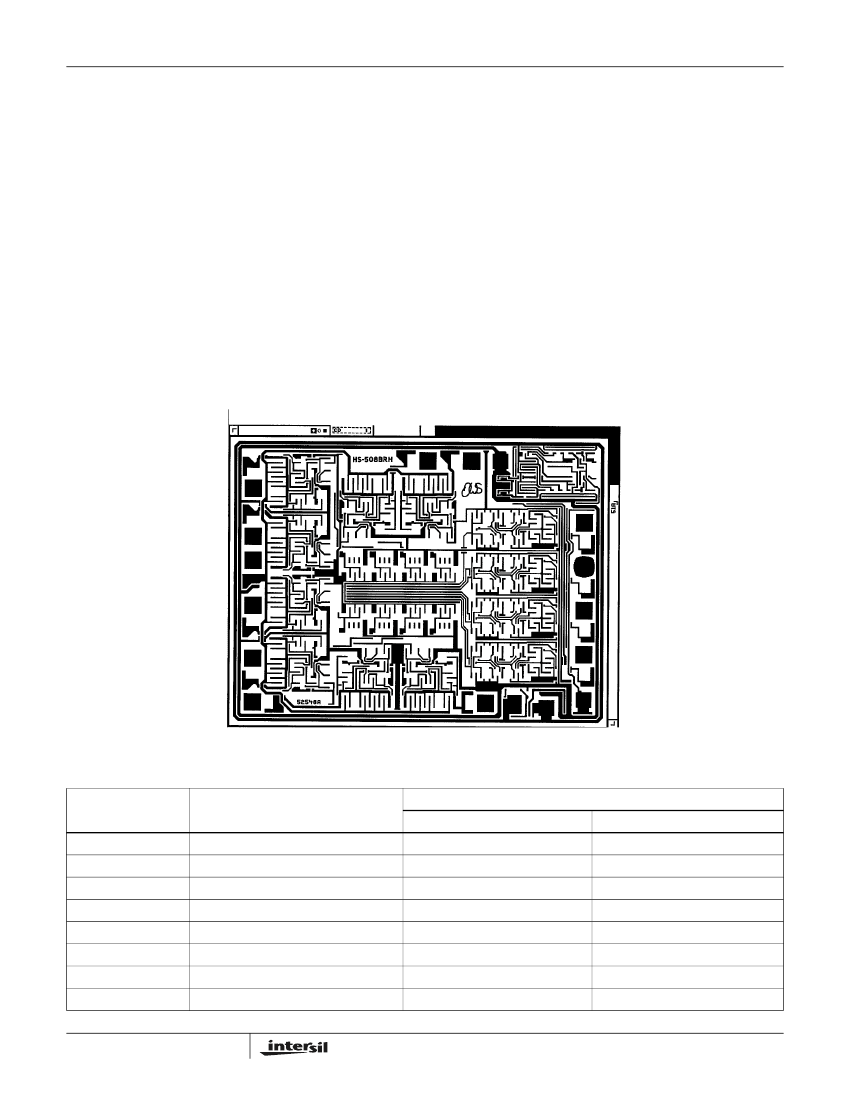

Preview

Download Datasheet

View All

HS-508BRH

Data Sheet

August 11, 2009

FN4824.2

Radiation Hardened 8 Channel CMOS

Analog Multiplexer with Overvoltage

Protection

The HS-508BRH is a dielectrically isolated, radiation

hardened, CMOS analog multiplexer incorporating an

important feature; it withstands analog input voltages much

greater than the supplies. This is essential in any system

where the analog inputs originate outside the equipment.

They can withstand a continuous input up to 10V greater than

either supply, which eliminates the possibility of damage when

supplies are off, but input signals are present. Equally

important, it can withstand brief input transient spikes of

several hundred volts; which otherwise would require complex

external protection networks. Necessarily, ON resistance is

somewhat higher than similar unprotected devices, but very

low leakage current combine to produce low errors.

Reference Application Notes 520 and 521 for further

information on the HS-508BRH multiplexer in general.

The HS-508BRH has been specifically designed to meet

exposure to radiation environments. Operation from -55°C to

+125°C is guaranteed.

Features

• Electrically Screened to SMD # 5962-96742

• QML Qualified per MIL-PRF-38535 Requirements

• Radiation Environment

- Gamma Dose (γ) . . . . . . . . . . . . . . . . . 3 x 10

Rad (Si)

- Dielectrically Isolated Device Islands

- SEP >100 Mev-mg/cm

• Analog/Digital Overvoltage Protection

• ESD Rated to 3kV

• Fail Safe with Power Loss (No Latchup)

• Break-Before-Make Switching

• (Typ) DTL/TTL and CMOS Compatible Threshold

• Analog Signal Range.

. . . . . . . . . . . . . . . . . . . . . . . . . . . ±15V

• Fast Access Time

• Supply Current at 1MHz Address Toggle . . . . . .4mA (Typ)

• Standby Power . . . . . . . . . . . . . . . . . . . . . . . .7.5mW (Typ)

• Pb-Free (RoHS Compliant)

Specifications for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Specifications for these devices are

contained in SMD 5962-96742. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Ordering Information

ORDERING NUMBER

(Note)

5962F9674202QEC

5962F9674202QXC

5962F9674202VEC

5962F9674202VXC

HS1-508BRH/PROTO

HS9-508BRH/PROTO

INTERNAL

MKT. NUMBER

HS1-508BRH-8

HS9-508BRH-8

HS1-508BRH-Q

HS9-508BRH-Q

HS1-508BRH/PROTO

HS9-508BRH/PROTO

PART MARKING

Q 5962F96 74202QEC

Q 5962F96 74202QXC

Q 5962F96 74202VEC

Q 5962F96 74202VXC

HS1- 508BRH /PROTO

HS9- 508BRH /PROTO

TEMP. RANGE

(°C)

-55 to +125

PACKAGE

(Pb-Free)

16 Ld SBDIP

16 Ld FLATPACK

16 Ld SBDIP

16 Ld FLATPACK

16 Ld SBDIP

16 Ld FLATPACK

PKG. DWG.

D16.3

K16.A

D16.3

K16.A

D16.3

K16.A

NOTE: These Intersil Pb-free Hermetic packaged products employ 100% Au plate - e4 termination finish, which is RoHS compliant and compatible

with both SnPb and Pb-free soldering operations.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners

5962F9674202QEX Related Products

	5962F9674202QEX	5962F9674202VXX	5962F9674202QXX	5962F9674202VEX
Description	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, CERAMIC, DFP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, CERAMIC, DFP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DFP	DFP	DIP
package instruction	DIP,	DFP,	DFP,	DIP,
Contacts	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T16	R-CDFP-F16	R-CDFP-F16	R-CDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm	2.92 mm	2.92 mm	5.08 mm
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
width	7.62 mm	6.73 mm	6.73 mm	7.62 mm
Base Number Matches	1	1	1	-
