PD-2.270 rev. B 01/99
82CNQ030
SCHOTTKY RECTIFIER
80 Amp
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 40 Apk, T
J
= 125°C
(per leg)
range
- 55 to 150
°C
Description/Features
The 82CNQ030 center tap Schottky rectifier module has been
optimized for very low forward voltage drop, with moderate
leakage. The proprietary barrier technology allows for reliable
operation up to 150 °C junction temperature. Typical applica-
tions are in switching power supplies, converters, free-wheel-
ing diodes, and reverse battery protection.
150 °C T
J
operation
Center tap module
Very low forward voltage drop
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Low profile, small footprint, high current package
82CNQ030 Units
80
30
5100
0.37
A
V
A
V
Case Styles
82CNQ030
82CNQ030SM
82CNQ030SL
D61-8
D61-8-SM
D61-8-SL
www.irf.com
1
82CNQ030
PD-2.270 rev. B
01/99
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V)
30
V
RWM
Max. Working Peak Reverse Voltage (V)
82CNQ030
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
* See Fig. 5
I
FSM
E
AS
I
AR
Max. Peak One Cycle Non-Repetitive
Surge Current (Per Leg) * See Fig. 7
Non-Repetitive Avalanche Energy
(Per Leg)
Repetitive Avalanche Current
(Per Leg)
5100
880
36
8
A
mJ
A
Following any rated
load condition and with
10ms Sine or 6ms Rect. pulse rated V
RRM
applied
5µs Sine or 3µs Rect. pulse
T
J
= 25 °C, I
AS
= 8 Amps, L = 1.12 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
82CNQ Units
80
A
Conditions
50% duty cycle @ T
C
= 119 °C, rectangular wave form
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg) * See Fig. 1
(1)
82CNQ Units
0.47
0.55
0.37
0.47
5
280
3700
5.5
10,000
V
V
V
V
mA
mA
pF
nH
V/ µs
@ 40A
@ 80A
@ 40A
@ 80A
Conditions
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
C
T
L
S
Max. Reverse Leakage Current
(Per Leg) * See Fig. 2
(1)
Max. Junction Capacitance (Per Leg)
Typical Series Inductance (Per Leg)
T
J
= 25 °C
T
J
= 125 °C
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25°C
Measured lead to lead 5mm from package body
dv/dt Max. Voltage Rate of Change
(Rated V
R
)
(1) Pulse Width < 300µs, Duty Cycle <2%
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
82CNQ Units
-55 to 150
-55 to 150
0.85
0.42
0.30
7.8 (0.28)
Min.
Max.
40 (35)
58 (50)
°C
°C
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case (Per Leg)
R
thJC
Max. Thermal Resistance Junction
to Case (Per Package)
R
thCS
Typical Thermal Resistance, Case
to Heatsink
(D61-8 Only)
wt
T
Approximate Weight
Mounting Torque
(D61-8 Only)
°C/W DCoperation
°C/W DCoperation
* See Fig. 4
°C/W Mounting surface , smooth and greased
g (oz.)
Kg-cm
(Ibf-in)
2
www.irf.com
82CNQ030
PD-2.270 rev. B
01/99
1000
1000
T
J
= 150°C
(mA)
100
125°C
100°C
75°C
1
50°C
0.1
25°C
Reverse Current - I
R
10
100
Instantaneous Forward Current - I
F
(A)
0.01
T
J
= 150°C
10
T
J
= 125°C
T
J
= 25°C
10000
Junction Capacitance - C (pF)
0
5
10
15
20
25
30
Reverse Voltage - V
R
(V)
Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage (Per Leg)
T
T = 25°C
J
1
0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
Forward Voltage Drop - V
FM
(V)
1000
0
5
10
15
20
25
30
35
Reverse Voltage - V
R
(V)
Fig. 1 - Max. Forward Voltage Drop Characteristics
(PerLeg)
1
Thermal Impedance Z
thJC
(°C/W)
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage (Per Leg)
0.1
D
D
D
D
D
= 0.50
= 0.33
= 0.25
= 0.17
= 0.08
P
DM
t1
Notes:
Single Pulse
(Thermal Resistance)
0.01
0.00001
t2
1. Duty factor D = t 1/ t 2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.1
1
10
100
0.0001
0.001
0.01
t 1 , Rectangular Pulse Duration (Seconds)
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics (Per Leg)
www.irf.com
3
82CNQ030
PD-2.270 rev. B
01/99
150
Allowable Case Temperature - (°C)
R
thJC
(DC) = 0.85 °C/W
25
Average Power Loss - (Watts)
D = 0.08
D = 0.17
D = 0.25
D = 0.33
D = 0.50
145
20
140
15
RMS Limit
10
DC
135
DC
130
5
125
0
10
20
30
40
50
60
Average Forward Current - I
F(AV)
(A)
0
0
10
20
30
40
50
60
Average Forward Current - I
F(AV)
(A)
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
10000
FSM
Fig. 6 - Forward Power Loss Characteristics
(PerLeg)
Non-Repetitive Surge Current - I
(A)
1000
At Any Rated Load Condition
And With Rated V
RRM
Applied
Following Surge
100
10
100
1000
10000
Square Wave Pulse Duration - t p (microsec)
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
L
HIGH-SPEED
SWITCH
FREE-WHEEL
DIODE
40HFL40S02
Vd = 25 Volt
DUT
IRFP460
Rg = 25 ohm
+
CURRENT
MONITOR
Fig. 8 - Unclamped Inductive Test Circuit
4
www.irf.com
82CNQ030
PD-2.270 rev. B
01/99

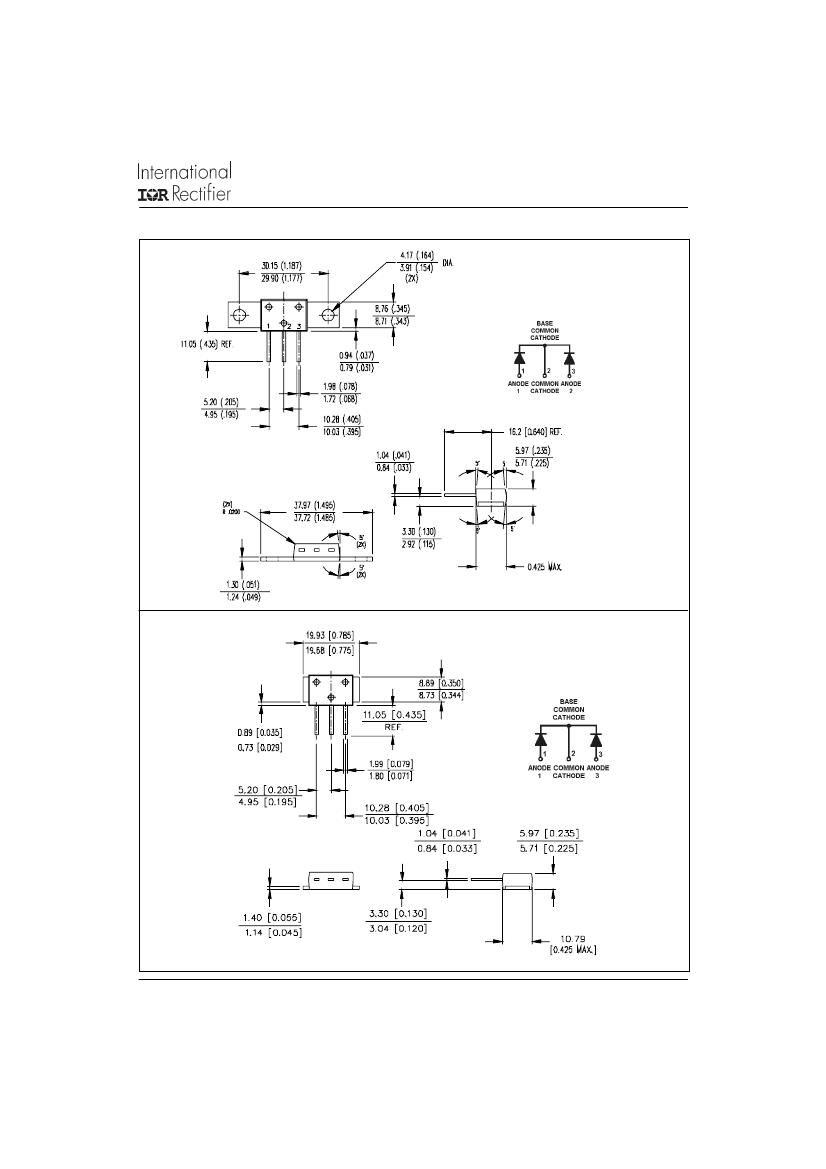

Outline Table
Outline D61-8
Dimensions are in millimeters and (inches)
Outline D61-8-SM
Dimensions are in millimeters and (inches)
www.irf.com
5
