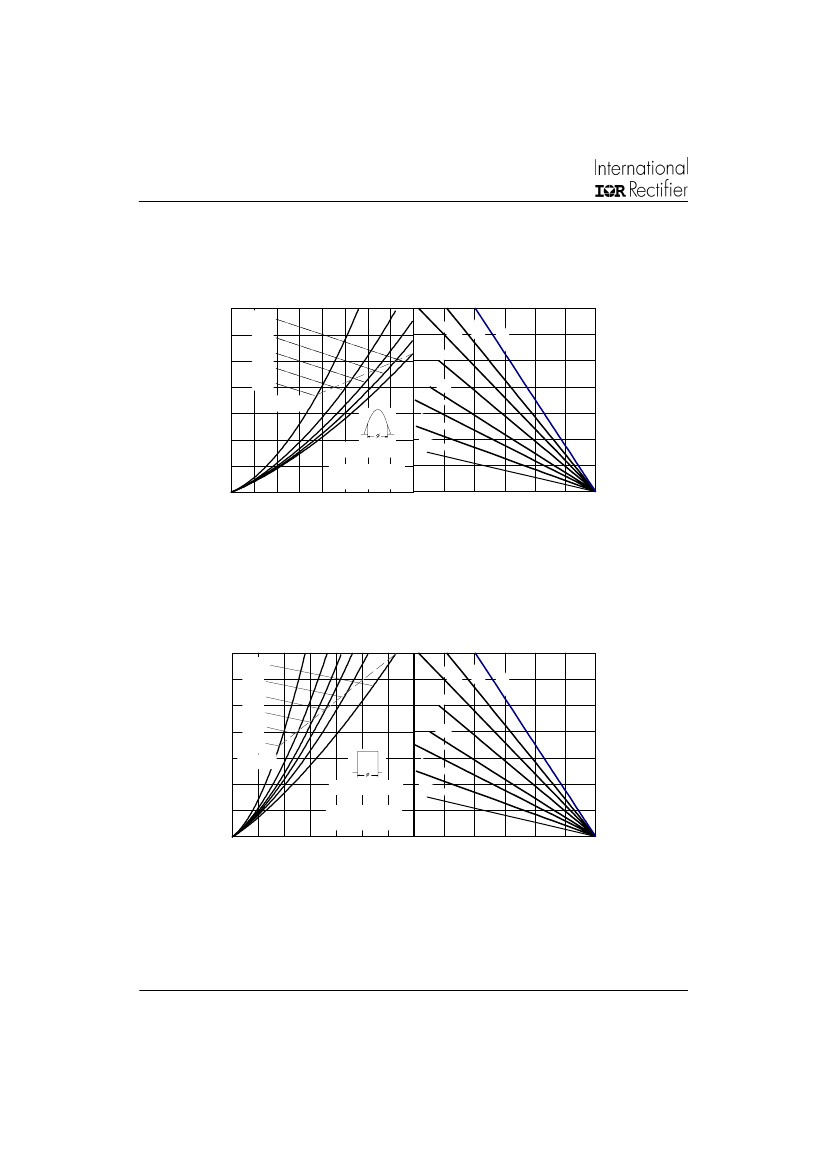

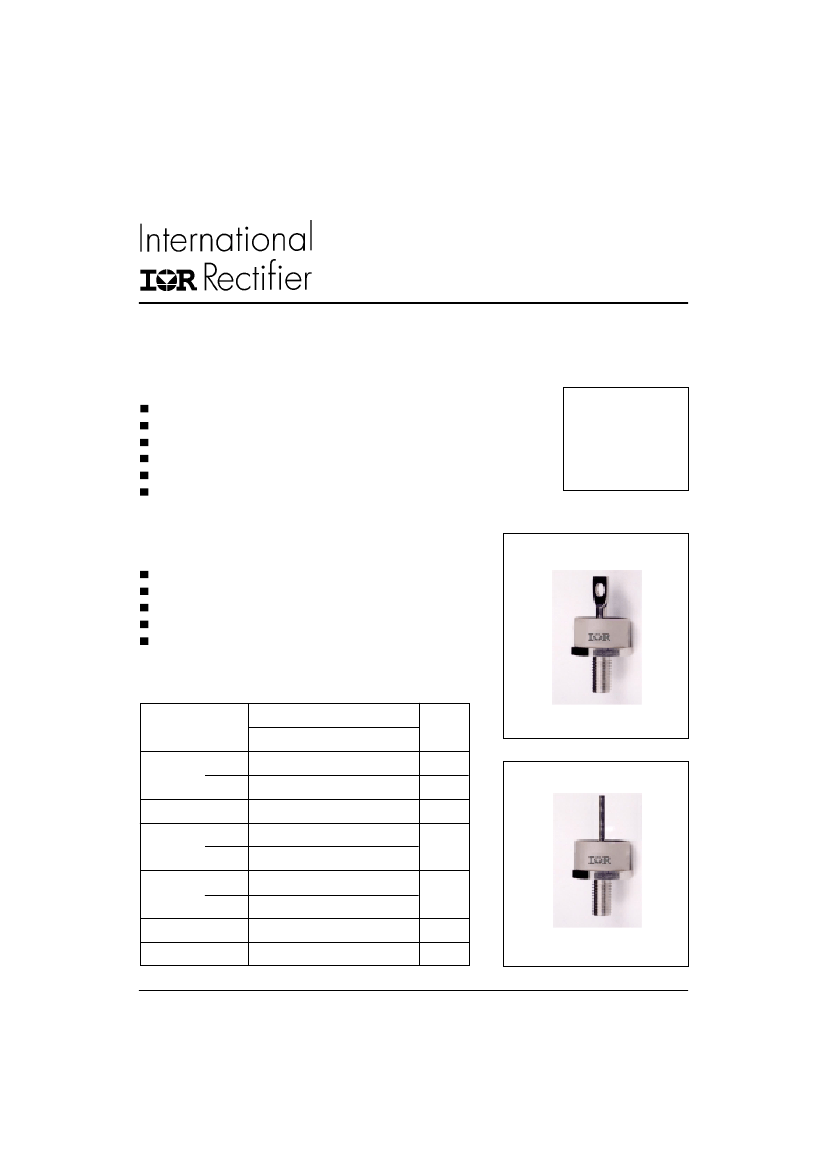

Rectifier Diode, 1 Phase, 1 Element, 80A, 400V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | International Rectifier （ Infineon ） |
| Parts packaging code | DO-5 |
| package instruction | O-MUPM-H1 |
| Contacts | 1 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JEDEC-95 code | DO-203AB |
| JESD-30 code | O-MUPM-H1 |
| Maximum non-repetitive peak forward current | 1570 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 180 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 80 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V |
| surface mount | NO |
| Terminal form | HIGH CURRENT CABLE |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | 40 |
| Base Number Matches | 1 |
| 82PFR40WPBF | 82PFR120PBF | 82PFR80PBF | 82PF40WPBF | 82PFR120WPBF | 82PF120WPBF | 82PF80PBF | 82PF120PBF | |
|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 80A, 400V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 80A, 1200V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 80A, 800V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 80A, 400V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 80A, 1200V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 80A, 1200V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 80A, 800V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 80A, 1200V V(RRM), Silicon, DO-203AB, PLASTIC, DO-5, 1 PIN |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Parts packaging code | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 |
| package instruction | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 |
| Contacts | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-203AB | DO-203AB | DO-203AB | DO-203AB | DO-203AB | DO-203AB | DO-203AB | DO-203AB |
| JESD-30 code | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 |
| Maximum non-repetitive peak forward current | 1570 A | 1570 A | 1570 A | 1570 A | 1570 A | 1570 A | 1570 A | 1570 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 180 °C | 180 °C | 180 °C | 180 °C | 180 °C | 180 °C | 180 °C | 180 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Maximum output current | 80 A | 80 A | 80 A | 80 A | 80 A | 80 A | 80 A | 80 A |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V | 1200 V | 800 V | 400 V | 1200 V | 1200 V | 800 V | 1200 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Maker | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | - | International Rectifier （ Infineon ） |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
