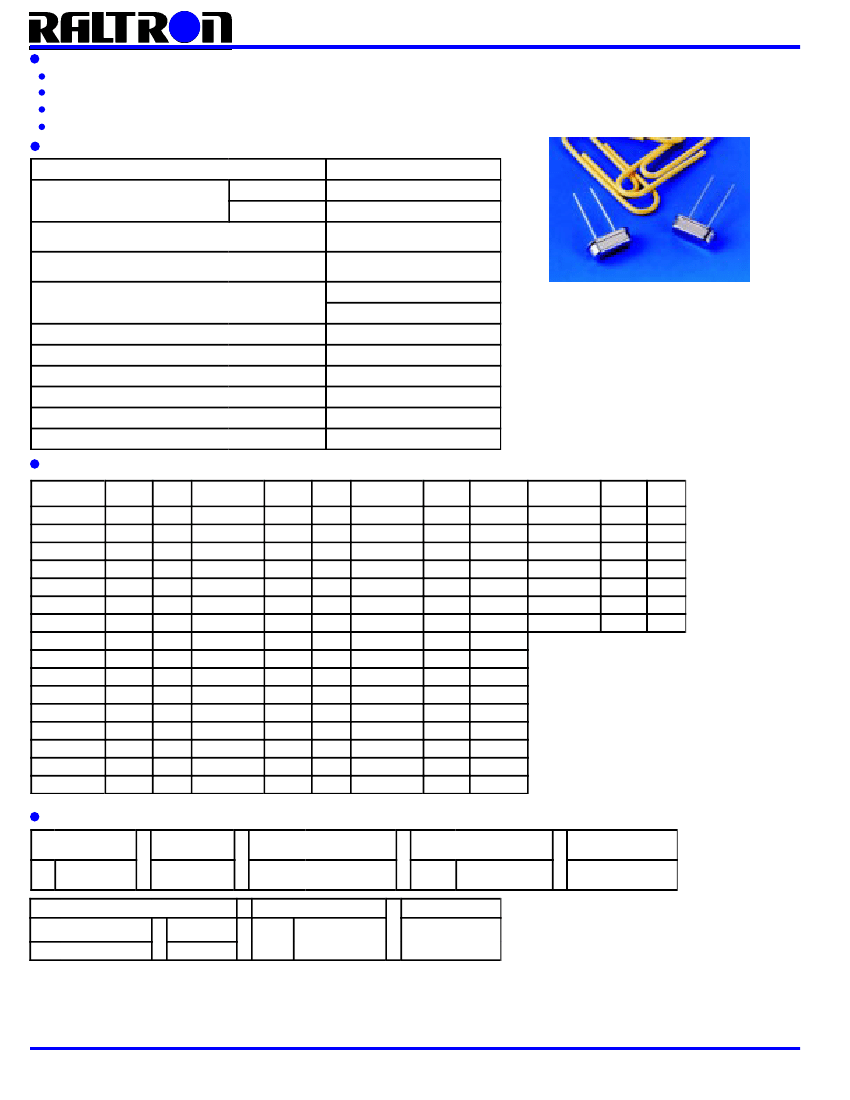

LOW PROFILE MICROPROCESSOR CRYSTALS

FEATURES

EXCELLENT CLOCK SIGNAL GENERATOR FOR CPU’s

3.5 mm MAXIMUM HEIGHT

AVAILABLE IN EXTENDED TEMPERATURE RANGE

SAME PIN LAYOUT AS HC-49/U

SPECIFICATIONS

FREQUENCY RANGE

FUNDAMENTAL

MODE OF OSCILLATION

THIRD OVERTONE

FREQUENCY TOLERANCE AT 25°C

FREQUENCY STABILITY OVER TEMPERATURE RANGE

24.576 MHz TO 70.00 MHz

±30 PPM TYPICAL

±50 PPM MAXIMUM

±50 PPM TYPICAL

±100 PPM MAXIMUM

-20° C TO +70° C STANDARD

OPERATING TEMPERATURE RANGE

-40° C TO +85° C EXTENDED

STORAGE TEMPERATURE RANGE

AGING

LOAD CAPACITANCE

EQUIVALENT SERIES RESISTANCE (ESR)

DRIVE LEVEL

CRYSTAL CUT

-55° C TO +125° C

±5 PPM PER YEAR MAXIMUM

10 pF TO 32 pF OR SERIES

SEE TABLE

0.1 mW TYPICAL

AT STRIP

3.20 MHz TO 70.00 MHz

3.20 MHz TO 40.320 MHz

SERIES AS

HC-49/S

SMD VERSION IS SHOWN ON PAGE 20

TYPICAL FREQUENCIES AND ESR CHARACTERISTICS

FREQUENCY ESR MAX

(MHz)

(OHM) MODE

(MHz)

(OHM) MODE

(MHz)

(OHM)

3.579545

3.6864

4.00

4.032

4.096

4.194304

4.433619

4.9152

5.0688

6.00

6.144

6.176

7.15909

7.3728

7.680

8.00

200

150

120

100

FUND

8.064

8.192

8.6436

9.60

9.8304

10.00

10.24

10.244

10.245

11.00

11.0592

11.2896

12.00

12.288

12.80

14.31818

FUND

14.7456

16.00

16.000312

16.384

19.6608

20.00

24.00

24.576

27.00

28.63636

29.00

32.00

32.768

36.00

40.00

40.320

50/80

50/100

MODE

FUND

FUND/3OT

FREQUENCY ESR MAX

(MHz)

(OHM) MODE

47.92

48.00

50.688

52.416

56.448

70.00

3OT

OTHER FREQUENCIES

ARE AVAILABLE

PART NUMBERING SYSTEM

HOLDER TYPE

HC-49/S

IN MHz

FREQUENCY

LOAD CAPACITANCE

10 TO 32pF FOR PARALLEL

S FOR SERIES

HEIGHT

STD†

H28

3.5 mm

3.0 mm (CUSTOM)

2.8 mm (CUSTOM)

FUND

3OT

MODE

FUNDAMENTAL†

THIRD OVERTONE

EXTENDED

TEMPERATURE

EXT

MECHANICAL OPTIONS

THREE PIN BASE

3PIN

SPACER

TAPE AND REEL

EXAMPLE: AS-16.000-20-H3

AS-32.000-18-3OT-SP-EXT-T

† NO OPTION CODE NEEDED WHEN “STD” OR FUNDAMENTAL IS SPECIFIED.

TAPE AND REEL QUANTITY IS 1K PIECES.

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
