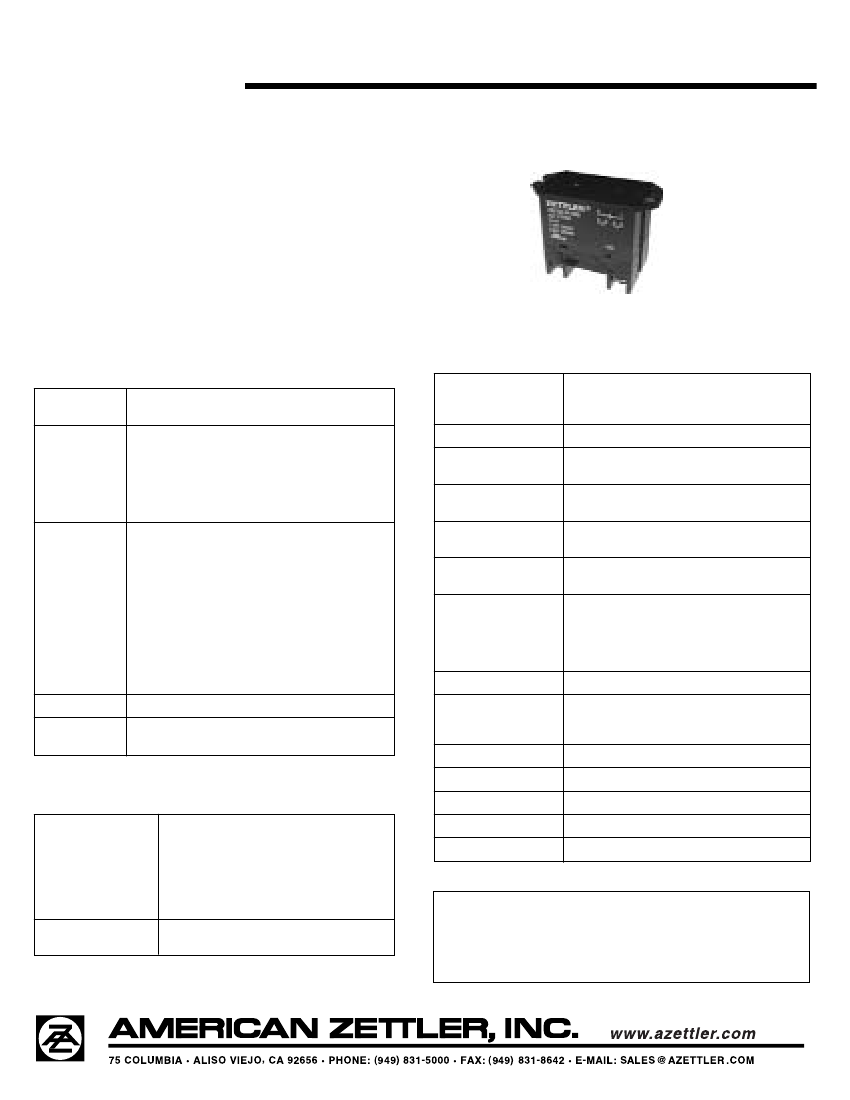

AZ2705
30 AMP POWER RELAY
FEATURES
•
Low cost
•
30 Amp switching
•
Class B insulation system standard,
Class F available
•
Flange mount
•
4 kV dielectric
•
Standard (2.4 mm) and wide contact
gap (3.0 mm) available
•
UL, CUR file E44211
•
TÜV R50164753
GENERAL DATA
CONTACTS
Arrangement
Ratings
SPST (1 Form X)
DPST (2 Form X)
Resistive load:
Max. switched power: 840 W or 8310 VA
Max. switched current: 30 A
Max. switched voltage: 150* VDC or 400 VAC
*
Note: If switching voltage is greater than 30 VDC, special
Life Expectancy
Mechanical
Electrical
Operate Time (max)
Release Time (max)
Minimum operations
1 x 10
6
1 x 10
5
at 30 A 120 VAC Res.
30 ms at nominal coil voltage
30 ms at nominal coil voltage
(with no coil suppression)
precautions must be taken. Please contact the factory.
Dielectric Strength
4000 Vrms coil to contact
(at sea level for 1 min.)
2000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 5% of nominal coil voltage (DC)
Greater than 15% of nominal coil voltage (AC)
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F) - Class B
-40°C (-40°F) to 105°C (221°F) - Class F
-40°C (-40°F) to 130°C (266°F) - Class B
-40°C (-40°F) to 155°C (311°F) - Class F
0.062" DA at 10–55 Hz
Rated Load
UL, CUR
30 A at 277 VAC res. 30k cycles [1]
1.5 HP at 120 VAC [1]
3 HP at 240 VAC [1]
TV-10 at 120 VAC [1]
30 A at 277 VAC res. 70k cycles [2]
3 HP at 240 VAC 100k cycles [2]
10 A at 120 VAC tungsten load, 10k cycles [2]
27 A at 240 VAC, cos phi = .8, 100k cycles [1]
[1] silver cadmium oxide,
[2] silver tin oxide (1 Form X only)
TÜV
Vibration
Shock
Material
Resistance
Silver cadmium oxide, silver tin oxide
< 100 milliohms initially
(24 V, 1 A voltage drop method)
Operating
10 g, 11 ms,
1
/
2
sine (no false operation)
Non-Operating
100 g, 11 ms,
1
/
2
sine (no damage)
Enclosure
Terminals
P.B.T. polyester
Screw mount
270°C (518°F)
5 seconds
120 grams
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
1.08 W (DC)
1.2 VA (AC)
3.8 W at 20°C (68°F) ambient
50°C (90°F) at nominal coil voltage
Max. 130°C (266°F) - Class B
Max. 155°C (311°F) - Class F
Max. Solder Temp.
Max.
Solder Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
4. Allow suitable slack on leads when wiring, and do not subject the termi-
nals to excessive force.
10/2/09
