598-8930-302F

Description
Triple Color LED, Orange/green/blue, Water Clear, 3.20 X 2.70 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 4 PIN
Categoryphotoelectric
File Size1MB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

598-8930-302F Overview

Triple Color LED, Orange/green/blue, Water Clear, 3.20 X 2.70 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 4 PIN

598-8930-302F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerDIALIGHT
package instruction3.20 X 2.70 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Codecompliant
colorORANGE/GREEN/BLUE
ConfigurationCOMMON ANODE, 3 ELEMENTS
Maximum forward current0.02 A
JESD-609 codee4
Lens typeWATER CLEAR
Nominal luminous intensity120.0/220.0/90.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals4
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Optoelectronic device typesTRIPLE COLOR LED
method of packingTAPE
shapeRECTANGULAR
surface mountYES
Terminal surfaceNickel/Gold (Ni/Au)
Terminal pitch3.2 mm
perspective140 deg
Base Number Matches1

Preview

Download Datasheet

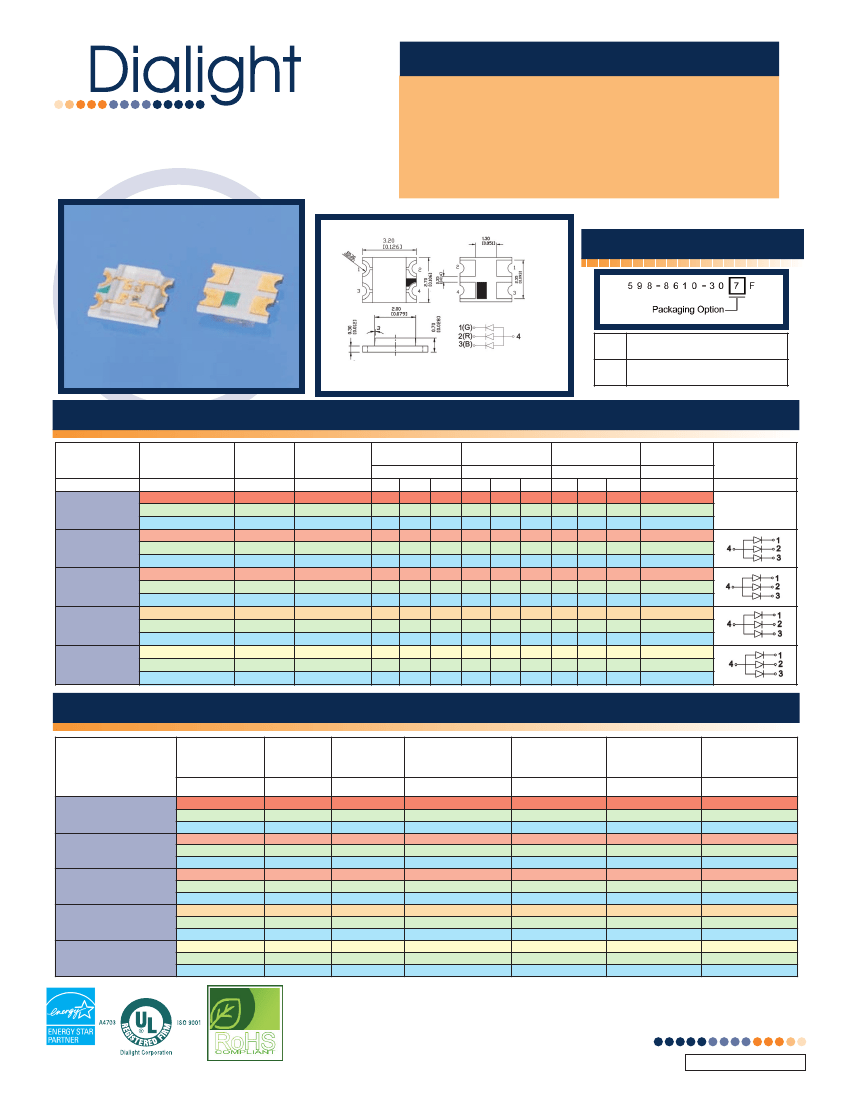

FEATURES / BENEFITS
Compatible with automatic placement equipment
Micro LED
®
SMD LED
“598 SERIES” 1210 PACKAGE
(3.2mm X 2.7mm X 0.7mm) Tri-Color
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.

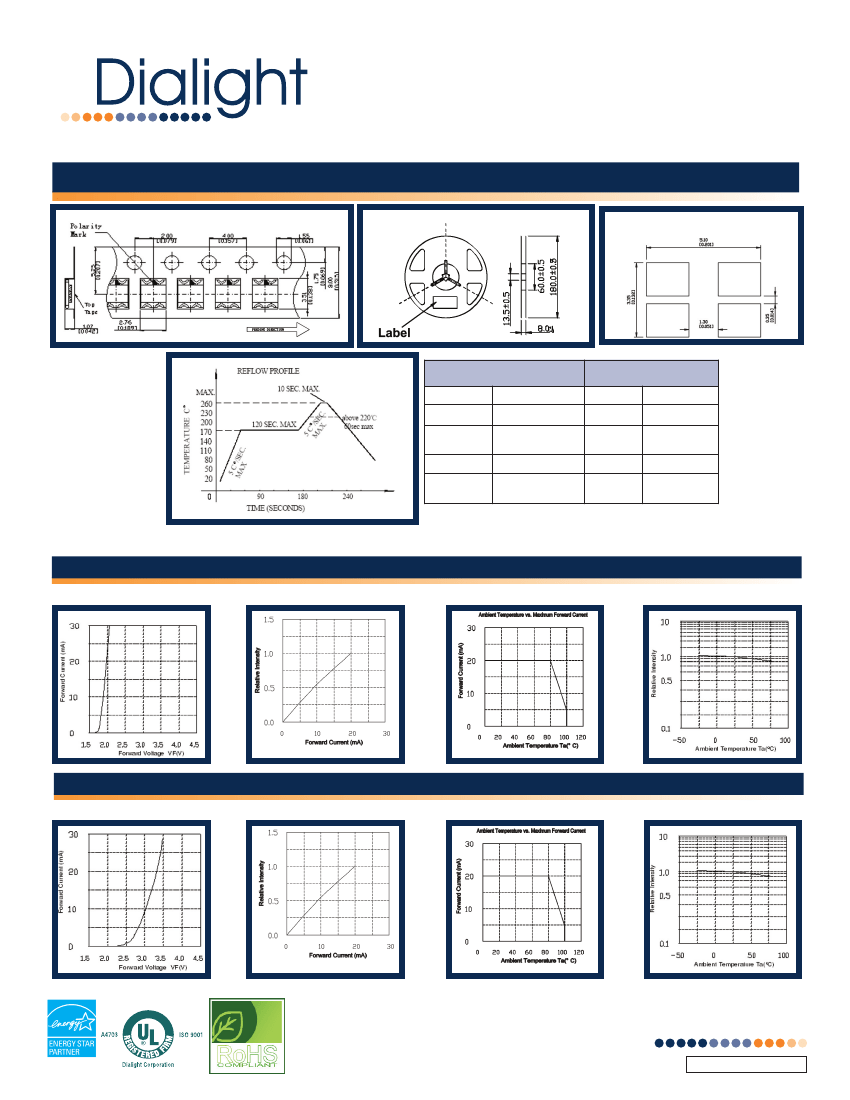

Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
Dialight P/N
EMITTED COLOR
MATERIAL
LENS COLOR
LUMINOUS
INTENSITY
If = 20 ma
MIN TYP MAX
40
60
80
90
120
220
60
90
140
90
120
150
90
150
220
30
60
90
40
60
80
80
100
150
30
40
60
70
120
150
150 220
300
60
90
140
90
110
150
150 220
300
60
90
140
DOMINANT
FORWARD
WAVELENGTH
VOLTAGE
If = 20 ma
If = 20 ma
MIN TYP MAX MIN TYP MAX
630 635 645 1.9
2
2.2
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
620 625 630 1.9
2
2.2
520 525 530
3
3.2
3.5
465 470 475
3
3.2
3.5
620 625 630 1.8 2.2
2.4
520 525 530
3
3.2
3.5
465 470 475
3
3.2
3.5
600 605 610 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
587 590 592 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
VIEWING
ANGLE
° DEGREES
140
140
140
140
140
140
140
140
140
140
140
140
140
140
140
PINOUT
598-8610-307F
598-8920-307F
598-9920-307F
598-8930-307F
598-8940-307F
RED
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
ORANGE
GREEN
BLUE
YELLOW
GREEN
BLUE
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Diffused
Diffused
Diffused
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
SEE EXAMPLE
G
RO
B
G
RO
B
G
O
B
G
Y
B
ABSOLUTE RATINGS
(@ Ta = 25ºC)
Power
Dissipation
(mW)
598-8610-307F
44
70
70
44
70
70
44
70
70
48
70
70
48
70
70
Forward
Current
(mA)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
Dialight P/N
598-8920-307F
598-9920-307F
598-8930-307F
598-8940-307F
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981210TRI_A
