USSP0175 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> USSP0175

USSP0175: DescriptionLOW COST - HIGH PERFORMANC3 VOLTAGE CONTROLLED OSCILLATOR; CategoryPassive components oscillator; File Size61KB，2 Pages; ManufacturerZ-Communications, Inc.; Websitehttps://www.zcomm.com/

Download Datasheet Parametric View All

USSP0175 Overview

LOW COST - HIGH PERFORMANC3 VOLTAGE CONTROLLED OSCILLATOR

USSP0175 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Z-Communications, Inc.
Reach Compliance Code	compli
Maximum control voltage	2.2 V
Minimum control voltage	0.4 V
Modulation sensitivity	14 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	181 MHz
Minimum operating frequency	169 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	0.5 dBm
phase noise	-100 dBc/Hz
physical size	5.08mm x 5.08mm x 1.47mm
power change	2.5 dB
Nominal supply voltage	3 V
surface mount	YES

Preview

Download Datasheet

View All

USSP0175

9939 Via Pasar • San Diego, CA 92126

TEL (858) 621-2700 FAX (858) 621-2722

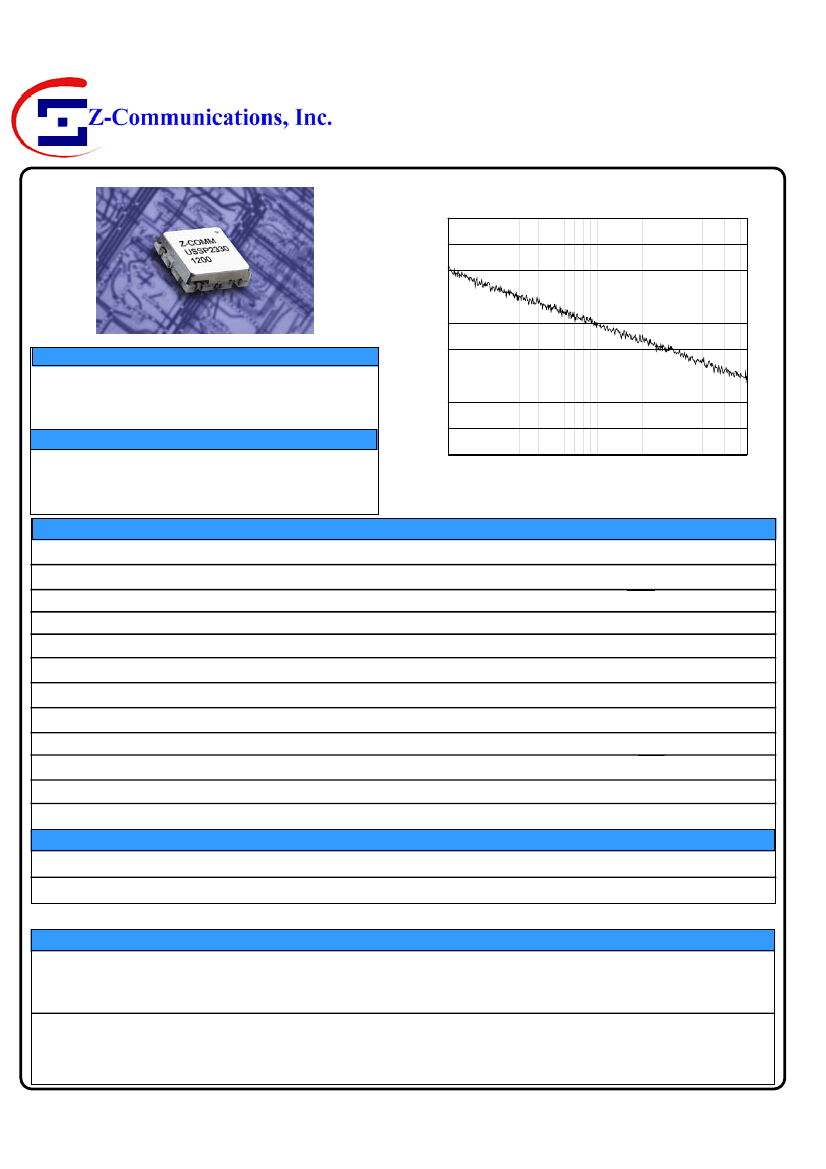

VOLTAGE CONTROLLED OSCILLATOR

Rev A1

PHASE NOISE (1 Hz BW, typical)

-60

-70

£(f) (dBc/Hz)

-80

-90

-100

-110

-120

-130

-140

-150

1 E+3

10 E+3

100 E+3

FEATURES

169 - 181

• Frequency Range:

• Tuning Voltage: 0.4-2.2 Vdc

• USSP - Style Package

APPLICATIONS

• Test Instrumentation

• Digital Radios / RF Modems

• Earthstations / CATV

MHz

OFFSET (Hz)

VALUE

169

181

-100

-10

0.4-2.2

0.5±2.5

500

<0.1

0 to 70

USSP

APPLICATION NOTES

Vdc

UNITS

MHz

dBc/Hz

dBc

Vdc

MHz/V

dBm

PERFORMANCE SPECIFICATIONS

Oscillation Frequency Range

Phase Noise @ 10 kHz offset (1 Hz BW, typ.)

Harmonic Suppression (2nd, typ.)

Tuning Voltage

Tuning Sensitivity (avg.)

Power Output

Load Impedance

Input Capacitance (max.)

Pushing

Pulling (14 dB Return Loss, Any Phase)

Ω

MHz/V

MHz

°C

Operating Temperature Range

Package Style

POWER SUPPLY REQUIREMENTS

Supply Voltage (Vcc, nom.)

Supply Current (Icc, typ.)

All specifications are typical unless otherwise noted and subject to change without notice.

•

AN-100/1 : Mounting and Grounding of VCOs

•

AN-102 : Proper Output Loading of VCOs

•

AN-107 : How to Solder Z-COMM VCOs

NOTES:

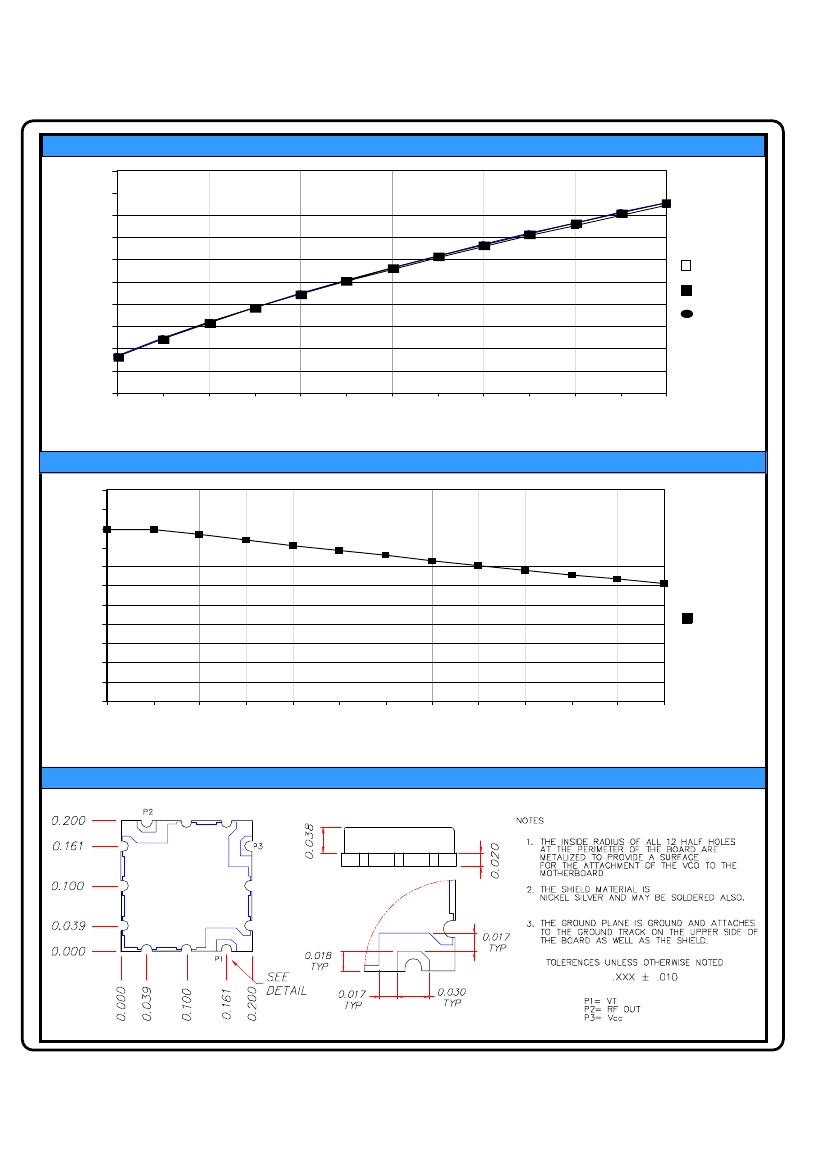

Page 1
