50-10A-20

Description
Card Edge Connector, 10 Contact(s), 1 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .125-.137, Green Insulator
CategoryThe connector
File Size93KB,2 Pages
ManufacturerBel Fuse
Download Datasheet Parametric View All

50-10A-20 Online Shopping

Suppliers Part Number Price MOQ In stock
50-10A-20 - - View Buy Now

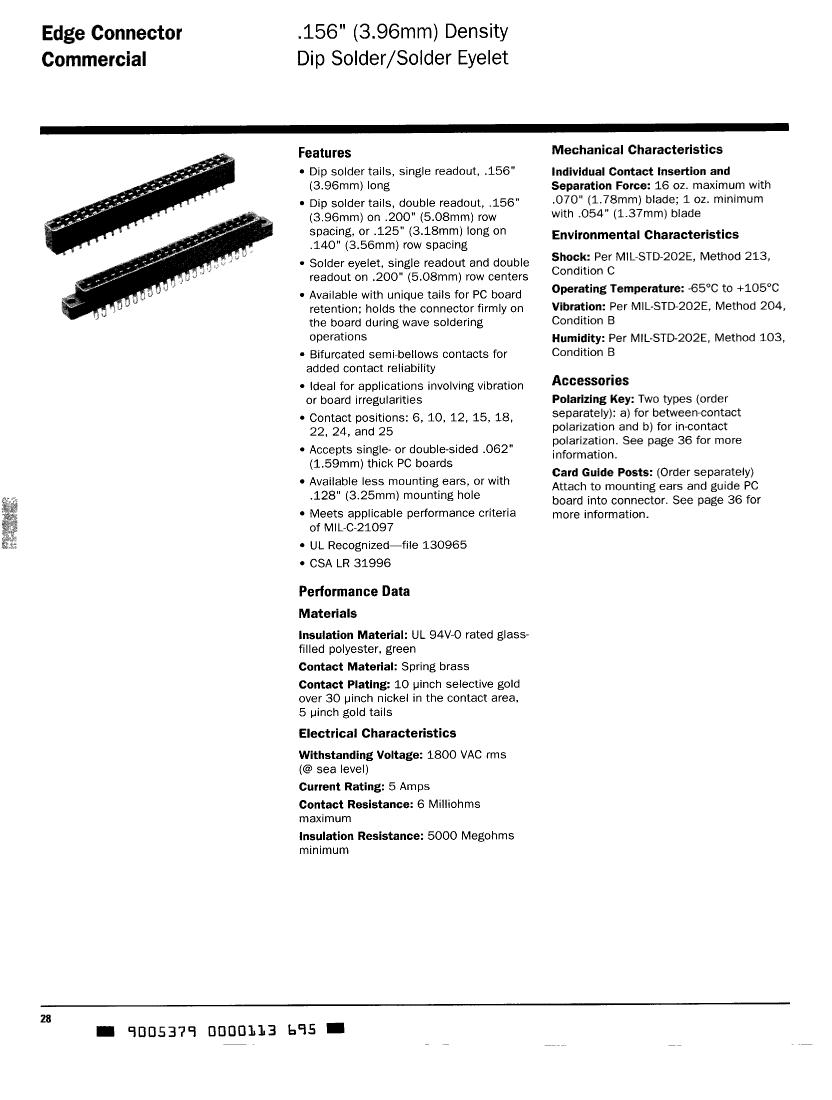

50-10A-20 Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .125-.137, Green Insulator

50-10A-20 Parametric

Parameter NameAttribute value
MakerBel Fuse
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresNONE

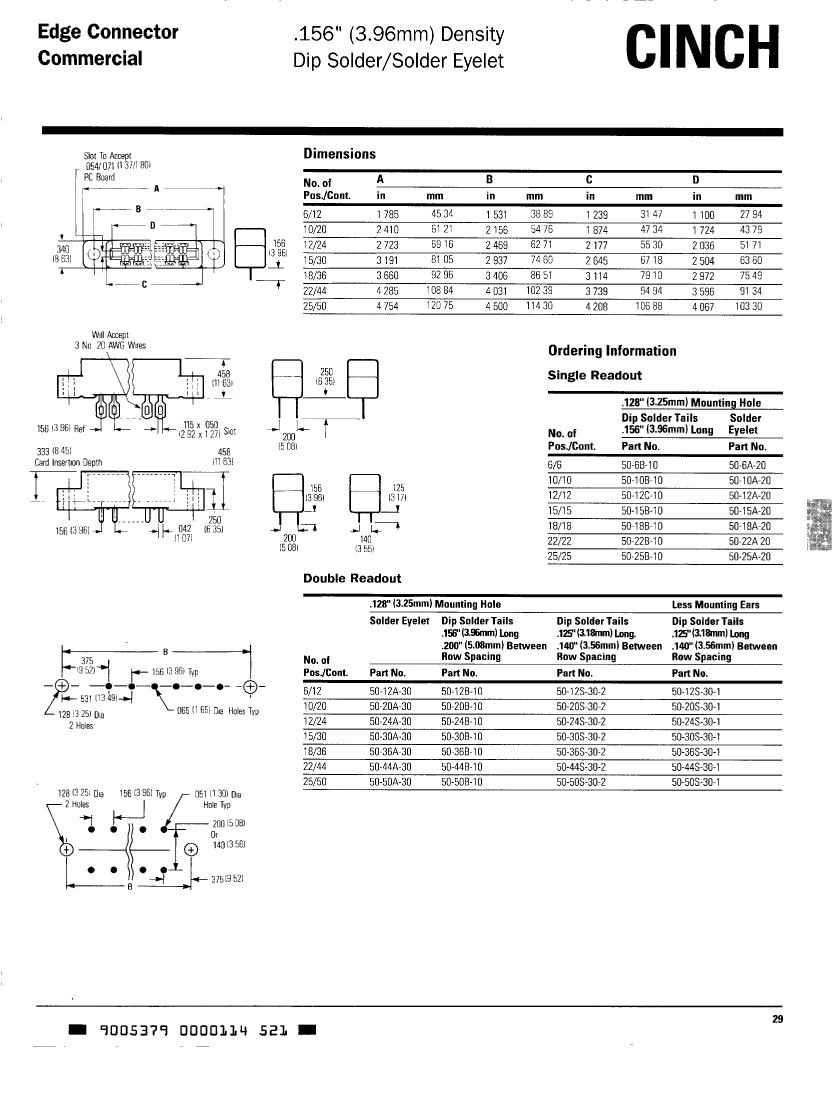

body width0.34 inch
subject depth0.458 inch
body length2.41 inch
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance6 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1800VAC V
maximum insertion force4.448 N
Insulation resistance5000000000 Ω
Insulator colorGREEN
insulator materialGLASS FILLED POLYESTER
MIL complianceYES
Manufacturer's serial number50-XXA
Plug contact pitch0.156 inch
Installation option 1HOLE .125-.137
Installation typePANEL
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
Plating thickness10u inch
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityMIL-C-21097
Terminal length0.25 inch
Termination typeSOLDER LUG
Total number of contacts10
Evacuation force-minimum value.278 N
Base Number Matches1
