50-20SN-1R datasheet, PDF - EEWORLD Datasheet

50-20SN-1R: DescriptionCard Edge Connector, 20 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Solder Terminal, Hole .125-.137, Black Insulator, Receptacle; CategoryThe connector; File Size106KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

50-20SN-1R Overview

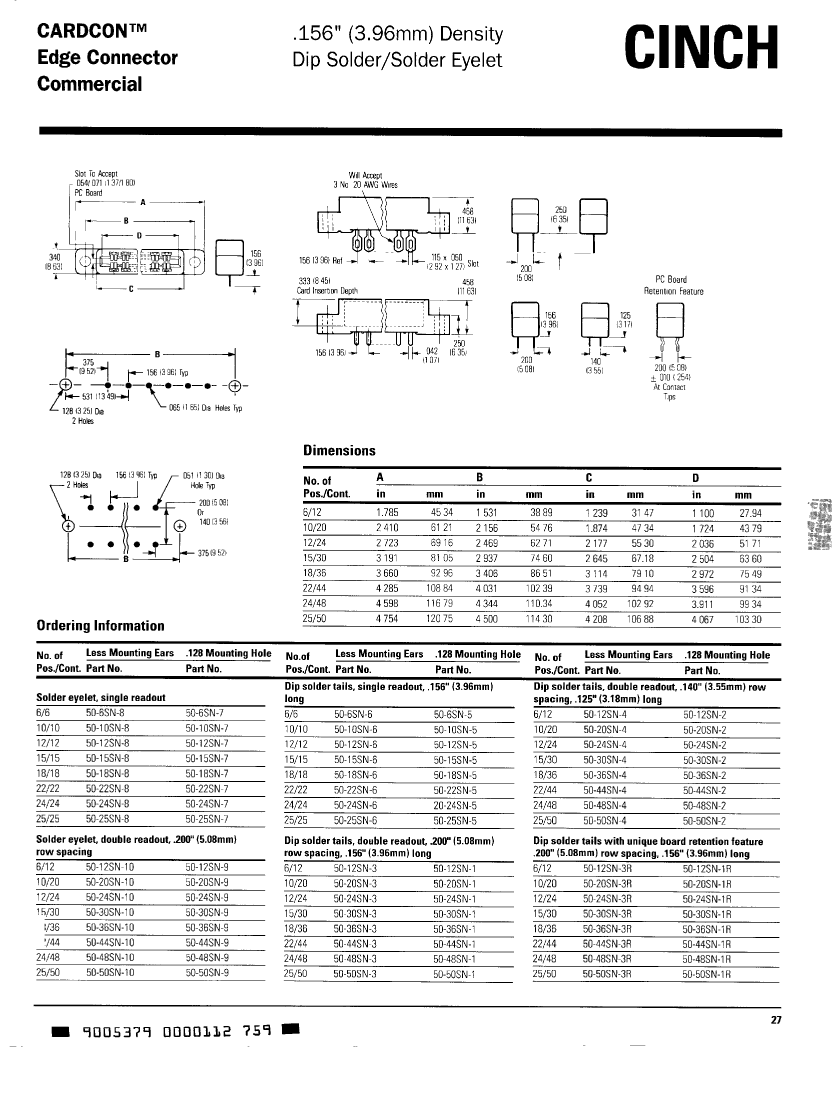

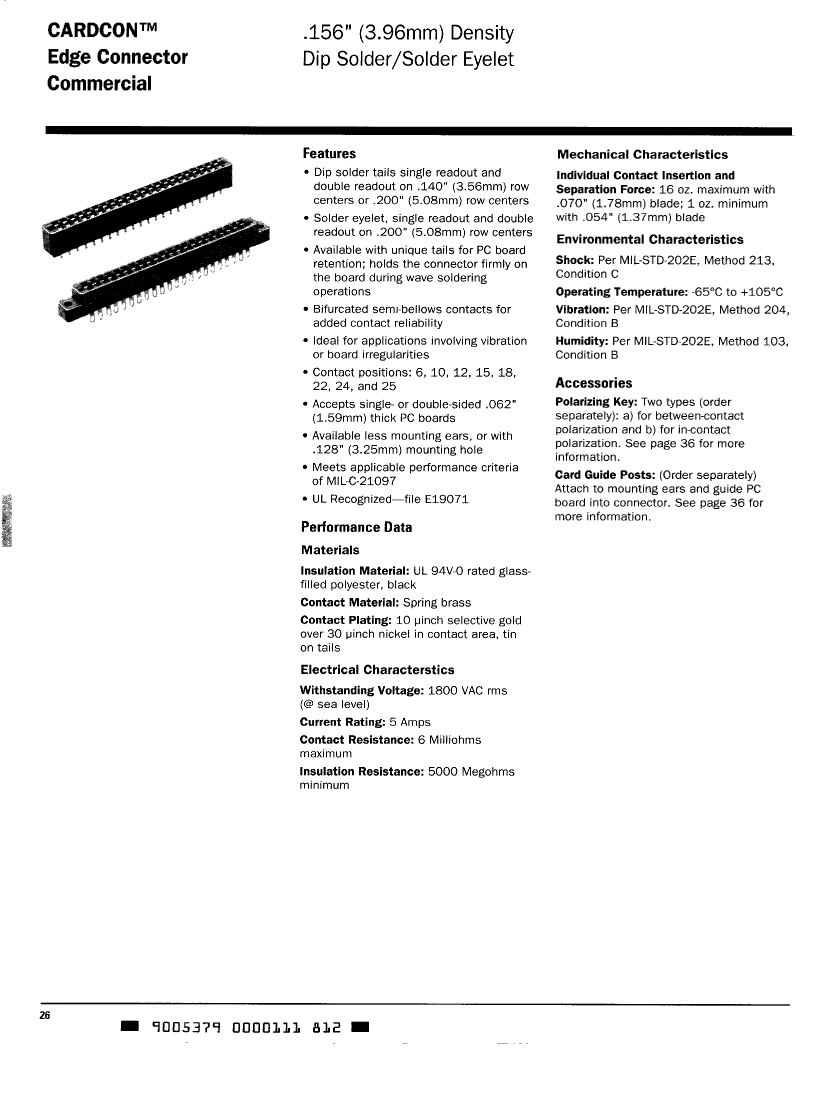

Card Edge Connector, 20 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Solder Terminal, Hole .125-.137, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Other features	NONE
body width	0.34 inch
subject depth	0.458 inch
body length	2.41 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1800VAC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	YES
Manufacturer's serial number	50-XXSN-X
Plug contact pitch	0.156 inch
Installation option 1	HOLE .125-.137
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	10u inch
Rated current (signal)	5 A
Guideline	UL
reliability	MIL-C-21097
Terminal length	0.156 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	20
Evacuation force-minimum value	.278 N
Base Number Matches	1
