6700 Series
TO-220, Subminiature Bimetal Disc Thermostat
FEATURES
• RoHS compliant per EU directive 2002 / 95 / EC
• TO-220 / Y-220 international electronic package standard
• Ideal for surface and air sensing on PC boards and heat sinks
• VDE approved with “P” bracket option
• Gold-plated contacts
• Up to 20,000 life cycles @ max standard amperage
• Up to 100,000 life cycles @ max gold contact amperage
DESCRIPTION

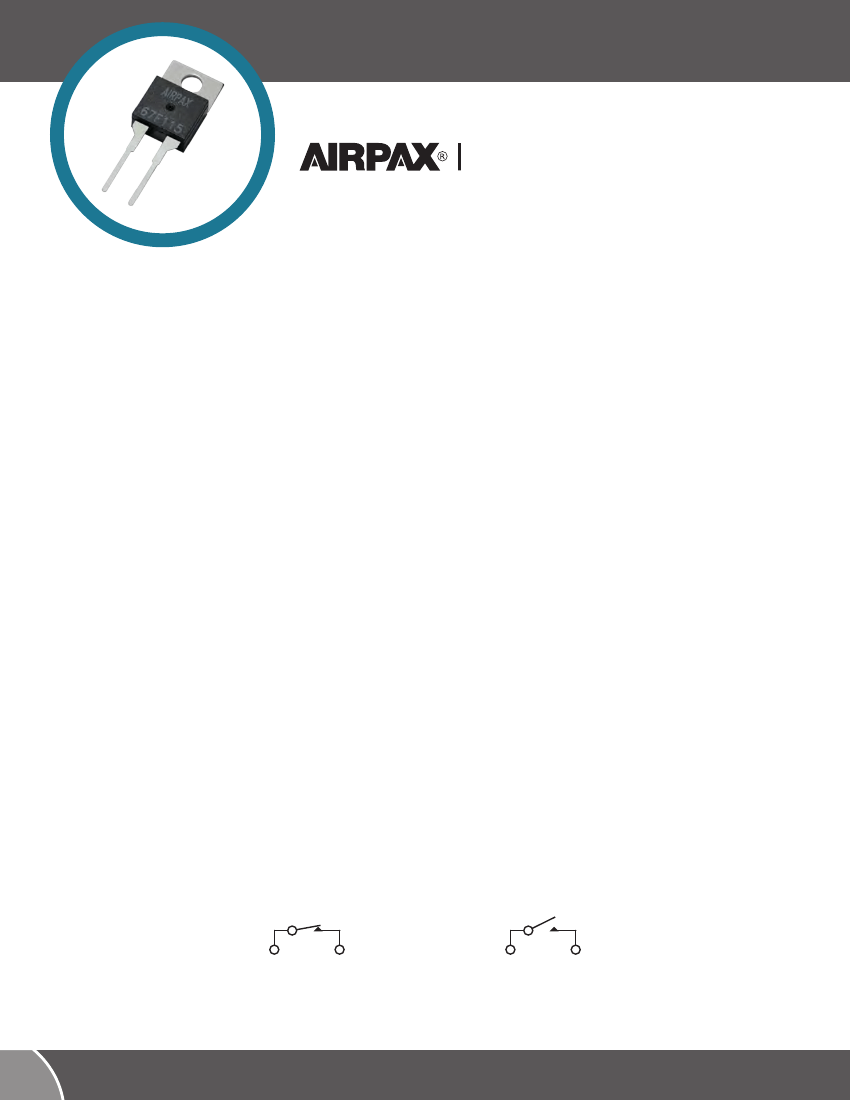

The Airpax™ 6700 series is a RoHS compliant, positive snap action, single pole / single throw, sub-miniature bimetallic thermostat
which provides accurate and reliable sensing and switching in a single device.
The 6700 series thermostat dimensionally conforms to the international product package standard Y220 / TO220. Thus, the 6700 may be
automatically placed and soldered onto PC boards with high speed automated equipment, eliminating the need for the expensive hand
placement and termination required today for most power supply thermostats.
The 6700 provides fast, positive response with excellent repeatability. The thermostat has a switch capability of up to 0.5 amp for 48
VDC, and achieves low-level switching down to 0.001A to 0.020A at 5 VDC for 100,000 cycles. Temperature is pre-set at the factory and
is non-adjustable in the field.
Thermal conductivity is mainly through the terminals and the mounting bracket making the unit ideal for both surface mount and
ambient air sensing. The nickel-plated copper mounting bracket comes standard, or you can utilize the laminated plastic mounting
bracket for increased dielectric strength and VDE approval.
Primarily developed for thermal management applications on power supplies, the Airpax™ 6700 series is also ideally suited for use
on crowded PC boards. Typical uses include turning on an indicator light, sounding an audible alarm, switch on a control circuit to
send a message to a display screen or even switching a circuit to shut down a system. Applications include computers and computer
peripherals, aircraft, automotive, medical devices and test equipment.
OPERATION SCHEMATICS
Schematic for
Open on Rise
Operation
Schematic for
Close on Rise
Operation
37
6700 Series - Introduction
http://airpax.sensata.com
SPECIFICATIONS
Contact Resistance
Contact Ratings
50 milliohms max (before and after rated life)
Cycles
20,000
100,000
Voltage
48 VDC
5 VDC
Amps (resistive)
0.5
0.001 (gold)
Contact Operations
Operating Temperature
Temperature Tolerance
Short Term / Long Term
Exposure Limit
Dielectric Strength
Insulation Resistance
Contact Bounce
Vibration
Shock
Seal
Base Material
Terminal Material
Contact Material
Mounting Bracket Material
Chemical Resistance
Solderability
Soldering Heat Resistance
Weight
Agency Approvals
Either close on rise (make) or open on rise (break)
40°C to 130°C (104°F to 266°F)
Standard of ±5°C (±9°F) with nominal operating temperature settings in 5°C increments
Short = 260°C (500°F), 10 second duration
Long = -55°C to 160°C (-67°F to 320°F)
Nickel-plated copper bracket has 1480 VAC 60Hz, 1 second duration terminals to case. Plastic bracket
has 2000 VAC 60Hz, 1 second duration terminals to case.
100 Mohms at 500 VDC
3 milliseconds max (make)
Per Mil-Std-202, method 204D, test condition D, 10 to 2,000 Hz
Per Mil-Std-202, method 213, test condition C, 100 G’s for 6 millisecond duration, ½ sine wave
High temperature epoxy sealed for wave soldering and cleaning, moisture proof per Sensata
specification S-722 (unit will not leak while submerged in 9” of water for a minimum of two minutes)
PPS (Polyphenylene Sulfide), 94 VO rated
65% Copper, 18% Nickel
Gold-plated or overlay, silver crossbar
Nickel-plated copper (standard) or high pressure laminated plastic (“P” mounting bracket option)
Unit is resistance to water, salt, alcohol, ammonia, trichlorethane and most other organic solvents
Terminal material is selectively striped with lead-free solder for improved solderability.
Per Mil-Std-202G, method 210F, test condition C & K, test condition K validated at 260°C for 25 seconds
Approximately 0.5 grams
cЯUus recognized E36687
VDE approval 0631/12.83
RoHS Compliant per EU Directive 2002/95/EC
6700 Series - Specifications
6600 & 6700 Series
38
DIMENSIONAL SPECIFICATIONS, inches [mm]
(4.70 ± 0.25)
0.185 ± 0.010
(6.35 ± 0.51)
0.250 ± 0.020
(0.76 ± 0.03)
0.030 ± 0.001
(5.08 ± 0.13)
0.200 ± 0.005
(2.79 ± 0.13)
0.110 ± 0.005
(10.16 ± 0.13)
0.400 ± 0.005
(3.64 ± 0.089)
0.1435 ± 0.0035
(17.93)
REF
0.706
(29.59 ± 0.74)
1.165 ± 0.029
(14.35)
REF
0.565
(1.27 ± 0.10)
0.050 ± 0.004
(0.76 ± 0.08)
0.030 ± 0.003
(2.79 ± 0.13)
0.110 ± 0.005
(5.49 ± 0.13)
0.216 ± 0.005
(0.33 ± 0.013)
0.013 ± 0.0005
(5.08 ± 0.25)
0.200 ± 0.010
STANDARD PACKAGING
All samples and production orders will be shipped in plastic, industry standard shipping tubes.
THROUGH BOTH WALLS
(Ø3.18 ± 0.05)
Ø0.125 ± 0.002
(0.76)
TYP
0.030
(8.25)
REF
0.325
(6.73 ± 0.25)
0.265 ± 0.010
(2.41 ± 0.25)
0.095 ± 0.010
(10.26 ± 0.38)
0.404 ± 0.015
(33.02)
REF
1.300
(31.50)
1.240
(9.65 ± 0.25)
0.380 ± 0.010
(14.22 ± 0.25)
0.560 ± 0.010
(1.40 ± 0.25)
0.055 ± 0.010
(2.54 ± 0.25)
0.100 ± 0.010
(2.79 ± 0.25)
0.110 ± 0.010
(3x 0.76)
3x 0.030
(10.26 ± 0.38)
0.404 ± 0.015
(7.62 ± 0.25)
THROUGH BOTH WALLS
(Ø6.35)
0.300 ± 0.010
REF
Ø0.250
(533.40 ± 1.19)
21.000 ± 0.050
(7.62 ± 0.25)
0.300 ± 0.010
39
6700 Series - Dimensions
http://airpax.sensata.com
STANDARD TEMPERATURE CALIBRATION TABLE
Each thermostat part number consists of functional “building
blocks” to enable the user to specify the desired characteristics.
Select the proper code in each category, then transfer it to the
box indicated. Unless a special requirement is indicated, the part
number will be complete when the proper temperature is selected.
If you have a special requirement, please call Sensata for a factory
assigned number to complete the part number.
Example 1:
A 67F090 thermostat will close (make contact) on a rising
temperature from 85°C to 95°C and will reset open (break contact)
on a falling temperature within a window of no greater than 6°C
lower than the actual close temperature and no less than 60°C
ambient temperature.
Example 2:
A 67L060P thermostat has a plastic mounting bracket with 2000
VAC dielectric strength and VDE approval.The thermostat will open
(break contact) on a rising temperature from 55°C to 65°C and will
reset close (make contact) on a falling temperature within a window
of no greater than 4°C lower than the actual open temperature and
no less than 40°C ambient temperature.
The mounting bracket designation and the 4 digit manufacturing
dash number are used for ordering special features and may not
appear as part of the marking on the thermostat.
Temperature set point calibration is checked at Sensata
Technologies with precision test equipment and proven methods.
Because customer checking methods may differ, a typical variance
allowed for correlation is ±1°C.
OPERATE
(±5°C)
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
MIN DIFFERENTIAL
(°C)
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
9
9
9
MIN RESET
(°C)
20
20
30
30
40
40
50
50
55
55
60
60
70
70
80
80
85
85
90
DECISION TABLES
67
Basic Product Series
Contact Operation
F = Fan (close on rise)
L = Limit (open on rise)
Operating Temperature
in °C, 3 digits (from above table, put “0” in front of 2 digit temps)
Mounting Bracket Designation
Blank or no entry for a standard nickel-plated copper bracket
P = Plastic mounting bracket (VDE approved)
Factory Assigned Number
Nondescript, 4 digit dash number assigned for a
customer’s special requirements. The dash and
factory assigned number is not required for
ordering a standard product
L
0
9
0
P
5
5
8
8
6700 Series - Decision Tables
6600 & 6700 Series
40
©2013 Sensata Technologies, Inc. All rights reserved worldwide. The following data sheet is an excerpt from our Airpax™ Power
Protection Catalog,
Literature # 2455005000,
printed in the USA,
May 9th, 2013.
Important Notice: Sensata Technologies reserves the right to make changes to, or to discontinue, any product or service identified in
this publication without notice. Before placing orders, users should obtain the latest version of the relevant information to verify that
the information being relied upon is current.
Sensata Technologies assumes no responsibility for customers’ product designs or applications. Users must determine the suitability
of the Sensata device described in this publication for their application, including the level of reliability required. Many factors beyond
Sensata’s control can affect the use and performance of a Sensata product in a particular application, including the conditions under
which the product is used and the time and environmental conditions in which the product is expected to perform. As these factors
are uniquely within the user’s knowledge and control, it is essential that the user evaluate the Sensata product to determine whether it
is fit for a particular purpose and suitable for the user’s application.
Sensata Technologies products are sold subject to Sensata’s Terms and Conditions of Sale which can be found at:
www.sensata.com/terms.htm
Sensata Technologies Inc.
529 Pleasant Street
Attleboro, MA 02703, USA
Phone: +1 508-236-3287
http://airpax.sensata.com/
