74AC11208D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74AC11208D

74AC11208D: DescriptionLow Skew Clock Driver, AC Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO20; Categorylogic; File Size111KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74AC11208D Overview

Low Skew Clock Driver, AC Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO20

74AC11208D Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	AC
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G20
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	2
Number of inverted outputs
Number of terminals	20
Actual output times	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	7.1 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.5 ns
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

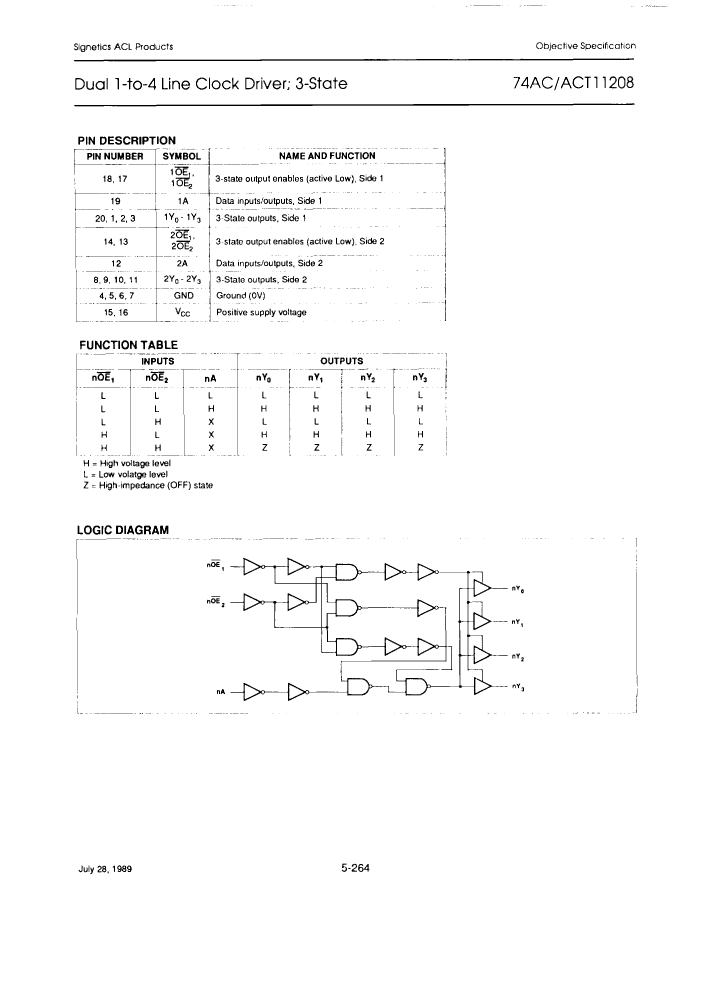

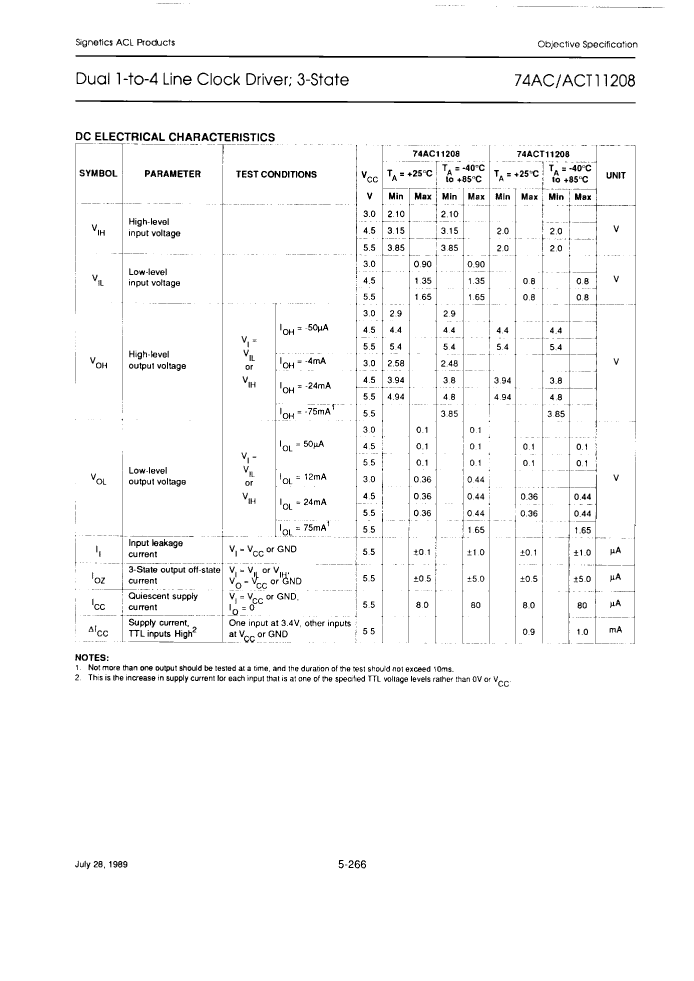

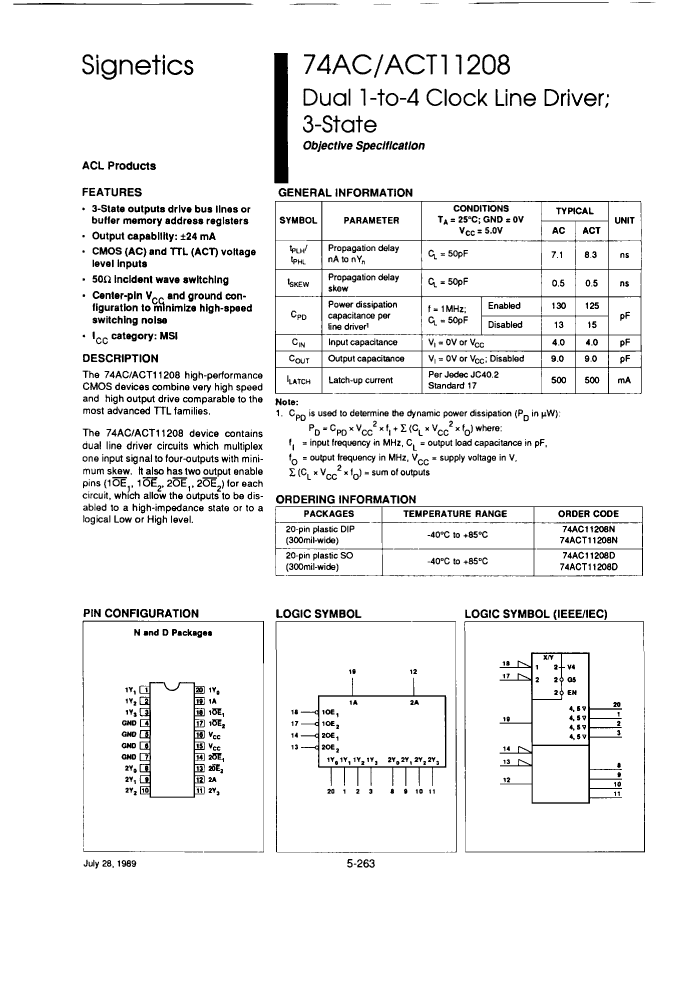

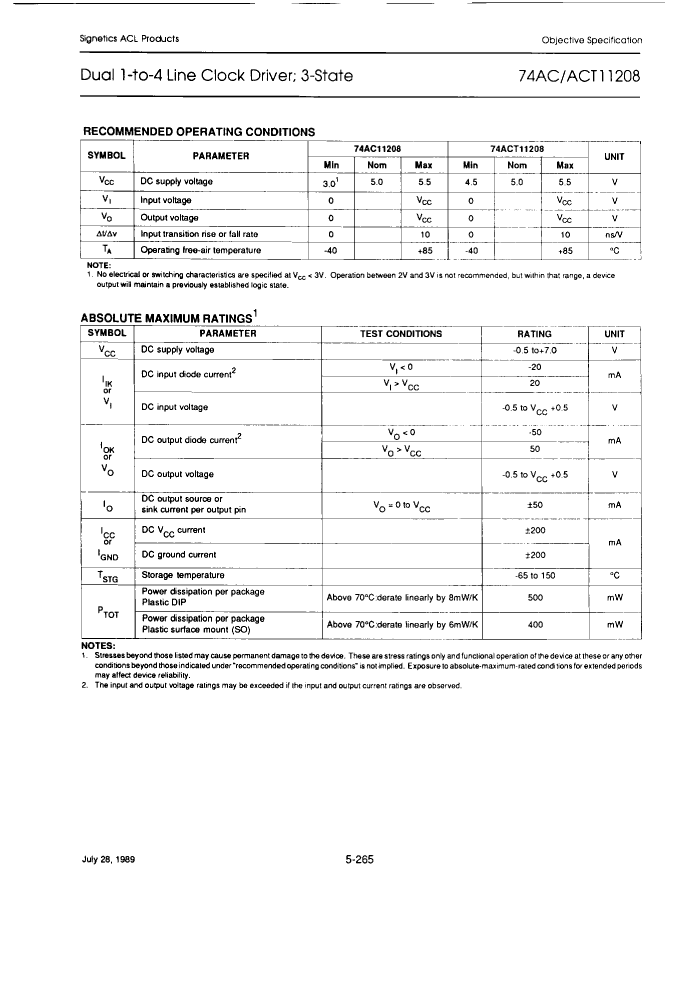

Preview

Download Datasheet

View All

74AC11208D Related Products

	74AC11208D	74ACT11208N	74ACT11208D	74ACT11208D-T	74AC11208N	74AC11208D-T
Description	Low Skew Clock Driver, AC Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO20	Low Skew Clock Driver, ACT Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDIP20	Low Skew Clock Driver, ACT Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO20	Low Skew Clock Driver, ACT Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO20	Low Skew Clock Driver, AC Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDIP20	Low Skew Clock Driver, AC Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO20
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	AC	ACT	ACT	ACT	AC	AC
Input adjustment	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Number of functions	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Actual output times	4	4	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	7.1 ns	8.3 ns	8.3 ns	8.3 ns	7.1 ns	7.1 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.5 ns	0.5 ns	0.5 ns	0.5 ns	0.5 ns	0.5 ns
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	4.5 V	4.5 V	4.5 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
