59C11/S datasheet, PDF - EEWORLD Datasheet

59C11/S: Description128 X 8 4-WIRE SERIAL EEPROM, UUC8; Categorystorage; File Size232KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

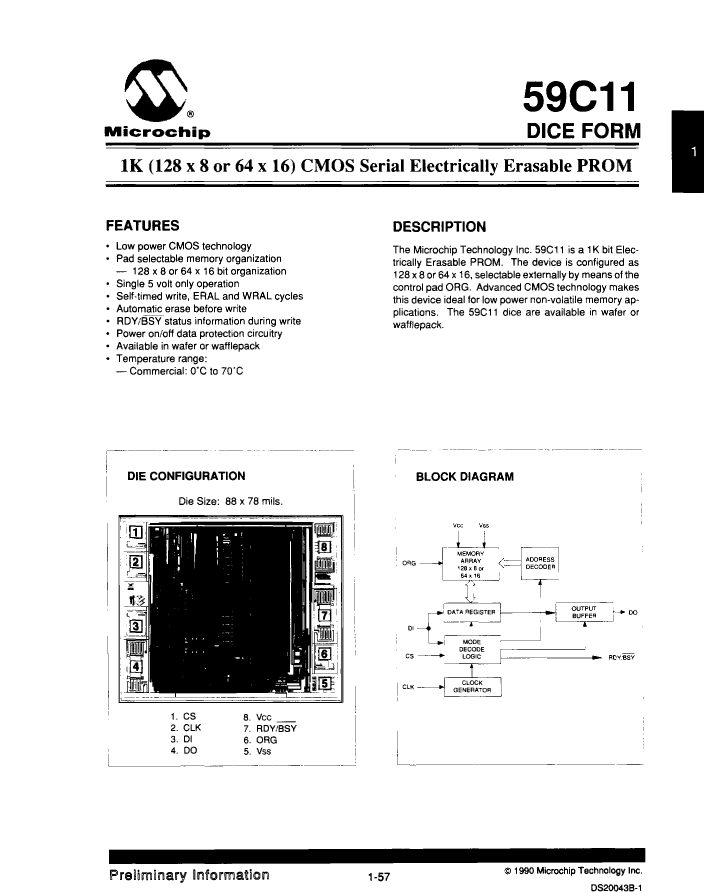

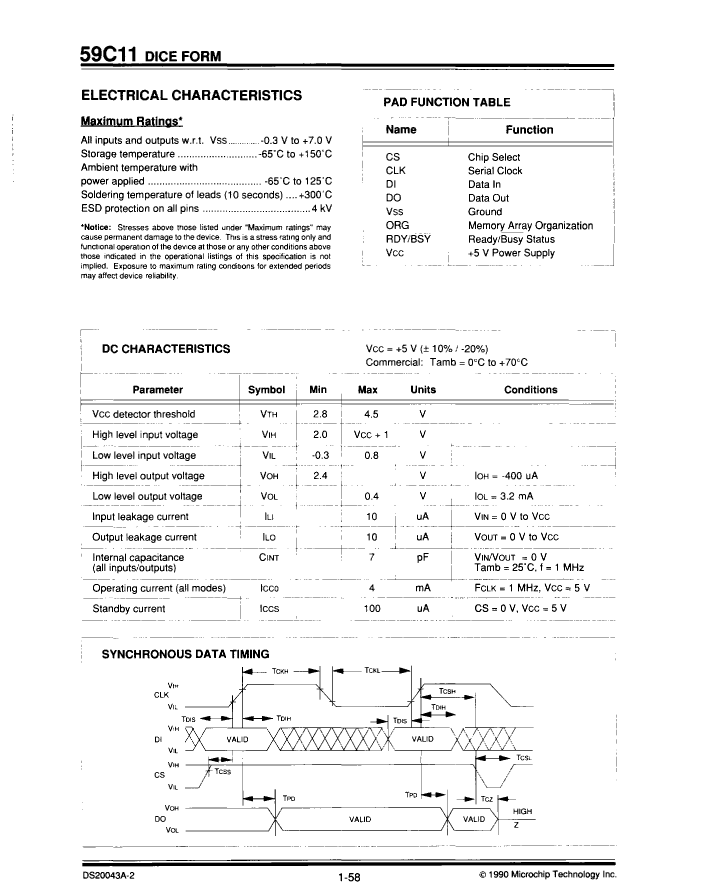

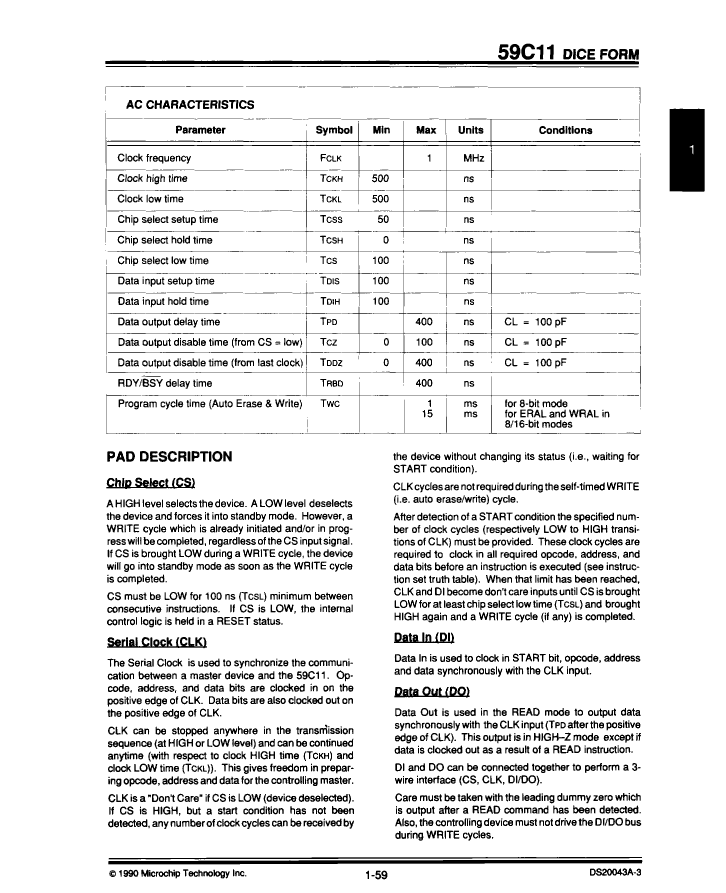

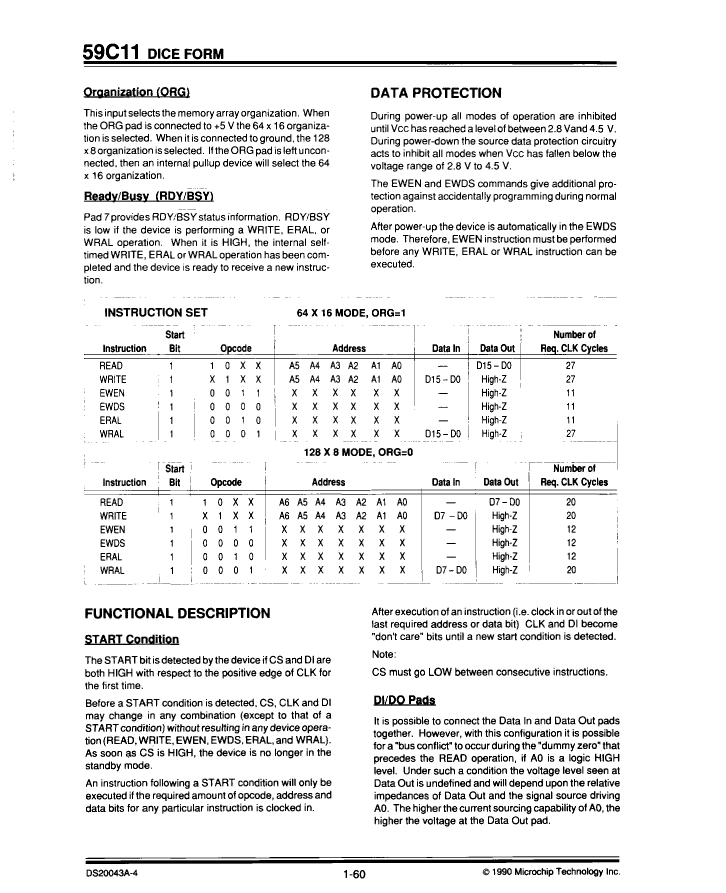

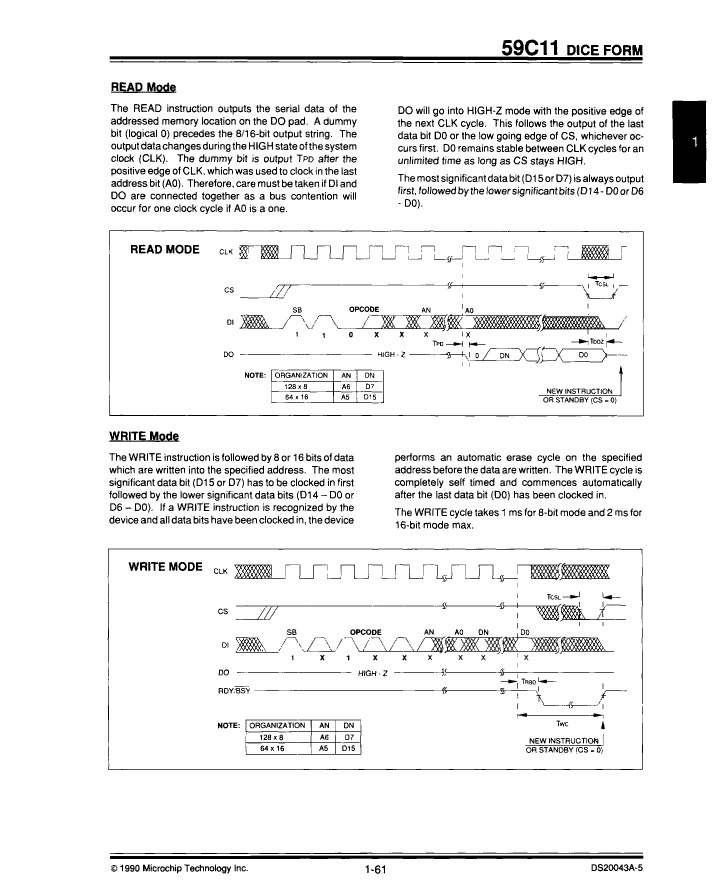

59C11/S Overview

128 X 8 4-WIRE SERIAL EEPROM, UUC8

Parameter Name	Attribute value
Maker	Microchip
package instruction	DIE, DIE OR CHIP
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AUTOMATIC WRITE
Spare memory width	16
Maximum clock frequency (fCLK)	1 MHz
JESD-30 code	X-XUUC-N8
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128X8
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Parallel/Serial	SERIAL
power supply	5 V
Certification status	Not Qualified
Serial bus type	4-WIRE
Maximum standby current	0.0001 A
Maximum slew rate	0.004 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER
Maximum write cycle time (tWC)	1 ms
write protect	SOFTWARE
Base Number Matches	1

	59C11/S	59C11/W
Description	128 X 8 4-WIRE SERIAL EEPROM, UUC8	128 X 8 4-WIRE SERIAL EEPROM, UUC8
Maker	Microchip	Microchip
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	AUTOMATIC WRITE	AUTOMATIC WRITE
Spare memory width	16	16
Maximum clock frequency (fCLK)	1 MHz	1 MHz
JESD-30 code	X-XUUC-N8	X-XUUC-N8
memory density	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM
memory width	8	8
Number of functions	1	1
Number of terminals	8	8
word count	128 words	128 words
character code	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	128X8	128X8
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE
Encapsulate equivalent code	DIE OR CHIP	WAFER
Package shape	UNSPECIFIED	UNSPECIFIED
Package form	UNCASED CHIP	UNCASED CHIP
Parallel/Serial	SERIAL	SERIAL
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Serial bus type	4-WIRE	4-WIRE
Maximum standby current	0.0001 A	0.0001 A
Maximum slew rate	0.004 mA	0.004 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4 V	4 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
Maximum write cycle time (tWC)	1 ms	1 ms
write protect	SOFTWARE	SOFTWARE
