82_MMBX-S50-0-13/111_NM

Description
RF Connector, Female, Board Mount, Surface Mount Terminal, Jack
CategoryThe connector
File Size49KB，1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

82_MMBX-S50-0-13/111_NM Overview

RF Connector, Female, Board Mount, Surface Mount Terminal, Jack

82_MMBX-S50-0-13/111_NM Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
Reach Compliance Codenot_compliant
ECCN codeEAR99
Samacsys DescriptionRF Connectors / Coaxial Connectors MMBX straight PCB jack(f)
Other featuresVSWR MAX AT 6 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialLCP/PTFE/PFA
JESD-609 codee4
MIL complianceNO
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency12.4 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSURFACE MOUNT
Total number of contacts1
voltage standing wave ratio1.5
Base Number Matches1

Preview

Download Datasheet
HUBER+SUHNER
®

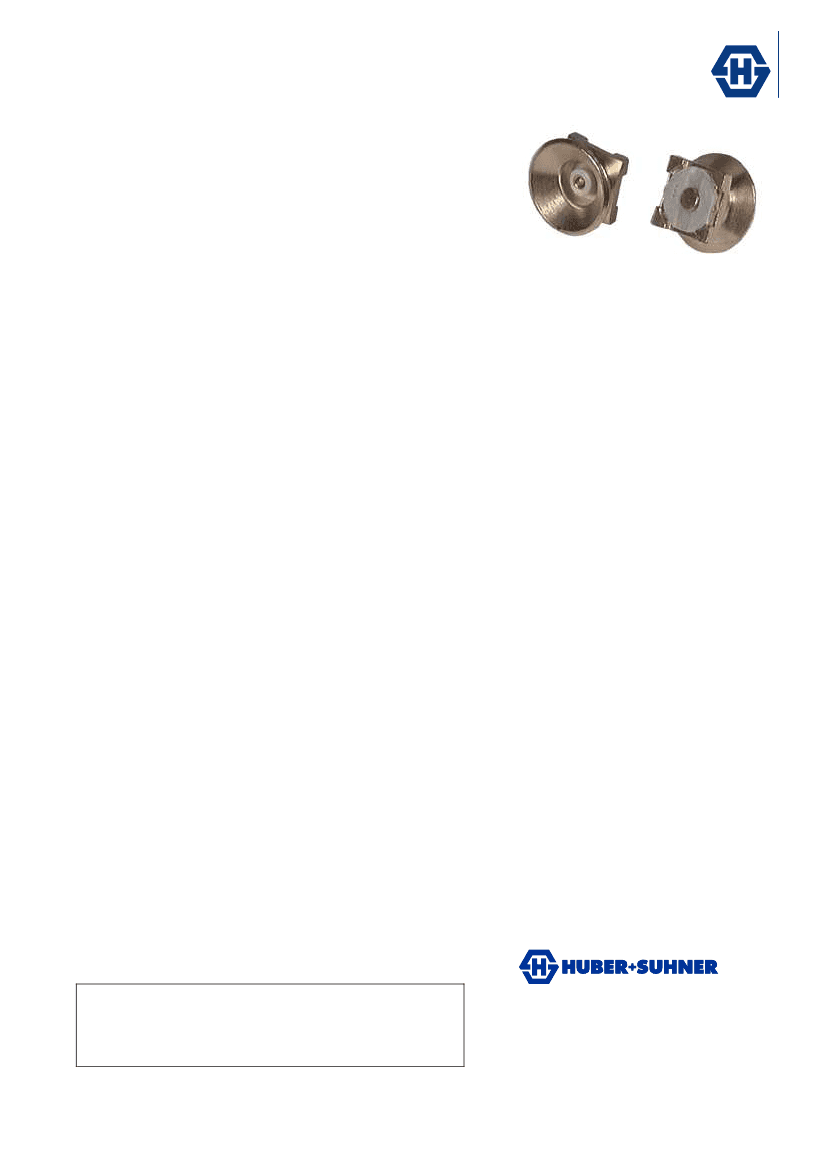

DATA SHEET
Coaxial PCB Connector: 82_MMBX-S50-0-13/111_N
Description
Rev.: H
Straight PCB jack
Interface Standards
SUHNER-MMBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50
Ω
12.4 GHz
surface mount
0.0008 kg
-55 °C to 155 °C
compliant
Material
Brass
Brass
Brass
LCP
DOU-00001894
DCA-00087583
DOU-00012611
82_MMBX-S50-0-13/111_NH
82_MMBX-S50-0-13/111_NM
82_MMBX-S50-0-13/111_NE
Surface Plating
Hard Au min. 0.1 m over NiP min. 2 m
SUCOPRO Plating
Hard Au min. 0.1 m over NiP min. 2 m
Mechanical Data
Board mounting type
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material Data
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
Ordering Information
Bulk 100 pcs package
Tape and Reel package
Single package
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
Uncontrolled Copy
Page 1/1
