531137-6 datasheet, PDF - EEWORLD Datasheet

531137-6: Description180 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; File Size148KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

531137-6 Overview

180 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

531137-6 Parametric

Parameter Name	Attribute value
Objectid	1431069112
Reach Compliance Code	unknown
Other features	AMP
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (100) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	180

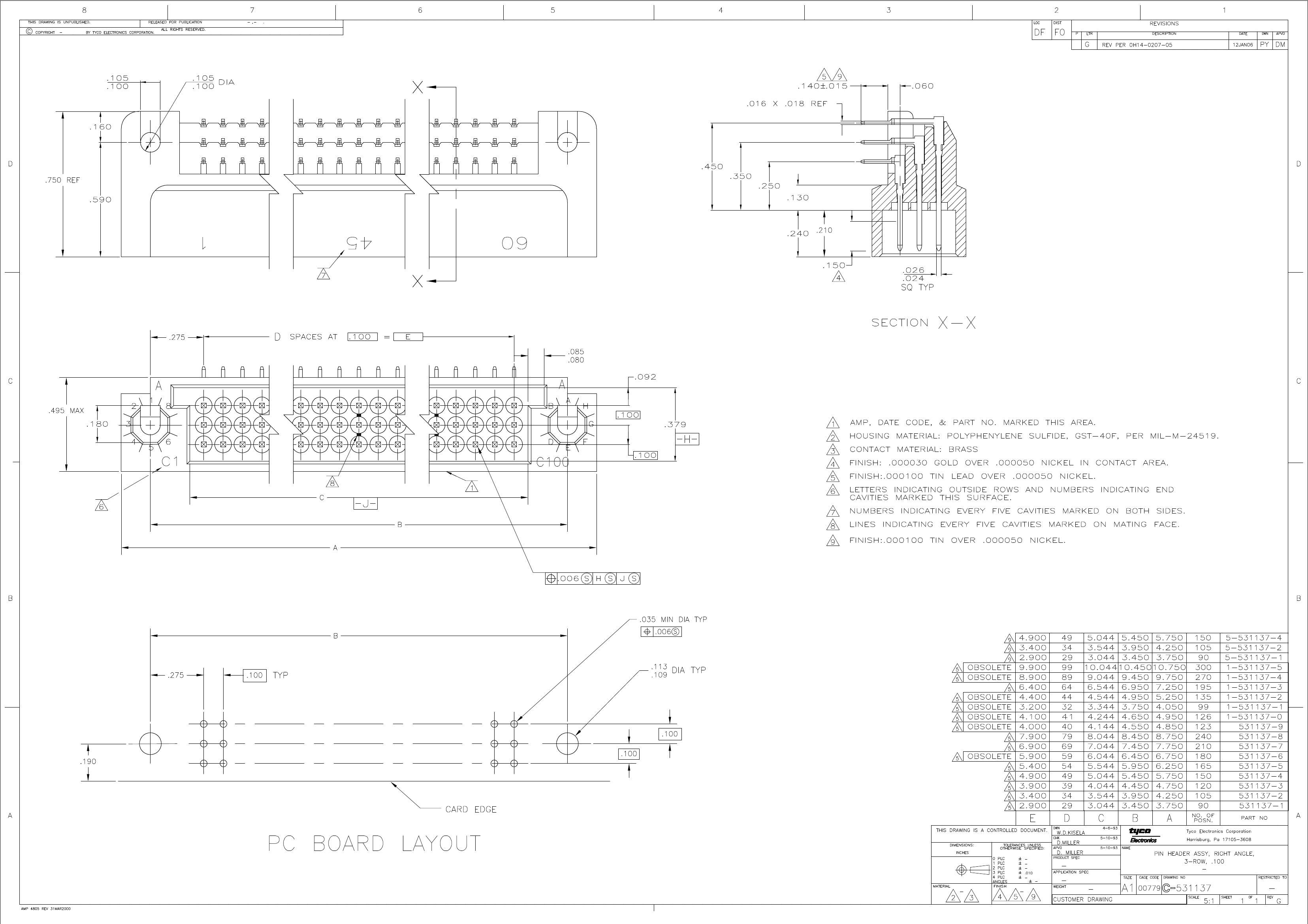

Preview

Download Datasheet

View All

531137-6 Related Products

	531137-6	1-531137-5	1-531137-2	1-531137-0	1-531137-1	1-531137-4	531137-9
Description	180 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 300 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,135 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL	126 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 99 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	270 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 123 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknown	unknown	unknow	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	AU ON NI	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	GOLD	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3	3
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	180	300	135	126	99	270	123
Objectid	1431069112	2095275483	-	2095275480	2095275481	2095275482	-
DIN compliance	NO	NO	-	NO	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO	NO
JESD-609 code	e0	e0	-	e0	e0	e0	e0
MIL compliance	NO	NO	-	NO	NO	NO	NO
Mixed contacts	NO	NO	-	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Manufacturer's serial number	-	531137	531137	-	531137	531137	531137
