82S212/BWA-40 datasheet, PDF - EEWORLD Datasheet

82S212/BWA-40: DescriptionCache SRAM, 256X9, 70ns, TTL, CDIP22; Categorystorage; File Size132KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

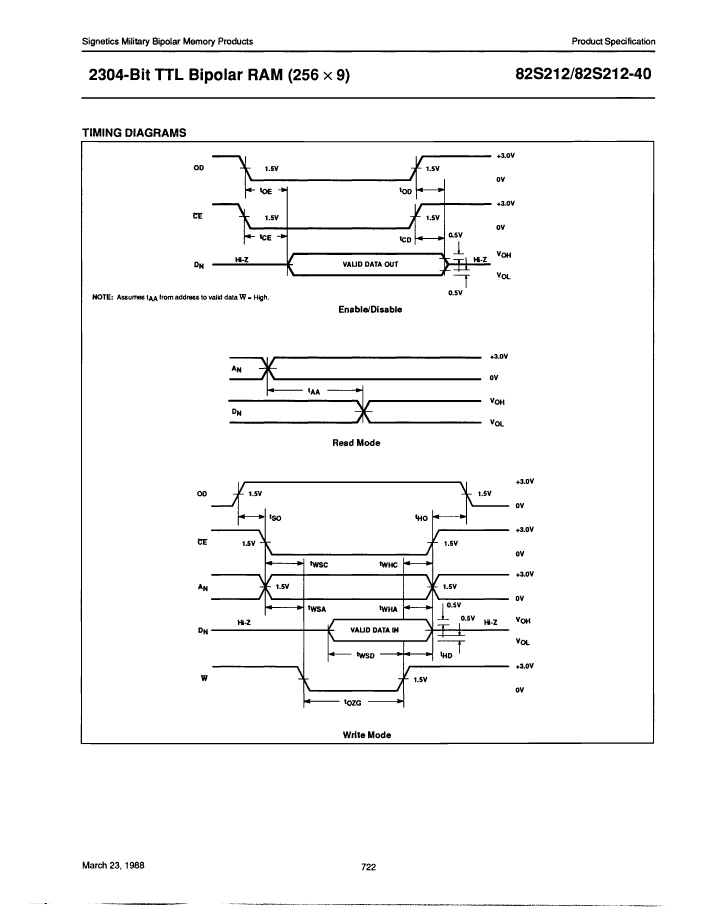

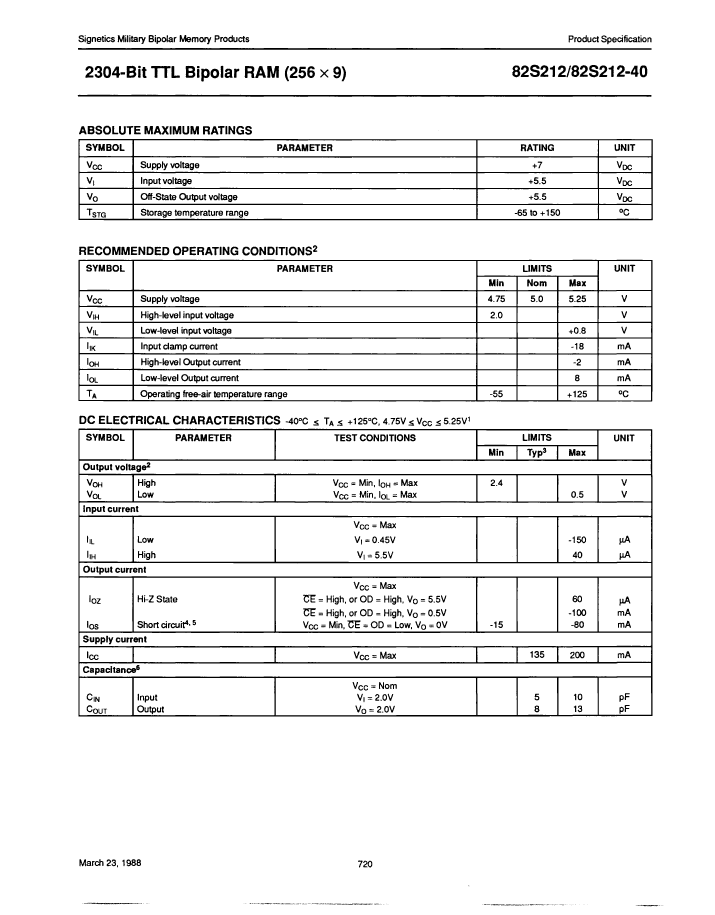

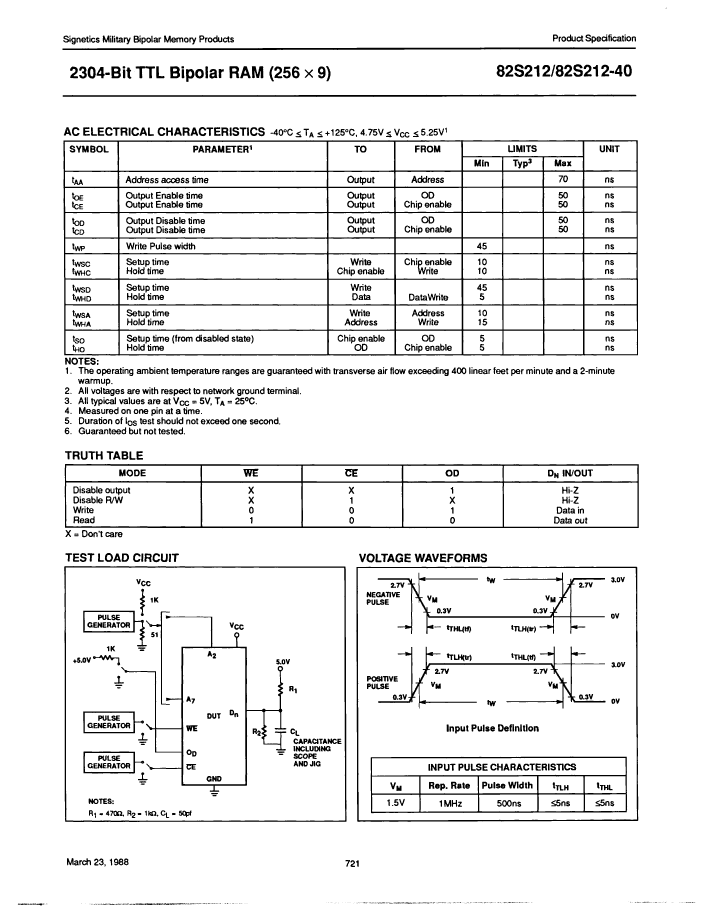

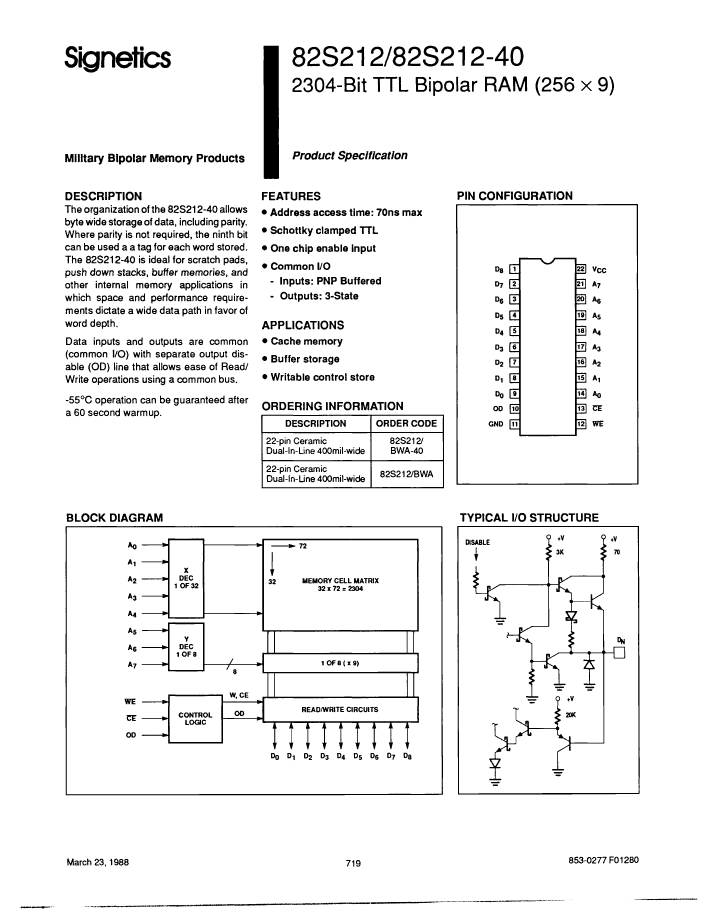

82S212/BWA-40 Overview

Cache SRAM, 256X9, 70ns, TTL, CDIP22

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	70 ns
JESD-30 code	R-CDIP-T22
memory density	2304 bit
Memory IC Type	CACHE SRAM
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	22
word count	256 words
character code	256
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	256X9
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	82S212/BWA-40	82S212/BWA
Description	Cache SRAM, 256X9, 70ns, TTL, CDIP22	Cache SRAM, 256X9, 70ns, TTL, CDIP22
Maker	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Maximum access time	70 ns	70 ns
JESD-30 code	R-CDIP-T22	R-CDIP-T22
memory density	2304 bit	2304 bit
Memory IC Type	CACHE SRAM	CACHE SRAM
memory width	9	9
Number of functions	1	1
Number of ports	1	1
Number of terminals	22	22
word count	256 words	256 words
character code	256	256
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	256X9	256X9
Output characteristics	3-STATE	3-STATE
Exportable	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
Base Number Matches	1	1
