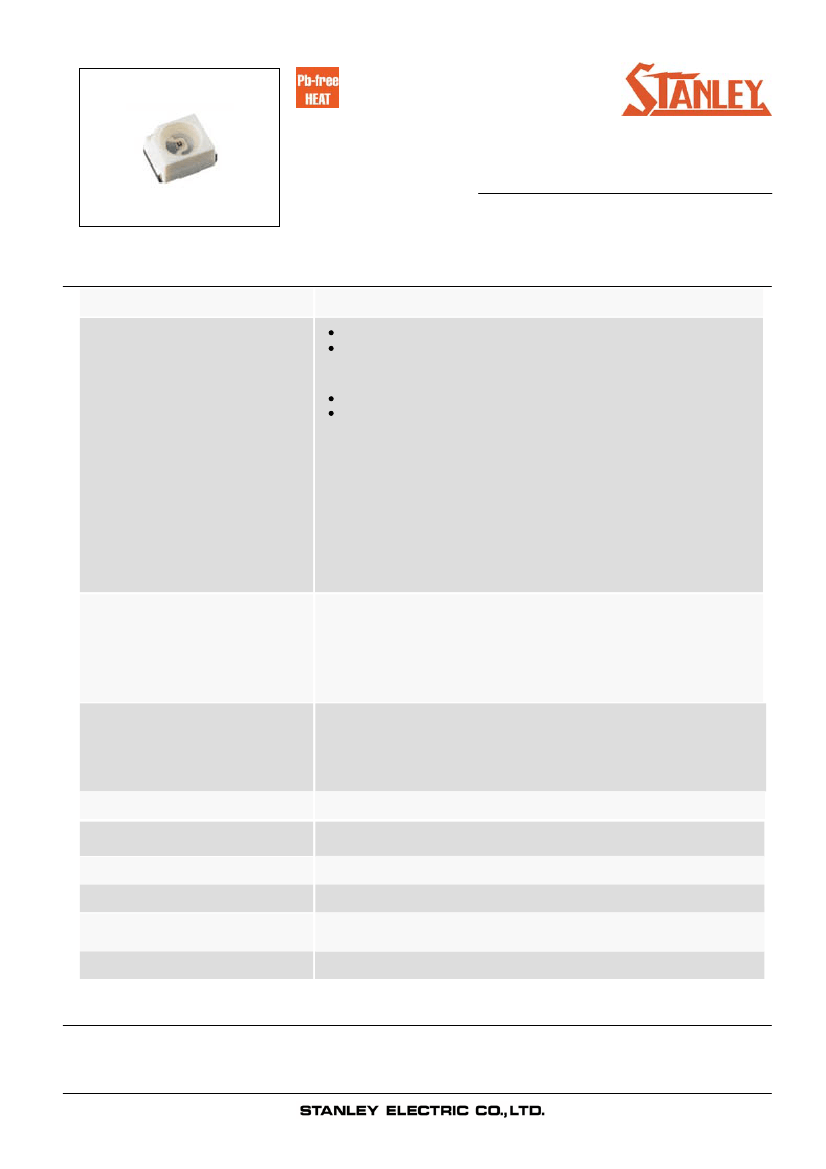

U□1104B Series
Features
Package
Product features
PLCC-2 Type, Water clear resin
Outer Dimension 3.5 x 2.8 x 1.9mm ( L x W x H )
Temperature range
Storage Temperature
: -40℃½110℃
Operating Temperature : -40℃½100℃
Lead–free soldering compatible
RoHS compliant
Single Color Ultra High Brightness Type
Dominant wavelength
Blue
Green
Yellow
Red
: 470nm(UB)
: 530nm(UG)
: 590nm(UY)
: 630nm(UR)
Half Intensity Angle
120 deg.
Die materials
Rank grouping parameter
Assembly method
Soldering methods
Taping and reel
ESD
UB,UG : InGaN,
UY,UR : AlGaInP
Sorted by luminous intensity and wavelength per rank taping
Auto pick & place machine (Auto Mounter)
Reflow soldering and manual soldering
2,000pcs per reel in a 8mm width tape. (Standard)
Reel diameter:φ180mm
InGan : 1kV(HBM),
AlGaInP : More than 2kV(HBM)
Recommended Applications
Amusement Equipment, Electric Household Appliances, Other General Applications
2007.8.31
Page 1
U□1104B Series
Single Color Ultra High Brightness Type
Absolute Maximum Ratings
Absolute Maximum Ratings
UB
84
20
50
0.5
1.25
5
UG
84
20
50
0.5
1.25
5
-40½+ 100
-40½+ 110
UY
87
30
100
0.75
2.5
5
UR
87
30
100
0.75
2.5
5
(Ta=25℃)
Item
Power Dissipation
Forward Current
Pulse Forward
Current
※
1
Symbol
P
d
I
F
I
FRM
⊿I
F
⊿I
FRM
V
R
T
opr
T
stg
Unit
mW
mA
mA
mA/℃
mA/℃
V
℃
℃
Derating
(Ta=60℃ or higher)
Reverse Voltage
Operating
Temperature
Storage Temperature
※1
I
FRM
Measurement condition : Pulse Width≦1ms., Duty≦1/20.
2007.8.31
Page 3
U□1104B Series
Single Color Ultra High Brightness Type
Electro-Optical Characteristics(UB,UG)
Item
Symbol
TYP.
Forward Voltage
I
F
=10mA
V
F
MAX.
Reverse Current
Peak Wavelength
Dominant
Wavelength
Spectral Line Half
Width
Half Intensity Angle
V
R
=5V
I
F
=10mA
I
F
=10mA
I
F
=10mA
I
F
=10mA
I
R
λ
p
λ
d
⊿λ
2θ1/2
MAX.
TYP.
TYP.
TYP.
TYP.
4.0
100
465
470
26
120
4.0
100
522
530
35
120
μA
nm
nm
nm
deg.
Characteristics
UB
3.4
UG
3.4
V
Unit
(Ta=25℃)
Conditions
Electro-Optical Characteristics（UY,UR)
Ite m
S ymbol
T YP .
F orw a rd Volta g e
I
F
=20mA
V
F
MAX .
Re ve rse Curre nt
P e a k Wa ve le ng th
Domina nt
Wa ve le ng th
S pe ctra l L ine Ha lf
Width
Ha lf Inte nsity
Ang le
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
R
λ
p
λ
d
⊿λ
2
θ
1/2
MAX .
T YP .
T YP .
T YP .
T YP .
2.8
100
592
590
18
120
2.8
100
641
630
18
120
μ
A
nm
nm
nm
de g .
Cha ra cte ristics
UY
2.2
UR
2.2
V
Unit
(Ta=25℃)
Conditions
2007.8.31
Page 4
