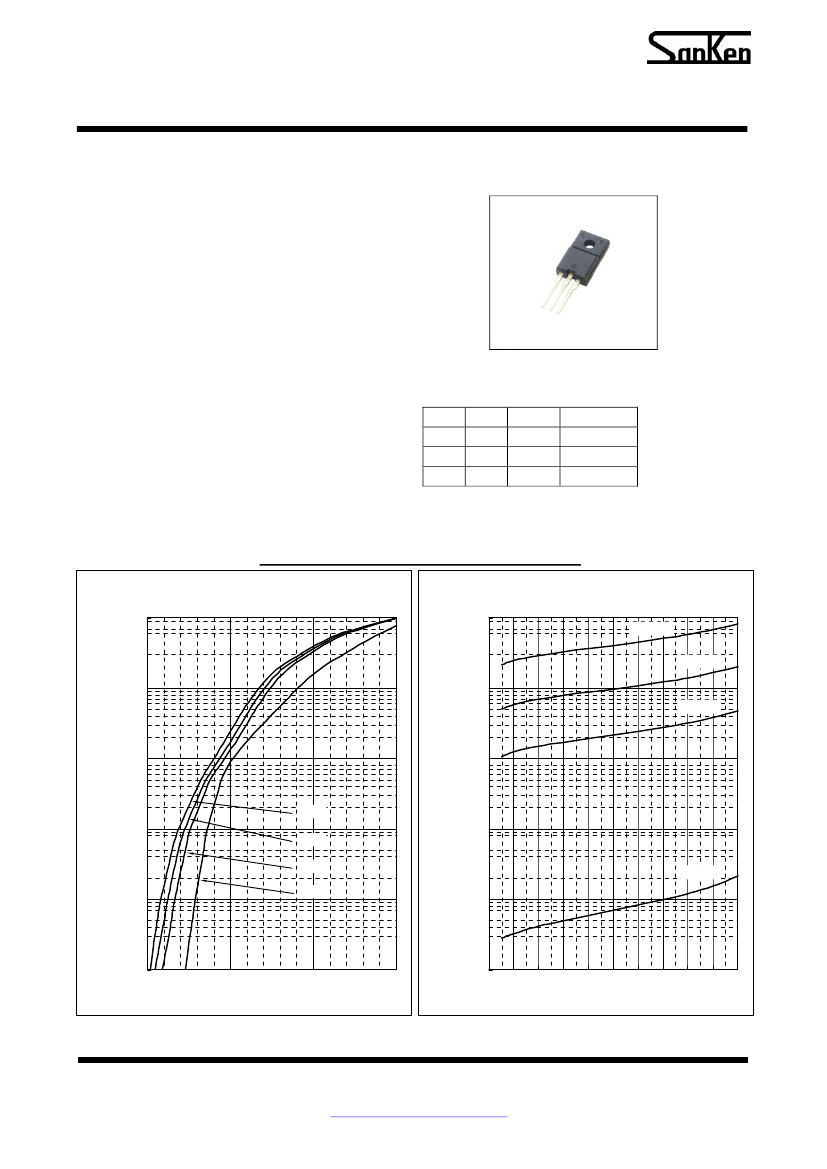

Schottky Barrier Diode

FMEN-210A

■General

Description

FMEN-210A is a High Voltage (100V) Schottky Barrier

Diode, and has achieved low leakage current and low VF by

selecting the best barrier metal.

March, 2006

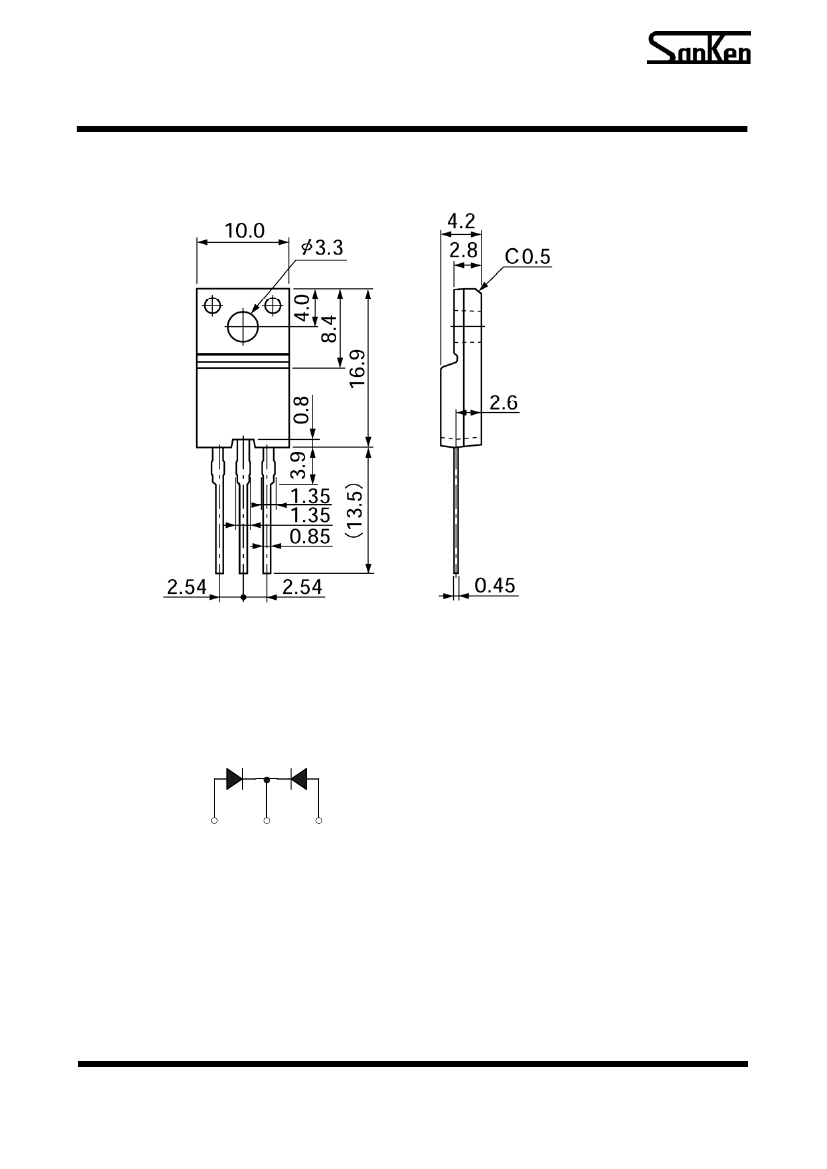

■Package

---TO220F

■Applications

• DC-DC converters

• AC adapter

• High frequency rectification circuit

■Key

Specifications

Item

F(AV)

Unit

Rating

100

0.85

=5.0A

Conditions

■Features

• High Voltage 100V guaranteed.

• Steady operation is possible even at the high temperature

by the low leakage current.

• Super-high speed & low switching noise.

• Low forward voltage drop

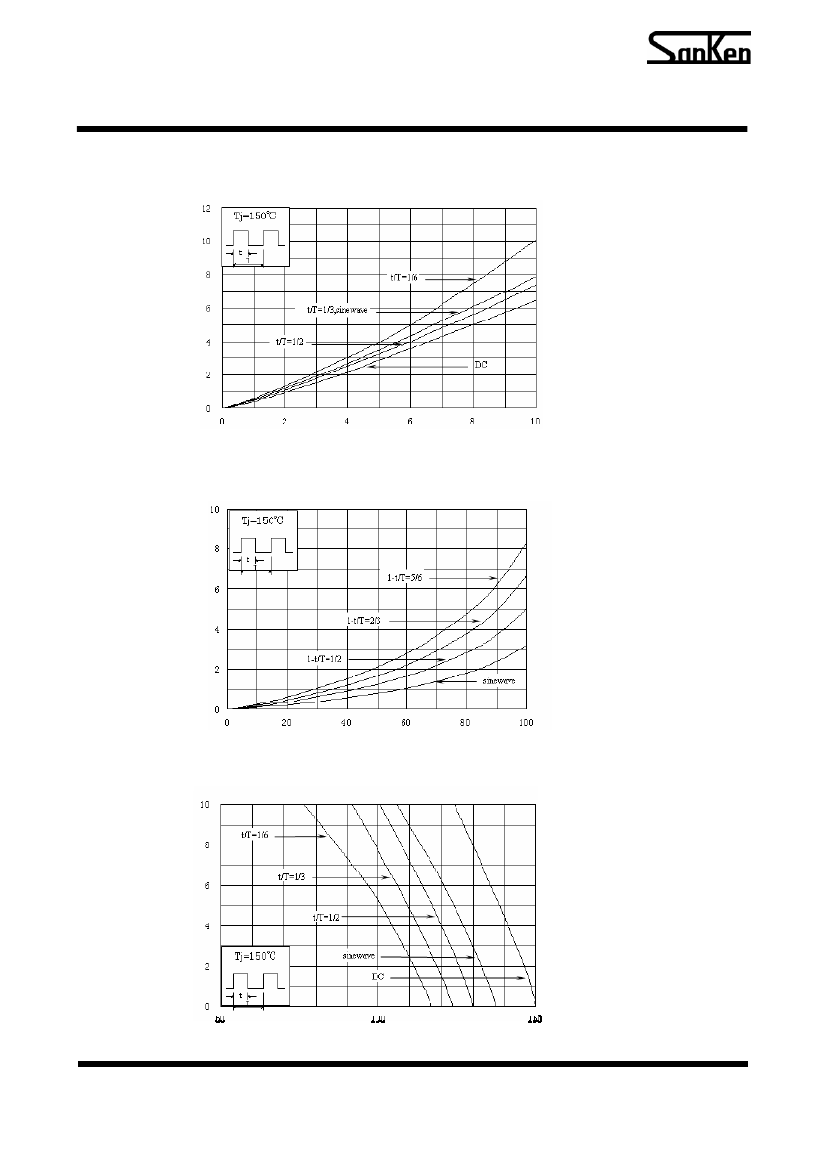

Typical Characteristics

IF-VF Characteristics

1.0E+02

1.0E-02

Tj=150℃

VR-IR Charcteristics

Tj=125℃

1.0E+01

1.0E-03

Tj=100℃

1.0E+00

IR (A)

150℃

1.0E-04

IF (A)

1.0E-01

125℃

100℃

1.0E-05

Tj=25℃

1.0E-02

25℃

1.0E-06

1.0E-03

0.5

VF (V)

1.5

1.0E-07

50 60

VR (V)

100

Sanken Electric Co.,Ltd

http://www.sanken-ele.co.jp/en/

1/7

D01-009EA-060310
