REI Datasheet

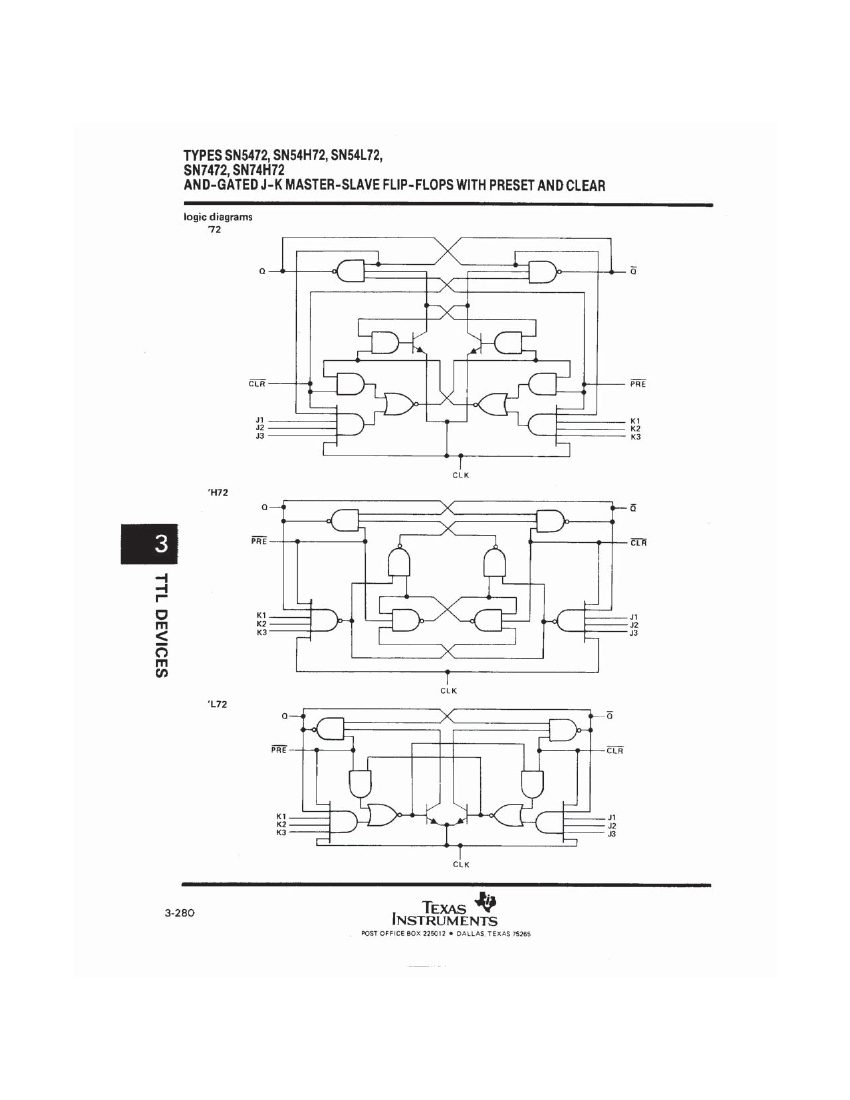

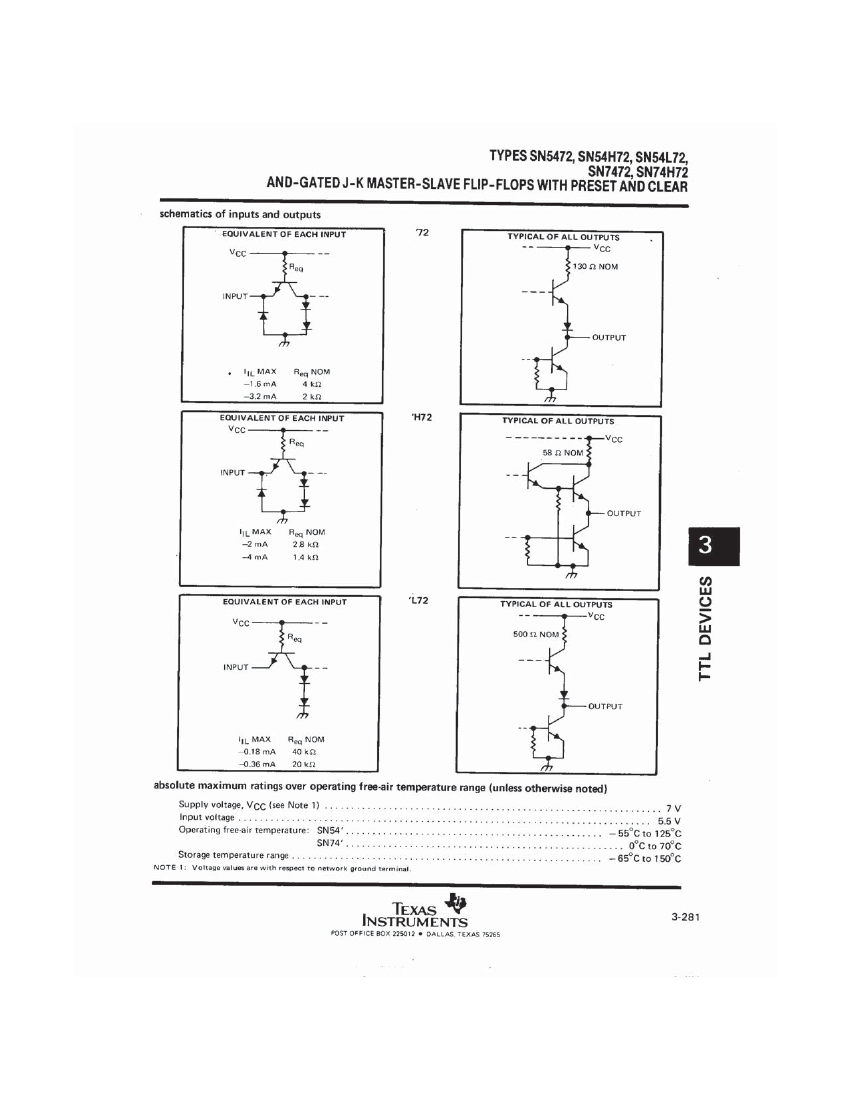

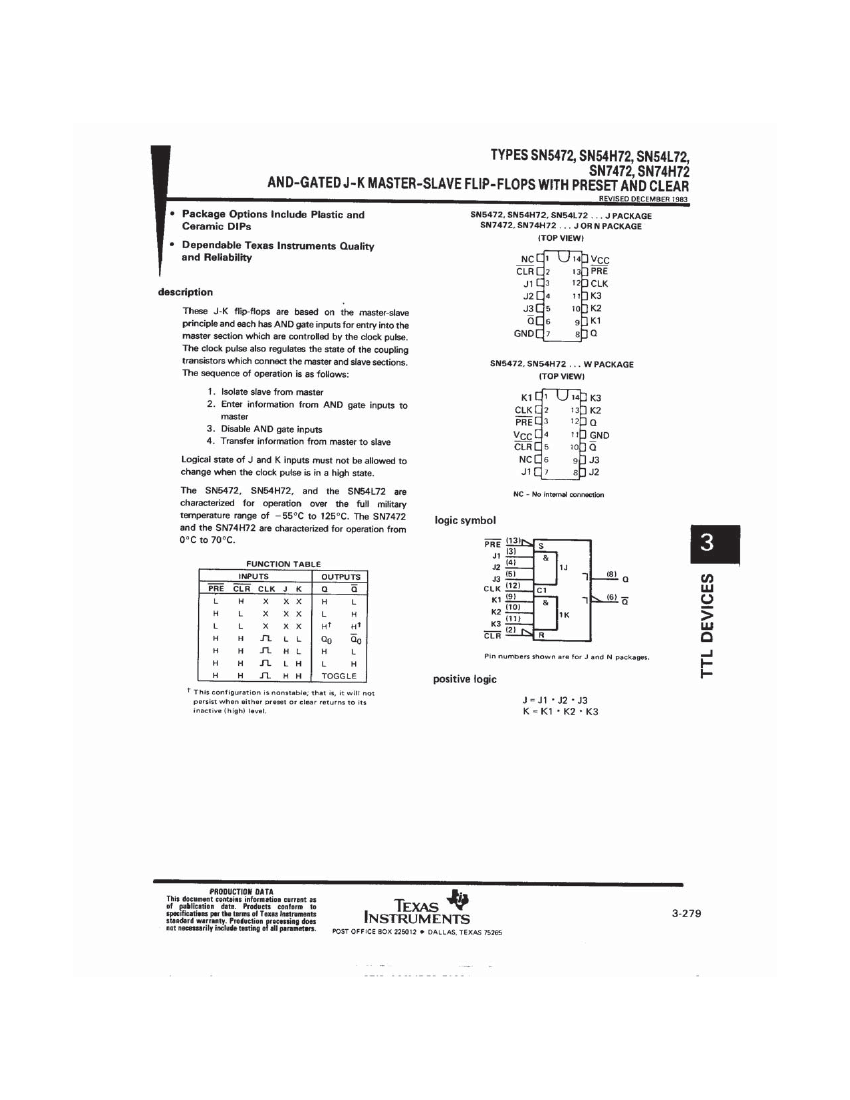

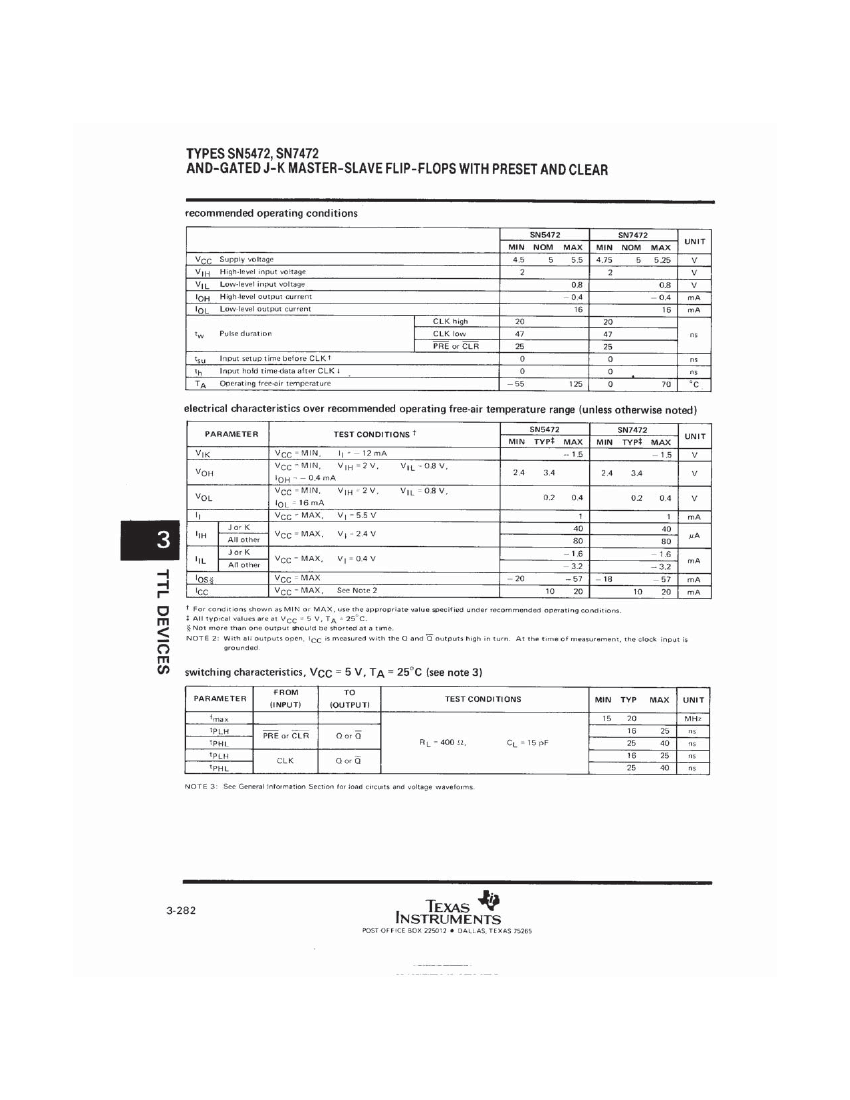

SN5472, SN54H72, SN54L72, SN7472, SN74H72

AND-Gated J-K Master-Slave Flip-Flops with Preset and Clear

These J-K flip-flops are based on the master-slave principle and each has AND gate inputs for entry

into the master section which are controlled by the clock pulse. The clock pulse also regulates the

state of the coupling transistors which connect the master and slave sections. Logical state of J and K

inputs must not be allowed to change when the clock pulse is in a high state. The SN5472, SN54H72,

and the SN54L72 are characterized for operation over the full military temperature range of -55°C to

125°C while the SN7472 and the SN74H72 are characterized for operation from 0°C to 70°C.
