74HL33533D-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74HL33533D-T

74HL33533D-T: DescriptionIC HL SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, Bus Driver/Transceiver; Categorylogic; File Size139KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HL33533D-T Overview

IC HL SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, Bus Driver/Transceiver

74HL33533D-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SOP,
Reach Compliance Code	unknown
Other features	WITH MULTIPLE CENTRE VCC AND GND PINS
series	HL
JESD-30 code	R-PDSO-G24
length	15.4 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	4.8 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

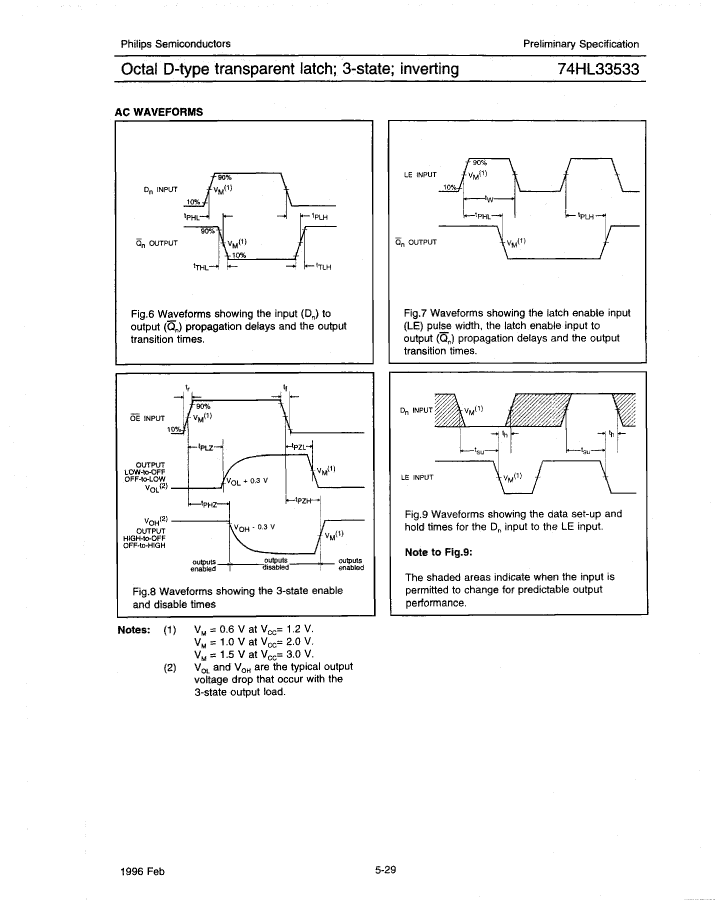

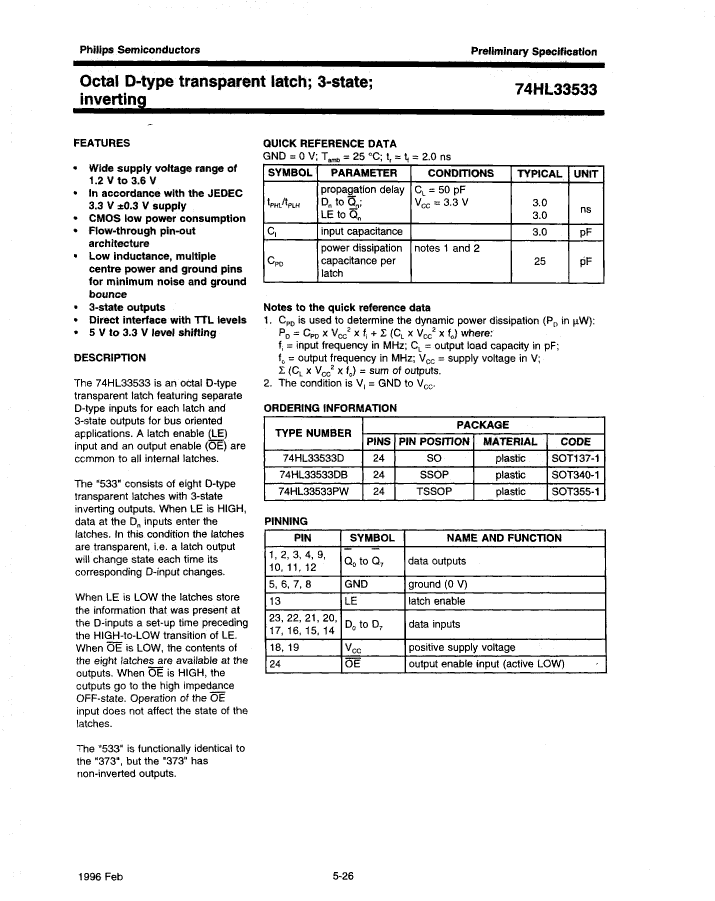

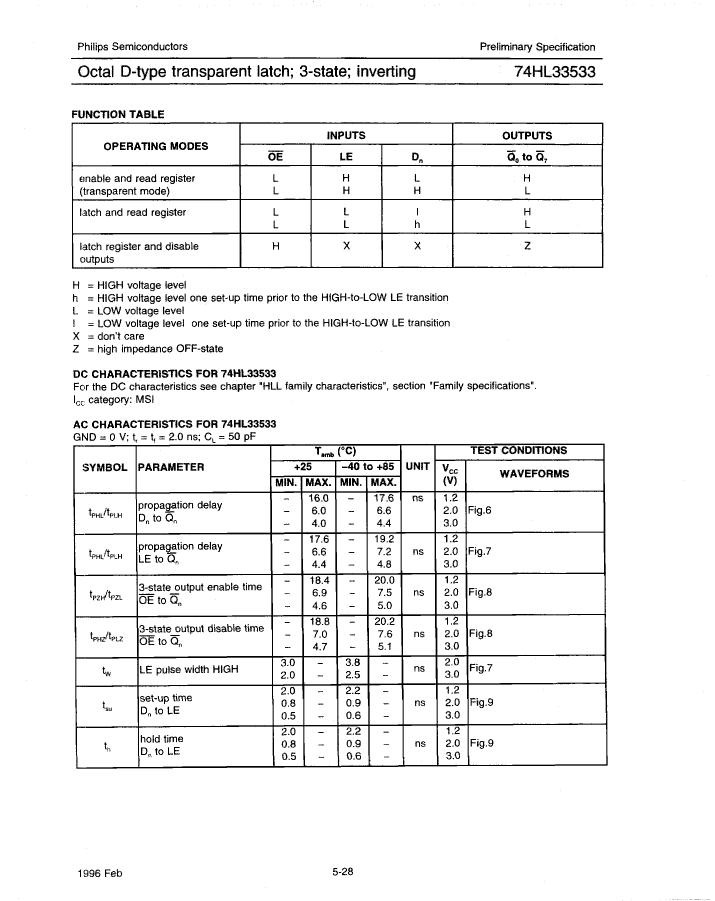

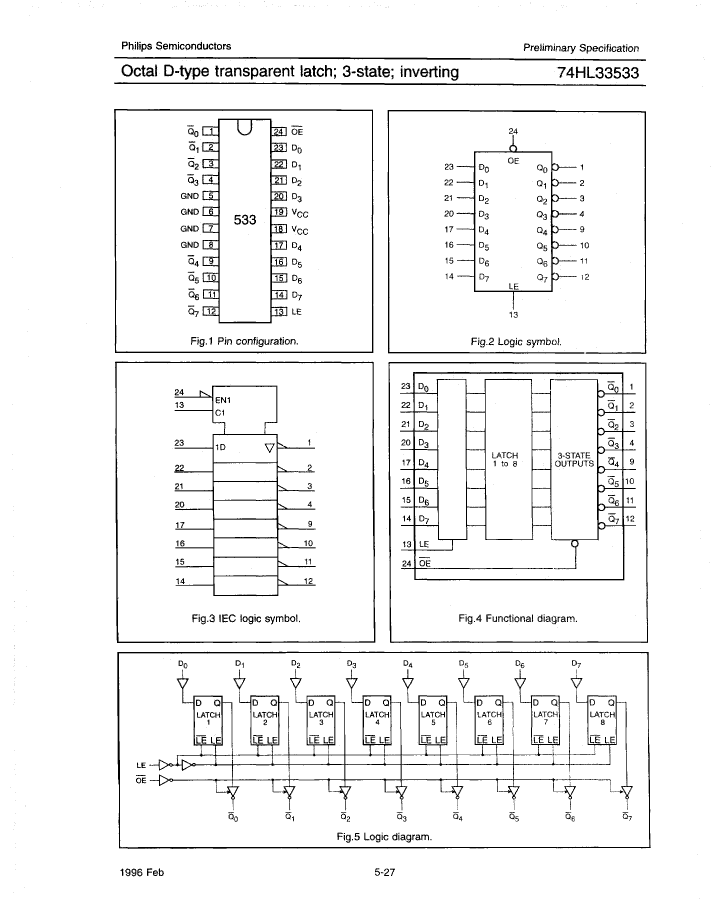

Preview

Download Datasheet

View All

74HL33533D-T Related Products

	74HL33533D-T	74HL33533D	74HL33533DB	74HL33533DB-T	74HL33533PW
Description	IC HL SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO24, Bus Driver/Transceiver
Maker	NXP	NXP	NXP	NXP	NXP
package instruction	SOP,	SOP,	SSOP,	SSOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS
series	HL	HL	HL	HL	HL
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
length	15.4 mm	15.4 mm	8.2 mm	8.2 mm	7.8 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of ports	2	2	2	2	2
Number of terminals	24	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	4.8 ns	4.8 ns	4.8 ns	4.8 ns	4.8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm	2 mm	2 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	5.3 mm	5.3 mm	4.4 mm
Base Number Matches	1	1	1	1	-
