BAT54S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT54S

Preview

BAT54S: Description0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size102KB，1 Pages; ManufacturerTransys Electronics Limited; Websitehttp://www.transyselectronics.com

Download Datasheet Parametric Compare View All

BAT54S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAT54S	-	-	View	Buy Now

BAT54S Overview

0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE

BAT54S Parametric

Parameter Name	Attribute value
Maker	Transys Electronics Limited
package instruction	SOT-23, 3 PIN
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

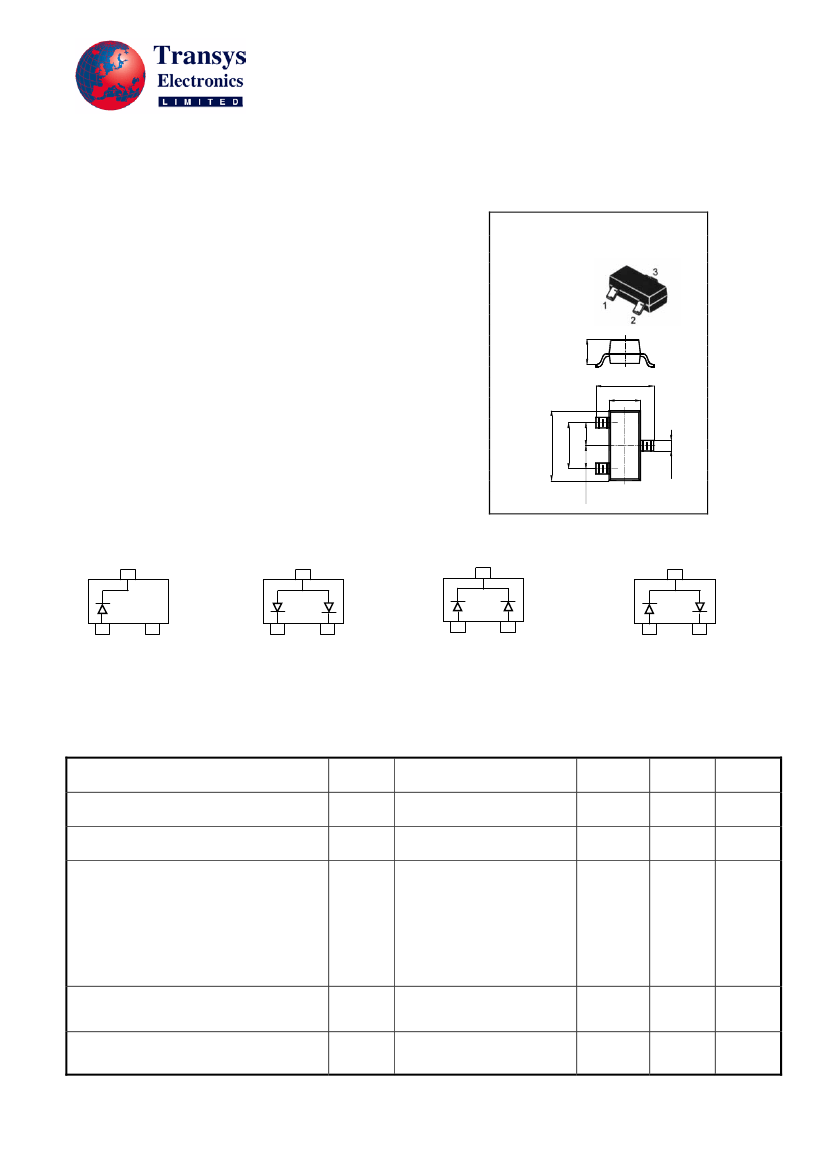

BAT54-A-C-S

FEATURES

Power dissipation

P

D:

200

SCHOTTKY DIODE

SOT-23

mW (Tamb=25℃)

1. 0

0. 95

Forward Current

200 m A

I

F:

Reverse Voltage

30

V

R

:

Operating and storage junction temperature range

T

J

, T

stg

: -55℃ to +150℃

2. 4

1. 3

2. 9

1. 9

0. 95

Unit : mm

BAT54 Marking: KL1

BAT54A Marking: KL2

BAT54C Marking: KL3

BAT54S Marking: KL4

ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)

Parameter

Reverse breakdown voltage

Reverse voltage

leakage current

Symbol

V

(BR)

I

R

Test

conditions

MIN

30

2

MAX

UNIT

V

I

R

= 100

µ

A

V

R

=25V

0. 4

µ

A

I

F

=0.1mA

Forward

voltage

V

F

I

F

=1mA

I

F

=10mA

I

F

=30mA

I

F

=100mA

Diode

capacitance

C

D

t

V

R

=1V, f=1MHz

I

F

=10mA through I

R

=10mA

to I

R

=1.0mA R

C

=100Ω

240

320

400

500

1000

10

5

mV

pF

nS

Reverse recovery time

rr

BAT54S Related Products

	BAT54S	BAT54	BAT54A	BAT54C
Description	0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2 A, 30 V, SILICON, SIGNAL DIODE	0.3 A, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE
Maker	Transys Electronics Limited	Transys Electronics Limited	Transys Electronics Limited	Transys Electronics Limited
Reach Compliance Code	unknow	unknown	unknown	unknown
package instruction	SOT-23, 3 PIN	SOT-23, 3 PIN	SOT-23, 3 PIN	-
