BTR-3420G
1
***********************************************************************************************************************************************************************
BTR-3420G / BTR-3420-SPG / BTR-3420AG / BTR-3420A-SPG
1310 nm TX / 1550 nm RX , 5V / 155 Mbps
RoHS Compliant
Single-Fiber Transceiver
**********************************************************************************************************************************************************************
DESCRIPTION
Single Fiber Bi-Directional Transceiver
1310 nm LD Transmitter
1550 nm Receiver
Distance Up to 20 km
Industry Standard 1 x 9 Footprint
Single +5 V Power Supply
RoHS Compliant
PECL Differential Inputs and Outputs
0 to 70
o
C Operating Temperature: BTR-3420G
-20 to 85
o
C Operating Temperature: BTR-3420AG
Wave Solderable and Aqueous Washable
Class 1 Laser International Safety Standard IEC-60825
Compliant
The BTR-3420G series is high performance module for
single fiber communications by using 1310 nm transmitter
and 1550 nm receiver. The transmitter section uses a
multiple quantum well laser and is a class 1 laser
compliant according to International Safety Standard
IEC-60825. The receiver section uses an integrated 1550
nm detector preamplifier (IDP) mounted in an optical
header and a limiting post-amplifier IC. A PECL logic
interface simplifies interface to external circuitry.
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It
complies with IEC-60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the
specified temperature and voltage limits. The optical ports
of the module shall be terminated with an optical connector
or with a dust plug.
APPLICATIONS
l
WDM 155 Mb/s Links
l
SONET/SDH Equipment Interconnect
l
Fast Ethernet 100 Mb/s Links
ORDER INFORMATION
P/No.
Bit Rate Distance
(Mb/s)
(km)
125/155
125/155
20
20
TX
(nm)
1310
1310
RX
(nm)
1550
1550
Voltage
(V)
5
5
Package
TX
RX Sens.
RoHS
Power
(dBm)
Compliant
(dBm)
0 to 70 -8 to -14
-33
Yes
-20 to 85
-8 to -14
-33
Yes
Temp
(
o
C)
BTR-3420G
BTR-3420AG
1X9
1X9
Note: 1. BTR-XXXXXG is 1X9 SC receptacle type package.
2. BTR-XXXXX-XPBBBG is 1X9 pigtail type package with different connector, A=S is SC connector, A=F is FC
connector, A=T is ST connector, A=L is LC connector, A=M is MU connector; BBB is the length of fiber in cm.
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Temperature
Soldering Temperature
Power Supply Voltage
Input Voltage
Output Current
Symbol
Tstg
Topr
---
Vcc
---
Iout
Min
-40
0
-20
0
GND
0
Max
85
70
85
260
6
Vcc
30
Units
o
C
o
C
o
Notes
BTR-3420G
BTR-3420AG
10 seconds on leads only
C
V
V
mA
Recommended Operating Conditions
Parameter
Power Supply Voltage
Operating Temperature
Data Rate
Power Supply Current
Symbol
Vcc
Topr
Min
4.75
0
-20
Typ
5.00
Max
5.25
70
85
170
240
Units
V
o
C / BTR-3420G
o
C / BTR-3420AG
Mb/s
mA
155
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
10/1/2005 V3.0
Optoway
Transmitter Specifications (0
o
C < Topr < 70
o
C, 4.75V < Vcc < 5.25V)
Parameter
Optical
Optical Transmit Power
Output Center Wavelength
Output Spectrum Width
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Relative Intensity Noise
Total Jitter
Electrical
Data Input Current
–
Low
Data Input Current
–
High
Differential Input Voltage
Data Input Voltage
–
Low
Data Input Voltage -- High
Symbol
Min
Typ
Max
Units
BTR-3420G
Notes
2
*************************************************************************************************************************************************************************
Po
-14
---
-8
dBm
1
1260
1360
nm
λ
---
---
4
nm
RMS (σ)
∆λ
E
R
8.2
---
---
dB
Compliant with Bellcore GR-253-CORE and ITU recommendation G.957
t
r
2
ns
10% to 90% Values
t
f
2
ns
10% to 90% Values
RIN
-116
dB/Hz
TJ
1.0
ns
2
I
IL
I
IH
V
IH
- V
IL
V
IL
- V
CC
V
IH
- V
CC
-350
350
300
-2.0
-1.1
-1.58
-0.74
µA
µA
mV
V
V
3
3
Notes: 1. Output power is power coupled into a 9/125
µm
single mode fiber.
2. Measured with a 2
23
-1 PRBS with 72 ones and 72 zeros.
3. These inputs are compatible with 10K, 10KH and 100K ECL and PECL inputs.
Receiver Specifications (0
o
C < Topr < 70
o
C, 4.75 V < Vcc < 5.25V)
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect -- Asserted
Signal Detect -- Deasserted
Signal detect -- Hysteresis
Wavelength of Operation
Electrical
Data Output Voltage
–
Low
Data Output Voltage
–
High
SD Output Voltage -- Low
SD Output Voltage -- High
Symbol
---
Pin
Pa
Pd
Min
---
-3
---
-43
1.0
1480
-2.0
-1.1
-2.0
-1.1
Typ
---
---
---
---
---
Max
-33
---
-33
---
4.0
1580
-1.58
-0.74
-1.58
-0.74
Units
dBm
dBm
dBm
dBm
dB
nm
V
V
V
V
Notes
1
Transition: low to high
Transition: high to low
2
3
3
3
3
V
OL
- V
CC
V
OH
- V
CC
V
OL
- V
CC
V
OH
- V
CC
Notes: 1.Minimum sensitivity and saturation levels at BER 1E-=10 for a 2
23
-1 PRBS with 72 ones and 72 zeros.
2. At least 30 dB optical isolation for the wavelength 1260 to 1360 nm.
3. These outputs are compatible with 10K, 10KH and 100K ECL and PECL outputs.
*****************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
10/1/2005 V3.0
Optoway
CONNECTION DIAGRAM
Receiver Signal Ground 1 (Rx GND)
Receiver Data Out 2 (RD+)
Receiver Data Out Bar 3 (RD−)
Signal Detect 4 (SD)
Receiver Power Supply 5 (Rx Vcc)
Transmitter Power Supply 6 (Tx Vcc)
Transmitter Data In Bar 7 (TD−)
Transmitter Data In 8 (TD+)
Transmitter Signal Ground 9 (Tx GND)
N/C
BTR-3420G
3
*************************************************************************************************************************************************************************
TOP VIEW
N/C
PIN
1
2
3
4
5
6
7
8
9
Symbol
Rx GND
RD+
RD−
SD
Rx Vcc
Tx Vcc
TD−
TD+
Tx GND
Notes
Directly connect this pin to the receiver ground plane
See recommended circuit schematic
See recommended circuit schematic
Active high on this indicates a received optical signal
+5V dc power for the receiver section
+5V dc power for the transmitter section
See recommended circuit schematic
See recommended circuit schematic
Directly connect this plan to the trransmitter ground plane

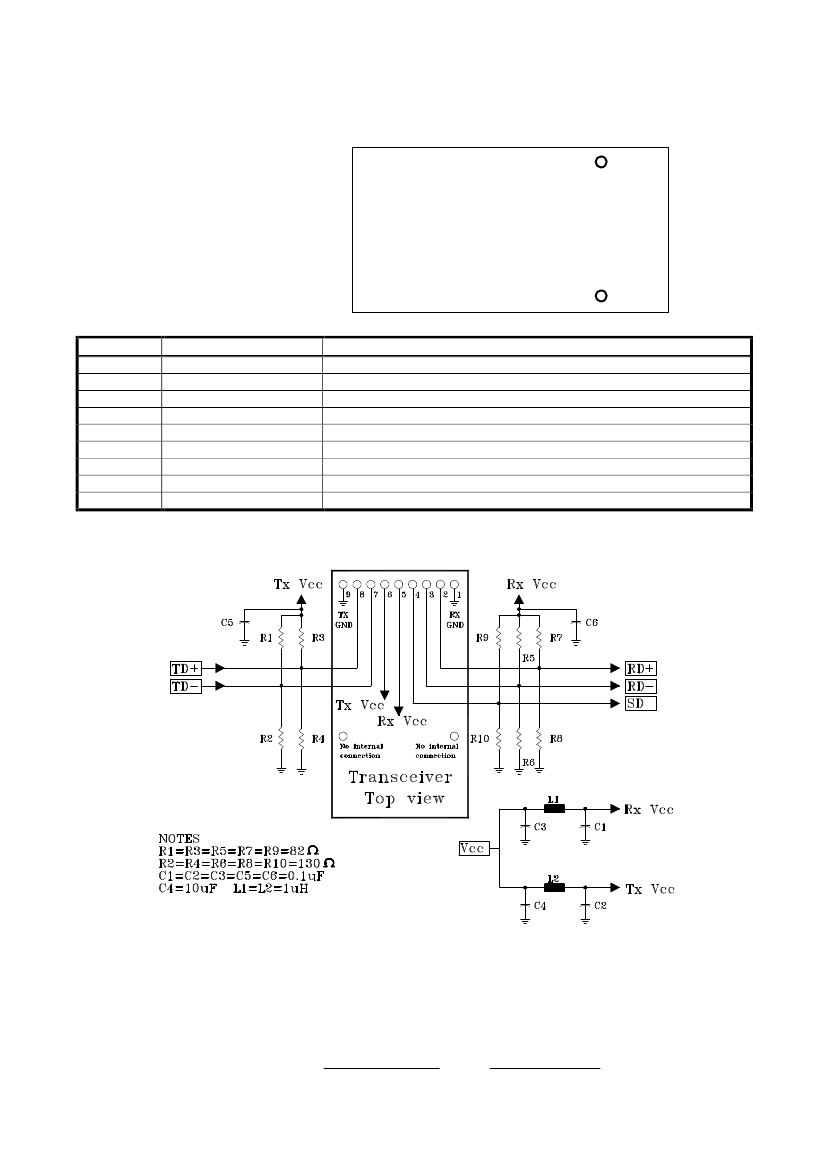

RECOMMENDED CIRCUIT SCHEMATIC
The split-load terminations for ECL signals need to be located at the input of devices receiving those ECL signals. The power
supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc and Tx
Vcc. A GND plane under the module is required for good EMI and sensitivity performance.
*****************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
10/1/2005 V3.0
Optoway
PACKAGE DIAGRAM
Units in mm
1) Receptacle Type
BTR-3420G
4
*************************************************************************************************************************************************************************
BTR-3420G / BTR-3420AG
2) Pigtail Type
BTR-3420-SP50G / BTR-3420A-SP50G
Note: Length L is 50± 3 cm. Other pigtail’s length is available upon request.
Note:
Specifications subject to change without notice.
*****************************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
10/1/2005 V3.0
