63734-1

Description
1.15mm2, BRASS, TIN FINISH, TAB TERMINAL
Categoryterminals
File Size1MB,27 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

63734-1 Overview

1.15mm2, BRASS, TIN FINISH, TAB TERMINAL

63734-1 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Manufacturer's serial number63734
terminal genderMALE
Terminal and terminal strip typesTAB TERMINAL
Conductor cross section1.15 mm2
Wire gauge17 AWG
Base Number Matches1

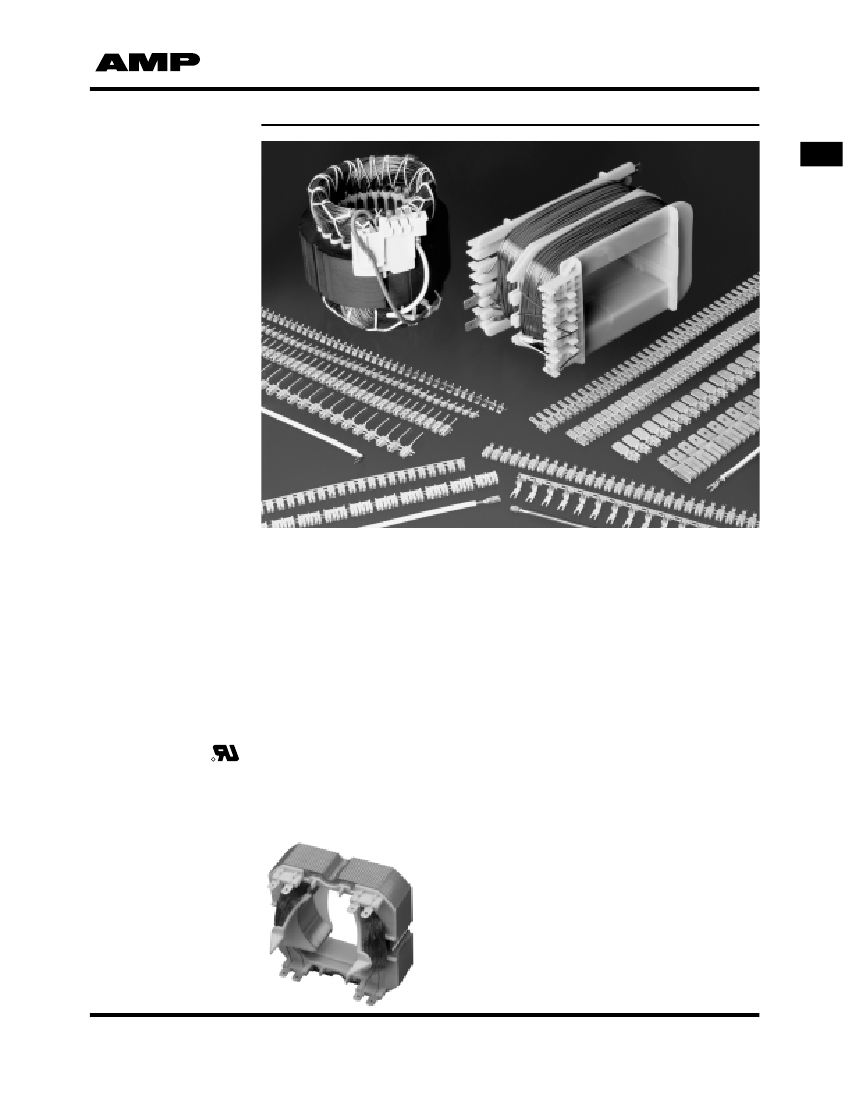

Catalog 82221
Magnet Wire Terminals and Termination Systems
Standard MAG-MATE Terminals
Product Facts
s
s
s
s
Revised 10-02
Terminates all magnet wire
film insulations
Eliminates need for pre-
stripping conductors
Eliminates need to post
insulate termination
Excess magnet wire is
automatically trimmed
during the termination
process
Simultaneously terminates
two magnet wires of the
same size in one terminal
(for splicing or bi-filing)
Various lead wire
attachment options
available
Available in strip form for
semi-automatic or fully
automatic insertions
Available in loose piece
form for hand tool insertions
Varnish resist tab terminals
are available for special
applications
High speed, fully automated
integrated systems provide
uniform terminations
reliability at the lowest
possible applied cost
Clean metal-to-metal
interface produces stable,
gas-tight electrical
terminations free of oxides
and other contaminants
Recognized under the
Component Recognition
Program of Underwriters
Laboratories Inc.,
File No. E13288
R
Standard MAG-MATE
Terminals
s
s
s
s
s
s
s
Tyco Electronics offers a full
selection of AMP Standard
MAG-MATE Insulation
Displacement Crimp (IDC)
terminals for magnet wire
terminations.
MAG-MATE terminals are
available in poke-in, poke-in
tab, splice, crimp wire
barrel, solder post, quick
connect tab, pin and
receptacle styles.
Standard MAG-MATE
terminates magnet wire
ranging from 34-12 AWG
[0.16 -2.05 mm].
Each IDC slot terminates up
to four consecutive magnet
wire ranges.
Two magnet wires with the
same diameter can be
terminated in one terminal
down to 23 AWG [0.57 mm].

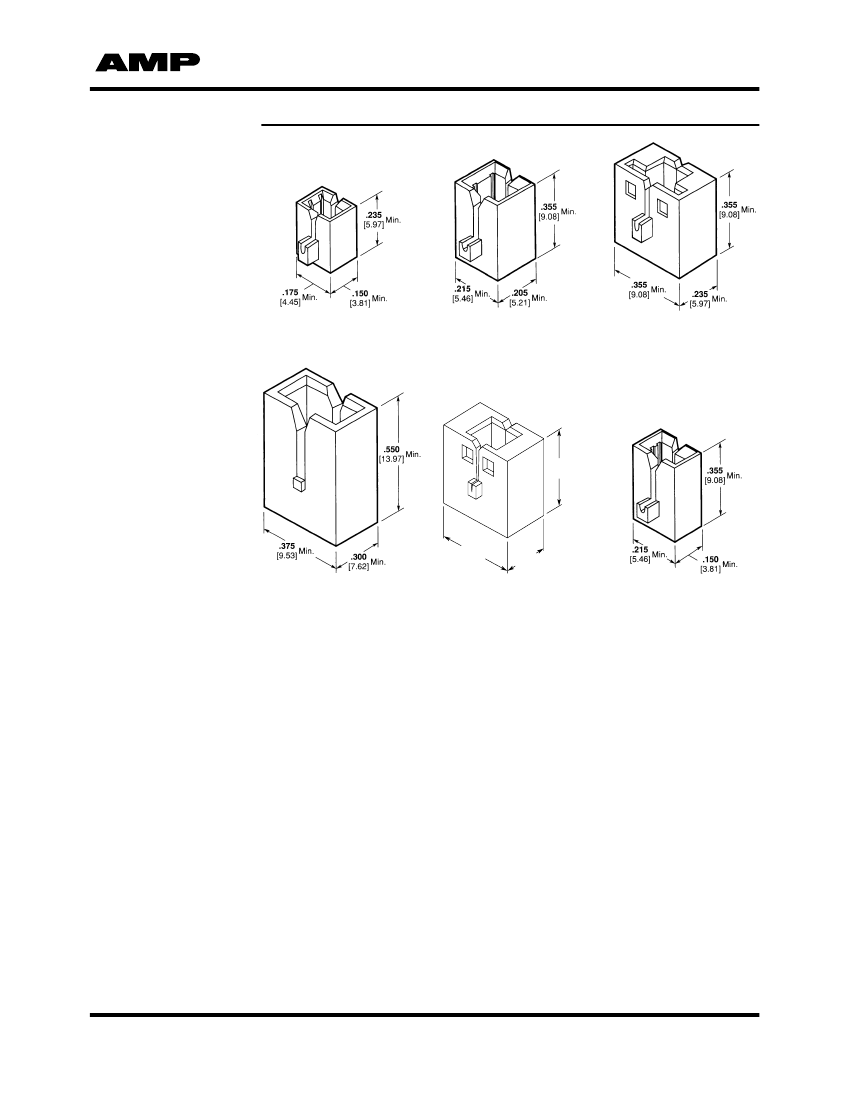

According to Tyco Electronics
specifications MAG-MATE
cavities are either
integrated into coil bodies
or especially designed
cavity housings. The
magnet wires are precisely
positioned in the “U”shaped
designed termination slots.

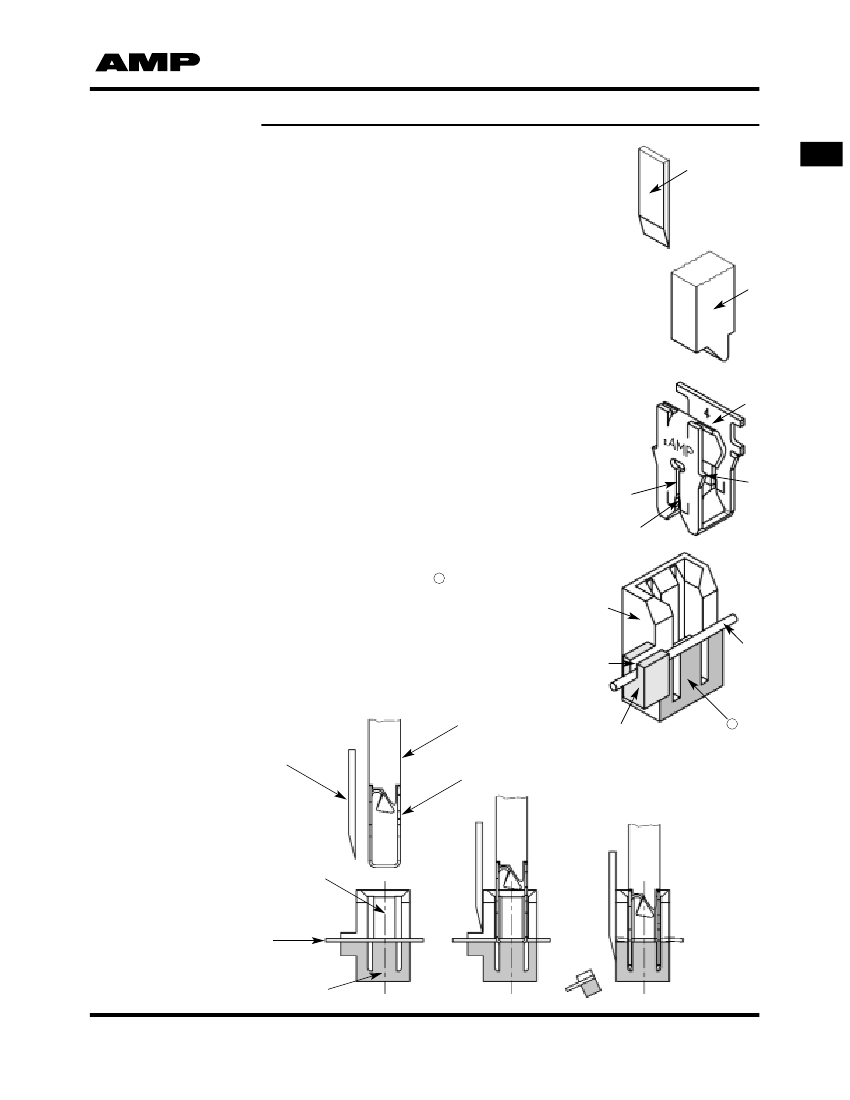

The MAG-MATE Inserter
cuts the terminals from the
strip and places the
terminals over the magnet
wire into the plastic cavities.
During this operation the
small stripping devices
penetrate the film insulation
from the magnet wire.
Residual spring energy in
the terminal causes the side
walls of each IDC slot to
function as opposing
cantilever beams.

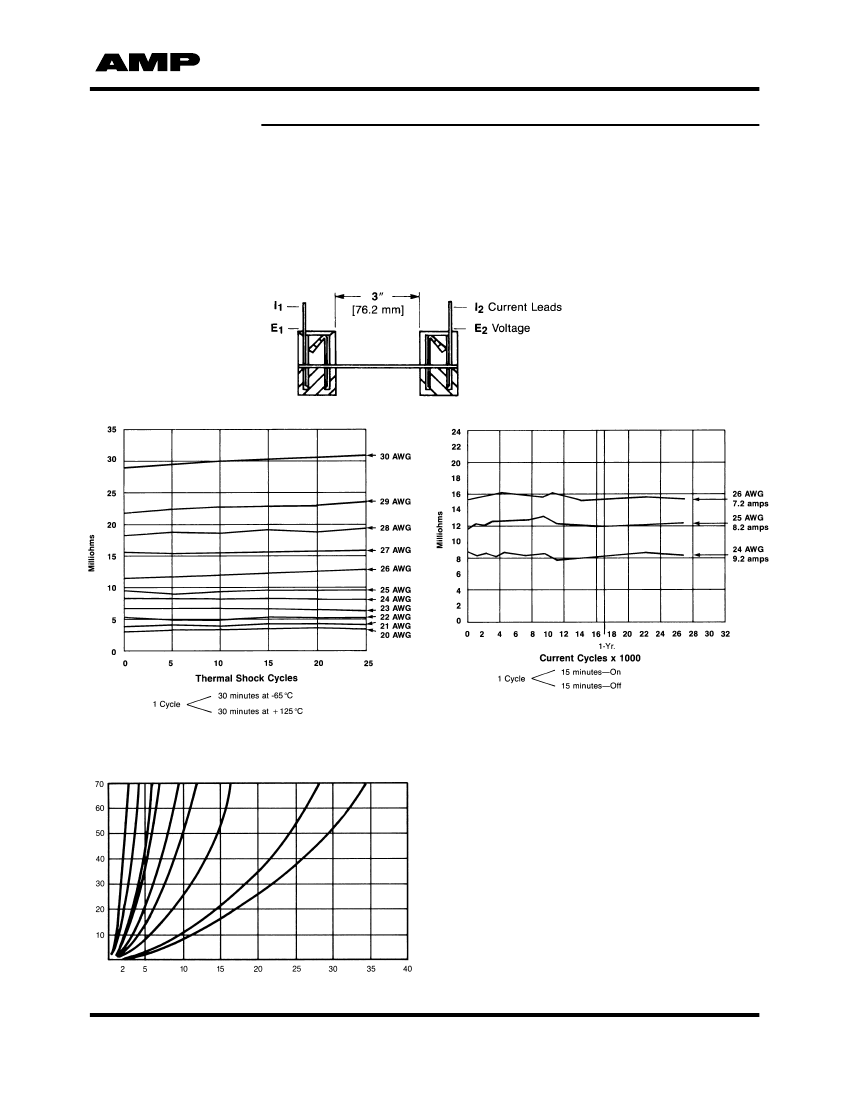

This constant pressure
results in an intimate metal-
to-metal interface, providing
a reliable, long-term
connection.
The wiping action between
the wire and terminals
removes oxides or other
contaminants present on
both the conductor and the
terminal slot side walls,
producing a clean, stable,
gas-tight electrical
termination.
The AMP MAG-MATE
Inserter may be used as a
semi-automatic bench
machine or integrated in
production lines for fully-
automatic applications.
s
Applications
s
s
s
s
s
s
Motor windings and
connections
Coil connections
Transformer windings and
connections
Bobbin connections
Lighting ballasts
Power supplies
1
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject to change.
Technical Support
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 01-800-733-8926
www.tycoelectronics.com
