87760-4615

Description
Board Connector, 46 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size179KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

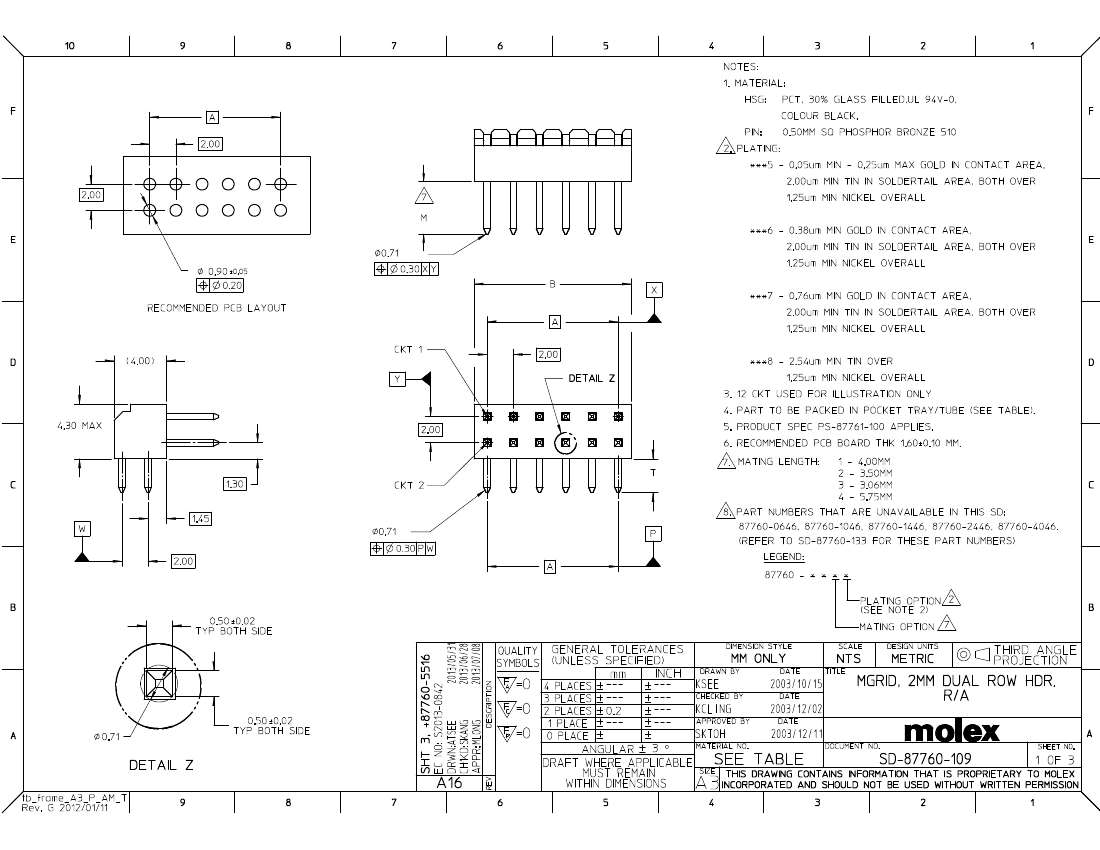

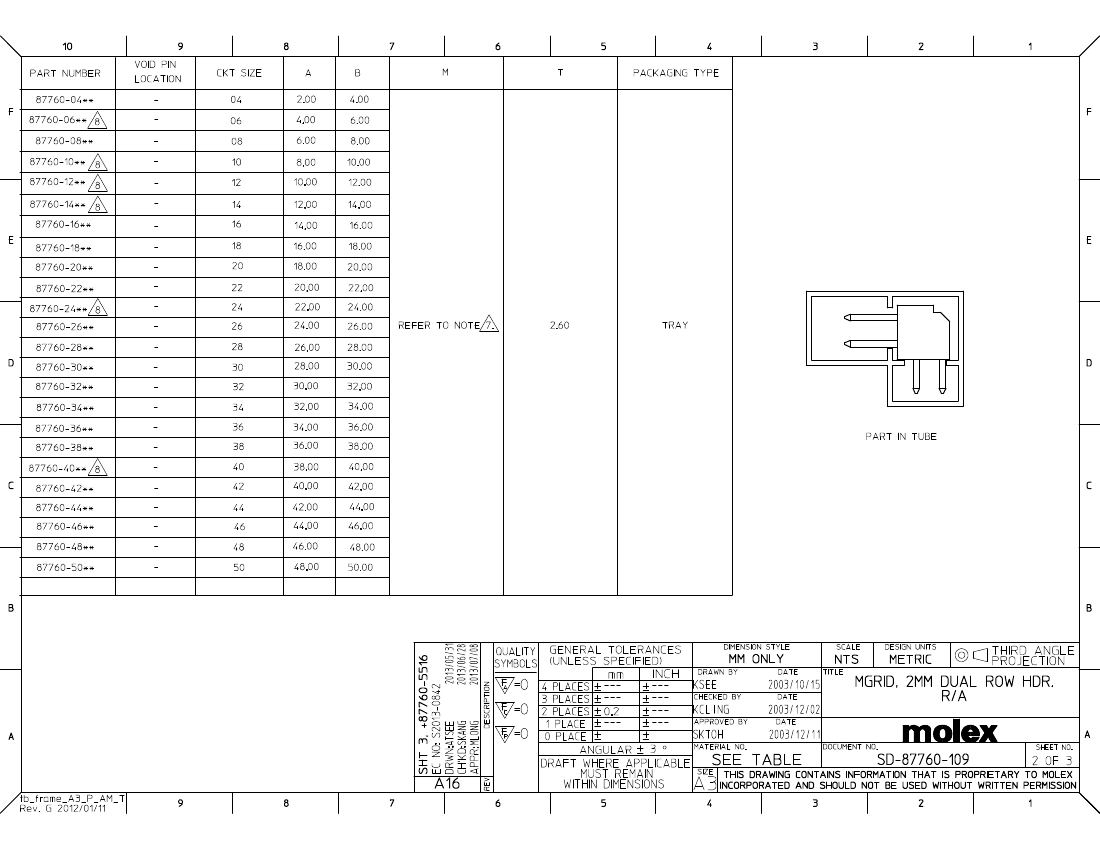

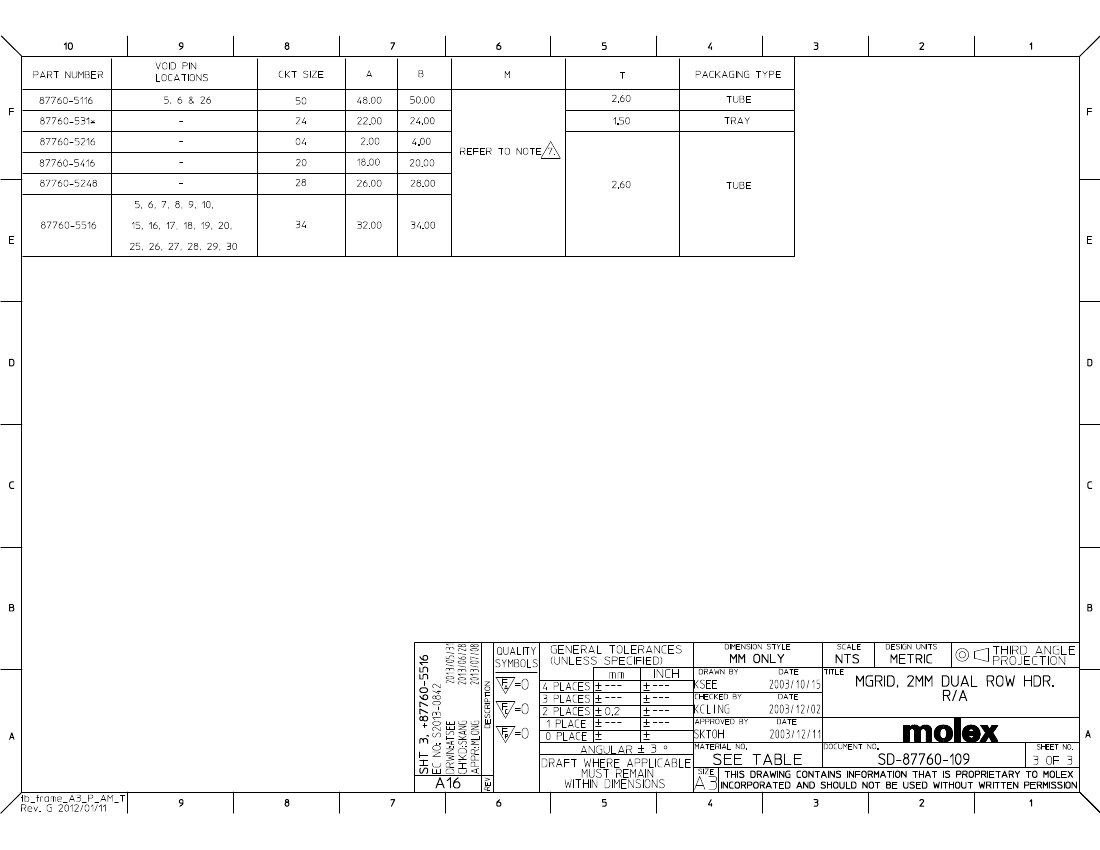

87760-4615 Overview

Board Connector, 46 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator

87760-4615 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
body width0.169 inch
subject depth0.157 inch
body length1.811 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYCYCLOHEXYLENE TEREPHTHALATE
Manufacturer's serial number87760
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts46
Base Number Matches1
