805-002
-16
Shell Style
-
16
Plug Connector
with Ratcheting
Anti-Decoupling
Mechanism
F
G
H
J
K
L
M
© 2007 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
Series 805
Series 805 “Mighty Mouse”
Triple-Start
Series 805 Plug Connectors
Two Shell Styles:
Integral platform for
direct shield attachment using BAND-
IT
®
termination system, or accessory
thread for attaching a strain relief.
EMI Ground Spring
provides low
shell-to-shell resistance. This nickel-
plated beryllium copper serpentine
spring enables the Series 805 to
meet greater than 60 dB shielding
effectiveness from 100 MHz. to 15 GHz.
Ratchet Mechanism for Secure
Coupling:
Series 805 connectors
feature a spring mechanism in the
coupling nut that locks into radial teeth
on the plug barrel. This feature allows
the Series 805 to stay mated even
when under high vibration, without the
need for safety wire or torque tools.
HOW TO ORDER
Sample Part Number
M
Shell Material / Finish
C
Aluminum / Black Anodize
8-4
Shell Size- Insert
Arrangement
1 #16 Contact
4 #23 Contacts
7 #23 Contacts
1 #12 Contact
10 #23 Contacts
13 #23 Contacts
4 #16 Contacts
19 #23 Contacts
26 #23 Contacts
2 #12 Contacts
15-37
37 #23 Contacts
18-55
55 #23 Contacts
19-85
85 #23 Contacts
Size #23 contacts are
supplied with connectors.
Other contact sizes are
ordered separately.
P
Contact Type
Standard #23 contacts
accept #22 through
#28 AWG wire. Use the
following contact codes to
specify these contacts:
A
Shell Key
Position
A
Position A
(Normal)
Series
M
Aluminum / Electroless
Nickel
805-001
Plug with Banding
Platform
NF
Aluminum / Cadmium with
Olive Drab Chromate
ZN
Aluminum / Zinc-Nickel with
Olive Drab Chromate
8-1
8-4
8-7
9-1
9-10
10-13
11-4
11-19
12-26
15-2
B
Position B
P
Pin
C
Position C
S
Socket
Special contacts for
#26 to #30 AWG are
also available. Use the
following contact codes to
specify these contacts:
D
Position D
ZNU
805-002
Plug with
Accessory
Thread
Aluminum / Zinc-Nickel with
Black Chromate
Z1
Stainless Steel / Passivated
G
Pin
H
Socket
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
H-4
Rev. 05-APR-2007
E-Mail: sales@glenair.com
Series 805 “Mighty Mouse”
Triple-Start
Series 805 Plug Connectors

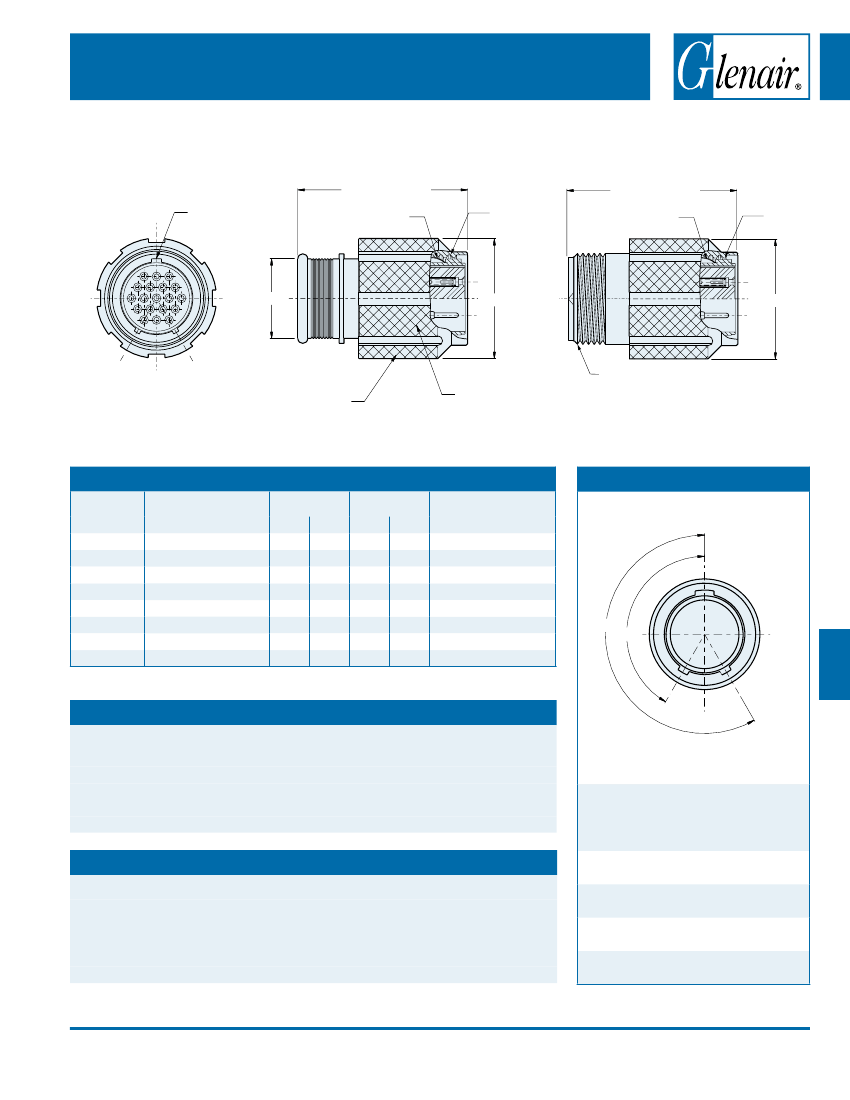

1.131 (28.73)
1.131 (28.73)
MASTER KEY
EMI/RFI
SPRING
A
THREAD
EMI/RFI
SPRING
A
THREAD
øB
øC
øC
D THREAD
KNURL
SELF-LOCKING
COUPLING
PLUG WITH
ACCESSORY THREAD
805-002
PLUG WITH INTEGRAL
BAND PLATFORM
805-001
DIMENSIoNS
Shell Size
A Threads
.5000-.1P-.3L-TS-2B
8
.5625-.1P-.3L-TS-2B
9
.6250-.1P-.3L-TS-2B
10
.6875-.1P-.3L-TS-2B
11
.7500-.1P-.3L-TS-2B
12
.9375-.1P-.3L-TS-2B
15
1.1250-.1P-.3L-TS-2B
18
1.1875-.1P-.3L-TS-2B
19
ØB
In.
mm.
.317
.397
.473
.519
.585
.687
.884
.884
8.05
10.08
12.01
SERIES 805 kEY poSITIoNS
Ø C Max.
In.
mm.
.691
.787
.826
17.55
19.99
20.98
23.27
24.94
27.86
32.77
33.27
D Threads
Accessory
.3750-32 UNEF-2A
.4375-28 UNEF-2A
.5000-28 UNEF-2A
.5625-24 UNEF-2A
.6250-24 UNEF-2A
.7500-20 UNEF-2A
.9375-20 UNEF-2A
.9375-20 UNEF-2A
13.18
.916
14.86
.982
17.45 1.097
22.45 1.290
22.45 1.310
B°
A°
pERFoRMANCE SpECIFICATIoNS
DWV
Insulation Resistance
Contact Resistance
Operating Temperature
Immersion
EMI
500 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
-55° C. to +150° C.
MIL-STD-810 Method 512. One Meter for One Hour.
60 dB Minimum from 100 MHz. to 10 GHz.
key Rotation
key
position
Normal (A)
B
C
D
A
150°
75°
95°
140°
B
210°
210°
230°
275°
MATERIALS AND FINISHES
Connector Shell
Insulator
Seals
Pin Contact
Socket Contact
Contact Retainer Clip
© 2007 Glenair, Inc.
www.glenair.com
Aluminum or Stainless Steel
Liquid Crystal Polymer (LCP)
Fluorosilicone Rubber, Blue
Beryllium Copper, Gold over Nickel Plating
Beryllium Copper, Gold over Nickel Plating, with SST Hood
Beryllium Copper, Unplated
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 19-AUG-2008
H-5
