86CNQ200
Technical Data
Data Sheet N1133, Rev. A
86CNQ200 SCHOTTKY RECTIFIER
Features
175℃ T
J
operation
Center tap module
Very Low forward voltage drop
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Low profile, high current package
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional electrical and life testing can be performed
upon request
Applications
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
86CNQ200
86CNQ200SL
86CNQ200SM
PRM2
PRM2-SL
PRM2-SM
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current(Per leg)
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
50% duty cycle @T
C
=130°C,
rectangular wave form
8.3 ms, half Sine pulse
Max.
200
40(Per Leg)
80(Per Device)
150
Units
V
A
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
86CNQ200
Technical Data
Data Sheet N1133, Rev. A
Electrical Characteristics:
Characteristics
Forward Voltage Drop
(Per leg) *
Symbol
V
F1
V
F2
Reverse Current (Per leg) *
Junction Capacitance
(Per leg)
* Pulse width < 300 µs, duty cycle < 2%
Condition
@ 40A, Pulse, T
J
= 25
C
@ 80A, Pulse, T
J
= 25
C
@ 40A, Pulse, T
J
= 125
C
@ 80A, Pulse, T
J
= 125
C
@V
R
= rated VR T
J
= 25
C
@V
R
= rated VR T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
Typ.
0.83
-
0.68
-
0.0002
0.3
750
Max.
0.99
1.14
0.69
0.78
1.1
24
900
Units
V
V
mA
mA
pF
I
R1
I
R2
C
T
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance
Junction to Case
(per leg)
Typical Thermal Resistance
Junction to Case
(per package)
Typical Thermal Resistance, case
to Heat Sink
Mounting Torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
R
JC
R
cs
TM
wt
DC operation
DC operation
Mounting surface, smooth and
greased
-
-
PRM2 PRM2-SL PRM2-SM
Condition
-
-
Specification
-55 to +175
-55 to +175
0.85
0.42
0.30
40(min)
58(max)
7.8
Units
C
C
C/W
C/W
C/W
Kg-cm
g
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
86CNQ200
Technical Data
Data Sheet N1133, Rev. A

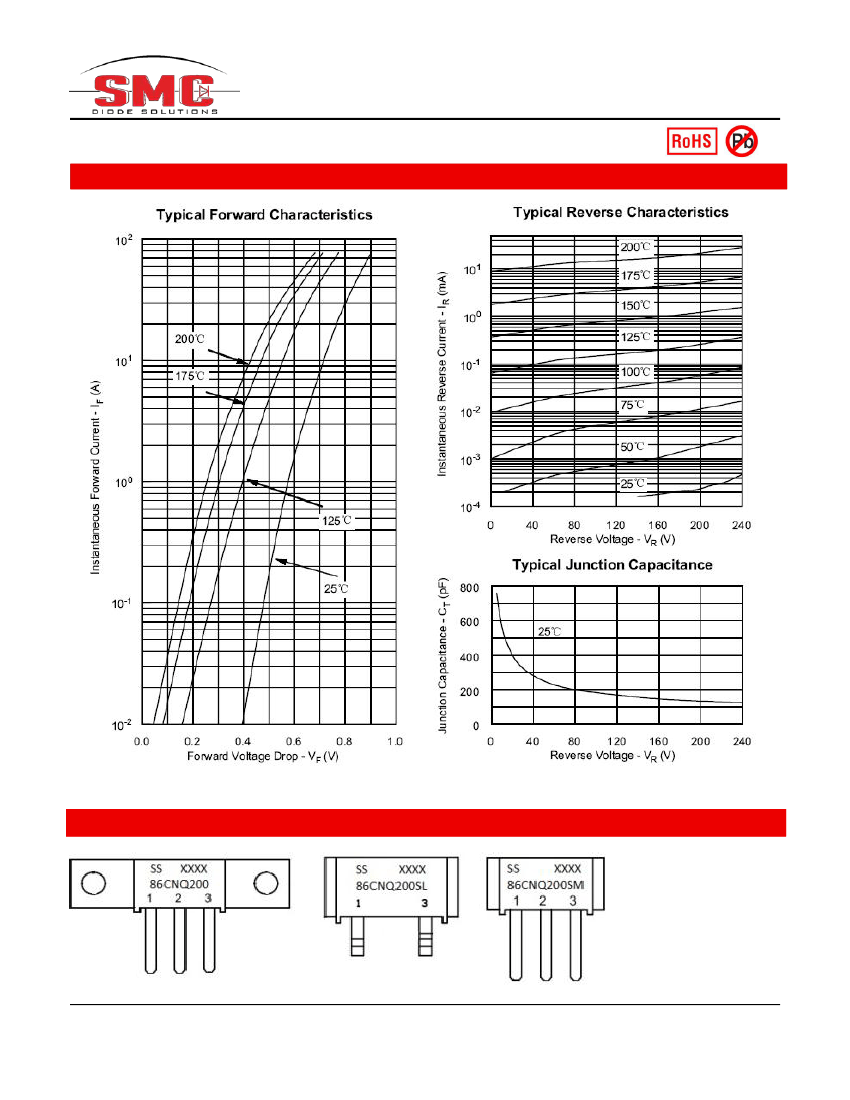

Ratings and Characteristics Curves
Marking Diagram
Where XXXX is YYWW
1st row SS YYWWL
2nd row 86CNQ200/SL/SM
3rd row 1 2 3 (pin)
SS
= SS
YY
= Year
WW
= Week
Cautions：Molding
resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
86CNQ200
Technical Data
Data Sheet N1133, Rev. A
Ordering Information
Device
86CNQ200
86CNQ200S
86CNQ200SL
86CNQ200SM
86CNQ200SMS
Package
PRM2
PRM2
PRM2-SL
PRM2-SM
PRM2-SM
Terminals finish
Nickel plated
Pure Sn dipped
(dipped height 6-8 mm)
Pure Sn plated
Nickel plated
Pure Sn dipped
(dipped height 6-8 mm)
Shipping
48pcs / box
48pcs / box
100pcs / box
48pcs / box
48pcs / box
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging
specification.

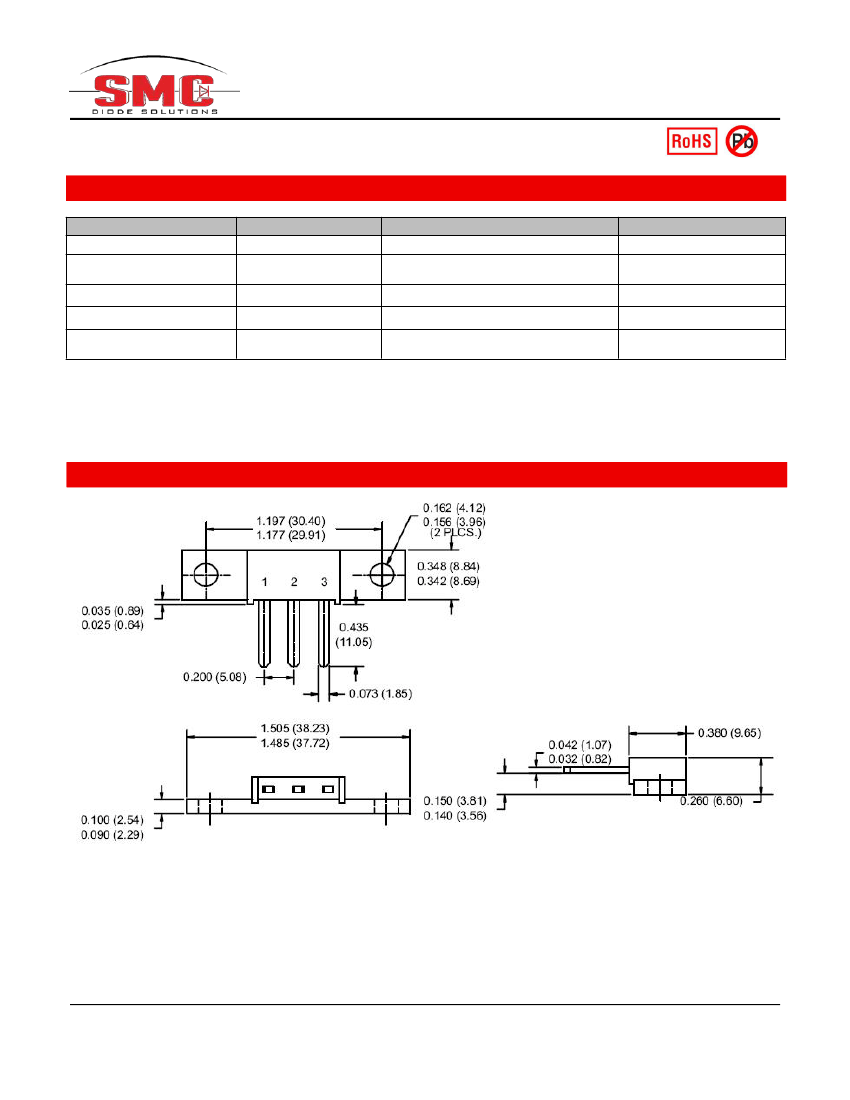

Mechanical Dimensions PRM2 (Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
86CNQ200
Technical Data
Data Sheet N1133, Rev. A

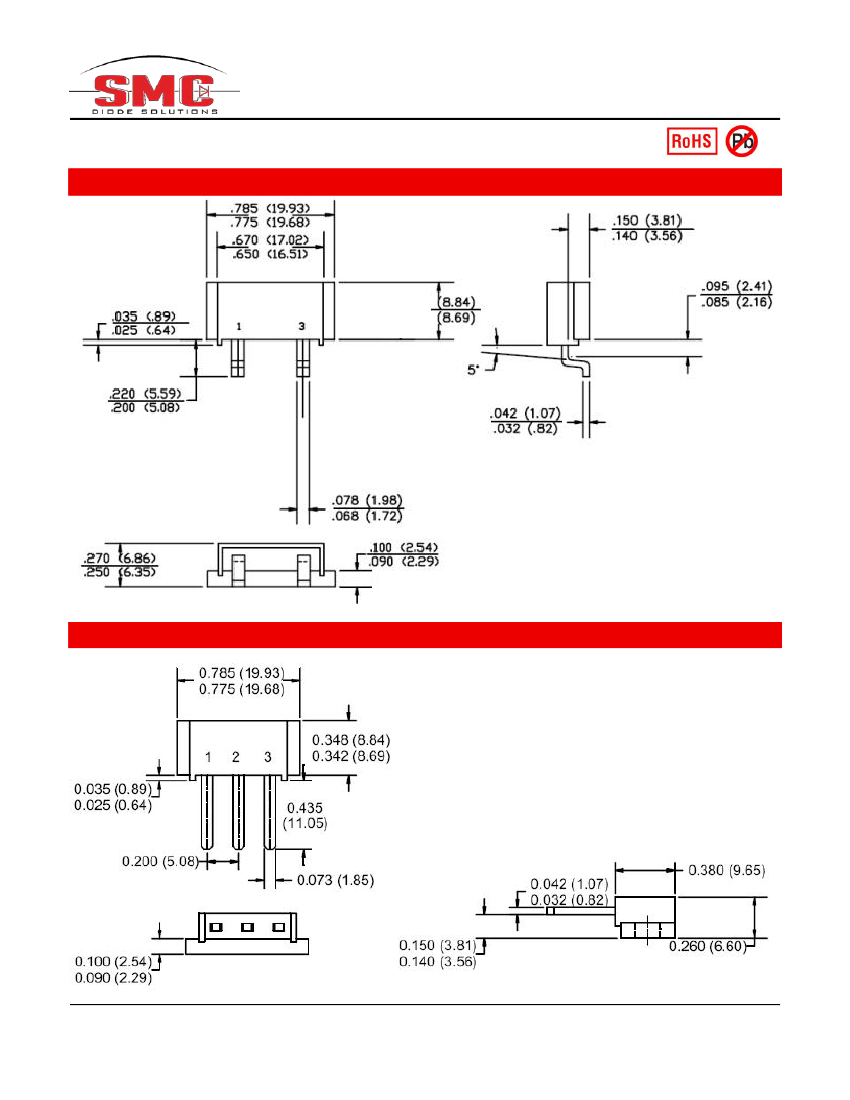

Mechanical Dimensions PRM2-SL (Inches/Millimeters)
Mechanical Dimensions PRM2-SM (Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
