R1285L433A-TR-F

Description
Switching Regulator, 1400kHz Switching Freq-Max, PDSO12, 2.7 X 3 MM, ROHS COMPLIANT, DFN-12
CategoryThe power supply circuit
File Size161KB,2 Pages
ManufacturerRICOH Electronic Devices Co., Ltd.
Download Datasheet Parametric View All

R1285L433A-TR-F Overview

Switching Regulator, 1400kHz Switching Freq-Max, PDSO12, 2.7 X 3 MM, ROHS COMPLIANT, DFN-12

R1285L433A-TR-F Parametric

Parameter NameAttribute value
MakerRICOH Electronic Devices Co., Ltd.
Parts packaging codeDFN
package instructionVSON,
Contacts12
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage4.8 V
Minimum input voltage2.3 V
JESD-30 codeR-PDSO-N12
length3 mm
Number of functions1
Number of terminals12
Nominal output voltage5 V
Package body materialPLASTIC/EPOXY
encapsulated codeVSON
Package shapeRECTANGULAR
Package formSMALL OUTLINE, VERY THIN PROFILE
Certification statusNot Qualified
Maximum seat height0.6 mm
surface mountYES
Switch configurationBOOST
Maximum switching frequency1400 kHz
Terminal formNO LEAD
Terminal pitch0.5 mm
Terminal locationDUAL
width2.7 mm
Base Number Matches1

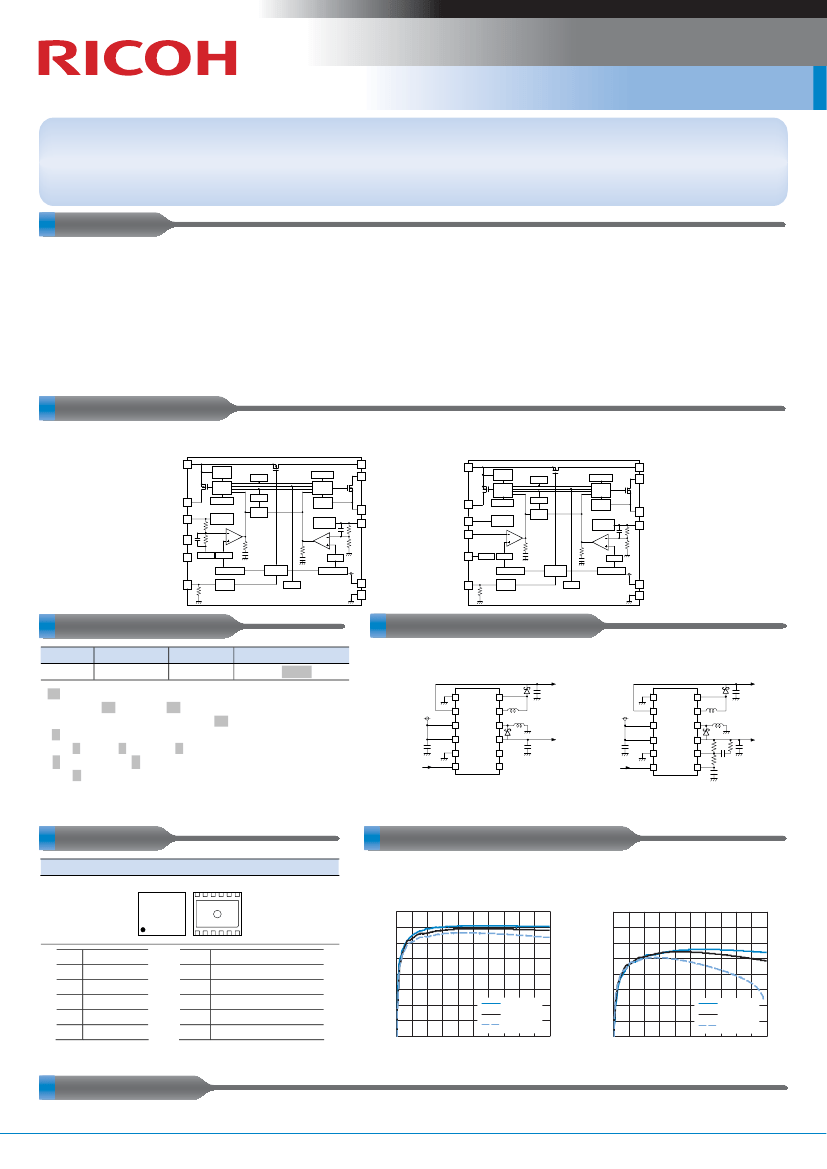

R1285L Series
PWM Step-up/Inverting DC/DC Converter for AMOLED
The R1285L Series are dual output CMOS-based PWM step-up/inverting DC/DC converters. R1285L includes a soft start circuit, an
under-voltage lockout circuit (UVLO) and a latch type protection circuit. By simply using inductors, (resistors), capacitors, and
diodes as external components, a high-efficiency step-up/inverting DC/DC converter can be easily configured. The Inverting DC/DC
converter can be started after Step-up DC/DC converter by sequence control. At the standby mode, the internal shutdown switch can
separate the output from the input.
FEATURES
Supply Current (I
DD1
)························ Typ. 4mA (V
IN
=4.8V, In switching)
Supply Current (I
DD2
)························ Typ. 350μA (V
IN
=4.8V, In non-switching)
Standby Current (I
standby
) ·················· Max. 3μA (V
IN
=4.8V, CE="L")
Input Voltage Range (V
IN
) ················ 2.3V to 4.8V
Step-up Output Voltage Range (V
OUTP
)····· Select from 4.6V, 4.8V or 5.0V
Inverting Output Voltage Range (V
OUTN
)···· -2.0V to -6.0V (A Version)
The output voltage : adjustable up to -6V
with an external resistor.
(Feedback voltage : 0V) (B Version)
Step-up Output Voltage Accuracy····
±
1.5%
Inverting Output Voltage Accuracy ··
±
1.5% (A Version)
±
25mV (B Version)
Output Reference Voltage (V
REF
) ······· 1.2V (± 28mV)
Oscillator Frequency (f
osc
)···················· 1.4MHz
Oscillator Maximum Duty Cycle (Maxduty)···· Step-up :Typ. 85%
UVLO Detect Voltage (V
UVLO
)··············· Typ. 2.05V
Soft Start Time (t
start
) ···························· Typ. 4.5ms
Latch Protection Circuit ······················· Delay time for protection
Auto-Discharge function
Package··············································· DFN2730-12
Typ. 50ms
Inverting :Typ. 90%
BLOCK DIAGRAMS
R1285LxxxA
(Fixed Inverting output voltage type)
PV
CC
Current
Limit
PWM
Control
OSC
Maxduty
PWM
Control
Timer
Short
Protect
Discharge
Control
Current
Limit
R1285L00xB
(Adjustable inverting output voltage type)
PV
CC
Current
Limit
PWM
Control
OSC
Maxduty
PWM
Control
Timer
Short
Protect
Discharge
Control
Current
Limit
L
XP1
L
XP2
L
XP1
L
XP2
L
XN
V
OUTN
Maxduty
L
XN
Maxduty
PGND
V
OUTP
V
OUTN
V
FBN
Discharge
Control
PGND
V
OUTP
Discharge
Control
TEST1
TEST2
Vref3
Vref2
Sequence
Control
UVLO
Vref1
Soft Start1
V
REF
Vref3
Vref2
Sequence
Control
UVLO
Vref1
Soft Start1
Soft Start2
Enable
Control
Soft Start2
CE
V
CC
GND
CE
Enable
Control
V
CC
GND
SELECTION GUIDE
Halogen Free Package Q'ty per Reel
Part No.
-
DFN2730-12 5,000 pcs R1285L.xx$..
-TR-F
.xx.
: Specify the inverting output voltage within the range of
-2.0V (.20.) to -6.0V (.60.) in 0.1V steps. For the adjustable
inverting output voltage type (.00.). (B Version)
.$.
: Select the step-up output voltage from
(.1.) 4.6V, (.2.) 4.8V or (.3.) 5.0V.
.
.
: Select from (.A.) Fixed Inverting output voltage type or
(.B.) Adjustable inverting output voltage type
TYPICAL APPLICATIONS
R1285LxxxA
V
OUTP
D1
PGND
V
OUTP
PV
CC
V
CC
C1
4.7μF
GND
CE
CE control
L
XP2
L1
L
XP1
L2
L
XN
D2
V
OUTN
TEST1
TEST2
C2
10μF
V
OUTN
C3
10μF
R1285L00xB
V
OUTP
D1
PGND
V
OUTP
PV
CC
V
CC
GND
CE
CE control
L
XP2
L1
L
XP1
L2
L
XN
D2
C1
4.7μF
V
OUTN
R2
V
FBN
R1
V
REF
C5
C4
R3
C2
10μF
V
OUTN
C3
10μF
(Fixed Inverting output voltage type) (Adjustable inverting output voltage type)
L1,L2: VLF3010-4R7 (TDK)
SD: CRS02 (Toshiba)
L1,L2 : VLF3010-4R7 (TDK)
SD : CRS02 (Toshiba)
R1, R2: Resistors for setting V
OUTN
R3: 2kΩ,C4: 47pF, C5: 0.1μF
PACKAGE
DFN2730-12
Top View
12 11 10 9
8
7
TYPICAL CHARACTERISTIC
Bottom View
7
8
9 10 11 12
Efficiency vs. Output Current
R1285Lxx1A/001B
R1285L49xA/00xB
100
90
80
70
60
50
40
30
20
0
V
IN
=4.5V
V
IN
=3.7V
V
IN
=2.9V
20 40 60 80 100 120 140 160 180 200
I
OUTP
(mA)
V
OUTP
=4.6V, I
OUTN
=0mA,Topt=25
°C
100
90
Efficiency
η
(%)
V
OUTN
=-4.9V, I
OUTP
=0mA,Topt=25
°C
1
2
3
4
5
6
6
5
4
3
2
1
1
2
3
4
5
6
PGND
V
OUTP
PV
CC
V
CC
GND
CE
7
8
9
10
11
12
TEST2 or V
REF
2
TEST1
or V
FBN
V
OUTN
L
XN
L
XP1
L
XP2
2
Efficiency
η
(%)
80
70
60
50
40
30
20
0
V
IN
=4.5V
V
IN
=3.7V
V
IN
=2.9V
20 40 60 80 100 120 140 160 180 200
I
OUTN
(mA)
) The tab is substrate level (GND).
2) The TEST1 pin and TEST2 pin connected to the GND level or should be open.
APPLICATIONS
Power source for active matrix OLED
No.EK-208-101001
Power source for battery-powered equipment
Step-up/Inverting DC/DC Converter
Ask gooogleman for help!
