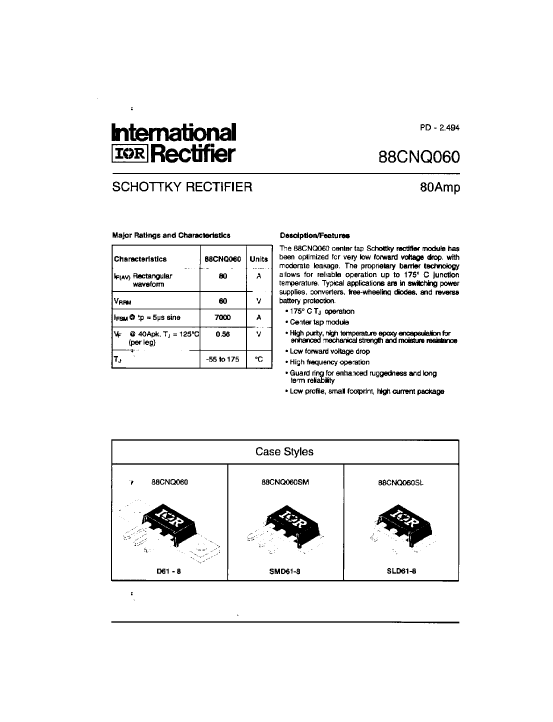

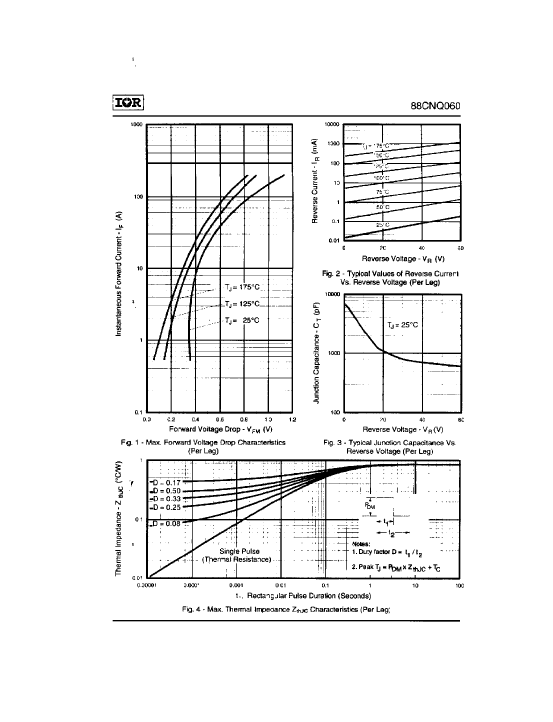

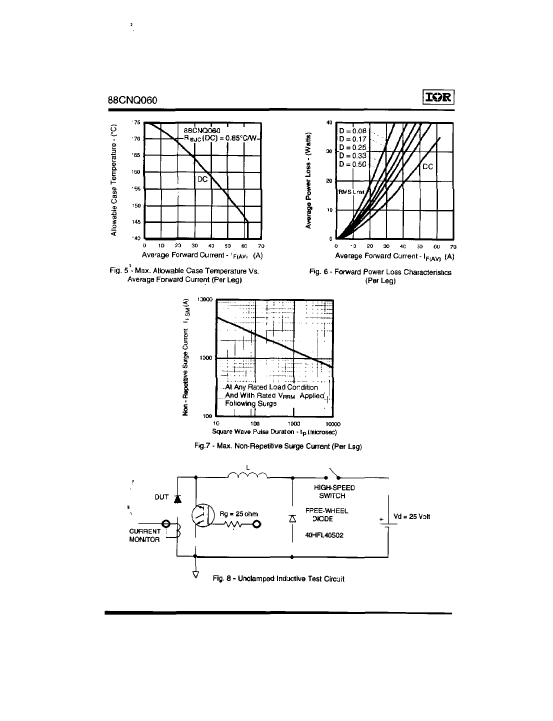

88CNQ060SLPBF

Description
Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 60V V(RRM), Silicon, SLD61-8, 2 PIN
Categorydiode    Rectifier diode
File Size106KB,6 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

88CNQ060SLPBF Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 60V V(RRM), Silicon, SLD61-8, 2 PIN

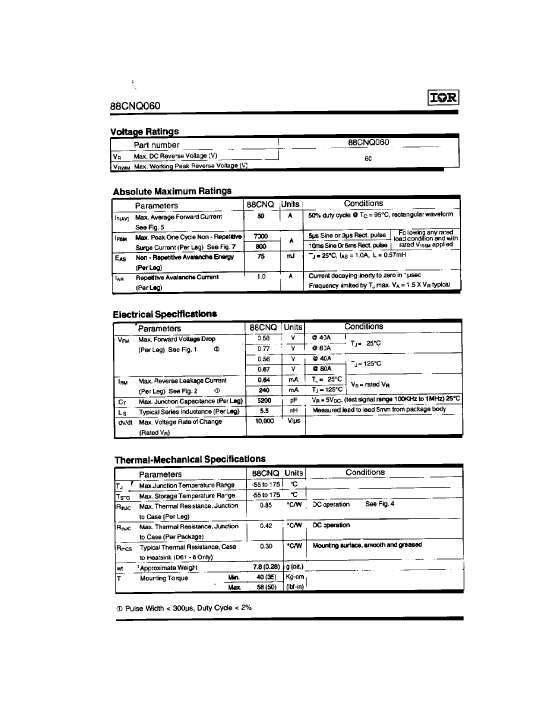

88CNQ060SLPBF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInternational Rectifier ( Infineon )

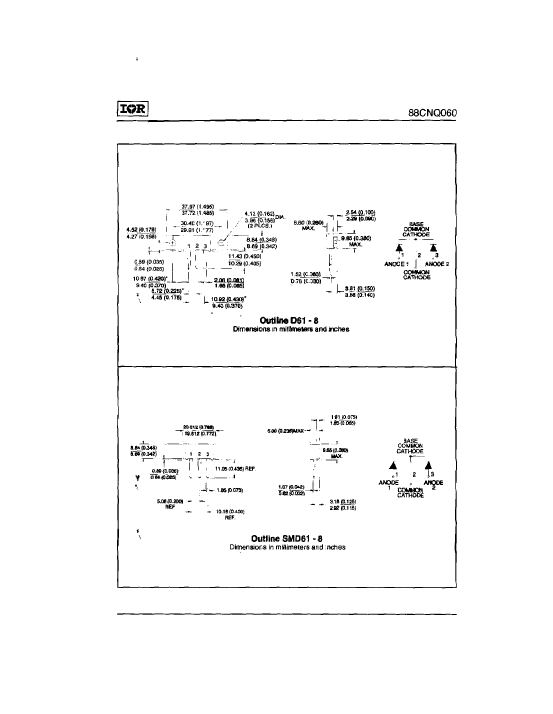

package instructionR-PSSO-G2
Contacts2
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresFREE WHEELING DIODE
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PSSO-G2
Maximum non-repetitive peak forward current7000 A
Number of components2
Phase1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-55 °C
Maximum output current80 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum repetitive peak reverse voltage60 V
surface mountYES
technologySCHOTTKY
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperature40
Base Number Matches1

88CNQ060SLPBF Related Products

88CNQ060SLPBF 88CNQ060SMPBF
Description Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 60V V(RRM), Silicon, SLD61-8, 2 PIN Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 60V V(RRM), Silicon, SMD61-8, 3 PIN
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon )
package instruction R-PSSO-G2 R-PSIP-T3
Contacts 2 3
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features FREE WHEELING DIODE FREE WHEELING DIODE
application GENERAL PURPOSE GENERAL PURPOSE
Shell connection CATHODE CATHODE
Configuration COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
JESD-30 code R-PSSO-G2 R-PSIP-T3
Maximum non-repetitive peak forward current 7000 A 7000 A
Number of components 2 2
Phase 1 1
Number of terminals 2 3
Maximum operating temperature 175 °C 175 °C
Minimum operating temperature -55 °C -55 °C
Maximum output current 80 A 80 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE IN-LINE
Peak Reflow Temperature (Celsius) 260 260
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 60 V 60 V
surface mount YES NO
technology SCHOTTKY SCHOTTKY
Terminal form GULL WING THROUGH-HOLE
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature 40 40
Base Number Matches 1 1
