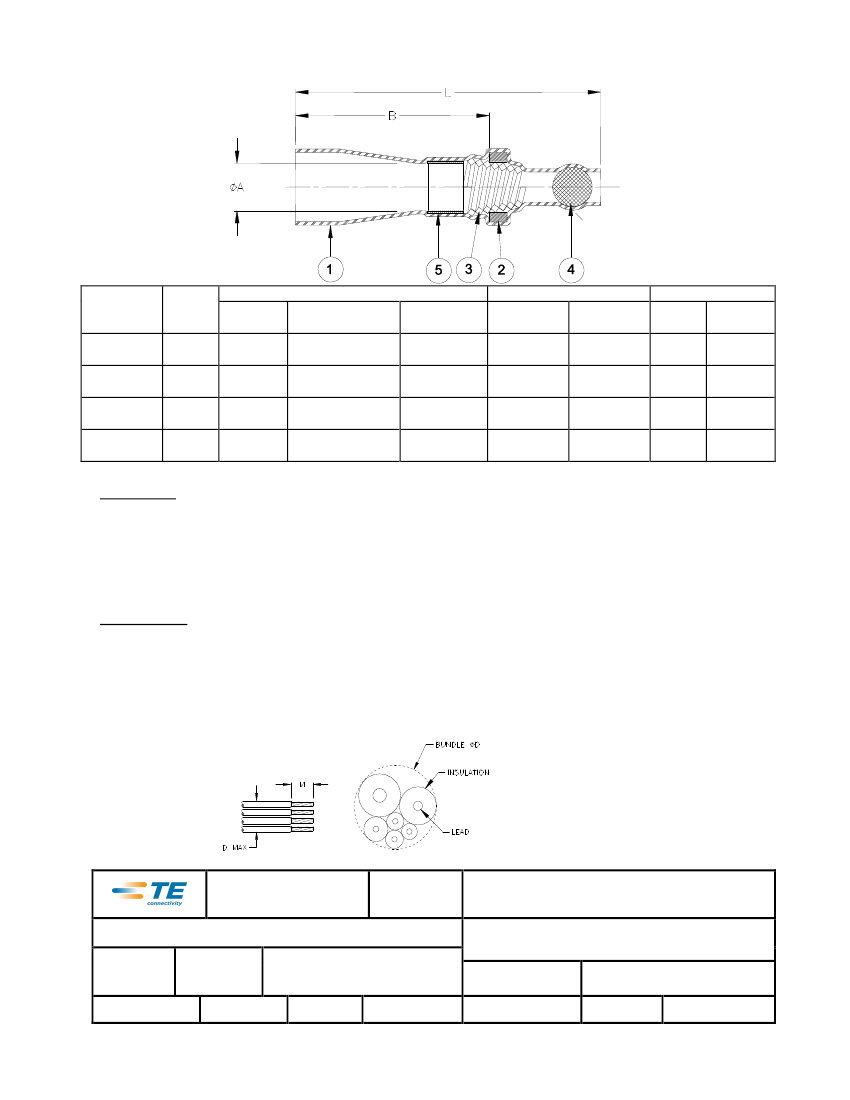

SPECIFICATION CONTROL DRAWING
L3.5
(L0.140)
SGRS-1
Green
38.3
(1.510)
SGRS-2
Red
37.7
(1.485)
SGRS-3
Blue
45.5
(1.790)
SGRS-4
Yellow
45.0
(1.770)
These products are tested to RB109.
Product
Name
Ball
Color
Product Dimensions
øA
3.6 +0.4/-0.2
B
26.02.0
(1.0250.079)
23.52.0
(0.9250.079)
26.52.0
(1.0450.079)
25.53.0
(1.0050.118)
Copper Cross Section
Min.
Max.
2
2
mm (CMA) mm (CMA)
0.7 (1400)
2.4 (4800)
2.0 (4000)
3.5 (7000)
7.5 (15000)
4.0(8000)
8.0(16000)
12.0(24000)
(0.140
+0.016/-0.008
)
5.0
+0.7/-0.2
(0.200
+0.028/-0.008
)
7.5
+0.9/-0.2
(0.295
+0.035/-0.008
)
9.4
+0.9/-0.3
(0.370
+0.035/-0.012
)
Bundle Diameter
øD
M1
max
(M0.04)
3.3
15.0
(0.130)
(0.590)
4.5
15.0
(0.175)
(0.590)
7.0
15.0
(0.275)
(0.590)
9.0
15.0
(0.350)
(0.590)
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.
2. SOLDER PREFORM WITH FLUX:
SOLDER: TYPE Sn60 per ANSI-J-STD-006.
FLUX:
TYPE ROM1 per ANSI-J-STD-004.
3. CONICAL SPRING: Square copper wire.
4. END CLOSURE BALL: Tinted glass. Color: see table.
5. SEALING INSERT: Hot melt adhesive.
APPLICATION
1. These controlled soldering devices are designed for stub splicing of stranded wires, with bare copper conductors and an
insulation rated for 85C minimum and 125C continuous maximum.
2. Temperature range: Class 3, -40C to +125C.
3. Vibration range: Class 1 (body).
4. Seal range: Class 2 (watertight against immersion). Immersion resistant sealing is dependent on the wire combinations used.
The user should test specific wire combinations. Refer to TE Connectivity / Raychem Specification RB109 for procedures.
5. For installation procedure and application equipment, consult RPIP-820-00.
For best results, prepare the cable as shown:
TE Connectivity
300 Constitution Drive,
Menlo Park, CA. 94025, U.S.A.
Unless otherwise specified dimensions are in millimeters.
[Inches dimensions are shown in brackets]
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
DRAWN BY:
ANGLES: N/A
TITLE:
Raychem
SOLDERGRIP DEVICE
STUB SPLICE
DOCUMENT NO.:
SGRS-X
REV.:
DATE:
TE Connectivity reserves the right to amend
this drawing at any time. Users should evaluate
ROUGHNESS IN
the suitability of the product for their
MICRON
application.
CAGE CODE:
REPLACES:
DCR NUMBER:
A1
SCALE:
SIZE:
16-Apr-11
SHEET:
P.TALLY
06090
D040187
D060343
NTS
© 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights Reserved.
If this document is printed it becomes uncontrolled. Check for the latest revision.
Print Date: 9-May-11
A
1 of 1
