636-40ATA01-37: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket; CategoryThe connector; File Size86KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

636-40ATA01-37 Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket

636-40ATA01-37 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	636
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Mass Termination

IDC Systems

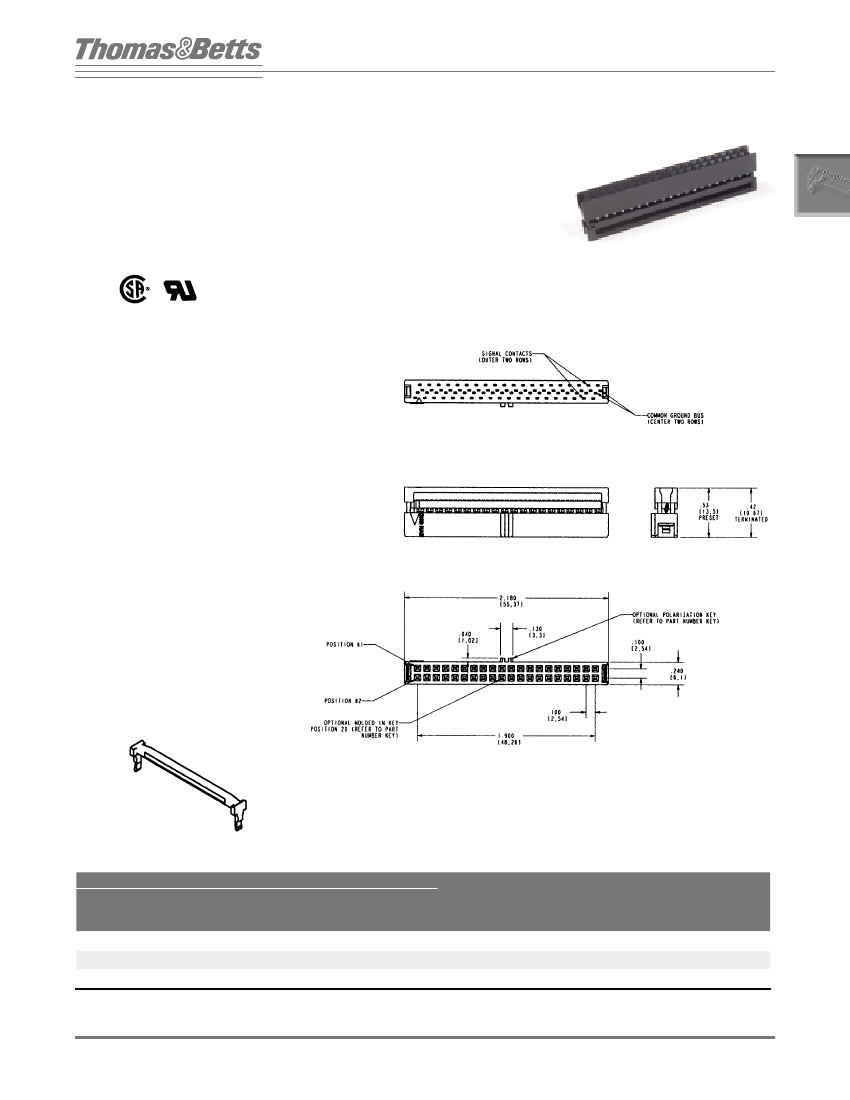

ULTRA - ATA 40 POSITION

FEMALE SOCKET

CONNECTOR

WITH 15µ INCHES GOLD

.100" x .100" CENTERS I/O

FOR .025" PITCH CABLE

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass filled thermoplastic

rated UL 94V-0

C

OLOR

:

Blue (system), Black (primary), or Gray

(secondary)

C

ONTACTS

:

Phosphor bronze 15µ inches mini-

mum gold over 50µ inches nickel in contact

zone; tin/lead over nickel in termination area

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

0.5 Amp

I

NSULATION

R

ESISTANCE

:

>500 MΩ @ 200 VDC

D

IELECTRIC

S

TRENGTH

:

> 250 VRMS at sea level

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-55°C to 105°C

C

ABLE

R

EQUIREMENTS

.025 C

ENTERLINE

:

See Page 102-114

M

ATING

C

ONNECTORS

H

EADERS

:

See pages 26-44

M

ALE

P

LUG

:

See pages 47-49

A

PPLICATION

T

OOLING

H

AND

T

OOL

:

use Die

B

ENCH

P

RESS

(

MANUAL

):

use Platen

use Base Plate

B

ENCH

P

RESS

(

PNEUMATIC

):

use Platen

use Base Plate

779-2100

779-2150

779-3200

779-3130

779-3151

779-3500XT

779-3130

779-3151

Strain Relief

Sold Separately

Ordering Information

SOCKET W/

CENTER

POL. TAB

636-40ATA01-17

636-40ATA01-27

636-40ATA01-37

CATALOG NUMBERS

SOCKET

SOCKET W/ CENTER

W/ POS. #20

POL. TAB AND POS.

MOLDED IN

#20 MOLDED IN

636-40ATA10-17

636-40ATA10-27

636-40ATA10-37

636-40ATA11-17

636-40ATA11-27

636-40ATA11-37

DIMENSIONS IN MM (INCHES)

A

STRAIN RELIEF

636-40ATASR

COLOR

Blue

Black

Gray

DEVICE

System

Primary

Secondary

55.30 (2.177)

48.26 (1.900)

3.80 (.150)

B

C

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

11

636-40ATA01-37 Related Products

	636-40ATA01-37	636-40ATA01-17	636-40ATA11-17	636-40ATA11-27	636-40ATA01-27	636-40ATA11-37	636-40ATA10-17	636-40ATA10-27	636-40ATA10-37
Description	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	636	636	636	636	636	636	636	636	636
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	40	40	40	40	40	40	40	40	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	-	-
