N74AC02PWDH-T datasheet, PDF - EEWORLD Datasheet

N74AC02PWDH-T: DescriptionIC AC SERIES, QUAD 2-INPUT NOR GATE, PDSO14, Gate; Categorylogic; File Size172KB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

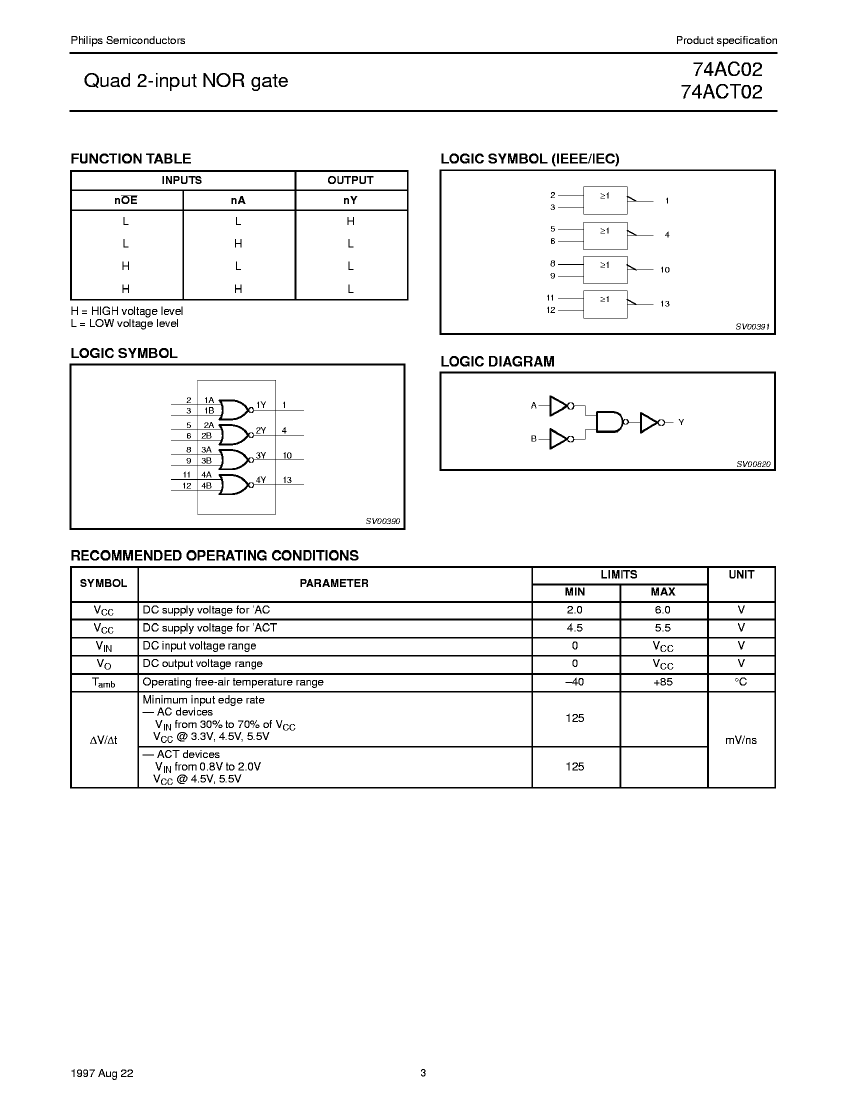

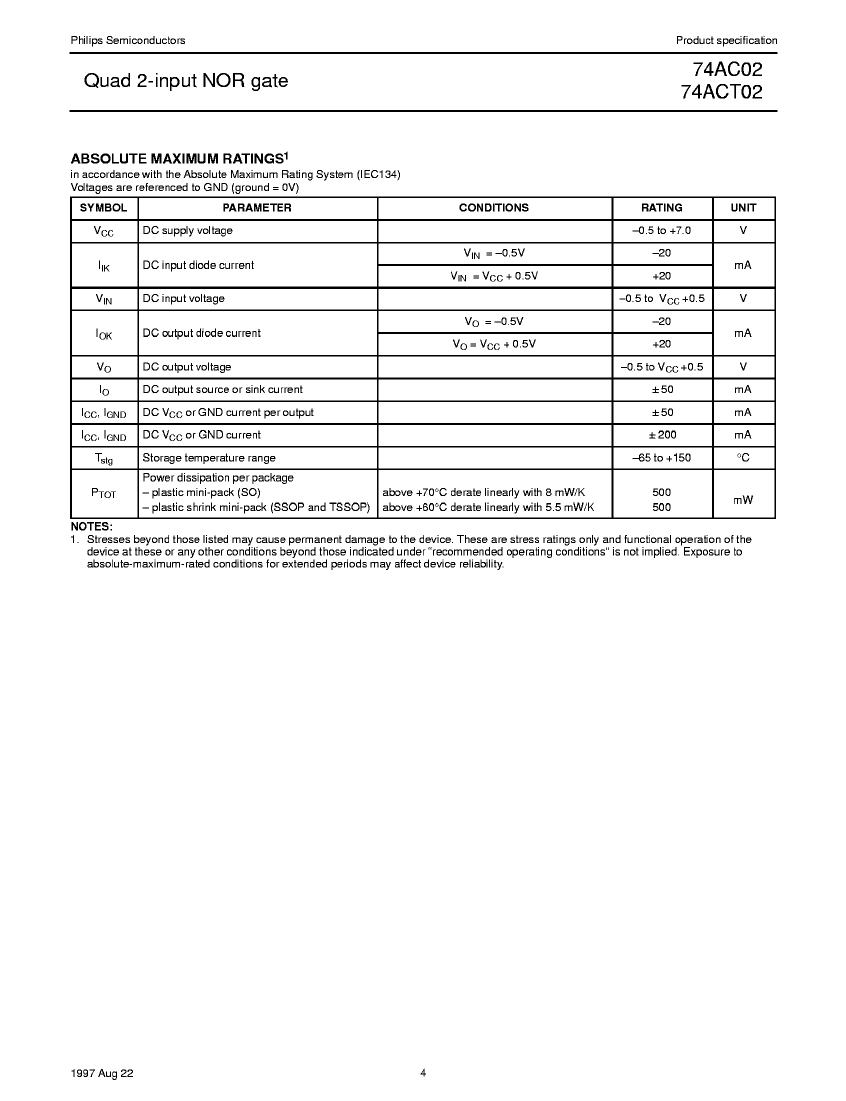

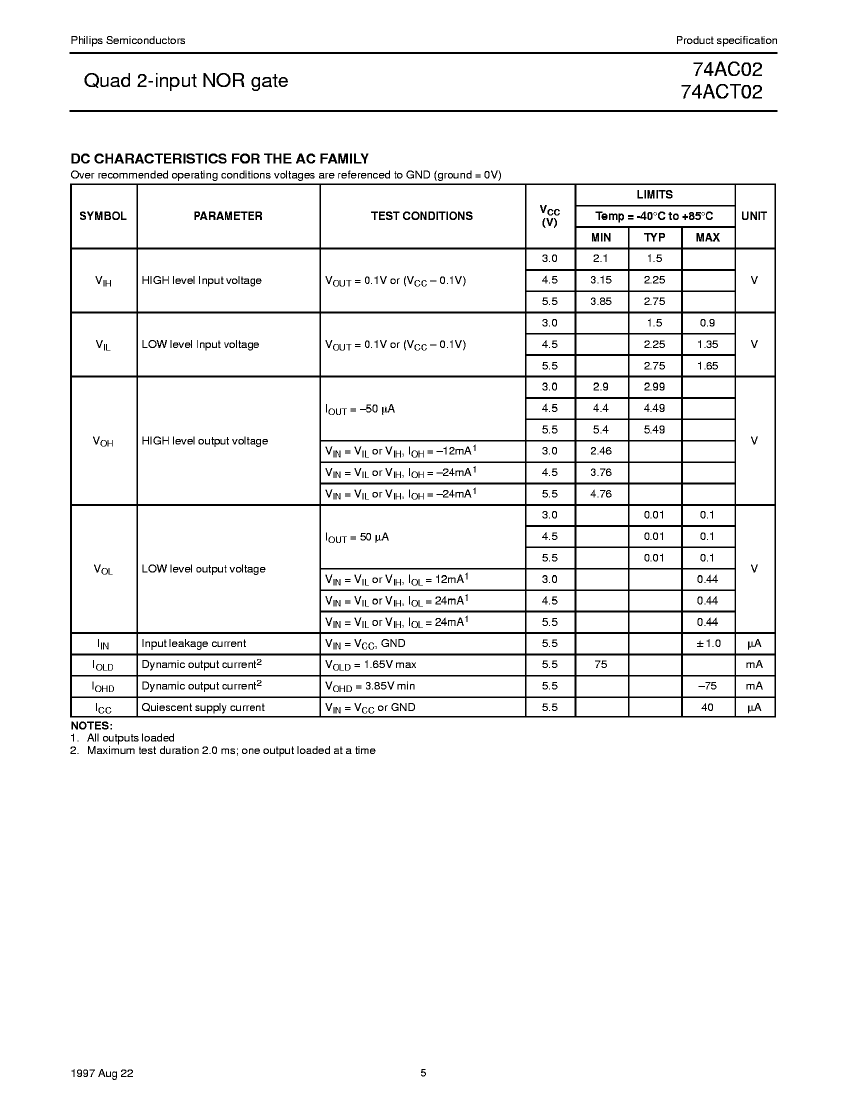

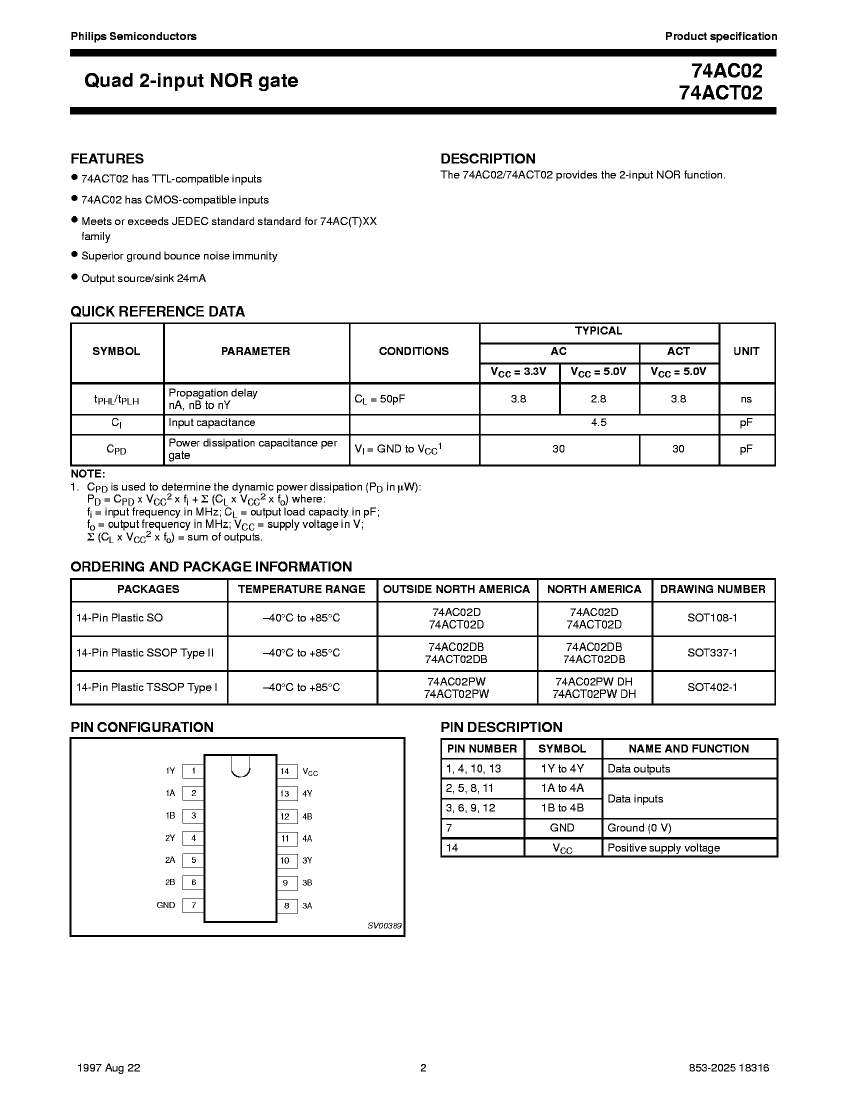

N74AC02PWDH-T Overview

IC AC SERIES, QUAD 2-INPUT NOR GATE, PDSO14, Gate

Parameter Name	Attribute value
Maker	NXP
package instruction	TSSOP,
Reach Compliance Code	unknown
Is Samacsys	N
series	AC
JESD-30 code	R-PDSO-G14
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5.5 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1
