74AC823LCTR datasheet, PDF - EEWORLD Datasheet

74AC823LCTR: DescriptionBus Driver, AC Series, 1-Func, 9-Bit, True Output, CMOS, CQCC28, CERAMIC, LCC-28; Categorylogic; File Size163KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

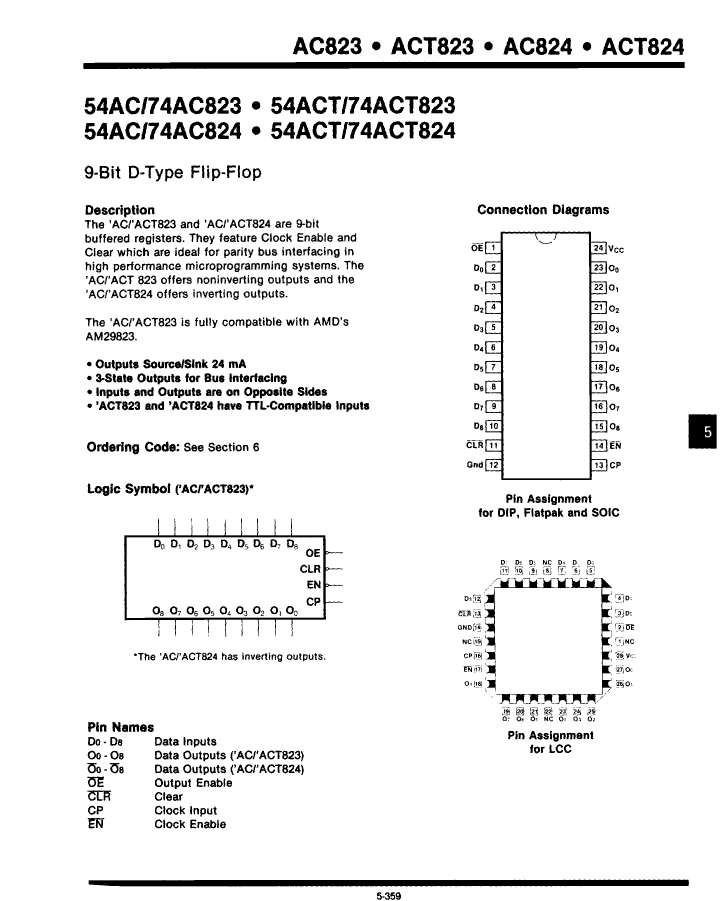

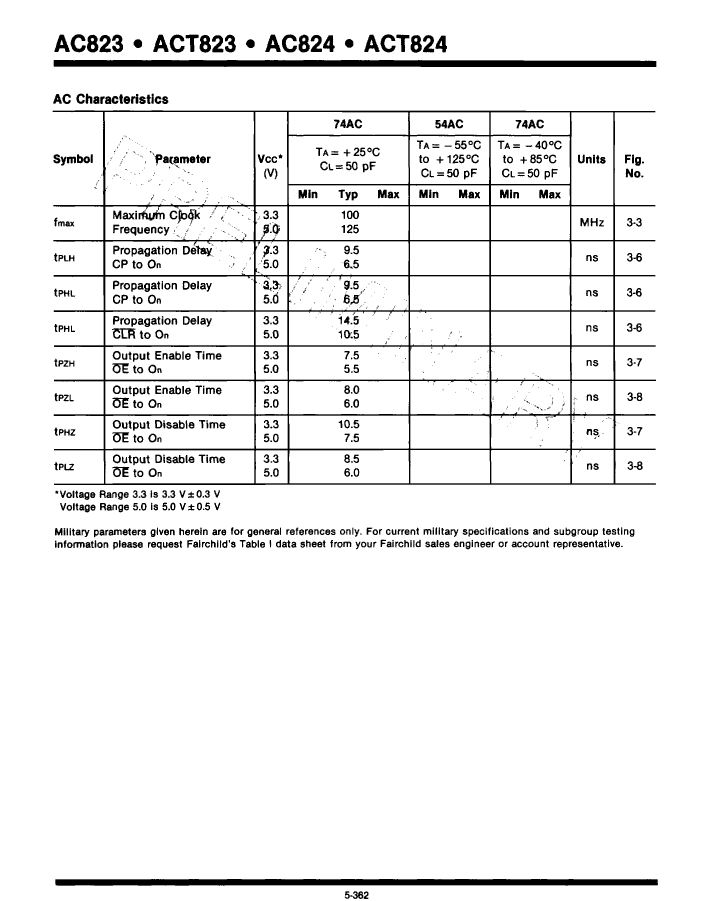

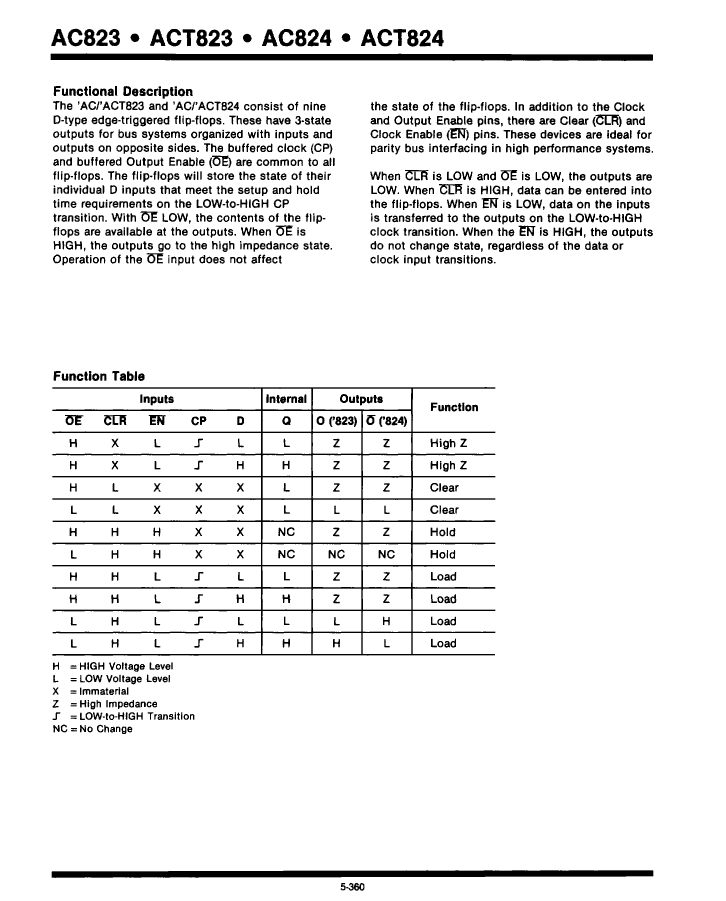

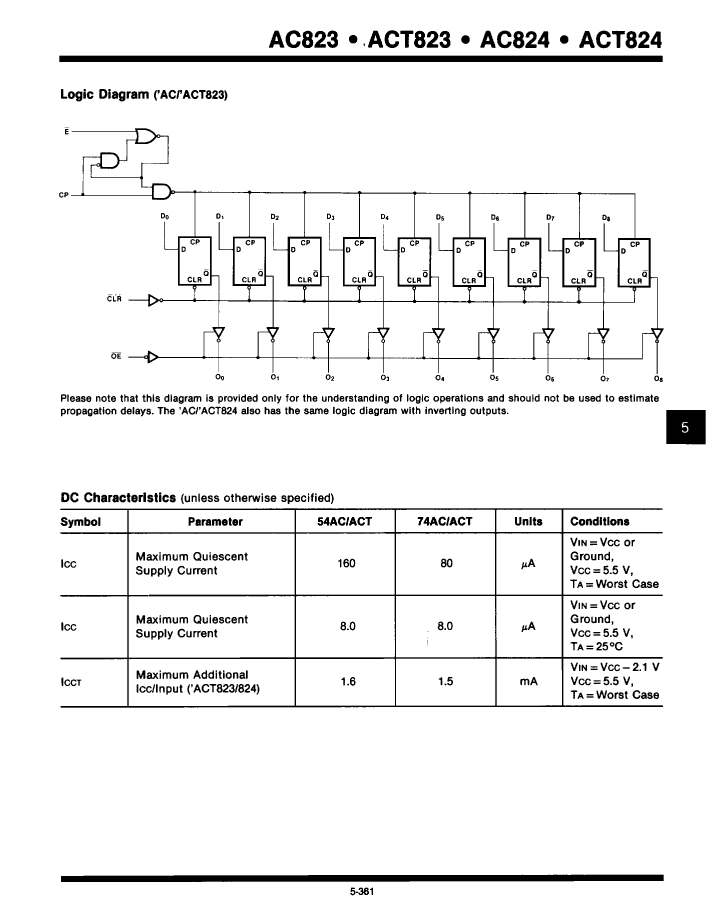

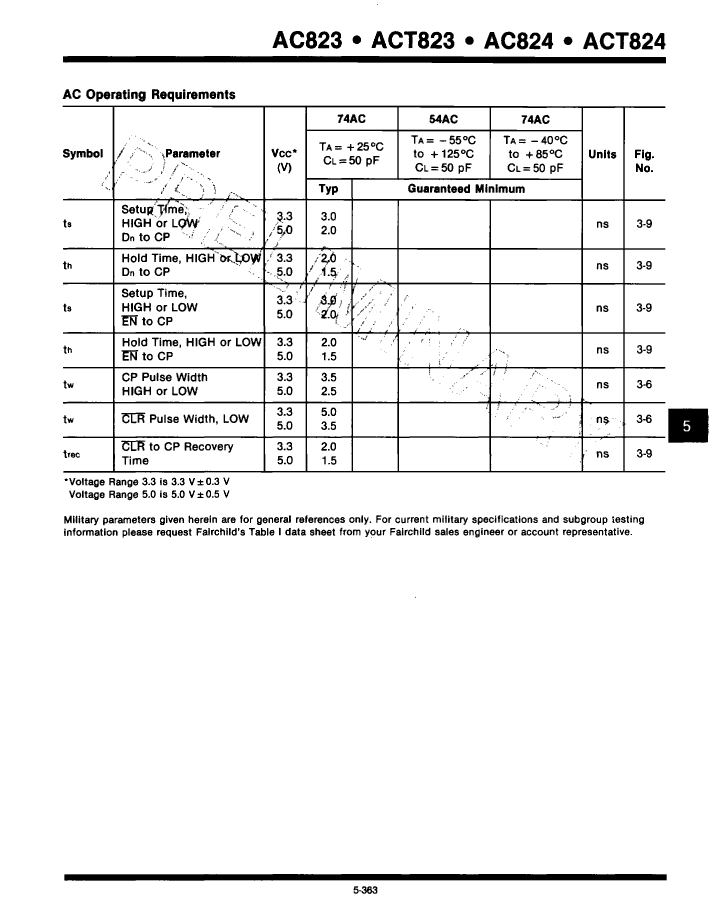

74AC823LCTR Overview

Bus Driver, AC Series, 1-Func, 9-Bit, True Output, CMOS, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITH CLEAR AND CLOCK ENABLE
series	AC
JESD-30 code	S-CQCC-N28
length	11.328 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	9
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.328 mm
Base Number Matches	1
