Data Sheet
0.8 Amp MEGARECTIFIERS
Mechanical Dimensions
JEDEC
D0-41
.080
.107
.205
.160
1.00 Min.
GP08A . . . 08J Series
Description
.031 typ.
Features
n
HIGH TEMPERATURE METALLURGI-
CALLY BONDED CONSTRUCTION
n
SINTERED GLASS CAVITY-FREE
JUNCTION
n
0.8 AMP OPERATION @ T
A
= 55°C, WITH
NO THERMAL RUNAWAY
n
TYPICAL I
R
< 0.1
µAmp
Electrical Characteristics @ 25
o
C.
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
Current 3/8" Lead Length @ T
A
= 55°C
Non-Repetitive Peak Forward Surge Current...I
FSM
½ Sine Wave Superimposed on Rated Load
Forward Voltage @ 1.0A...V
F
Full Load Reverse Current...I
R
(av)
Full Cycle Average @ T
A
= 55°C
DC Reverse Current...I
R
@ Rated DC Blocking Voltage
T
A
= 25°C
T
A
= 125°C
GP08A . . . 08J Series
GP08A
50
35
50
GP08B
100
70
100
GP08D
200
140
200
GP08G
400
280
400
GP08J
600
420
600
Units
Volts
Volts
Volts
Amps
Amps
Volts
µAmps
............................................. 0.8 ...............................................
............................................. 2 5 ...............................................
............................................. 1.3 ...............................................
............................................. 3 0 ...............................................
............................................. 5.0 ...............................................
............................................. 5 0 ...............................................
............................................. 8.0 ...............................................
............................................. 5 5 ...............................................
.........................................
2.0
..........................................
µAmps
µAmps
pF
°C
/ W
µS
°C
Typical Junction Capacitance...C
J
(Note 1)
Typical Thermal Resistance...R
θJA
(Note 2)
Typical Reverse Recovery Time...t
RR
(Note 3)
Operating & Storage Temperature Range...T
J
, T
STRG
......................................... -65 to 175 ..........................................
Page 6-2
Data Sheet
0.8 Amp MEGARECTIFIERS

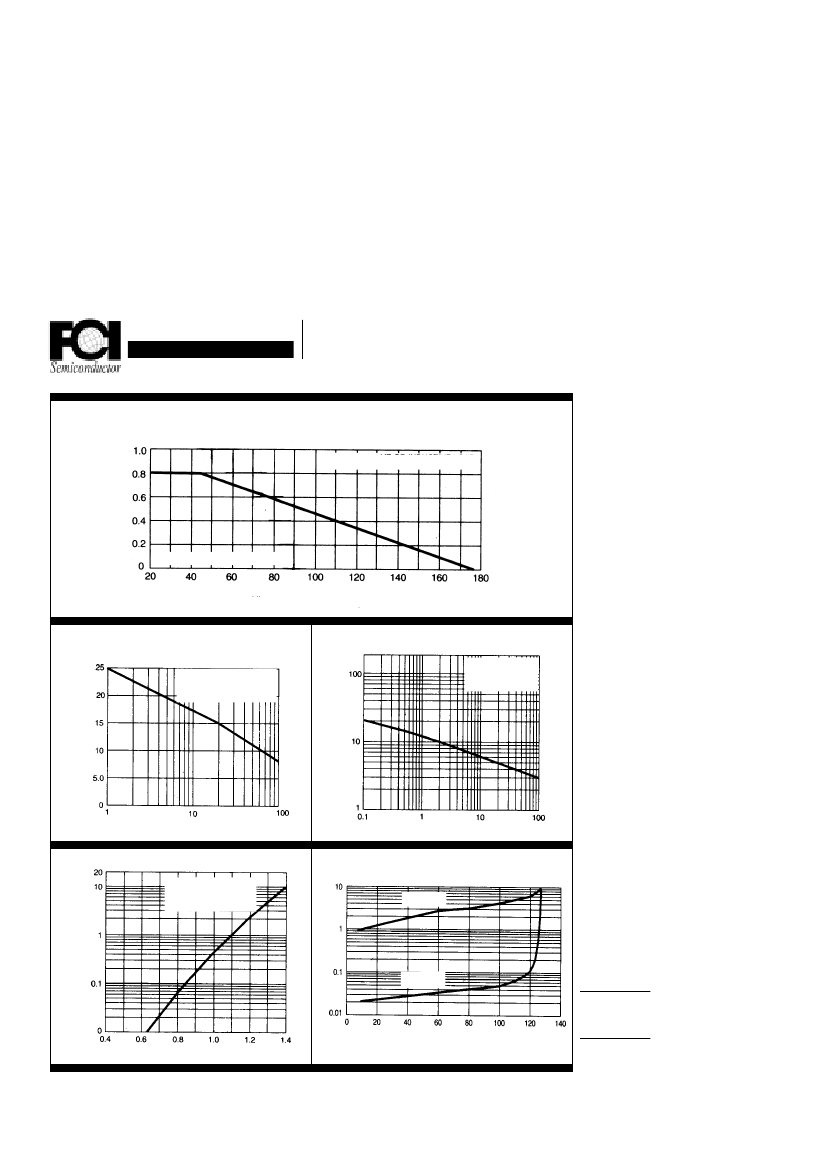

Forward Current Derating Curve
60 Hz RESISTIVE OR INDUCTIVE LOAD
0.375″ (9.5mm) LEAD LENGTH
″
°
T
A
= Ambient Temperature (°C)
Typical Junction Capacitance
T
J
= 25°C
°
f = 1.0 MHZ
V
SIG
= 50mVp-p
Non-Repetitive
Peak Forward Surge Current
T
J
= T
J
max.
8.3 mS Single Half Sine Wave
(Jedec Method)
Amps
Number of Cycles @ 60 HZ
Typical Instantaneous Forward Characteristics
T
J
= 25°C
°
Pulse Width = 300µS
µ
1% Duty Cycle
pF
Reverse Voltage (Volts)
Typical Reverse Characteristics
T
J
= 100°C
°
µ
Amps
T
J
= 25°C
°
Ratings at
25 Deg. C ambient
temperature
unless otherwise
specified.
Single Phase Half
Wave, 60 HZ
Resistive or
Inductive Load.
For Capacitive
Load, Derate
Current by 20%.
Amps
Volts
Percent of Rated Peak Voltage
NOTES:
1. Measured @ 1 MHZ and applied reverse voltage of 4.0V.
2. Thermal Resistance from Junction to Ambient at 3/8" Lead Length, P.C. Board Mounted.
3. Reverse Recovery Condition I
F
= 0.5A, I
R
= 1.0A, I
RR
= 0.25A.
Page 6-3
GP08A . . . 08J Series
Amps
